Overview

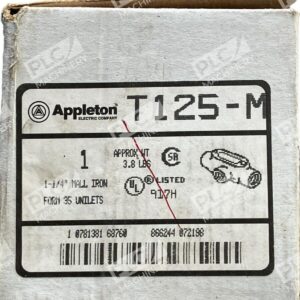

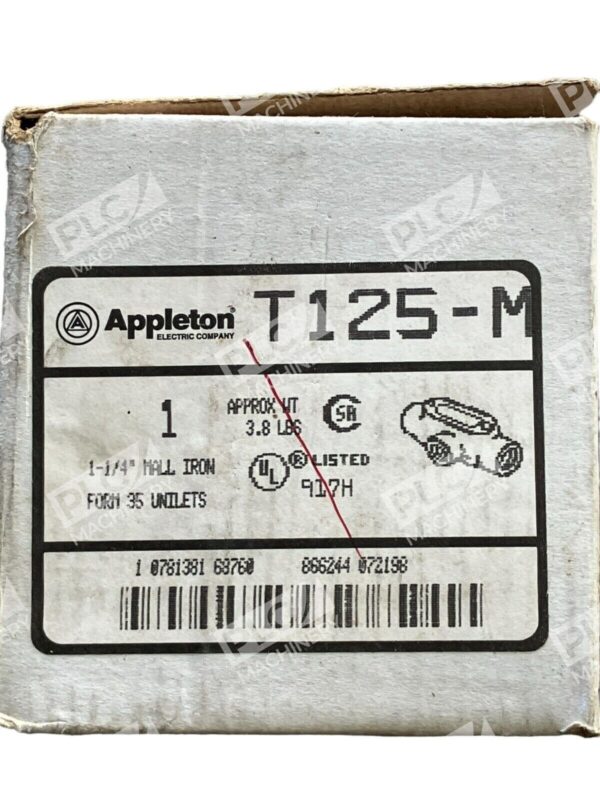

The Appleton T125-M is a Form 35 malleable iron Unilets conduit outlet body designed for use with 1-1/4″ rigid metal conduit (RMC) and intermediate metal conduit (IMC). This Type T body provides three hub connections, allowing electricians and system integrators to efficiently change direction, splice conductors, and add branch runs within a single fitting. The tri-coated malleable iron construction delivers high tensile strength, ductility, and superior corrosion resistance.
Key Features

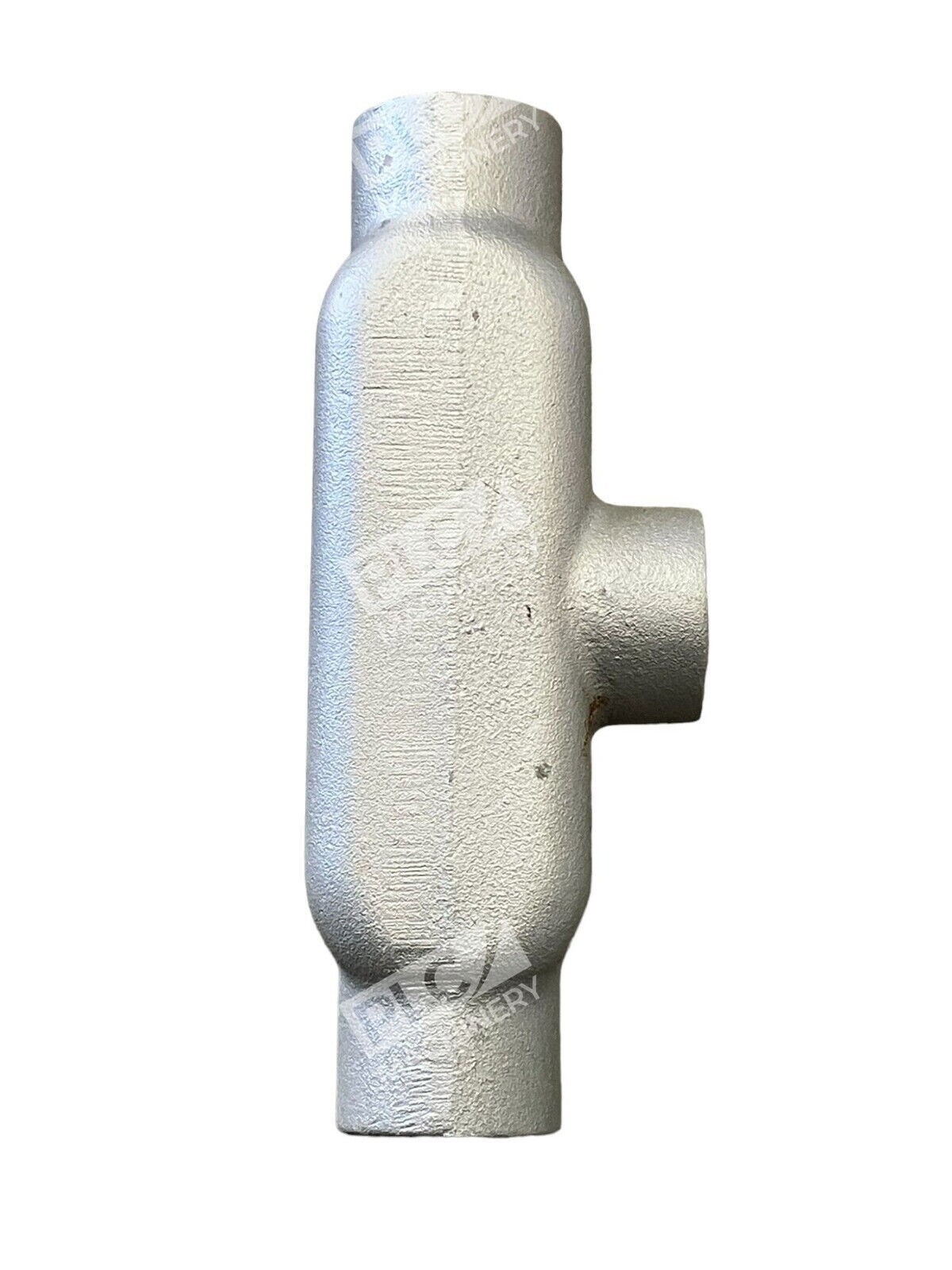

- Type T three-hub configuration — accommodates multiple conduit runs in a compact footprint
- Smooth rounded integral bushings — protect conductor insulation during wire pulling and reduce sharp edges
- Tapered FNPT threads — ensure tight, rigid joints and excellent ground continuity for fault protection
- Malleable iron Form 35 construction — offers high tensile strength, impact resistance, and shock resistance
- Tri-coated finish — enhanced corrosion and abrasion resistance in demanding environments
- Pulling fitting and maintenance access — serves as pulling point for cable runs; permits conductor access for splicing and troubleshooting
Technical Specifications
- Catalog Number: T125-M
- Hub Size: 1-1/4″ (NPT tapered threads)
- Body Type: Type T (three hubs)
- Form: Form 35
- Material: Malleable iron, tri-coated
- Thread Type: Tapered FNPT (Female National Pipe Thread)
- Mounting: Surface mount (round back design)
- UPC Code: 781381687607
- Conduit Compatibility: Rigid metal conduit, IMC (intermediate metal conduit)
- Certifications: NEMA FB-1 enclosure; suitable for Class I, Division 2 hazardous locations per NEC 501.10(B)(4)
Typical Applications
The Appleton T125-M is widely used in industrial electrical installations, manufacturing facilities, hazardous area applications, and commercial projects requiring:
- Conduit direction changes and branch connections in medium-gauge runs
- Pulling fittings for conductor installation and maintenance in existing installations
- Secured splicing and termination points within NEC-compliant rigid conduit systems
- Class I, Division 2 hazardous location installations (explosion-proof and hazardous duty environments)
- Maintenance and service access points in secured electrical distribution networks
Compatibility & Replacements
Compatible With
- Rigid metal conduit (RMC) — 1-1/4″ hub size with NPT tapered threads
- Intermediate metal conduit (IMC) — 1-1/4″ hub size
- NEC Class I, Division 2 hazardous location wiring systems
- Standard NEMA FB-1 electrical enclosure standards
- Appleton Form 35 conduit bodies, covers, and gasket assemblies
Replaces / Drop-In Replacement For
- Earlier Appleton Type T 1-1/4″ conduit bodies (verify thread compatibility)
- Other Form 35 malleable iron Type T three-hub bodies in same size range
- Verify compatibility with your system integrator or electrical contractor before ordering
Works With
- Appleton Form 35 covers and gaskets
- Standard NPT thread fittings and connectors (1-1/4″ tapered)
- Rigid metal and intermediate metal conduit systems per NEC Chapter 3
- Hazardous area conduit and wiring systems (Class I, Division 2)
