Overview

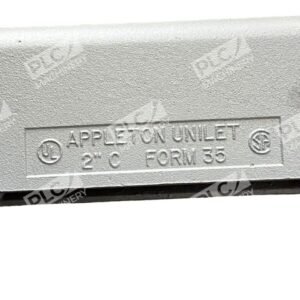

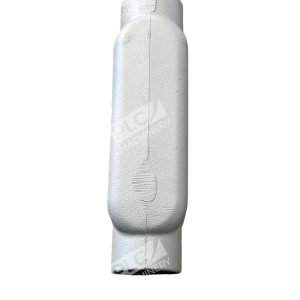

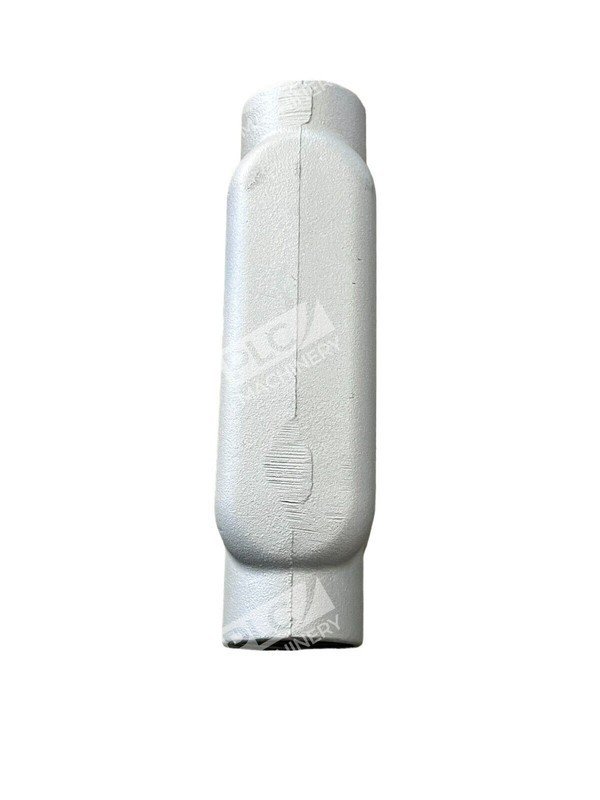

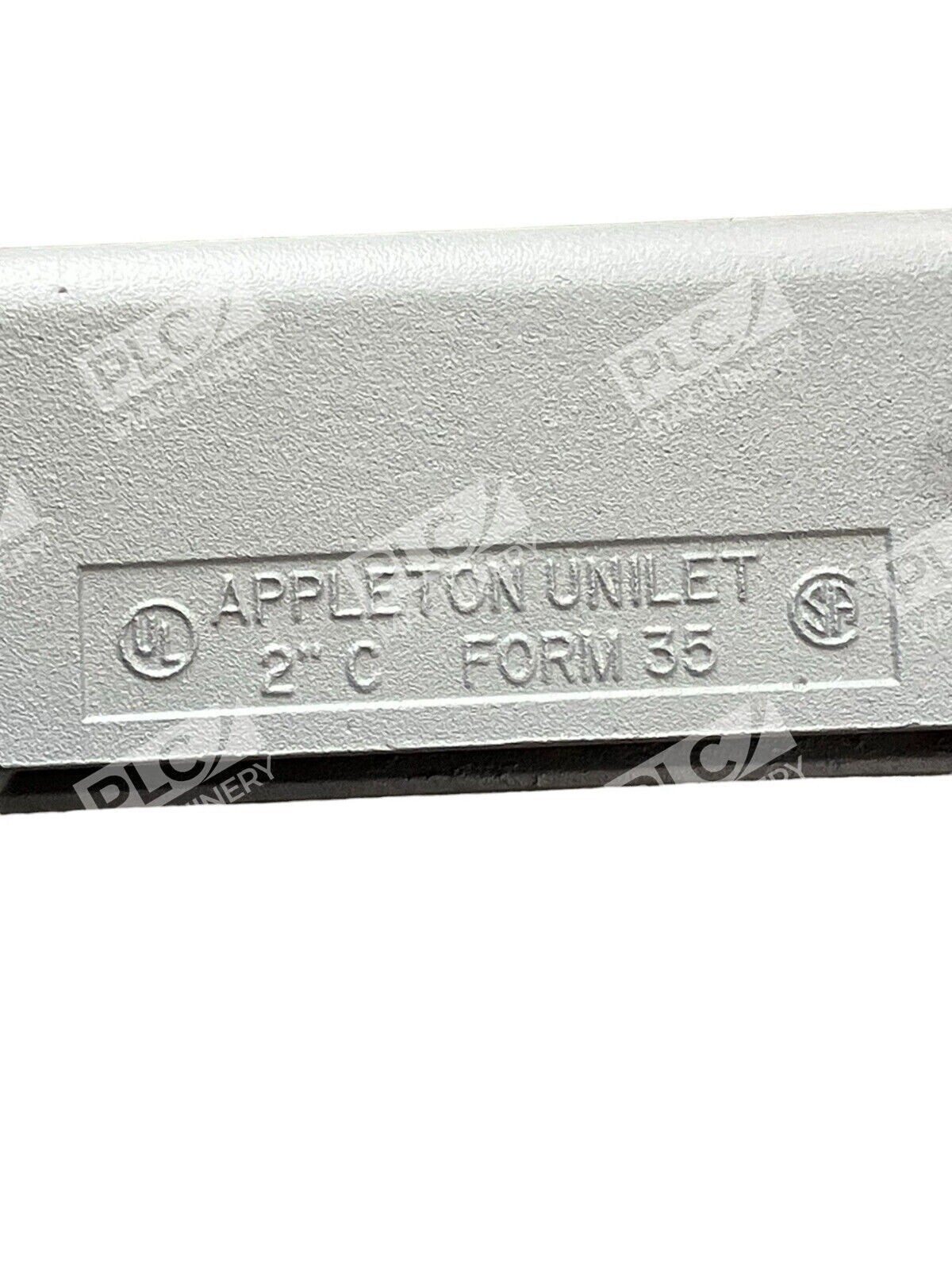

The Appleton C200-M is a UNILETS™ Form 35 Type C conduit outlet body engineered for commercial and industrial electrical installations. With a 2 in hub and 75 cu-in capacity, this malleable iron body features triple-coated finish for superior durability and corrosion resistance. Type C bodies allow directional changes and branch connections in rigid conduit systems.
Key Features
- Form 35 Malleable Iron Construction: High tensile strength and ductility with high corrosion-resistance and impact/shock resistance
- Triple-Coated Finish: Chromate, epoxy powder coat, and zinc-plating for extended service life
- Integral Bushing Protection: Smooth, rounded integral bushings protect conductor insulation
- Tapered FNPT Connection: Accurately tapped tapered threads for tight, rigid joints and excellent ground continuity
- Surface Mounting Design: Flat-back configuration for flush installation against surfaces
- Functional Versatility: Used to connect and change direction of conduit runs and allow connections for branch runs
Technical Specifications
- Manufacturer: Appleton Electric (Emerson)
- Part Number: C200-M
- Type: Type C (3-way outlet)
- Form: Form 35
- Hub Size: 2 inches
- Hub Quantity: 2

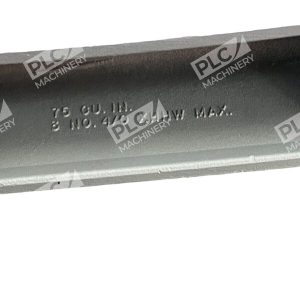

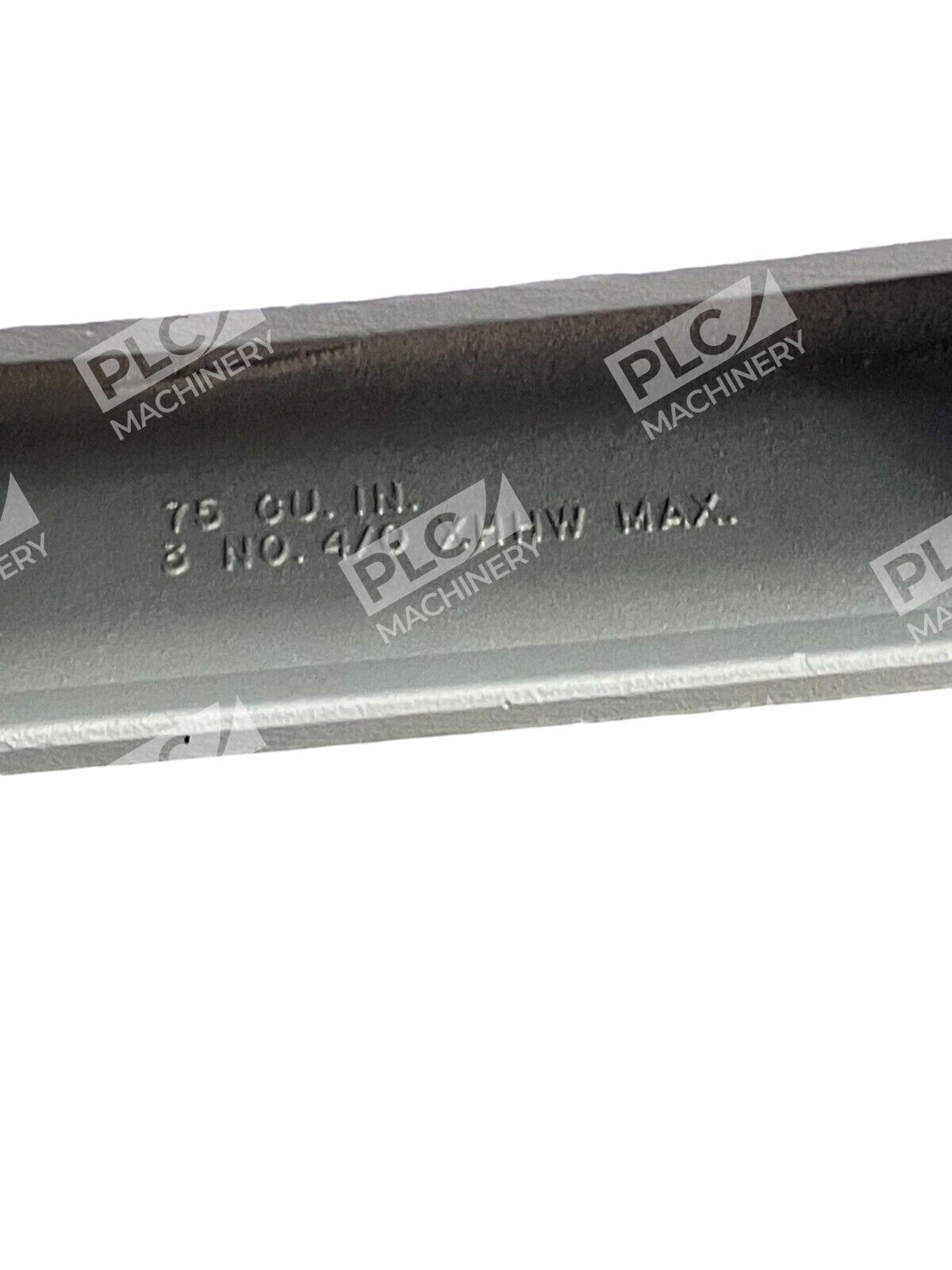

- Capacity: 75 cubic inches
- Material: Malleable Iron
- Finish: Triple-Coated (Chromate, Epoxy Powder, Zinc-Plated)
- Thread Type: Tapered FNPT (NPT)
- Mounting: Surface Mount
- Enclosure Rating: NEMA FB-1
- Dimensions: 11.63″ L × 3.13″ W × 3.38″ H
- Certifications: UL Listed (E2527), CSA Certified (065183), NEC/CEC Compliant
- Hazardous Location Rating: Class I Division 2 (per NEC 501.10(B)(4))
Typical Applications
Type C conduit bodies serve as pulling fittings, make bends in conduit systems, provide openings for splicing, connect and change direction of conduit runs, allow connections for branch runs, and permit access to conductors for maintenance. The C200-M is ideal for:
- Industrial electrical installations requiring 2″ rigid metal conduit (RMC)
- Commercial HVAC and mechanical systems with branch runs
- Cable tray transition points and pulling locations
- Hazardous classified areas (Class I, Division 2)
- Equipment cabinets and control panel wiring
Compatibility & Replacements
Compatible With
- 2″ Rigid Metal Conduit (RMC) systems
- 2″ Electrical Metallic Tubing (EMT) via appropriate adapters
- Standard tapered NPT thread fittings
- Appleton Form 35 covers and gaskets (sold separately)
- NEMA FB-1 rated electrical enclosures
Replaces / Drop-In Replacement For
The C200-M directly replaces earlier Form 35 Type C 2″ bodies and older Appleton conduit outlet designs. For model-specific interchange verification, consult the manufacturer’s compatibility chart or your system integrator.
Works With
- Standard 2″ rigid metal conduit (RMC) systems
- NPT-threaded hub connections
- Appleton UNILETS™ covers, gaskets, and sealing devices
- UL/CSA-rated electrical installations
- NEC Article 501 hazardous location wiring (Class I, Div. 2)
