Overview

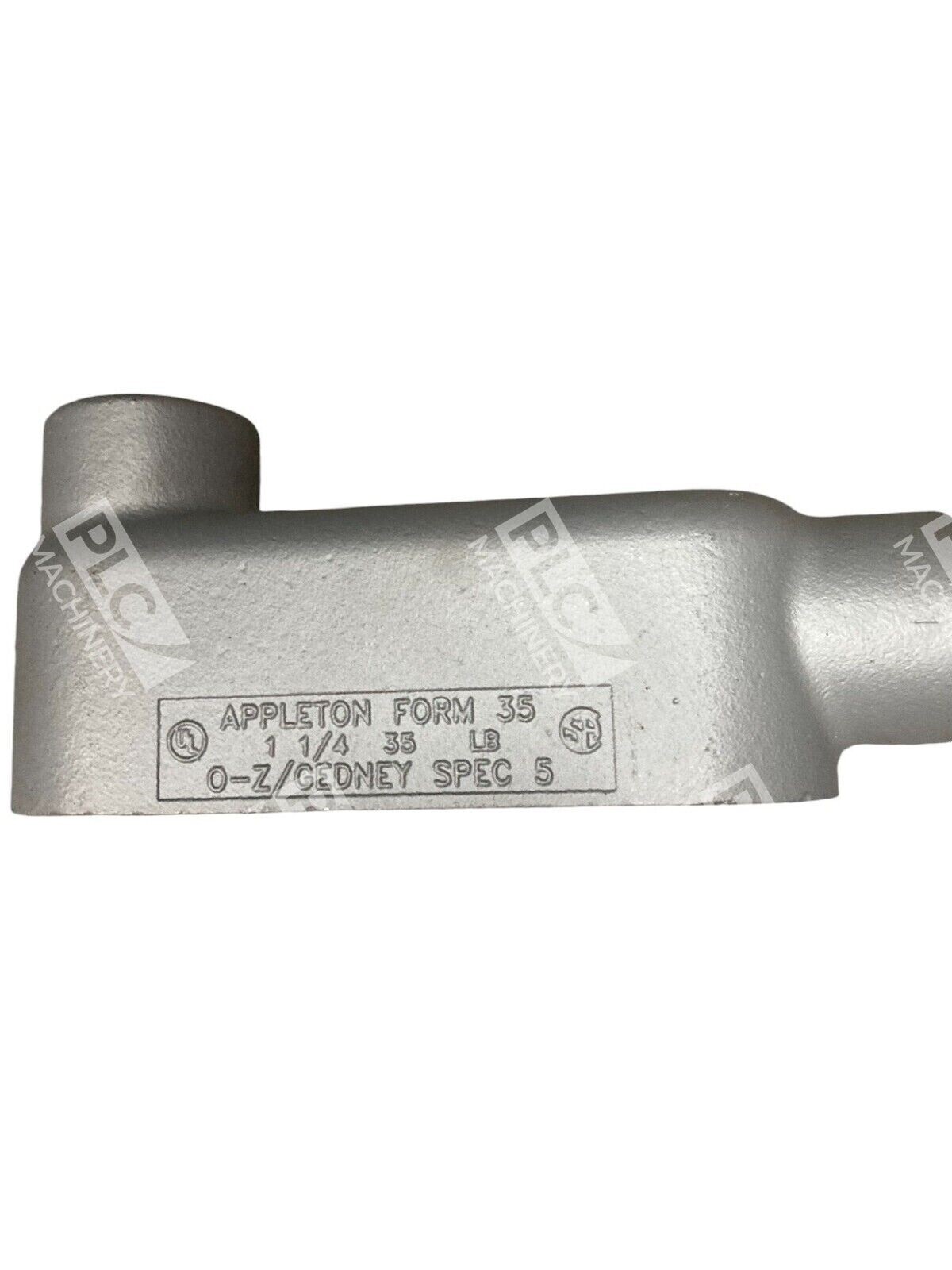

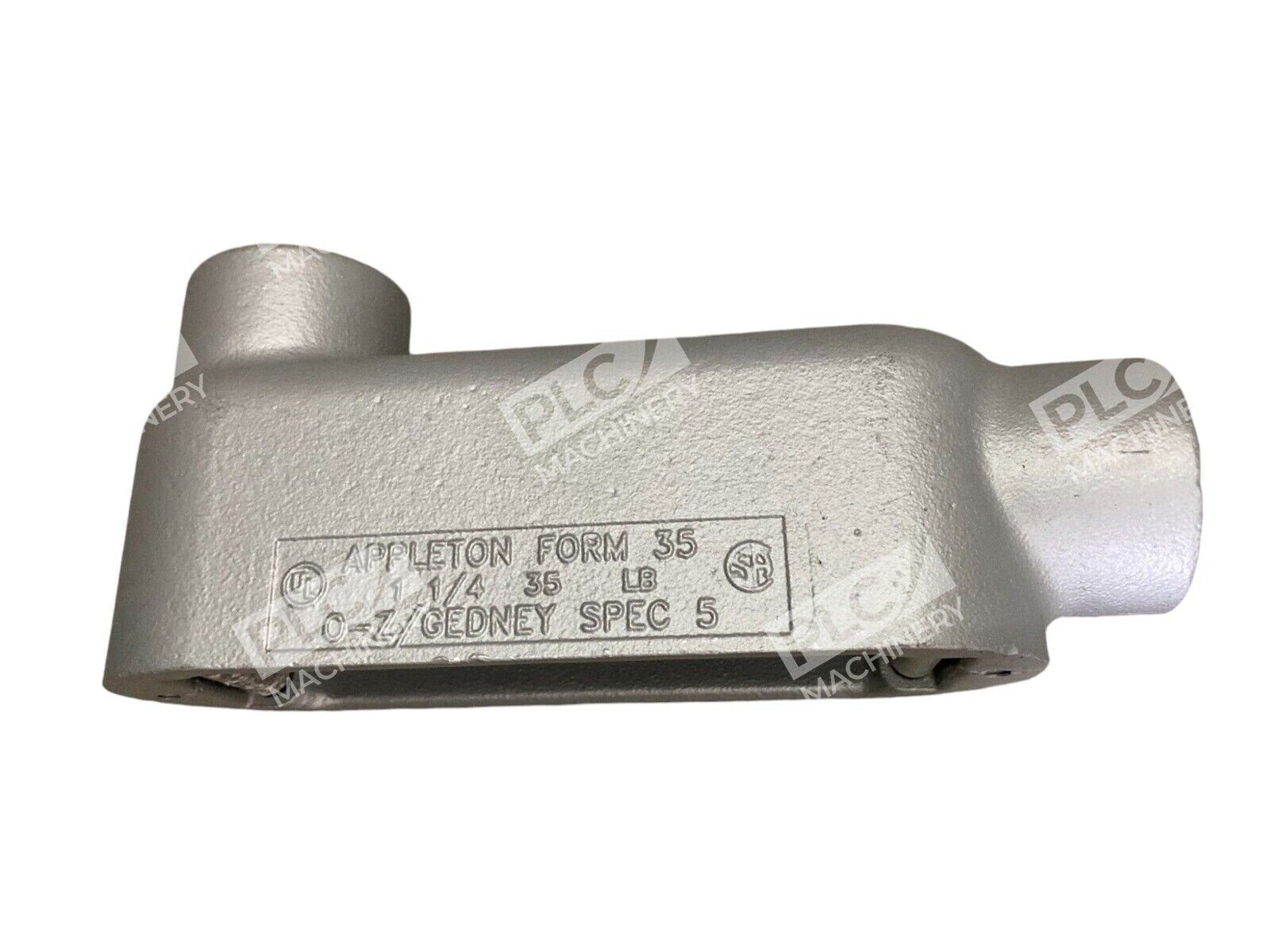

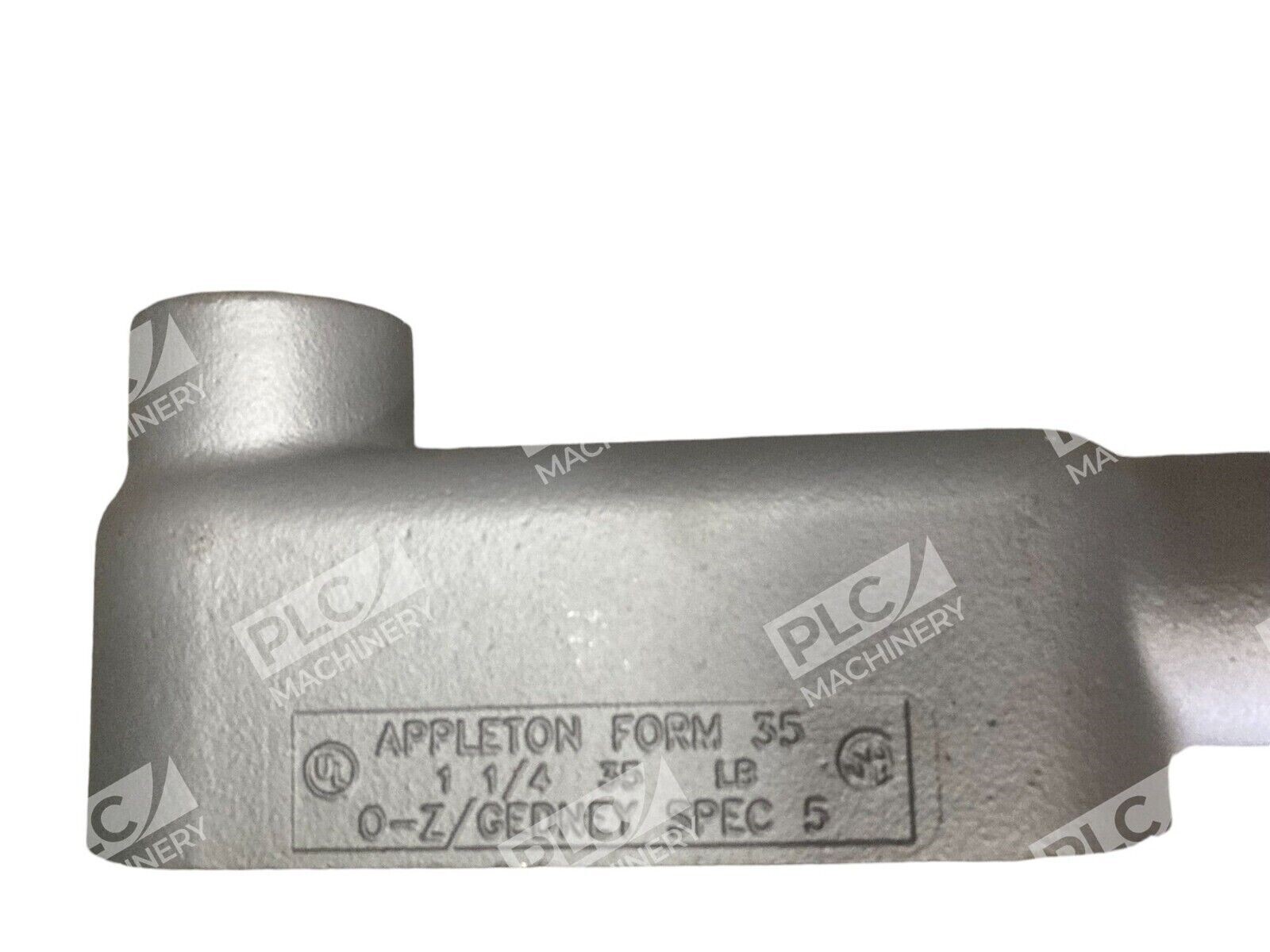

The Appleton Form 35 1-1/4″ O-Z/Gedney Spec 5 conduit outlet body is a malleable iron conduit fitting engineered for terminal connections where rigid or IMC conduit meets electrical enclosures. Form 35 designation indicates high-tensile-strength malleable iron construction, offering superior impact and shock resistance in commercial and industrial environments.
Key Features
- Malleable iron construction with Form 35 high-tensile specification
- Tapered FNPT (Female National Pipe Thread) hubs with integral smooth-bore bushing
- Protects conductor insulation and ensures tight, rigid joints
- Triple-coated finish for enhanced corrosion resistance
- Accurately tapped threads for excellent ground continuity
- Suitable for wet and dry indoor/outdoor installations
Technical Specifications
- Hub Size: 1-1/4 inches
- Material: Malleable Iron
- Form Type: 35
- Specification: O-Z/Gedney Spec 5
- Thread Type: Tapered FNPT
- Connection Type: Rigid threaded
- Finish: Triple-coated
- Application: RMC/IMC conduit termination
Typical Applications
- Terminal connections at electrical switch/outlet boxes
- Junction box terminations
- Lamp fixture and fixture support terminations
- Industrial control enclosure conduit entry points
- Outdoor/wet location installations requiring sealed, corrosion-resistant fittings
- Bonding and grounding rigid conduit runs
Compatibility & Replacements
Compatible With
- Rigid Metal Conduit (RMC)
- Intermediate Metal Conduit (IMC)
- Standard electrical enclosures and junction boxes
- Appleton UNILETS conduit body series
- Standard 1-1/4″ NPT threaded connections
Replaces / Drop-In Replacement For
- O-Z/Gedney 1-1/4″ Form 35 conduit outlet bodies
- Older Appleton malleable iron 1-1/4″ conduit bodies meeting NEC standards
Works With
- NEC (National Electrical Code) compliant installations
- NEMA FB-1 rated enclosures
- Standard 1-1/4″ threaded conduit couplings and elbows
- Rigid and intermediate metal conduit bonding systems
