Overview

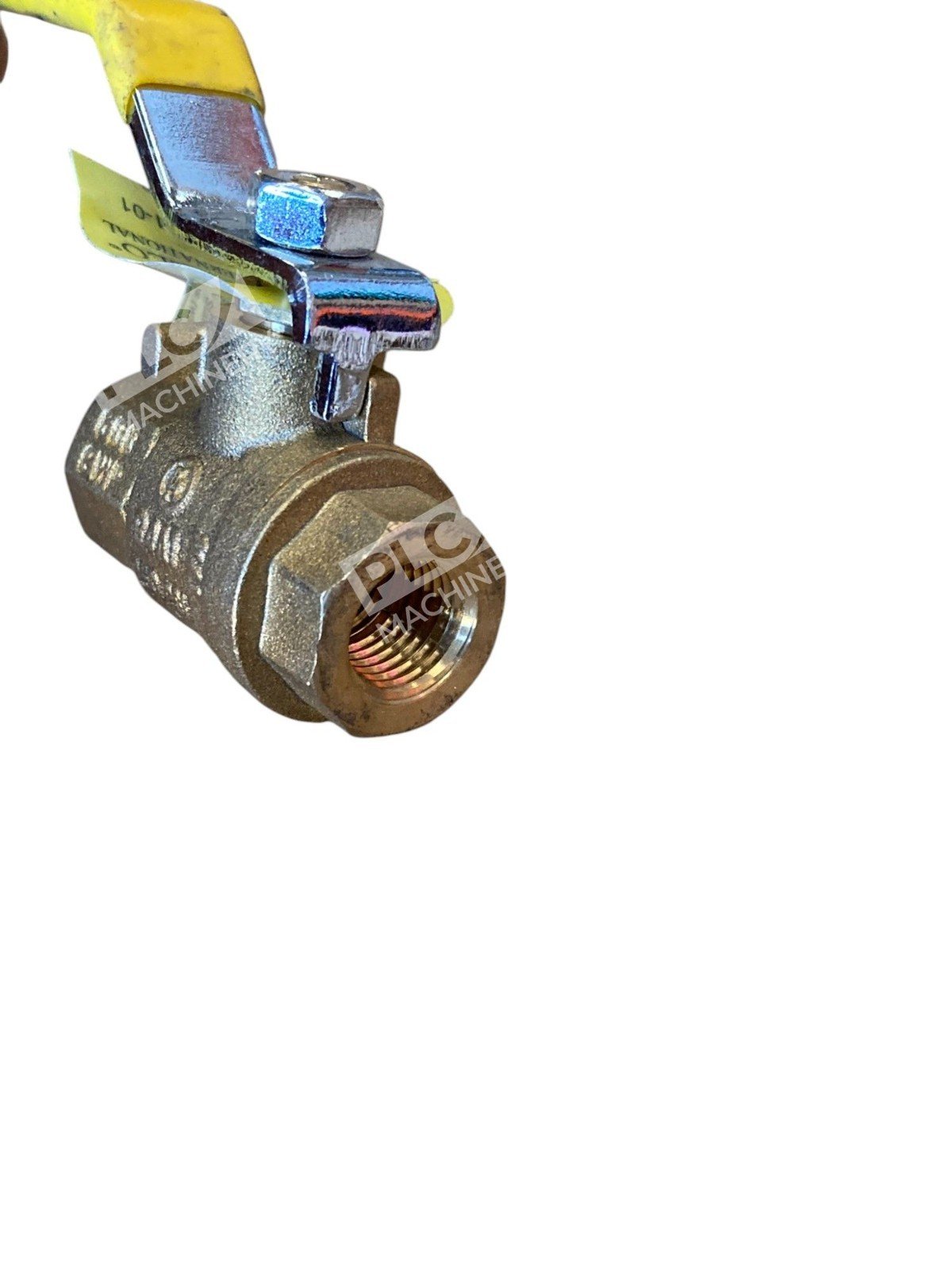

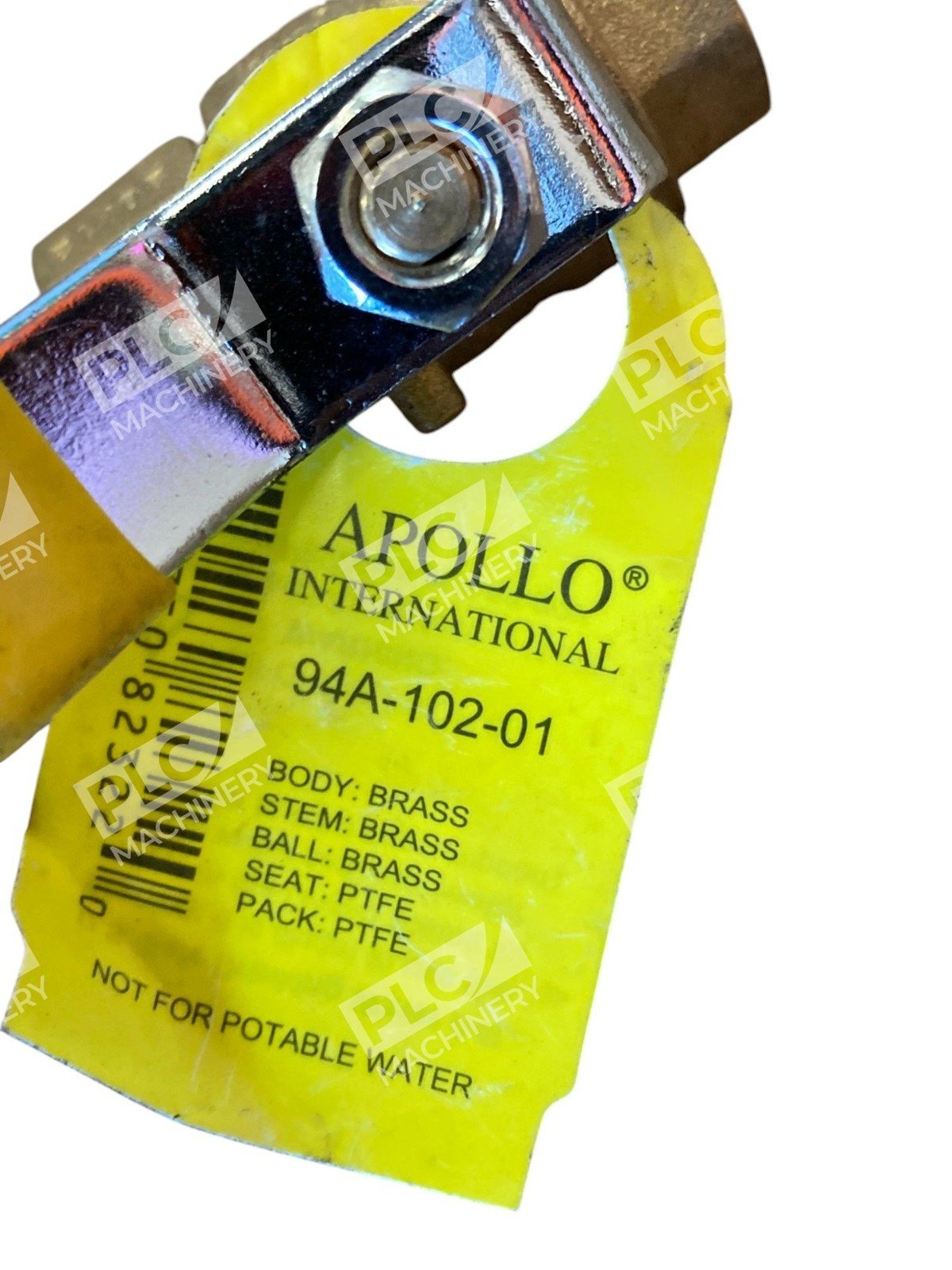

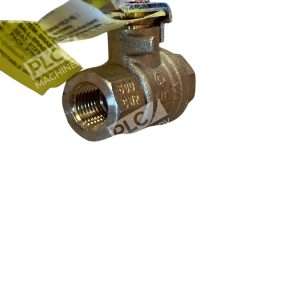

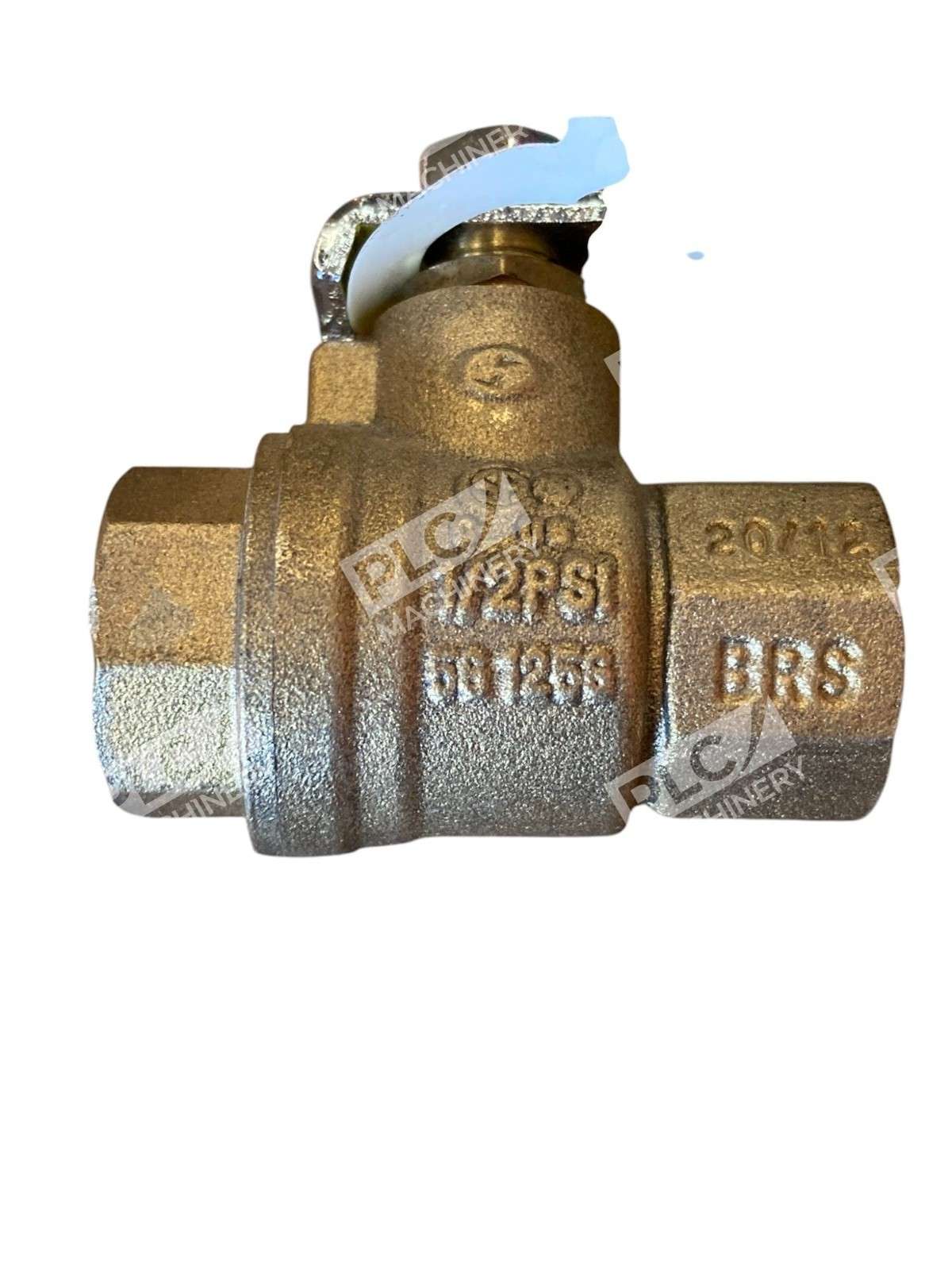

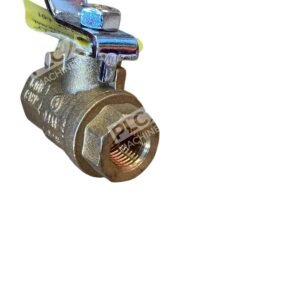

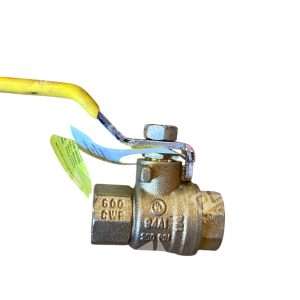

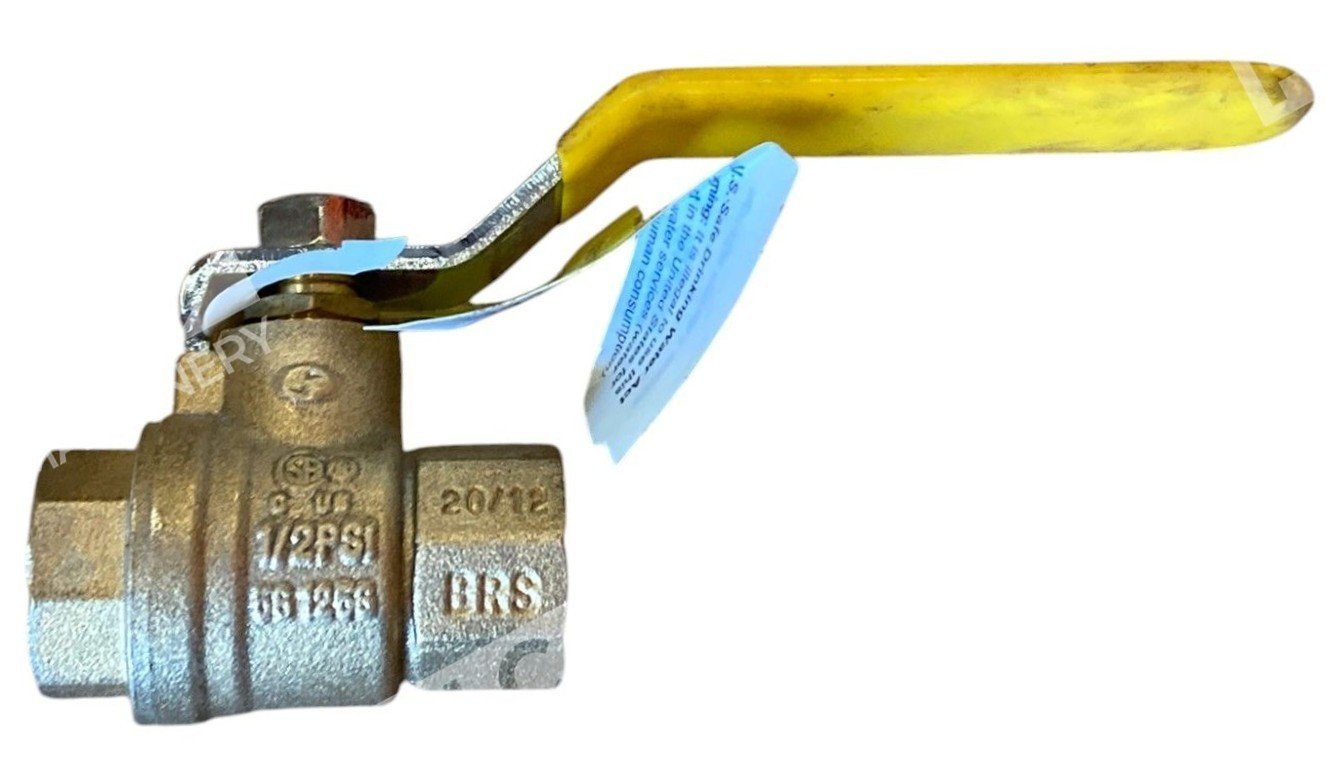

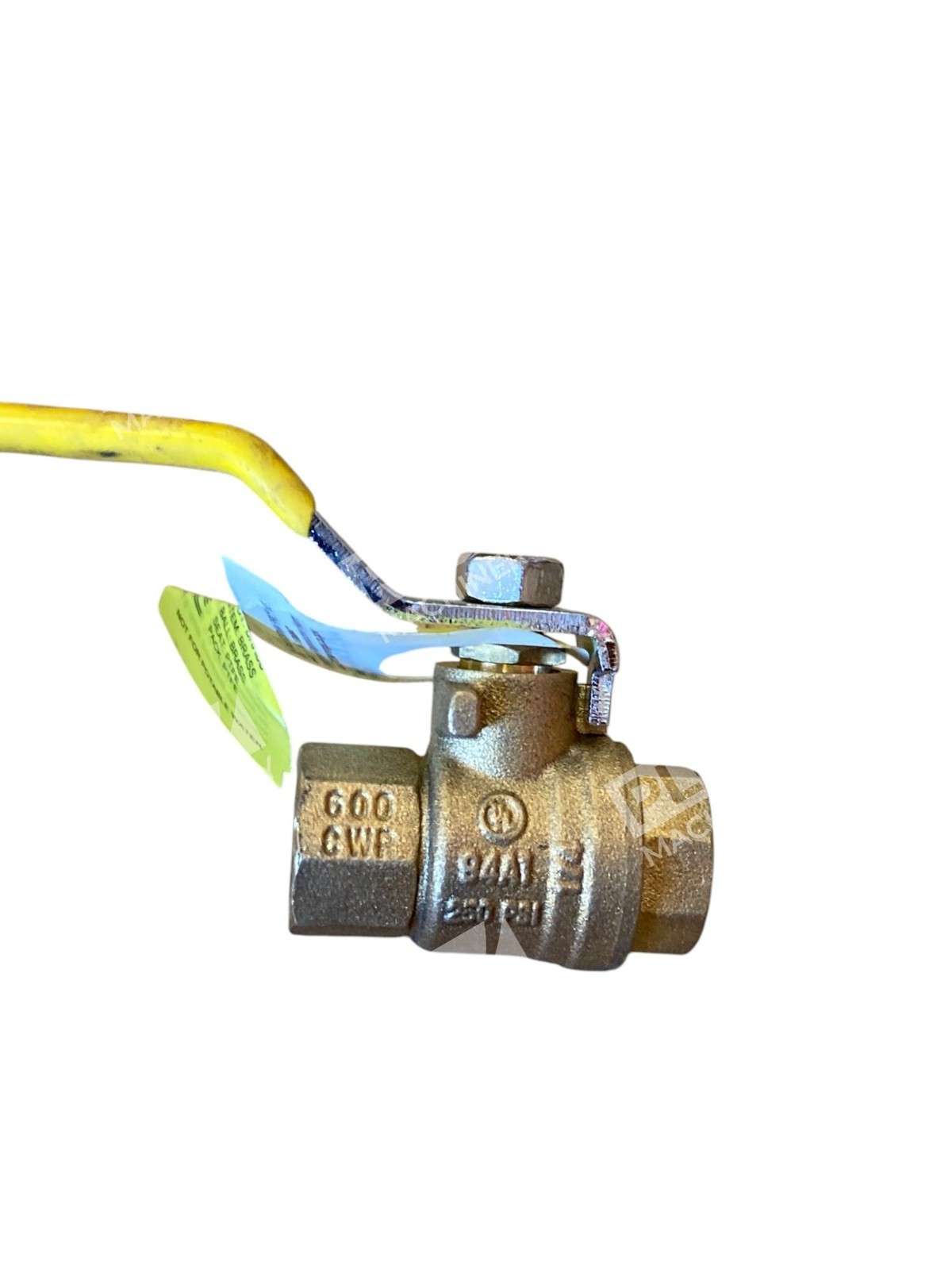

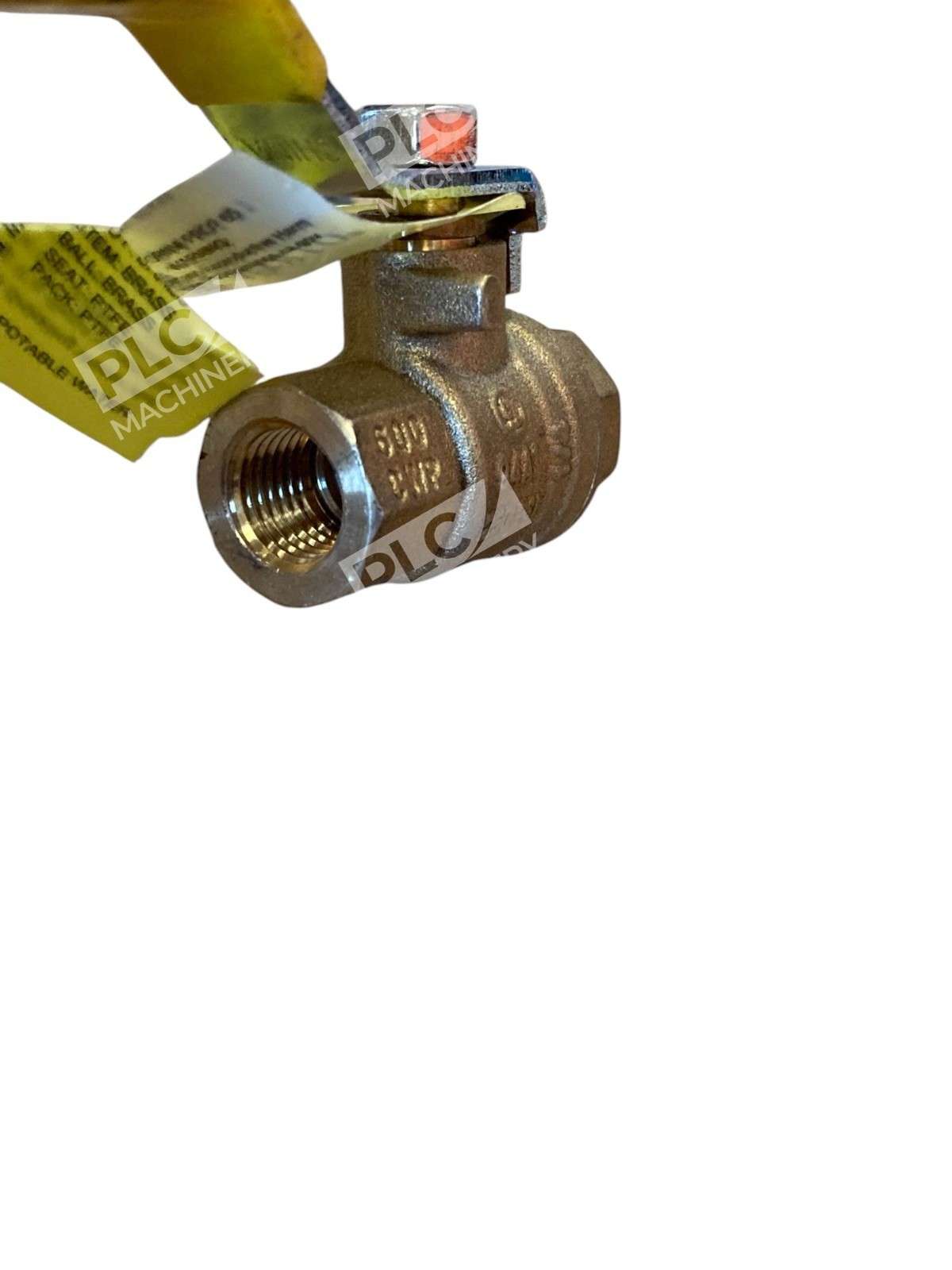

The Apollo 94A-102-01 is a full-port, forged brass ball valve engineered for dependable flow control in demanding applications. With 600 psi CWP (cold working pressure) and 150 psi WSP (working steam pressure) ratings, this 3/8″ NPT valve combines proven reliability with cost-effective operation. The 94A series is manufactured by Conbraco Industries (Apollo Valves) and meets multiple industry standards including CSA, UL, FM, and MSS SP-110.
Key Features
- Full-port design minimizes pressure drop and maximizes flow rates
- Forged brass body (copper content >57%) resists corrosion and ensures durability
- Chrome-plated brass ball and stem provide smooth, reliable operation
- PTFE seats and stem packing ensure leak-free sealing
- Blow-out proof stem and adjustable packing nut for long service life

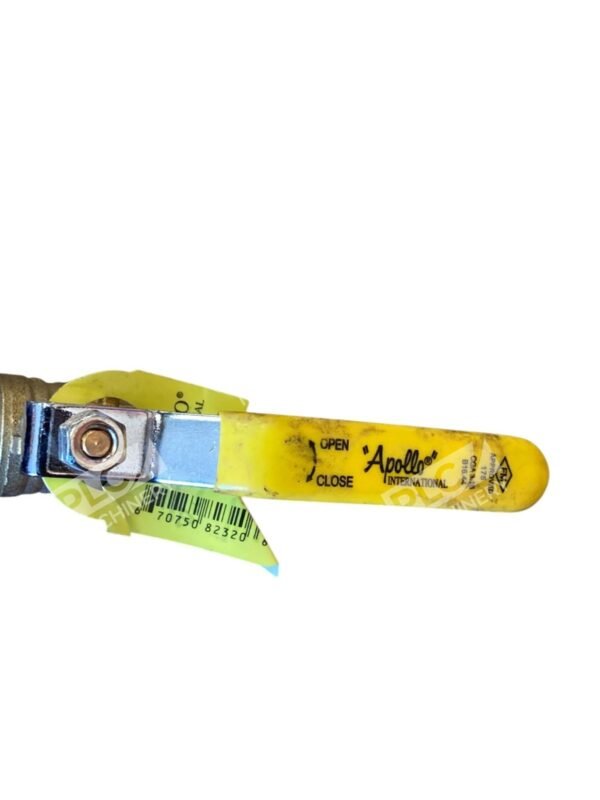

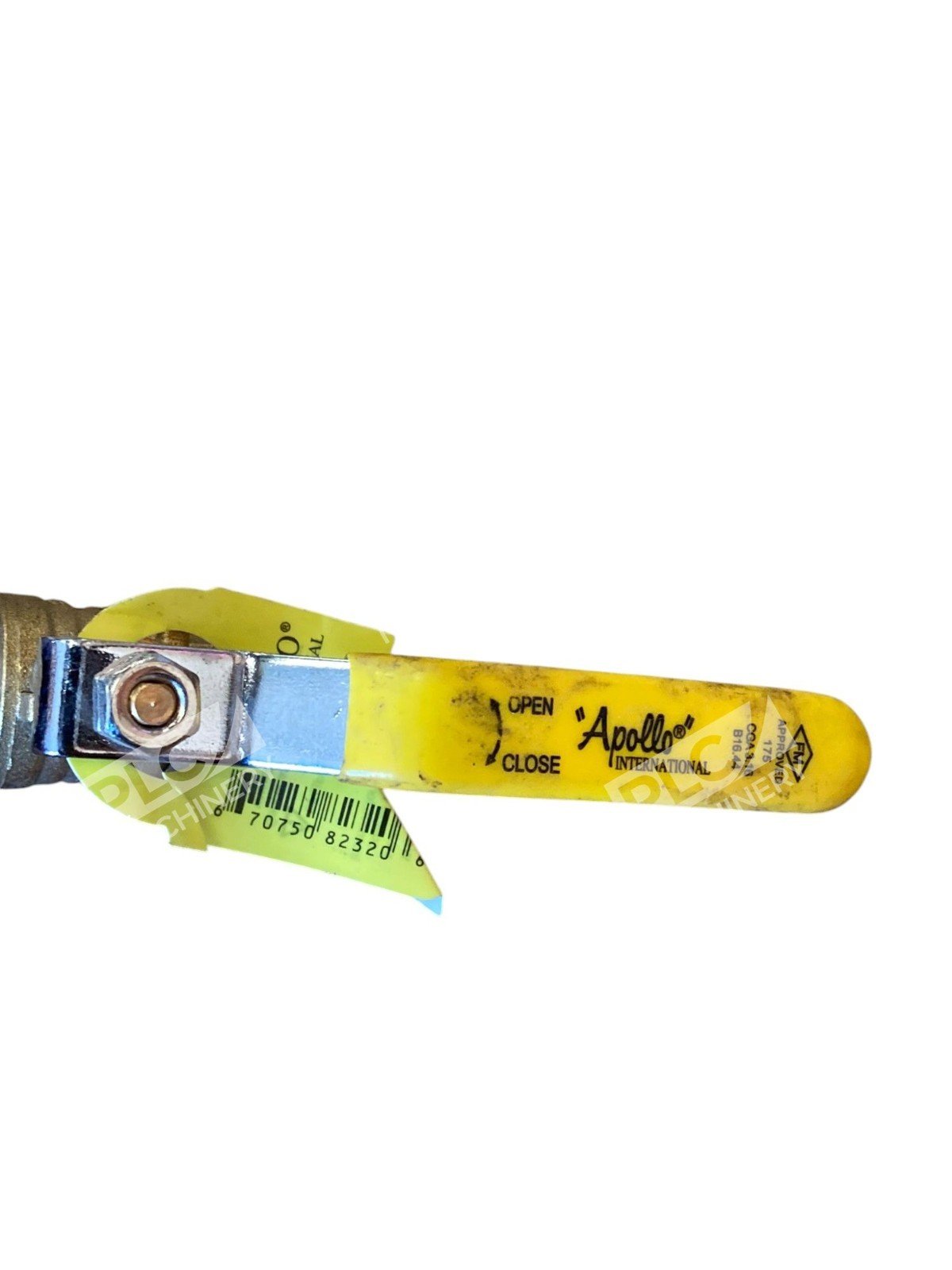

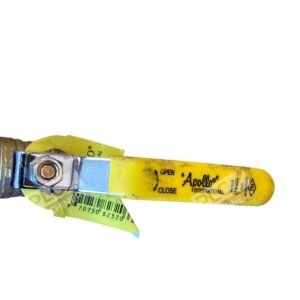

- Manual lever handle for quick, quarter-turn operation
- 2-piece construction allows for easy maintenance and repair
Technical Specifications
- Part Number: 94A-102-01
- Nominal Size: 3/8 inch
- Connection Type: NPT (National Pipe Thread) × NPT
- End Style: FNPT (Female NPT)
- Maximum Cold Working Pressure (CWP): 600 psi
- Maximum Working Steam Pressure (WSP): 150 psi
- Operating Temperature Range: 0 °F to 400 °F
- Port Configuration: Full Port, 2-way

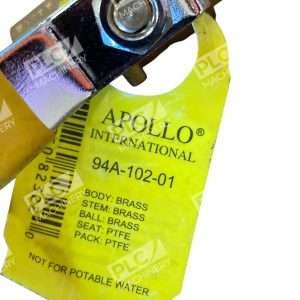

- Ball Material: Chrome-plated brass

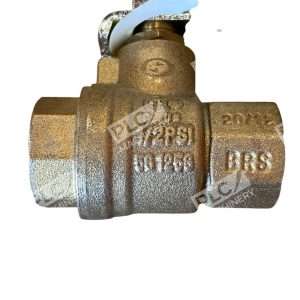

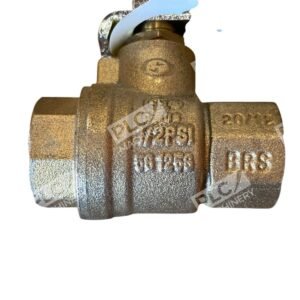

- Body Material: Forged brass (Cu >57%)
- Seat Material: PTFE
- Stem Material: Chrome-plated brass
- Packing: PTFE
- Actuation: Manual lever handle with PVC grip
- Construction: 2-Piece
- Length (Inlet to Outlet): 1.76 inches
- Height (Top to Inlet Center): 1.73 inches
- Weight: 0.3 lb
- Standards/Approvals: CSA, UL, FM, MSS SP-110
Typical Applications
The Apollo 94A-102-01 is ideal for:
- HVAC Systems: Heating, ventilation, and air conditioning trim and drain applications
- Fuel Gas Systems: LPG, natural gas, and propane distribution (NPT versions approved for gas)
- Fire Protection: Sprinkler systems, standpipe trim, and drain lines
- General Flow Control: Water systems (non-potable), oil, and other industrial fluids
- Wastewater: Treatment and process control applications
Note: Not approved for potable water applications in the United States.
Compatibility & Replacements
Compatible With
- Standard 3/8″ NPT threaded piping systems
- HVAC manifolds and hydronic distribution equipment
- Fuel gas delivery systems (NPT configuration approved for gas)
- Industrial and commercial flow control loops
Replaces / Drop-In Replacement For
- Other Apollo 94A-102 series variants (same size and pressure rating)
- Standard 3/8″ NPT full-port ball valves of equivalent pressure class (600 CWP)
Works With
- 3/8″ NPT female pipe thread adapters and fittings
- Manual flow control systems and dump valves
- HVAC and plumbing supply/return lines
- Gas delivery and safety shutdown circuits
