Overview

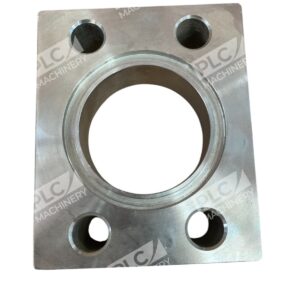

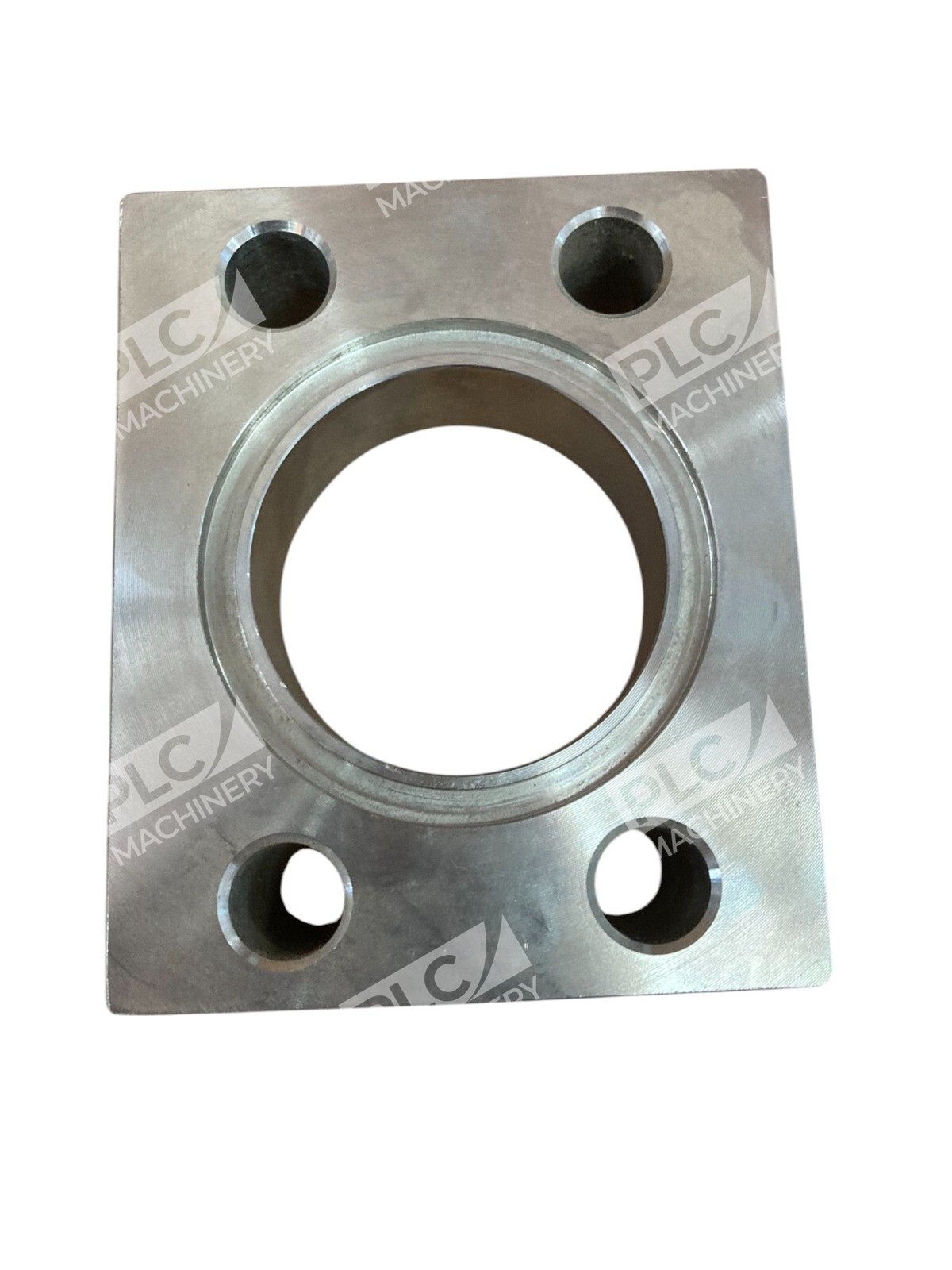

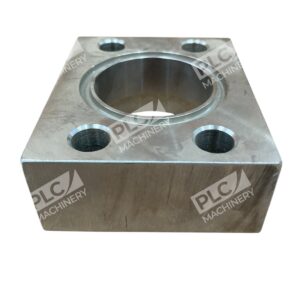

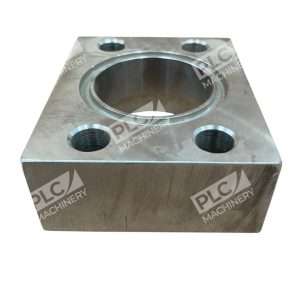

The Anchor Fluid Power W4-32-32U is a Code 61 high-pressure 4-bolt flange fitting designed for reliable hydraulic system connections. This socket weld flange features a 2″ pad size and 2″ pipe socket, engineered to withstand pressures up to 3,000 psi. Each unit includes a mounting kit and Buna O-ring for immediate installation into industrial fluid power systems.
Key Features
- Code 61 rated (3,000 psi maximum pressure)
- 4-bolt SAE flange configuration for secure connection
- Socket weld port type for permanent fluid-tight joints

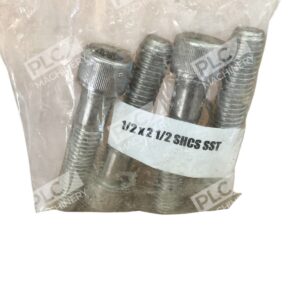

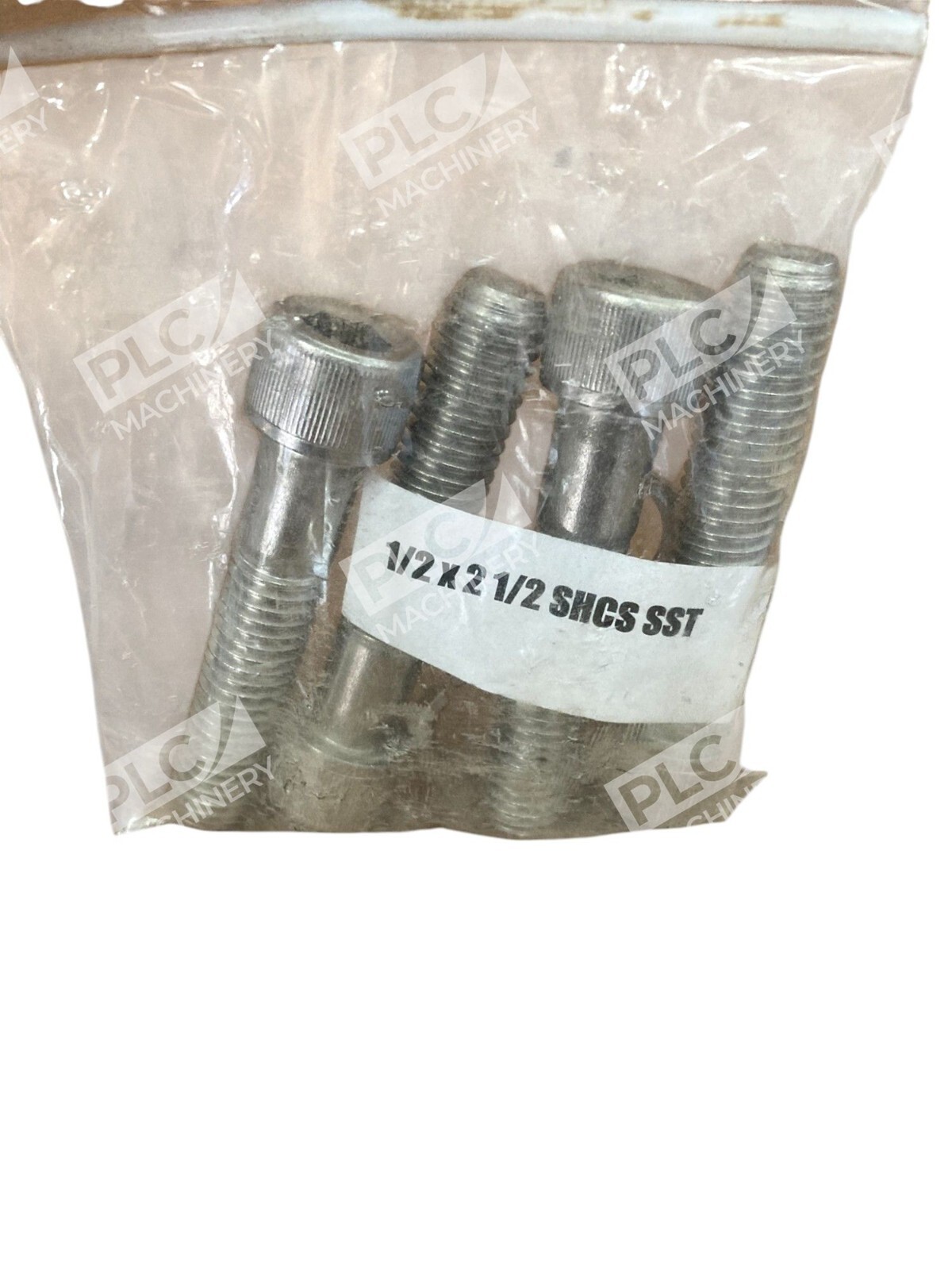

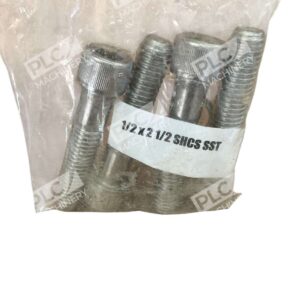

- Includes mounting kit and Buna O-ring
- Available in carbon steel and stainless steel materials
- Industry-standard design for pump, motor, and manifold integration
Technical Specifications
The W4-32-32U delivers the specifications required for demanding hydraulic applications:
- Part Number: W4-32-32U
- Manufacturer: Anchor Fluid Power
- Pressure Rating: 3,000 psi (Code 61)
- Flange Type: 4-Bolt SAE
- Pad Size: 2 inches
- Port Type: Socket Weld
- Port Size: 2 inches (pipe socket)
- Included Components: Mounting Kit, Buna O-Ring
- Material Options: Carbon Steel, 316 Stainless Steel
Typical Applications
The W4-32-32U is widely used in:
- Hydraulic pump inlet and outlet connections
- Motor and actuator manifold ports
- Industrial machinery and equipment hydraulic systems
- Mobile equipment and heavy machinery
- High-pressure fluid transfer lines requiring leak-free connections
Compatibility & Replacements
Compatible With
- SAE standard hydraulic systems and manifolds
- Code 61 and Code 62 high-pressure circuits
- Industrial pumps and motors rated 3,000 psi
- Hydraulic hose and tube assemblies with socket weld ports
Replaces / Drop-In Replacement For
- Other W4 series socket weld flanges with matching pad size and pressure rating
- Verify bore size and port configuration with your system integrator before ordering
Works With
- SAE J518 compliant hydraulic systems
- ISO 4401 manifold configurations
- Code 61 and Code 62 pressure rated components
- Standard hydraulic fluid (mineral oil, biodegradable, and synthetics)
