Overview

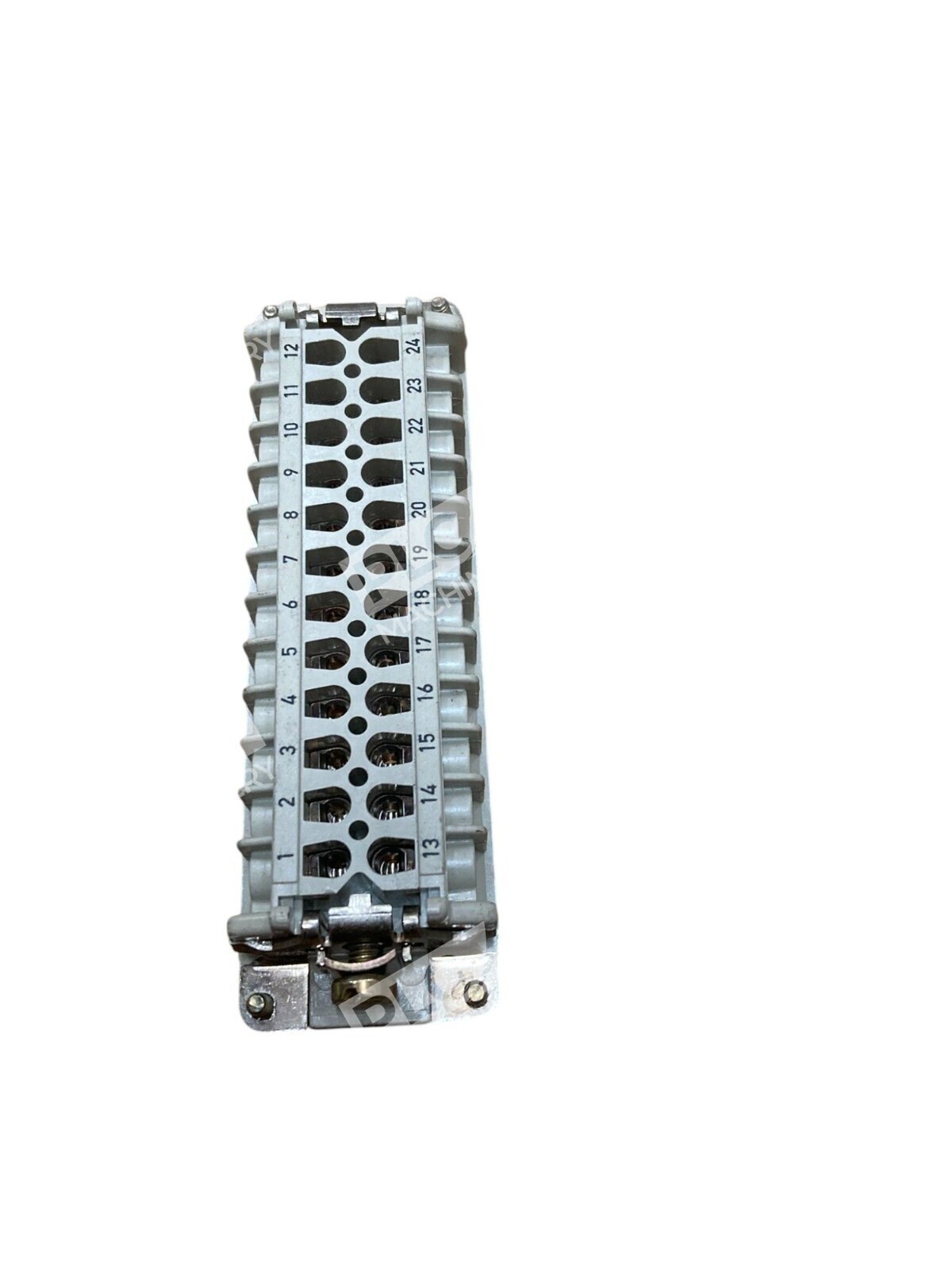

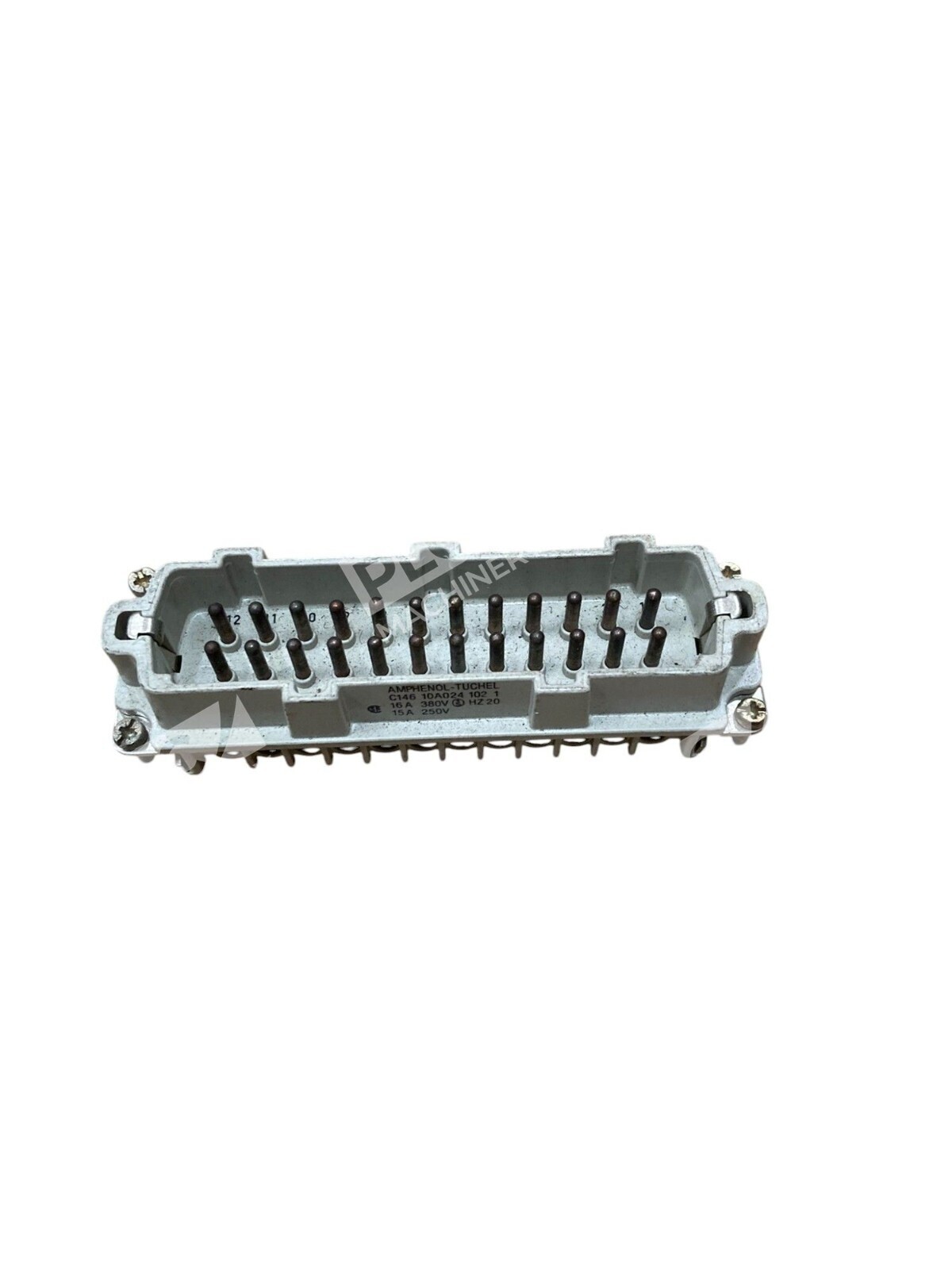

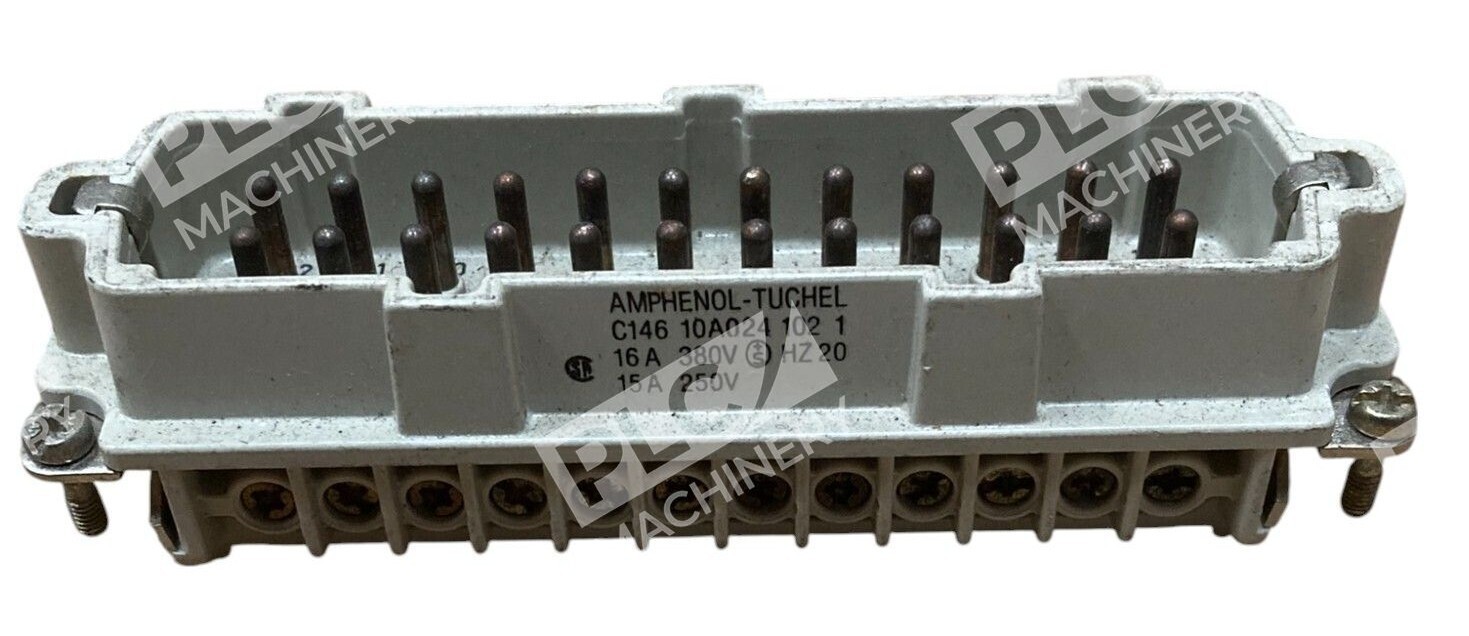

The Amphenol C146 10A024 102 1 is a professional-grade male contact insert from the HeavyMate C146 series. This robust connector features 24+PE (protective earth) positions rated for 16A continuous current at 500V. Engineered for industrial power distribution and control systems, it includes screw termination capability with integrated wire protection—ideal for factory automation, machine control panels, and electrical distribution equipment requiring secure, long-service-life connections.
Key Features
- 24+PE contact positions for comprehensive power and control signal distribution
- 16A rated current at 500V for industrial and power-switching applications
- Screw termination with integral wire protection against damage
- Operating temperature range -40°C to +125°C for harsh environments
- Contacts supplied with insert—no separate ordering required
- Intermateable with standard-compliant third-party inserts
Technical Specifications
The following specifications define this connector’s performance in industrial settings:
- Rated Current: 16A
- Rated Voltage: 500V AC/DC
- Contact Positions: 24+PE
- Insert Type: Male, stamped single contacts
- Termination Method: Screw terminal
- Wire Protection: Yes (wire support)
- Operating Temperature: -40°C to +125°C
- Contacts Included: Yes
- Series: HeavyMate C146 E
Typical Applications
- Industrial control panel power distribution and signal routing
- Heavy machinery and production equipment motor starter circuits
- Process automation and machine tool electrical interconnects
- Power distribution in harsh factory and outdoor environments
- Emergency stop circuits and safety-critical control signaling
Compatibility & Replacements
Compatible With
- Amphenol HeavyMate C146 series housings and connector bodies
- Standard C146 socket inserts (C146 10B024 series for female pairing)
- Industrial control systems using heavy-duty modular connectors
- Machines and switchgear designed for C146 standard connections
Replaces / Drop-In Replacement For
- C146 10A024 000 1 (without wire protection)
- C146 10A024 002 1 (variant version)
- Compatible with C146 10A024 500 1 in functional equivalence
Works With
- Amphenol HeavyMate C146 E/EE rectangular connectors
- Standard industrial gland bushings (IP67/IP68 available)
- Screw-termination wire gauges 14–24 AWG
- IEC 60512-2 and IEC 60664-1 compliant electrical systems
