Overview

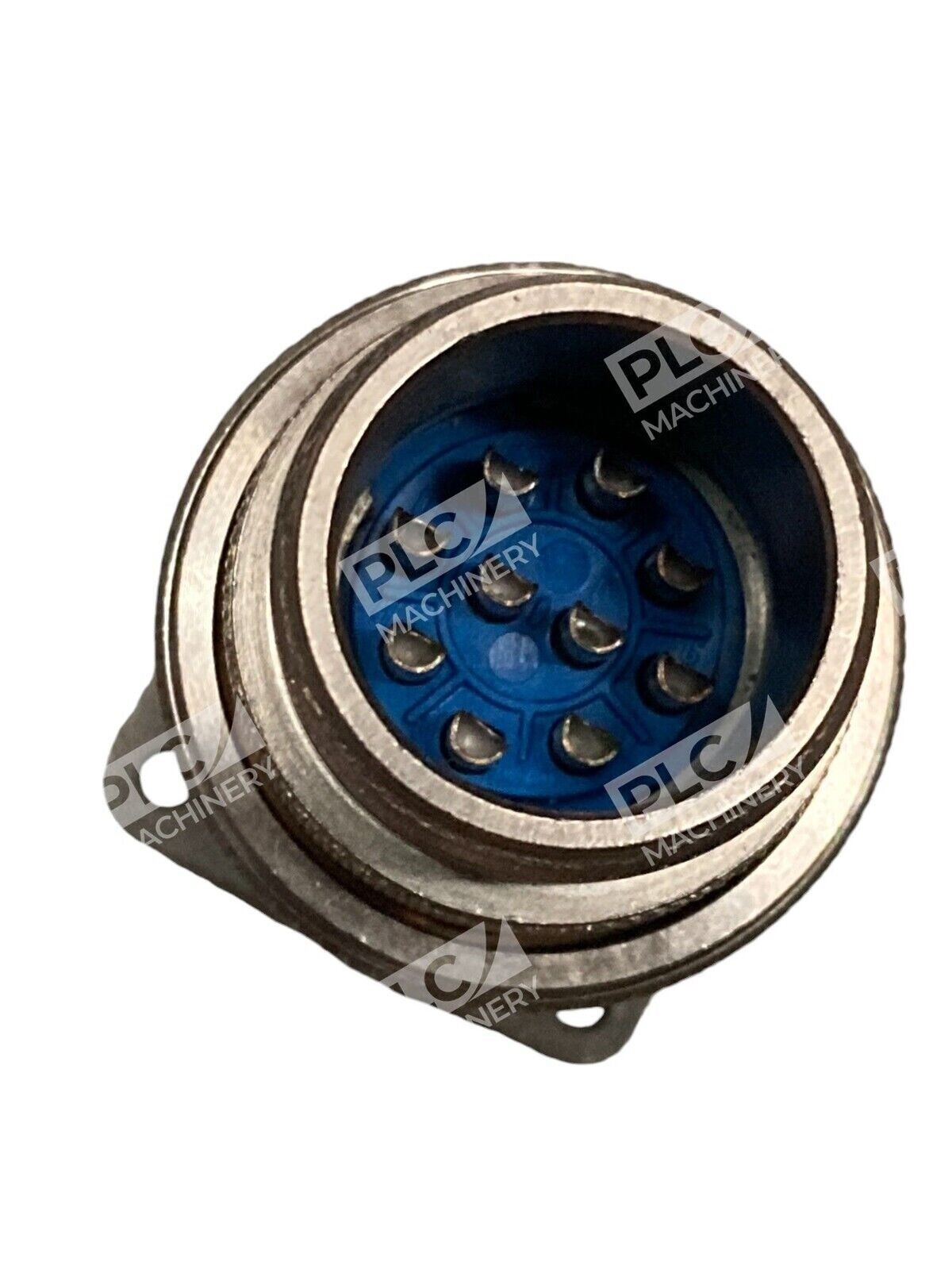

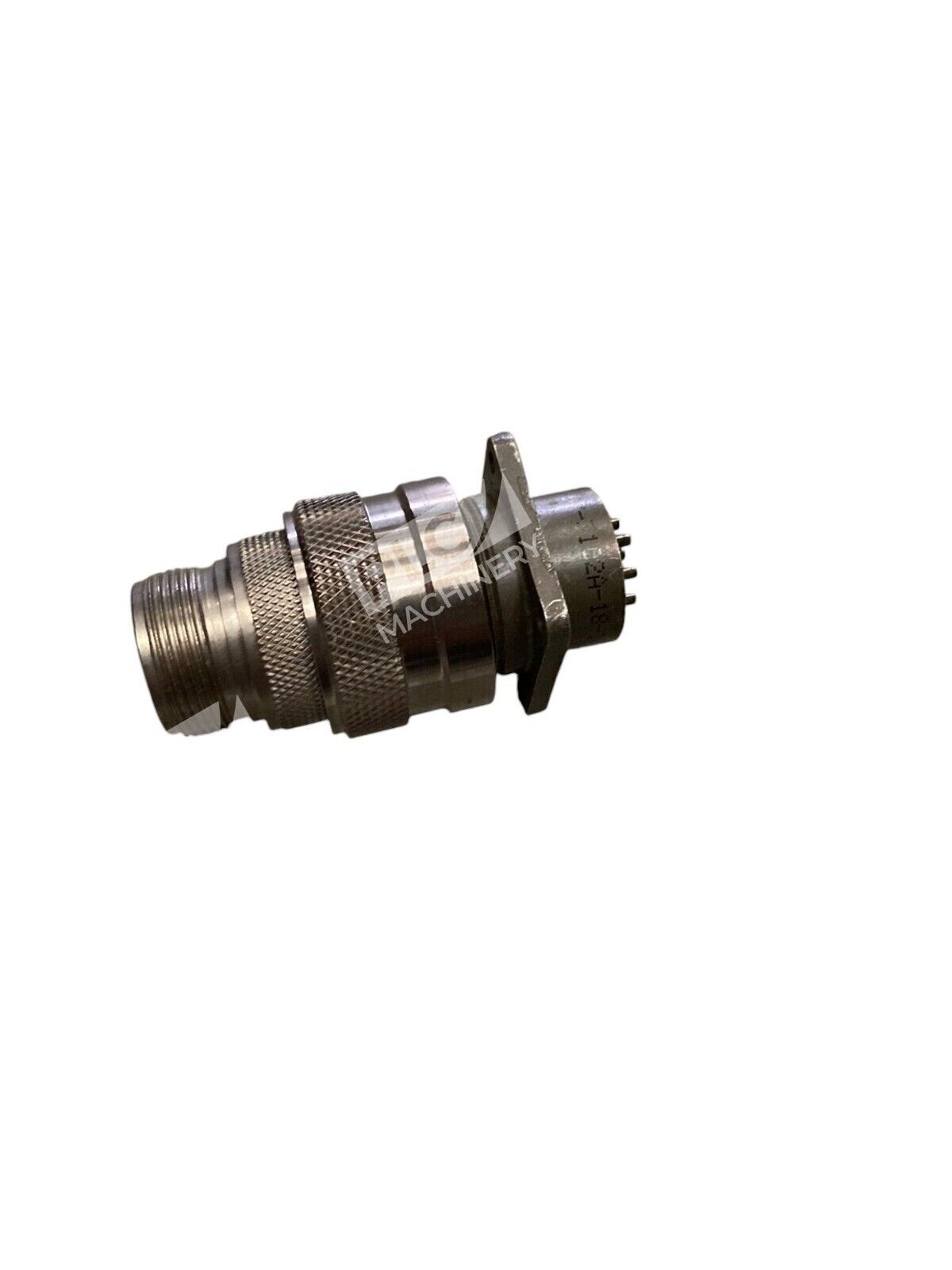

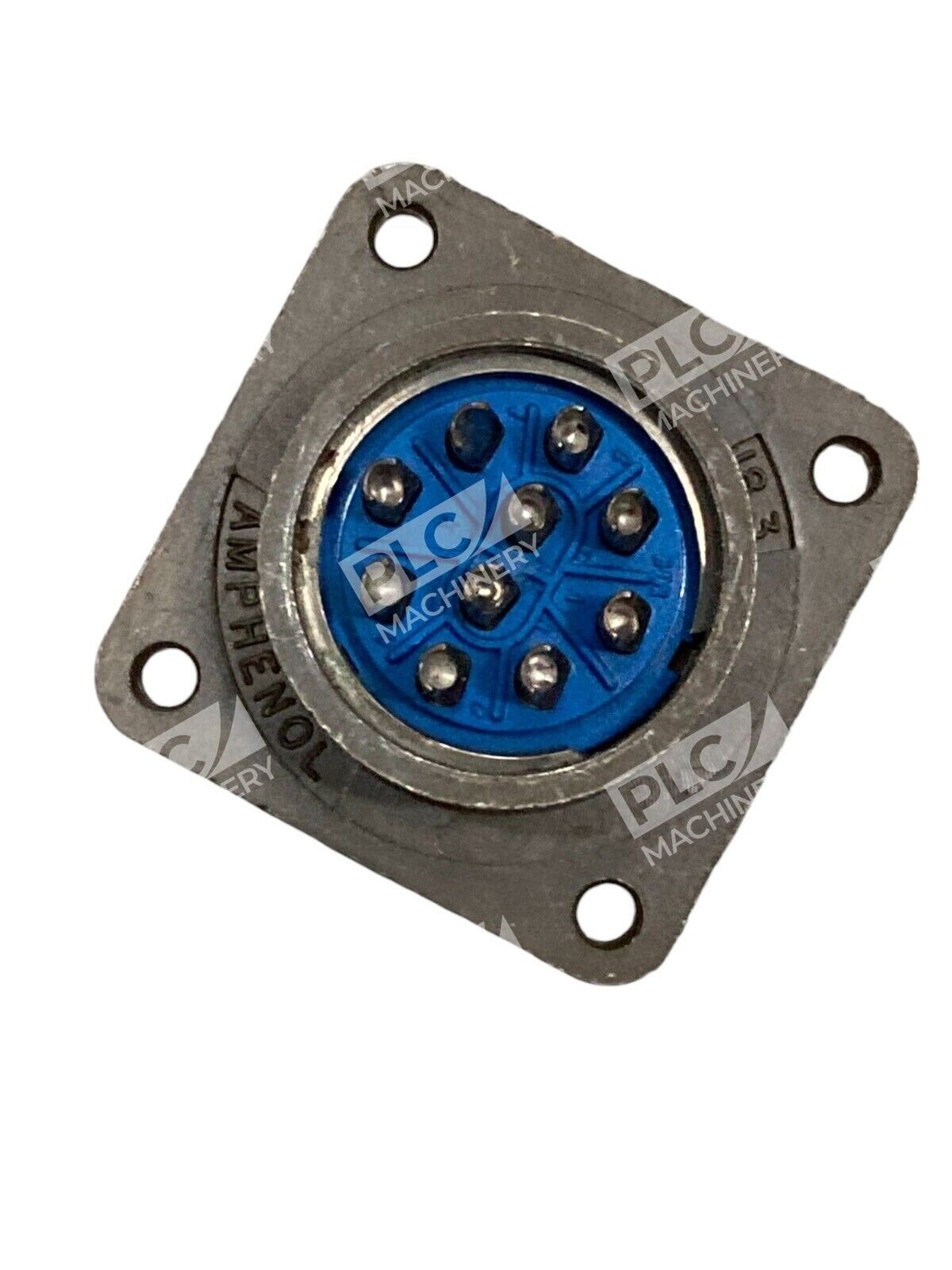

The Amphenol 97-3102A-18-19P is a rugged MIL-spec circular connector engineered for demanding industrial, military, and aerospace applications. Part of the proven 97 Series family, this size 18 box mount receptacle provides dependable solder-terminated connections in high-reliability installations.
Key Features
- 10-position configuration with 18-19 insert arrangement for standardized pin/socket parity
- Aluminum alloy shell with cadmium-plated finish and olive drab chromate after-treatment for corrosion resistance
- Silver-plated contacts with pre-tinned solder cups for reliable long-term connections
- Diallyl-phthalate inserts ensure stable electrical performance under temperature extremes
- Solid backshell design optimized for open-wire termination and direct panel/chassis mounting
- Internal polarized key prevents mating errors and ensures correct orientation
Technical Specifications
- Number of Contacts: 10 positions
- Connector Type: Box mount receptacle
- Shell Size: 18
- Insert Arrangement: 18-19
- Contact Termination: Solder cup (pre-tinned)
- Shell Material: Aluminum alloy
- Shell Finish: Cadmium plated with olive drab chromate
- Contact Plating: Silver
- Insert Material: Diallyl-phthalate (DAP)
- Mounting Style: Box mount on chassis/panel
- Coupling Style: Threaded
- Standards Compliance: MIL-DTL-5015 (SAE-AS50151)
Typical Applications
The 97-3102A-18-19P is widely deployed in:
- Military and aerospace ground support equipment
- Robotics and automated control systems
- Industrial process control and instrumentation
- Defense electronics and signal distribution
- Commercial automation and panel-mounted equipment
- Environmental monitoring and sensing systems
Compatibility & Replacements
Compatible With
- Amphenol 97 Series plugs and receptacles (matching size 18 configurations)
- Standard MIL-DTL-5015 compliant coupling hardware
- Box mount installations on aluminum or steel chassis
- Open-wire harnesses with 22 AWG and compatible gauges
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 97-3102A-18-19P is a box mount receptacle; mating plug models include variant part numbers in the 97-3100 series (e.g., MS3100A/MS3102A equivalents).
Works With
- Amphenol 97 Series crimp and solder contact kits
- Standard MIL-DTL-5015 backshells and coupling rings
- Military and industrial-grade connector assemblies
- Cable harness and wire termination applications
