Overview

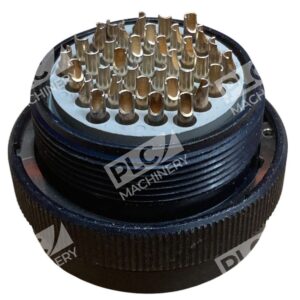

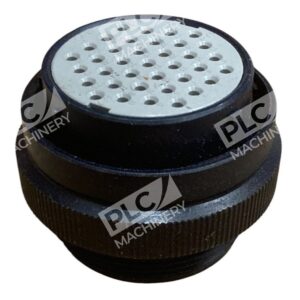

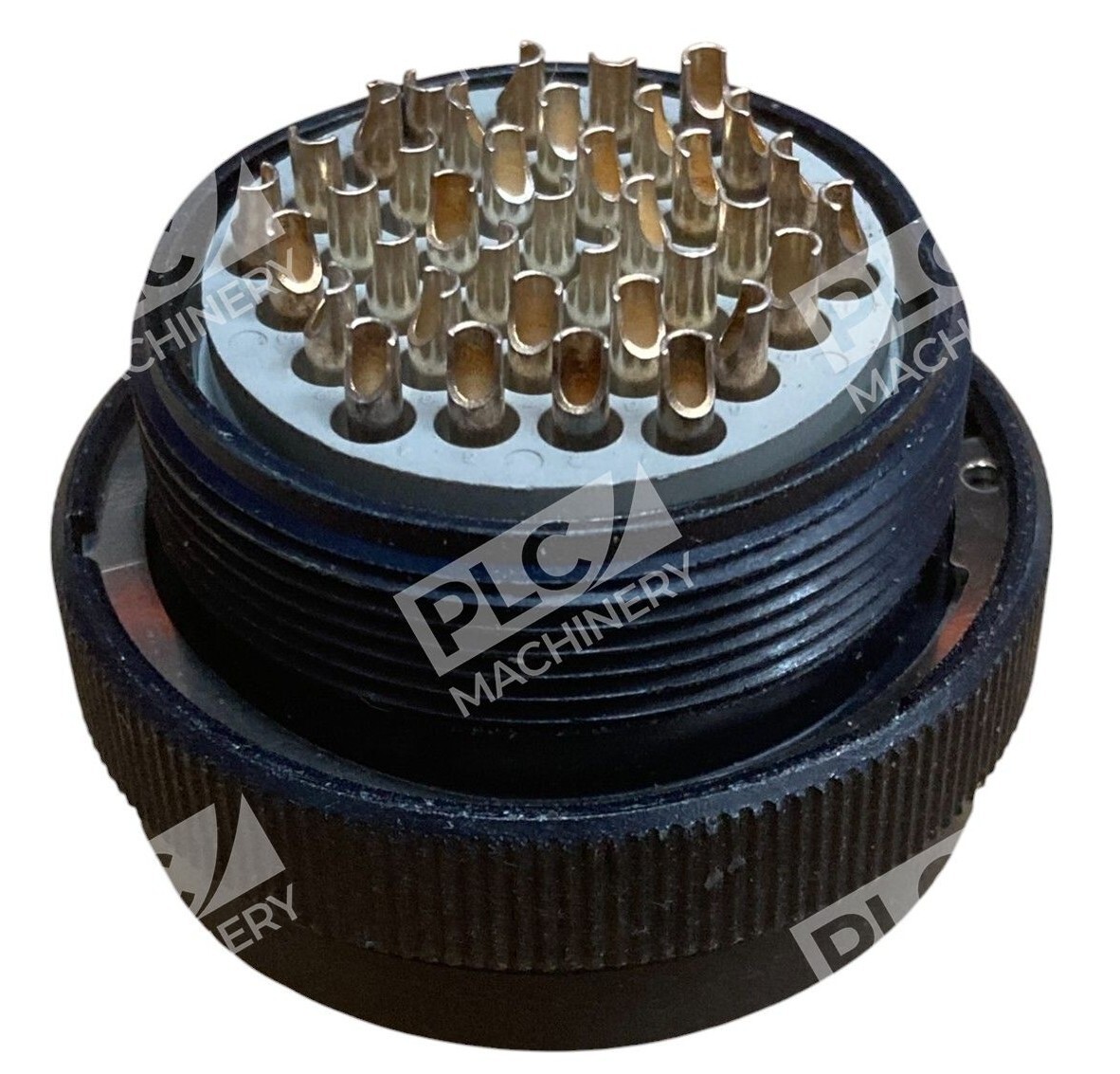

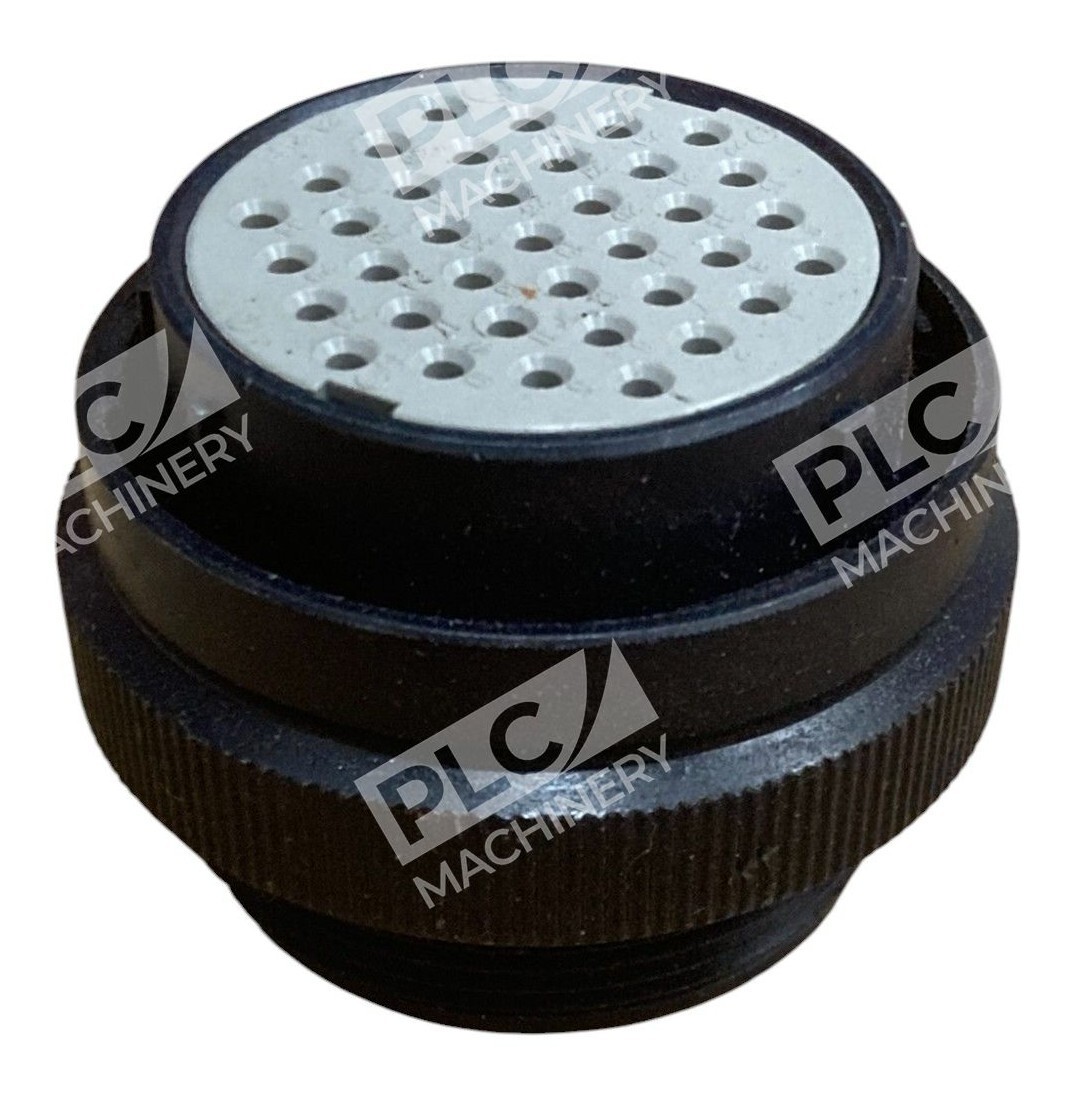

The Amphenol 62GB 37-pin circular connector is a miniature bayonet-lock connector designed and manufactured to MIL-DTL-26482 Series E specifications. This 62GB series offers keyway orientation to reduce mis-mating among multiple connectors. The plug features a robust aluminum shell, gold-plated contacts, and solder bucket terminations, making it suitable for demanding military, aerospace, communications, and industrial applications where secure, vibration-resistant connections are critical.
Key Features
- Quick-release three-point bayonet lock mechanism for secure coupling
- Aluminum shells with brass or stainless steel options
- Gold-plated contacts designed for soldered connections; operating temperature range –55°C to +125°C
- Resilient neoprene insulator with integrated rear wire sealing grommet for liquid-tight assembly
- Keyway orientation prevents connector mismating
- MIL-C-26482E certified on certificate No. 1713
Technical Specifications
The following specifications apply to standard 62GB configurations:
- Pin Count: 37 positions (configuration dependent on insert arrangement)
- Contact Material: Copper alloy with gold plating
- Termination: Solder bucket
- Shell Material: Aluminum (anodized cadmium olive drab)
- Operating Temperature: –55°C to +125°C
- Voltage Rating: 700V DC (standard rating); up to 1250V for high-density inserts
- Current Rating: 7.5A per contact (typical)
- Coupling: Bayonet lock (three-point)
- Contact Resistance: 5 mΩ (typical)
- Insulation Resistance: 5000 MΩ
- Proof Voltage: 2100V DC
- IP Rating: IP67 (moisture sealed)
Typical Applications
The 62GB series connector is used in:
- Military and defense systems
- Aerospace and avionics equipment
- Industrial control and automation systems
- Test and measurement instrumentation
- Communications and data transmission equipment
- Harsh environment applications requiring moisture sealing and vibration resistance
Compatibility & Replacements
Compatible With
- MIL-DTL-26482 Series E equipment and systems
- Any equipment designed for MIL-C-26482 circular connectors
- Amphenol 62GB mating receptacles and corresponding shell sizes
- Military-specification cable and backshell assemblies
Replaces / Drop-In Replacement For
The Amphenol 62GB series serves as an alternative to MIL-DTL-26482 Series E and PATT 608 connectors. Verify specific shell size and pin configuration compatibility with your system integrator before ordering to ensure proper replacement.
Works With
- Solder termination equipment and assembly processes
- Neoprene and standard backshell assemblies
- Cable preparation for 20 and 22 AWG conductors (standard)
- MIL-DTL-26482 receptacles with matching insert arrangements
