Overview

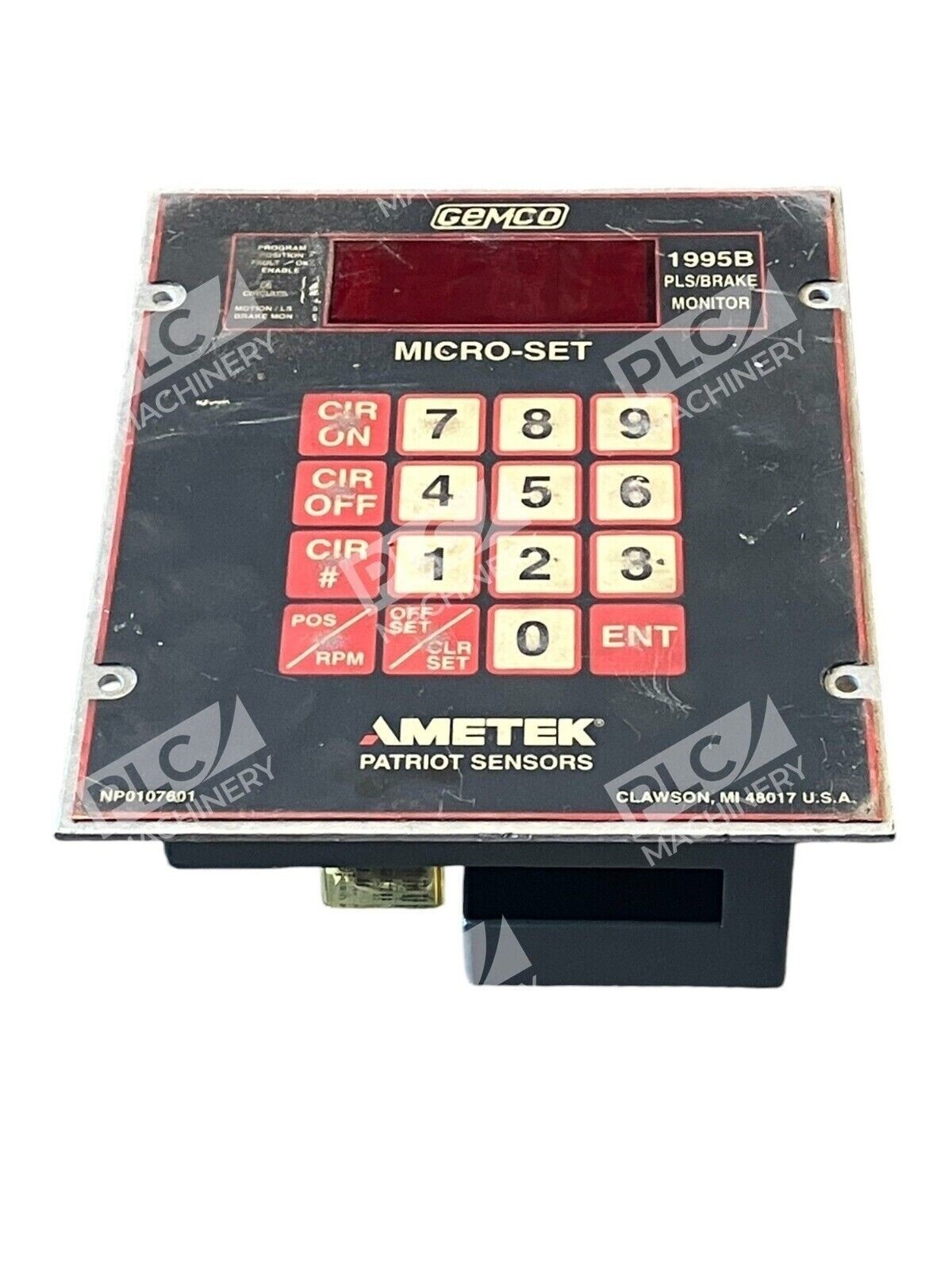

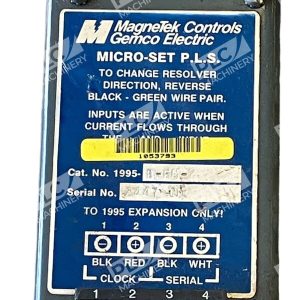

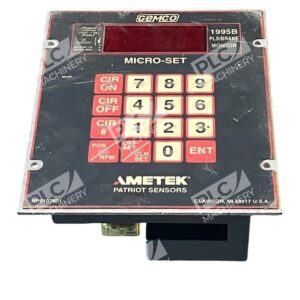

The Ametek 1995-B-6M-X is a Gemco Micro-Set programmable limit switch designed for demanding industrial automation control systems. This resolver-input device delivers precise speed detection and programmable switching logic, making it suitable for equipment requiring accurate position or speed regulation. The unit operates as a standalone controller without requiring external PLCs for basic limit switching functionality.
Key Features
- Resolver-based input for accurate speed and position sensing

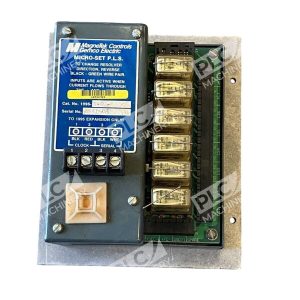

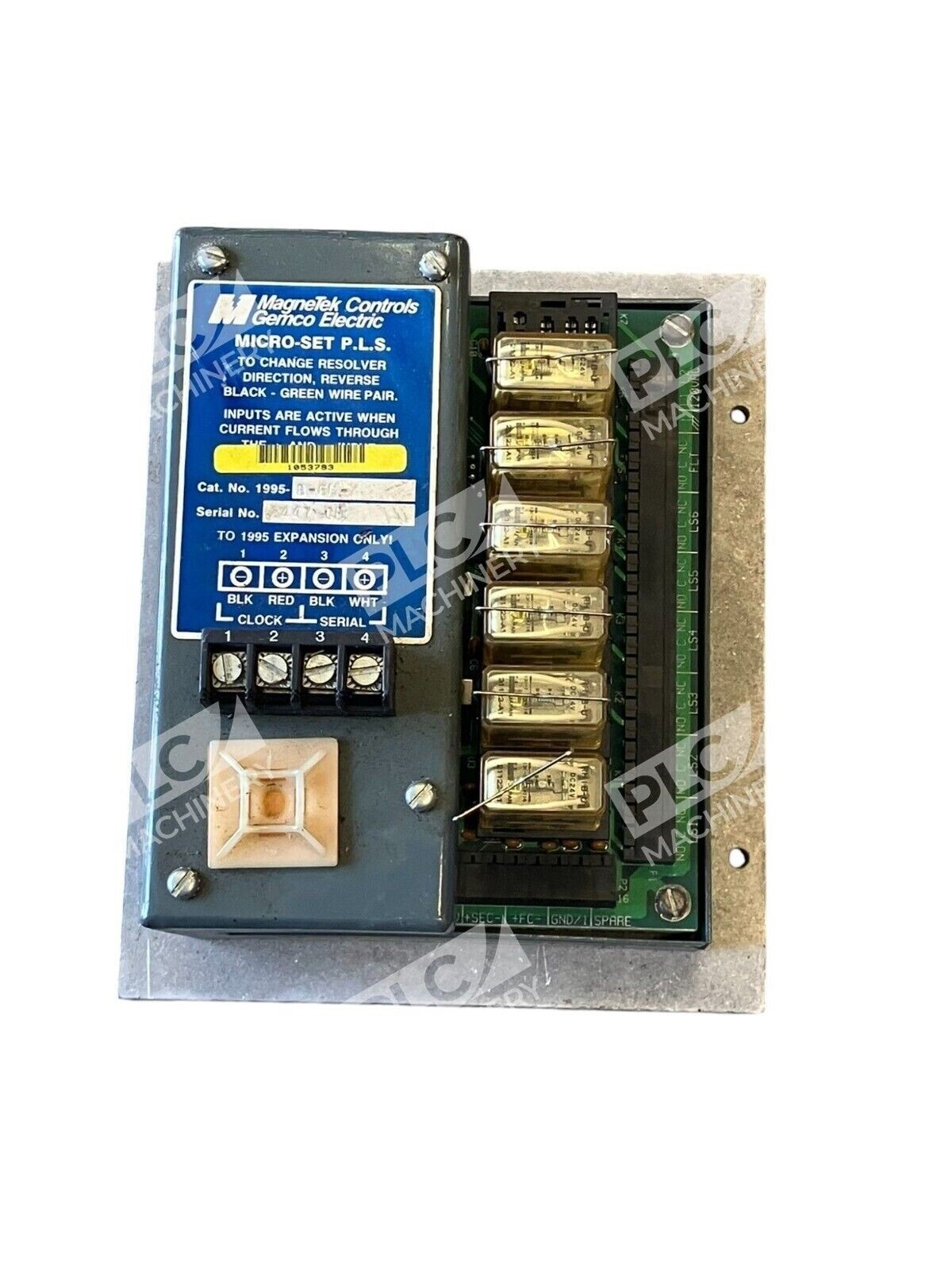

- Six (6) mechanical output relays with SPDT switching capability
- 10-amp contact rating per relay for direct control of solenoids and motors
- Programmable logic with adjustable switching parameters
- Open chassis design allowing flexible mounting and integration
- Industrial-grade construction for harsh manufacturing environments
- Compatible with standard 115V/230V power supply configurations
Technical Specifications

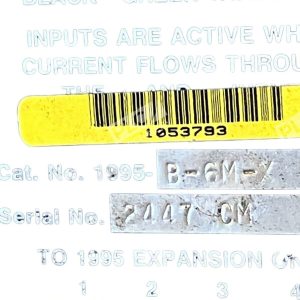

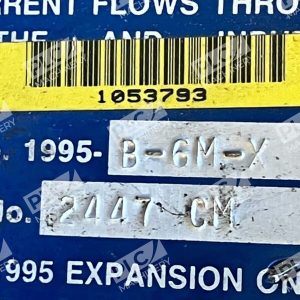

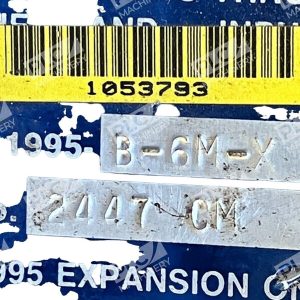

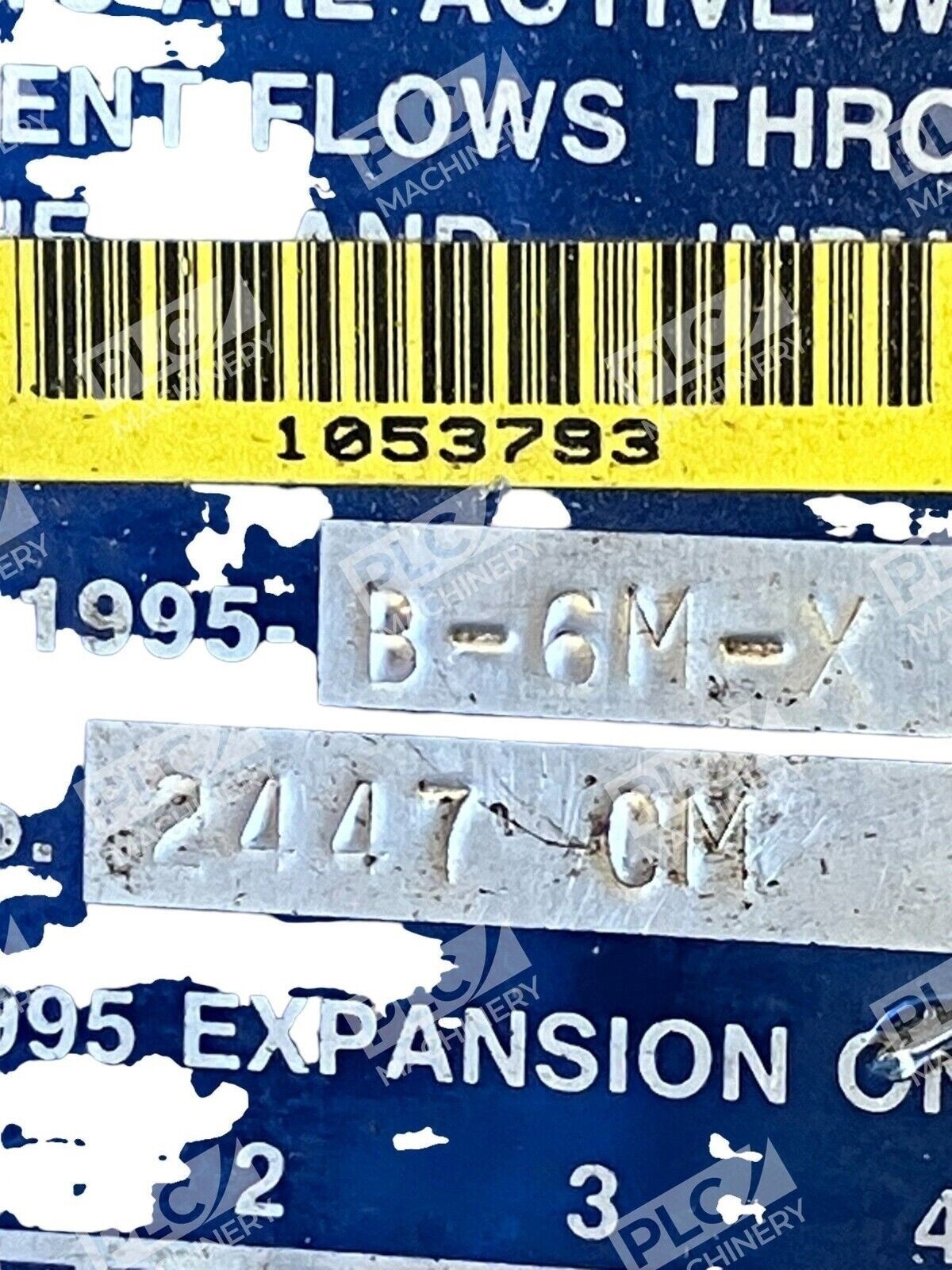

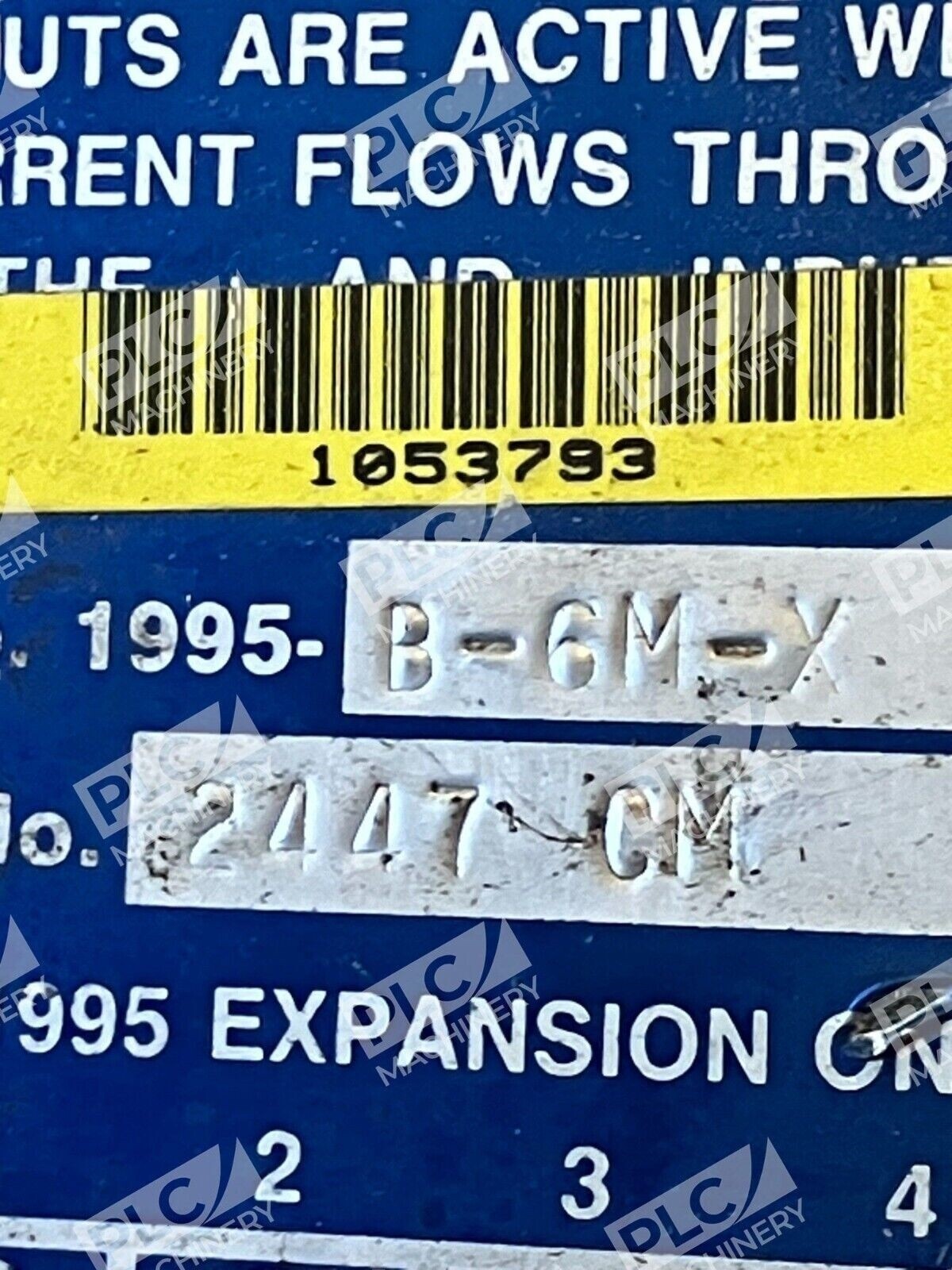

- Model designation: 1995-B-6M-X (B = Standard Micro-Set model variant; 6M = Six mechanical output relays; X = Standard software)
- Relay contact type: Single Pole Double Throw (SPDT)
- Contact rating: 10 amperes per relay
- Mounting: Open chassis (no enclosure provided)

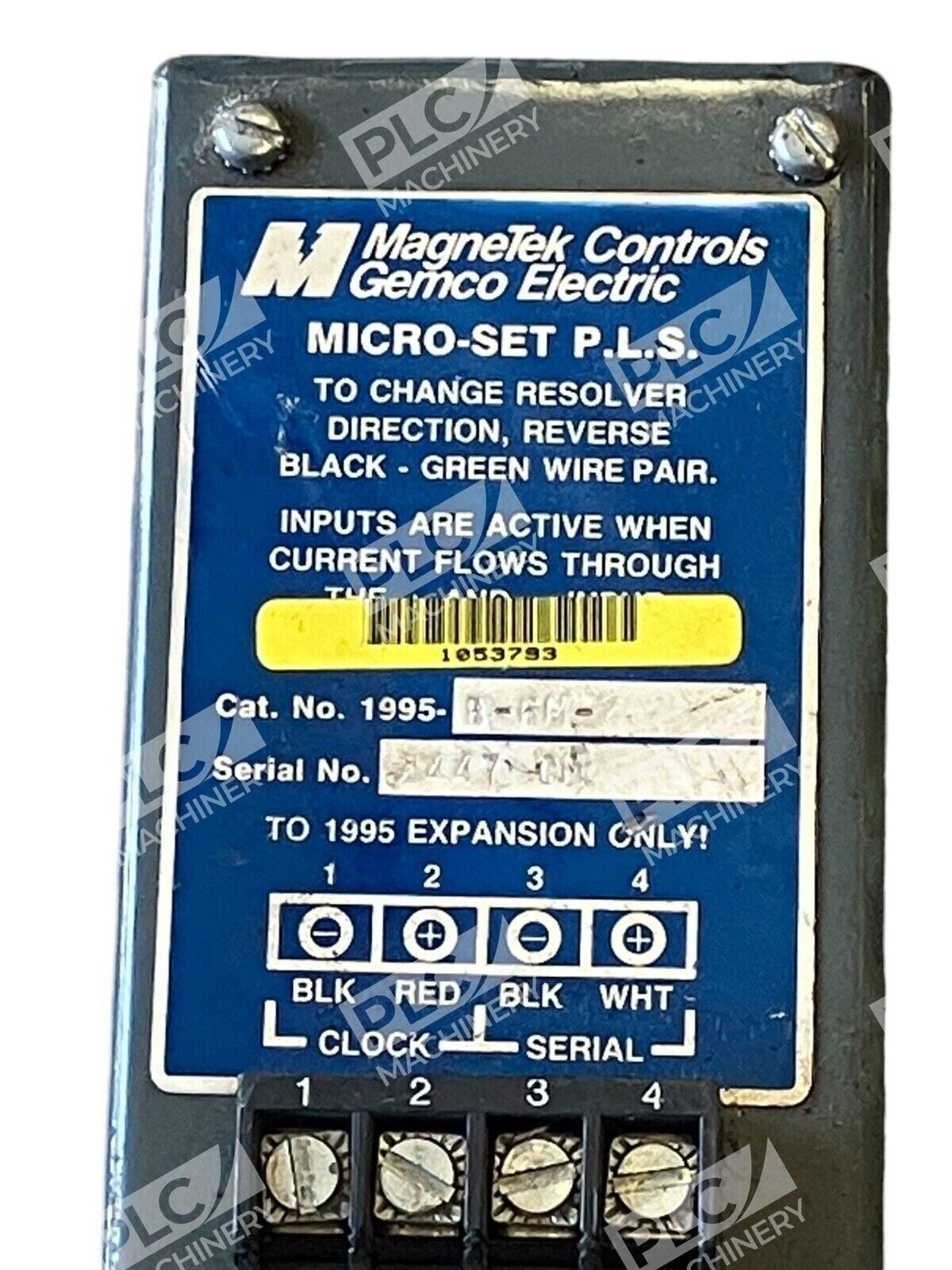

- Input type: Resolver feedback
- Output relays: Six (6) independent mechanical relays
- Typical operating temperature: Industrial standard 0–50°C
- Weight: Approximately 6 lbs
- Dimensions: Height 7.50″, Length 6.31″, Width 3.12″
Typical Applications
- Hoist and crane speed limiting and overload protection
- Industrial motor soft-start and ramp-down control
- Web winding and tension control systems
- Rolling mill and punch press programmable stops
- Conveyor line speed monitoring and cutoff logic
- Machine tool spindle speed regulation
Compatibility & Replacements
Compatible With
- Standard 115V/230V AC power supplies
- DC resolver feedback signals (typically 6–12V excitation)
- Industrial relay logic and hardwired control panels
- Mechanical and electromagnetic motor starters
- Standard 24V DC control circuit extensions
Replaces / Drop-In Replacement For
The 1995-B-6M-X can replace earlier Gemco 1995-A and 1995-L series controllers in similar configurations. Verify compatibility with your system integrator before ordering, as wiring and resolver input specifications may vary. Confirm part number match with original installation documentation.
Works With
- Gemco resolver feedback systems and sensor interfaces
- Standard industrial 24V DC control logic
- Mechanical relay-logic control circuits
- Motor starter contactors and overload relays
- Speed-sensing encoder or resolver feedback loops
