Overview

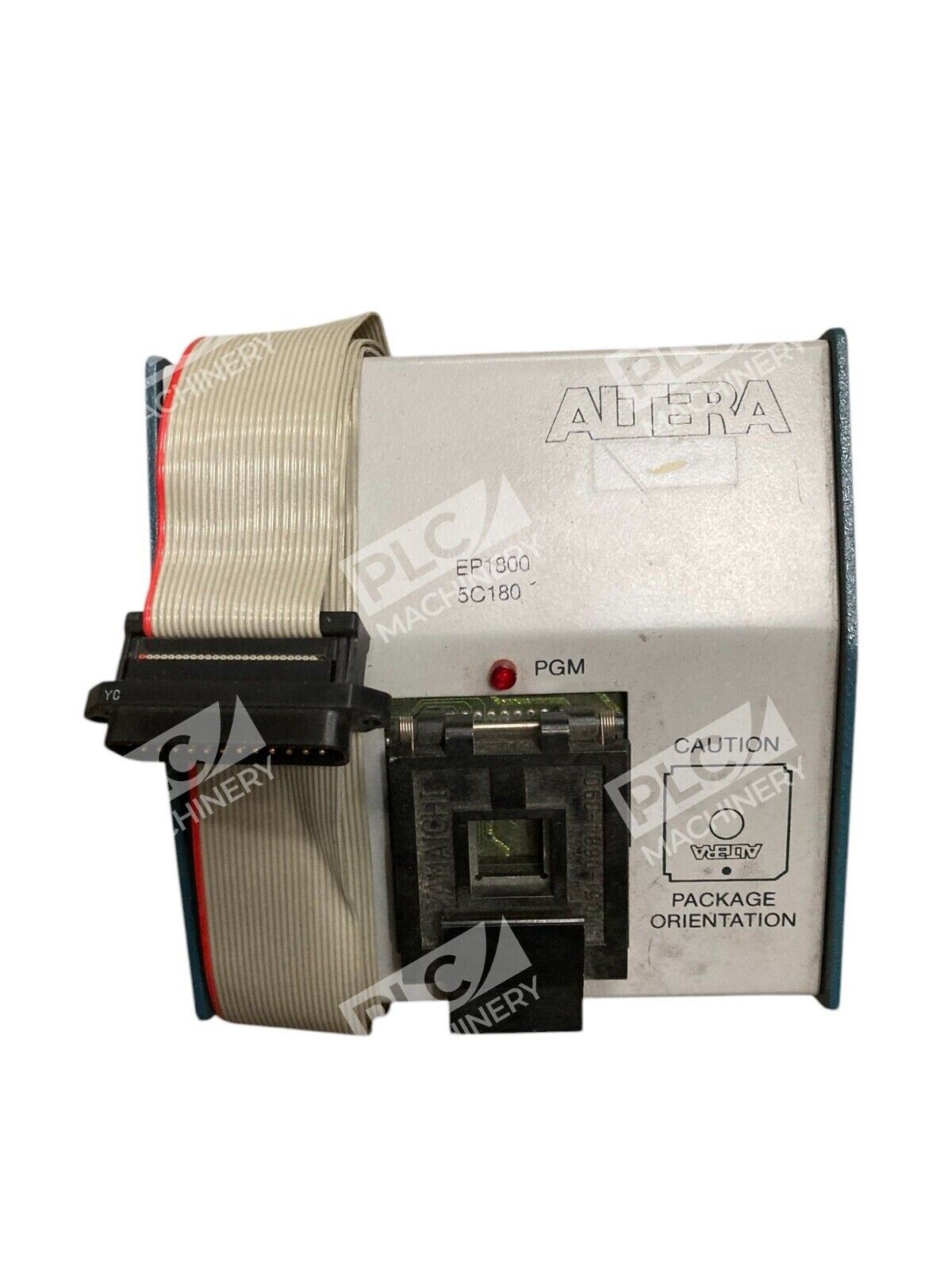

The Altera EP1800 5C180 B001403 is a high-performance complex programmable logic device that delivers up to 64 inputs and 48 outputs in a compact form factor. As a classic EPLD from Altera’s established product line, the EP1800 has been widely deployed in industrial control systems, embedded applications, and legacy automation equipment. This used unit represents a reliable replacement component for existing installations and retrofit applications.
Key Features
- 48 macrocell architecture for flexible logic implementation
- Up to 64 inputs and 48 output configuration
- CMOS technology with low power consumption
- UV-erasable design for field reprogramming
- Industrial-grade component suitable for harsh environments
- Drop-in replacement for legacy EP1800 systems
Technical Specifications
The EP1800 series operates across standard industrial voltage ranges and supports multiple package types including DIP, PLCC, and CPGA configurations. Operating temperature ranges from -40°C to +85°C, making it suitable for both indoor and outdoor industrial deployments. The device integrates with standard logic programming tools and supports both synchronous and asynchronous logic designs.
Typical Applications
- Industrial machine control and sequencing logic
- Legacy PLC I/O interface modules
- Custom state machine implementations
- Motion control signal conditioning
- Discrete sensor and actuator interfacing
- Embedded system glue logic
Compatibility & Replacements
Compatible With
- Classic Altera EPLD design tools
- Standard logic simulation software
- Industrial automation controllers
- Legacy embedded systems requiring EPLD logic
- JTAG programming interfaces
Replaces / Drop-In Replacement For
- Altera EP1800ILC-70
- Altera EP1800 variant models
- Rochester Electronics sourced EP1800 units
Works With
- Altera Classic design environments
- Standard ABEL and Verilog HDL programming
- EDIF and JEDEC netlist formats
- Embedded Linux and real-time operating systems
