Overview

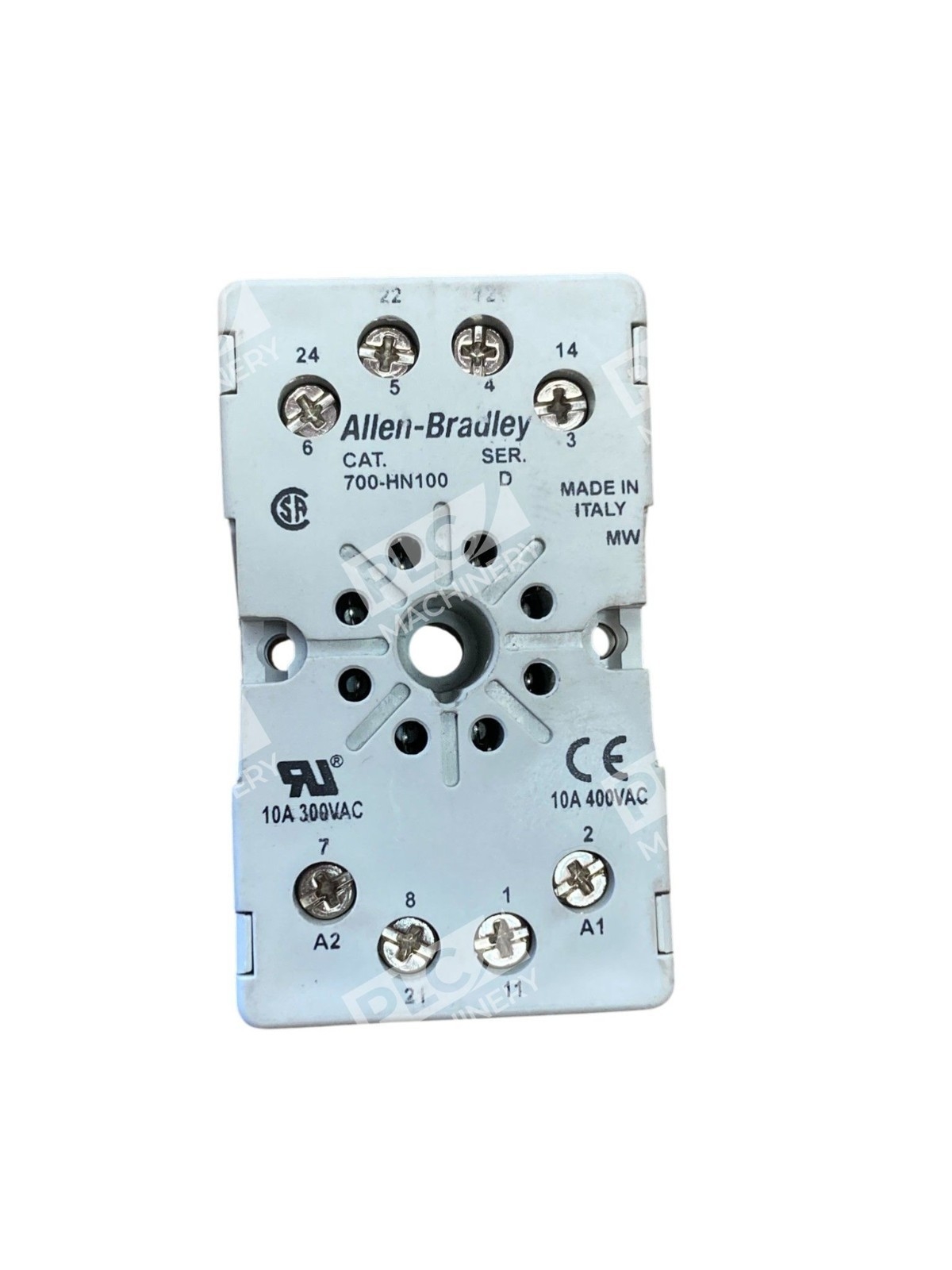

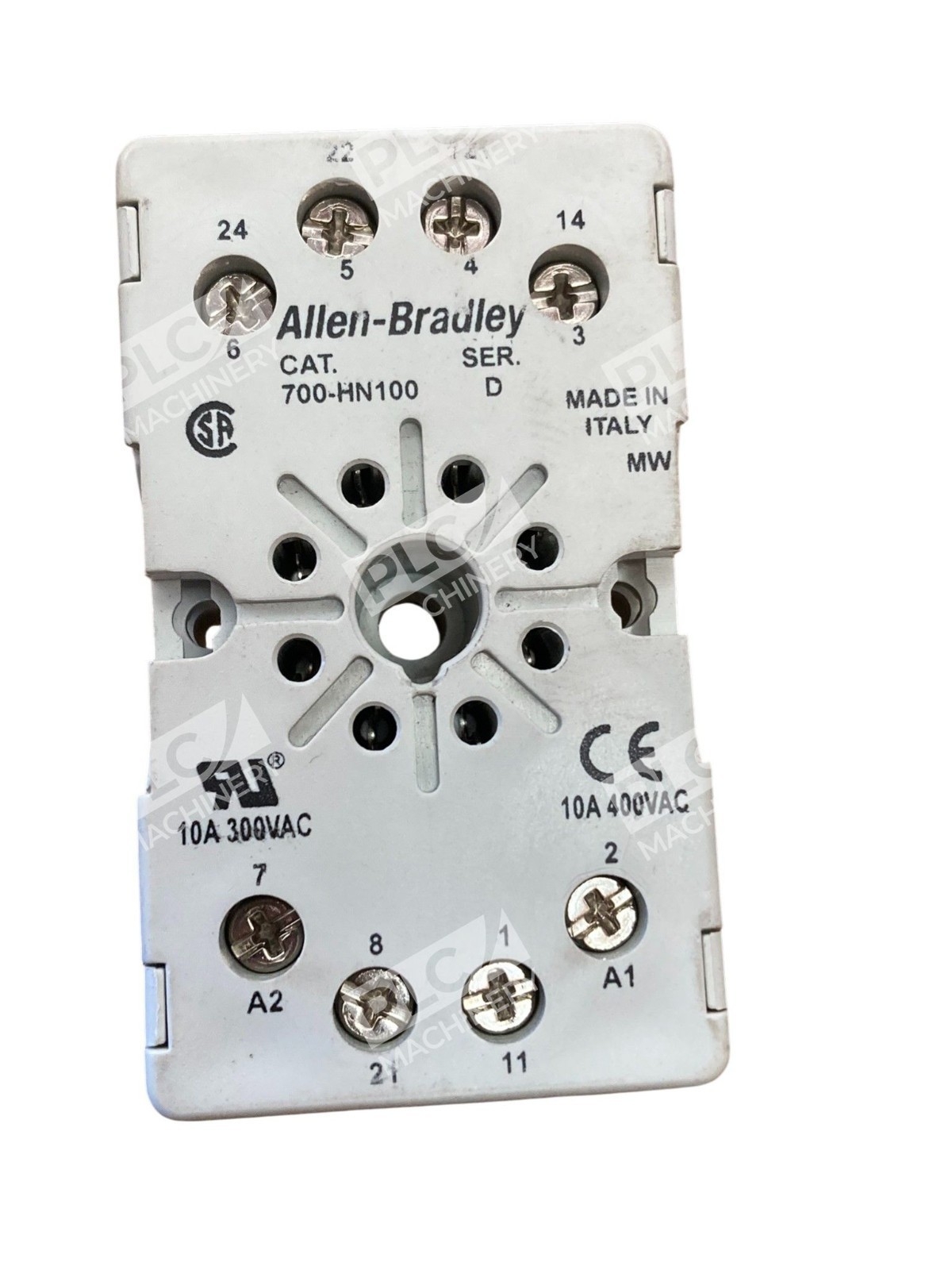

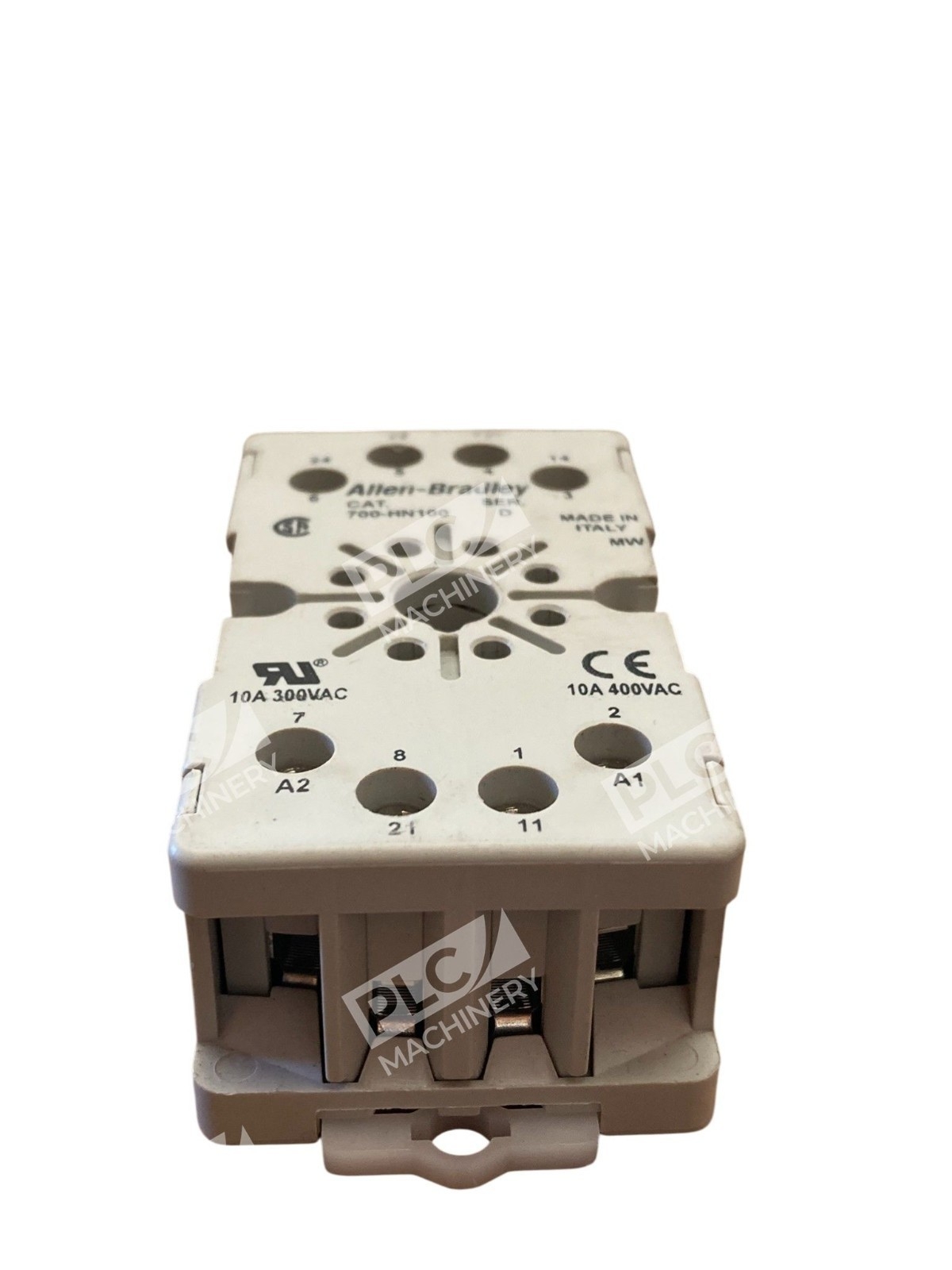

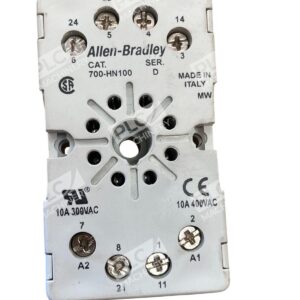

The Allen-Bradley 700-HN100 is a guarded tube base relay socket designed for reliable electrical connections in industrial automation and control systems. This 8-pin socket accommodates 300-400VAC coil voltage relays with a maximum amperage rating of 10A. Built with touch-safe screw terminals and mounting flexibility for DIN rail or panel installation, the 700-HN100 delivers dependable performance in demanding industrial environments.
Key Features
- 8-pin tube base socket with guarded, touch-safe design for operator safety
- Rated 10A maximum amperage, 300-400VAC coil voltage
- Screw terminal construction for secure electrical connections

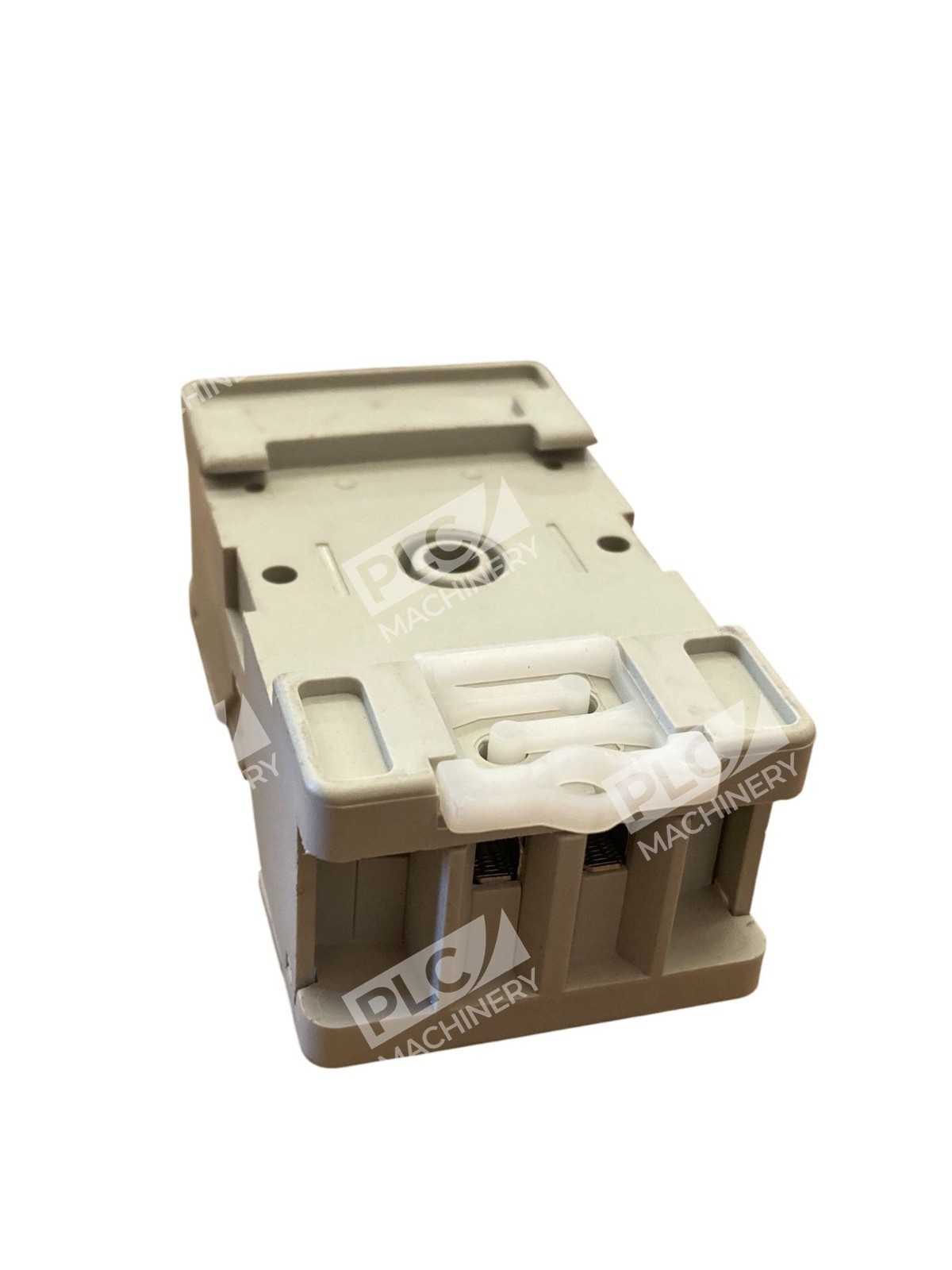

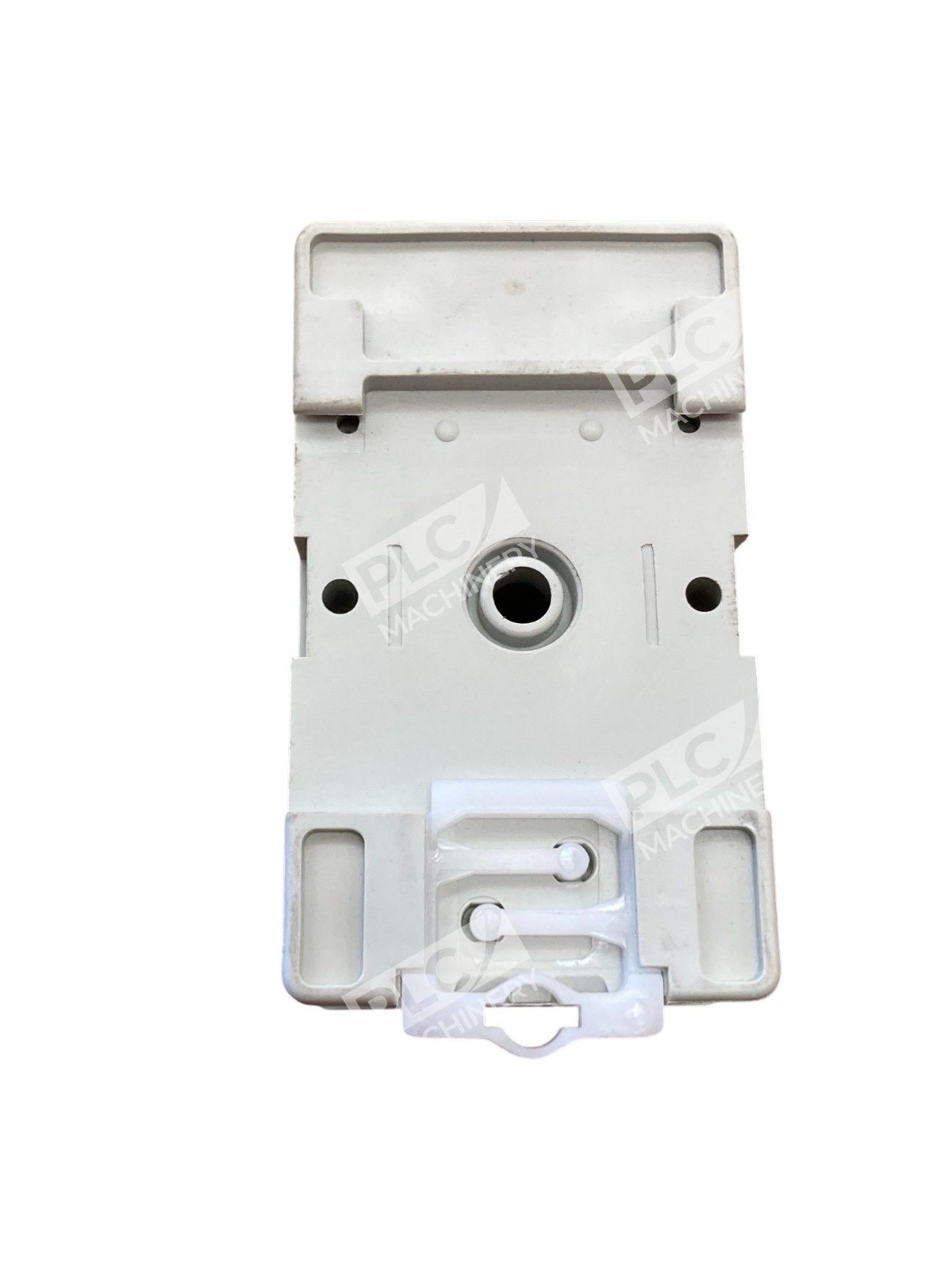

- DIN rail or panel mount flexibility for flexible installation options
- Compact dimensions: 38 mm W × 26 mm D × 65 mm H
- Meets international standards: UL, CSA, CUL, CE, CCC, KC certification
Technical Specifications
The 700-HN100 provides solid engineering for standard relay switching applications:
- Pin Configuration: 8-pin tube base socket
- Coil Voltage Rating: 300-400VAC
- Maximum Current: 10A
- Terminal Type: Guarded screw terminals
- Mounting Style: DIN rail or panel mount
- Dimensions: 38 mm W × 26 mm D × 65 mm H (1.50″ × 1.03″ × 2.56″)
- Weight: 0.11 lbs (50 g)
- Operating Standards: UL, CSA, CUL, CE, CCC, KC
Typical Applications
The 700-HN100 socket is widely used in:
- Motor control circuits and starter applications
- Control panel wiring for HVAC and machinery systems
- Industrial automation and process control systems
- Timing and sequence control circuits
- Switchgear and distribution equipment integration
Compatibility & Replacements
Compatible With
- Allen-Bradley 700-HA (DPDT general purpose relays)
- Allen-Bradley 700-HA32 relays
- Allen-Bradley 700-HR relays
- Allen-Bradley 700-HX timing relays
- Allen-Bradley 700-HT (On-Delay timing relays)
- Allen-Bradley 700-HRM and 700-HRC (Repeat Cycle timing relays)
- Allen-Bradley 700-HV (Repeat Cycle timing relays)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This socket is a direct match for legacy installations using 700-HA and 700-HR relay series equipment. Confirm relay bulletin number and coil voltage before replacement.
Works With
- Allen-Bradley 700-series relay ecosystem
- Panel mount and DIN rail control systems
- Industrial control cabinets and switchgear
- Screw-terminal field wiring configurations
