Overview

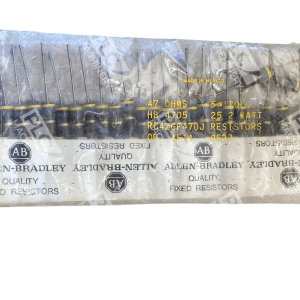

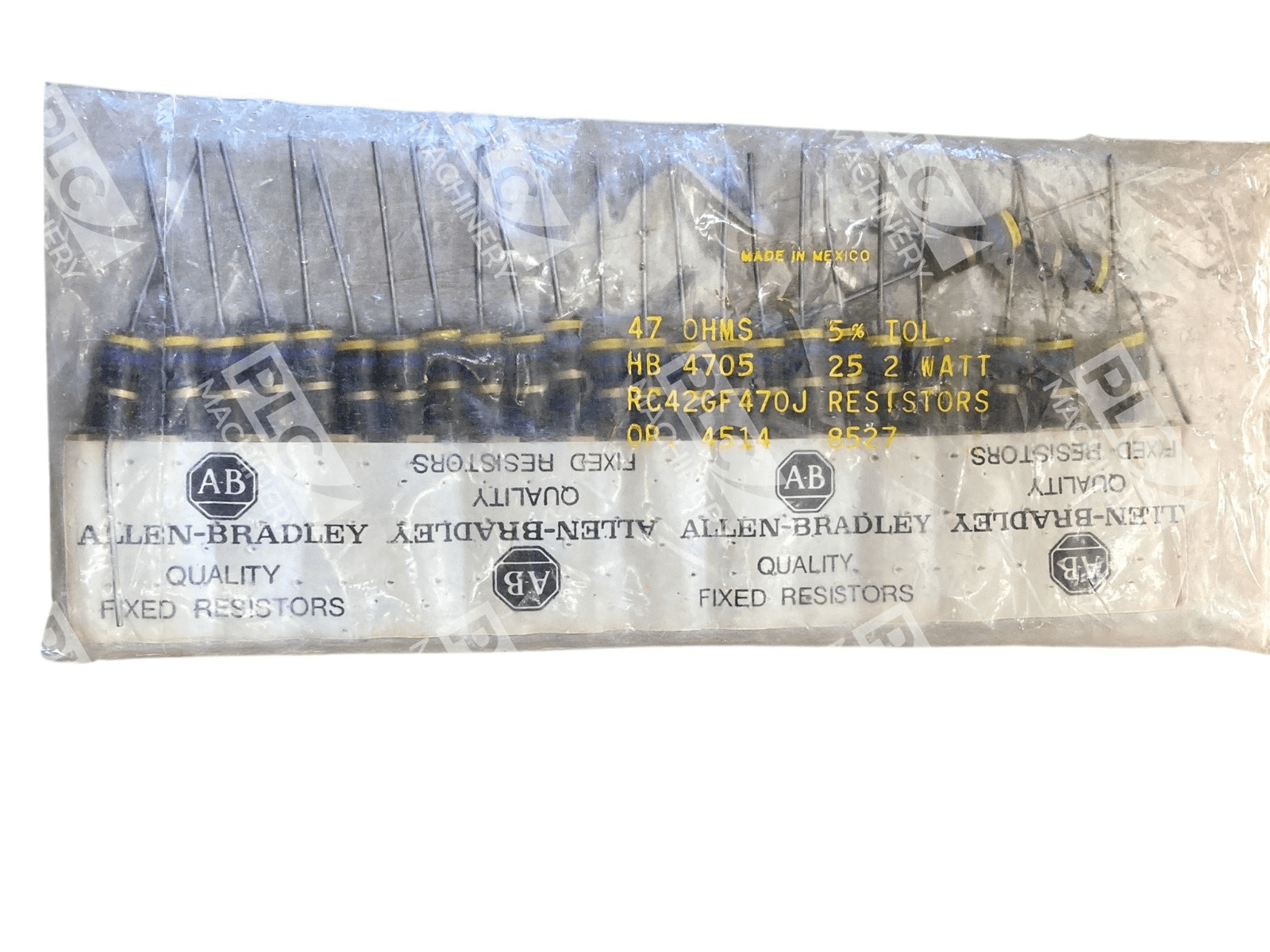

The Allen-Bradley RC42GF470J is a fixed carbon composition resistor engineered for reliable performance in industrial automation and control applications. With a resistance value of 47 ohms, 2-watt power rating, and ±5% tolerance, this axial-lead component meets demanding specifications for electronics repair, system retrofits, and legacy equipment support. Allen-Bradley carbon composition resistors are recognized for rugged construction and consistent electrical performance across industrial environments.
Key Features
- Resistance value: 47 ohms
- Power rating: 2 watts
- Tolerance: ±5%
- Construction: hot-molded carbon composition for pulse withstanding and high-frequency stability
- Termination: axial leads (oxygen-free copper)
- Industrial-grade reliability and MIL-SPEC heritage
Technical Specifications
- Resistance: 47 Ω
- Power Rating: 2 W
- Tolerance: ±5%
- Termination Style: Axial leads
- Material: Carbon composition
- Operating Temperature Range: Up to 70°C
- Manufacturer: Allen-Bradley
- Part Number: RC42GF470J
- Condition: New in Box
Typical Applications
The RC42GF470J suits a wide range of industrial control and electronics applications where stable, predictable resistance is essential:
- PLC input/output circuit protection and impedance matching
- Motor control and soft-start circuits
- Industrial sensor signal conditioning
- Equipment maintenance and troubleshooting replacements
- Legacy automation system restoration
- Test bench and lab instrument circuits
Compatibility & Replacements
The RC42GF470J is a direct fit for original equipment specifications requiring 47Ω 2W carbon composition resistors with 5% tolerance. When sourcing replacements, confirm that substitute components match the same resistance value, power rating, tolerance, and axial lead configuration. Allen-Bradley carbon composition resistors are sought after for retrofit projects because their hot-molded construction provides superior pulse withstanding and frequency stability compared to some modern film resistor types, making them preferred in legacy and retrofit applications. Related Allen-Bradley resistor series include the RC32 (1W) and RC20 (0.5W) families with comparable lead terminations and tolerance ratings.
