Overview

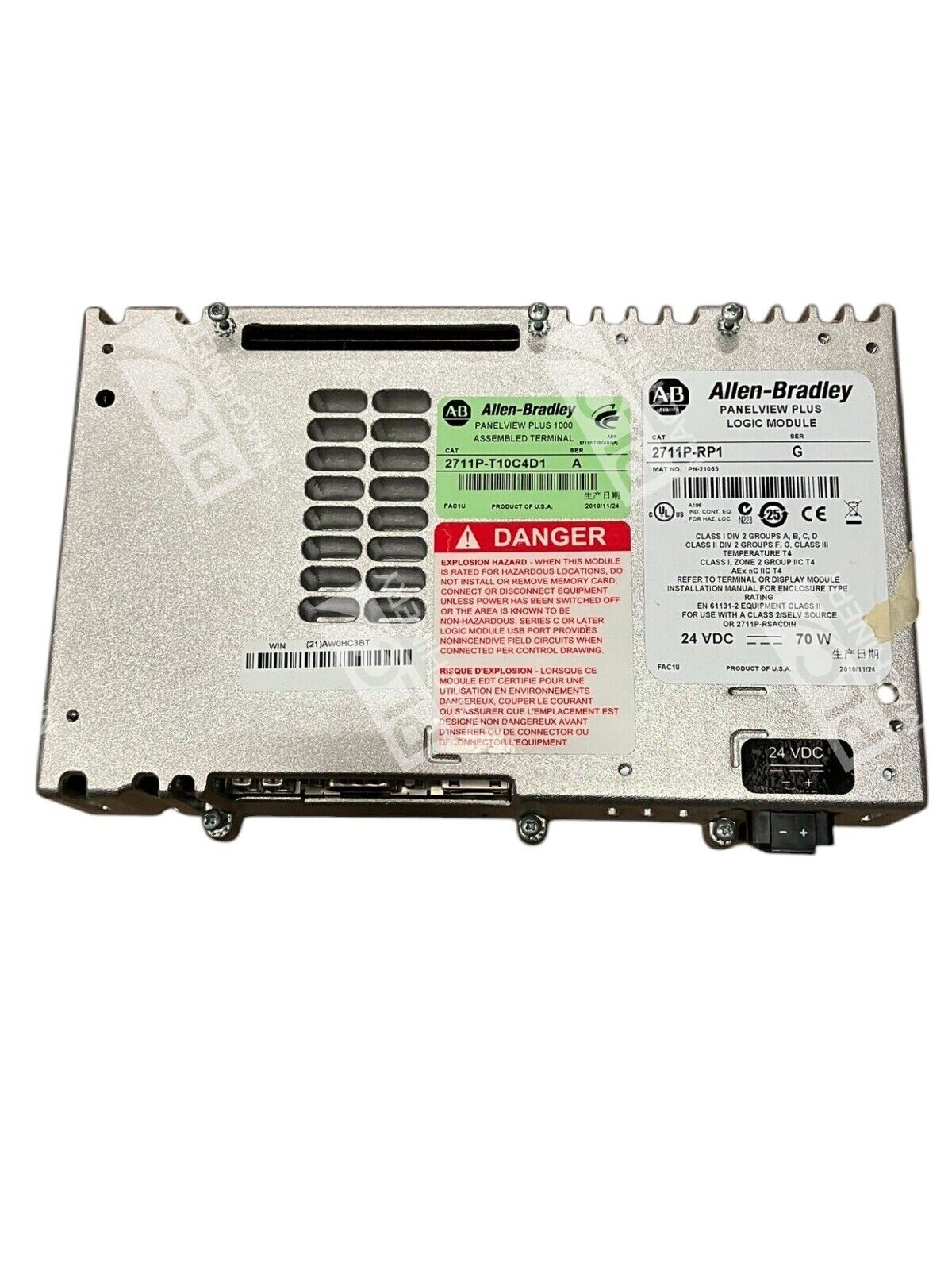

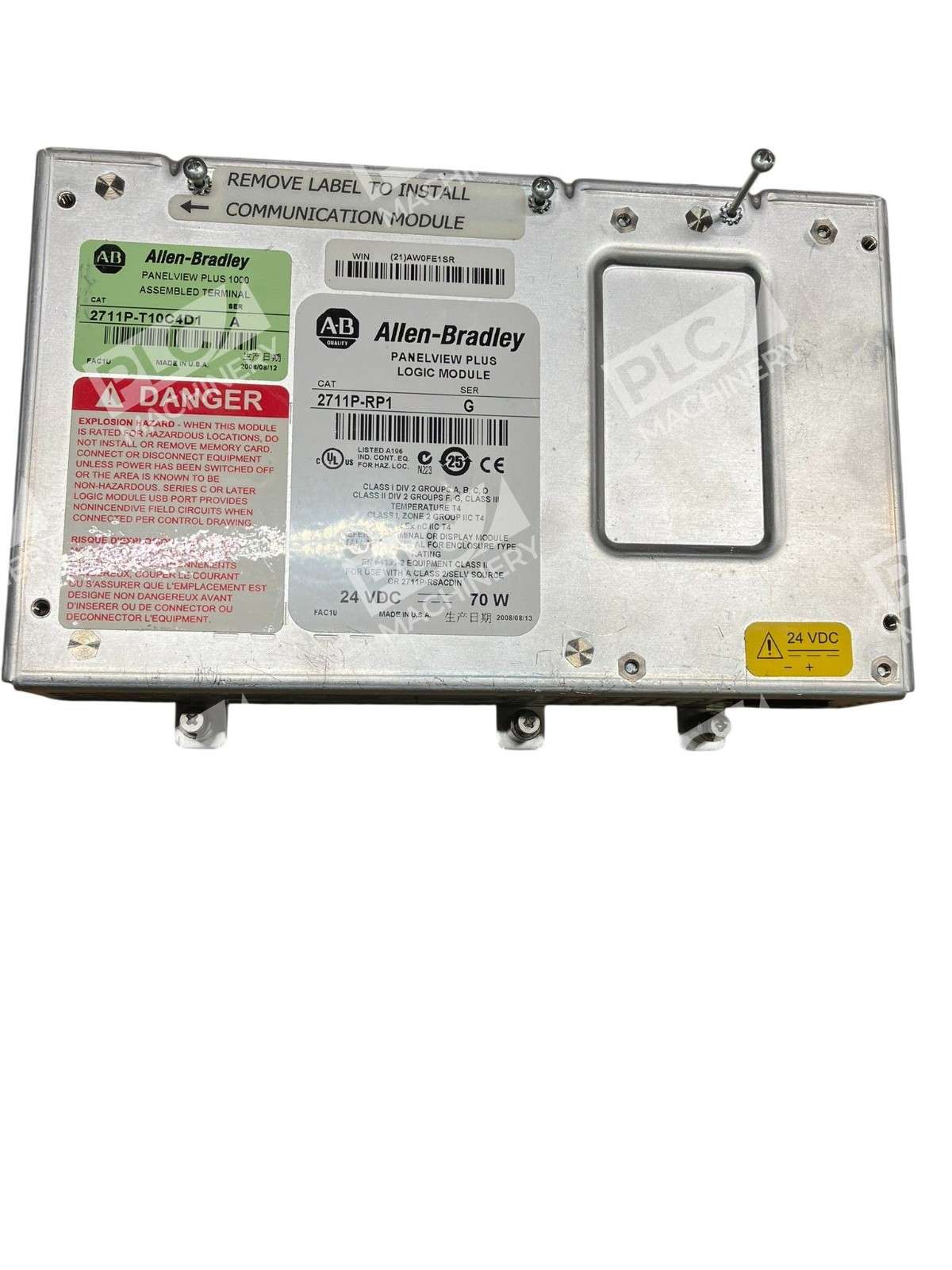

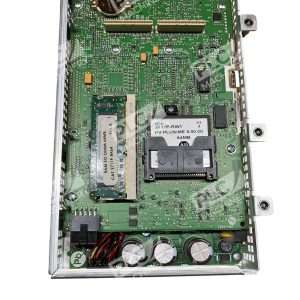

The Allen-Bradley 2711P-RP1 Series G is a dedicated logic module engineered for the PanelView Plus series of operator terminals. This module houses the core processing, memory, communication interfaces, and power supply circuitry required for HMI operation in industrial automation environments. It is compatible with PanelView Plus 700, 1000, 1250, and 1500 terminals, making it an ideal replacement for existing or failed logic modules in those product lines.
Key Features

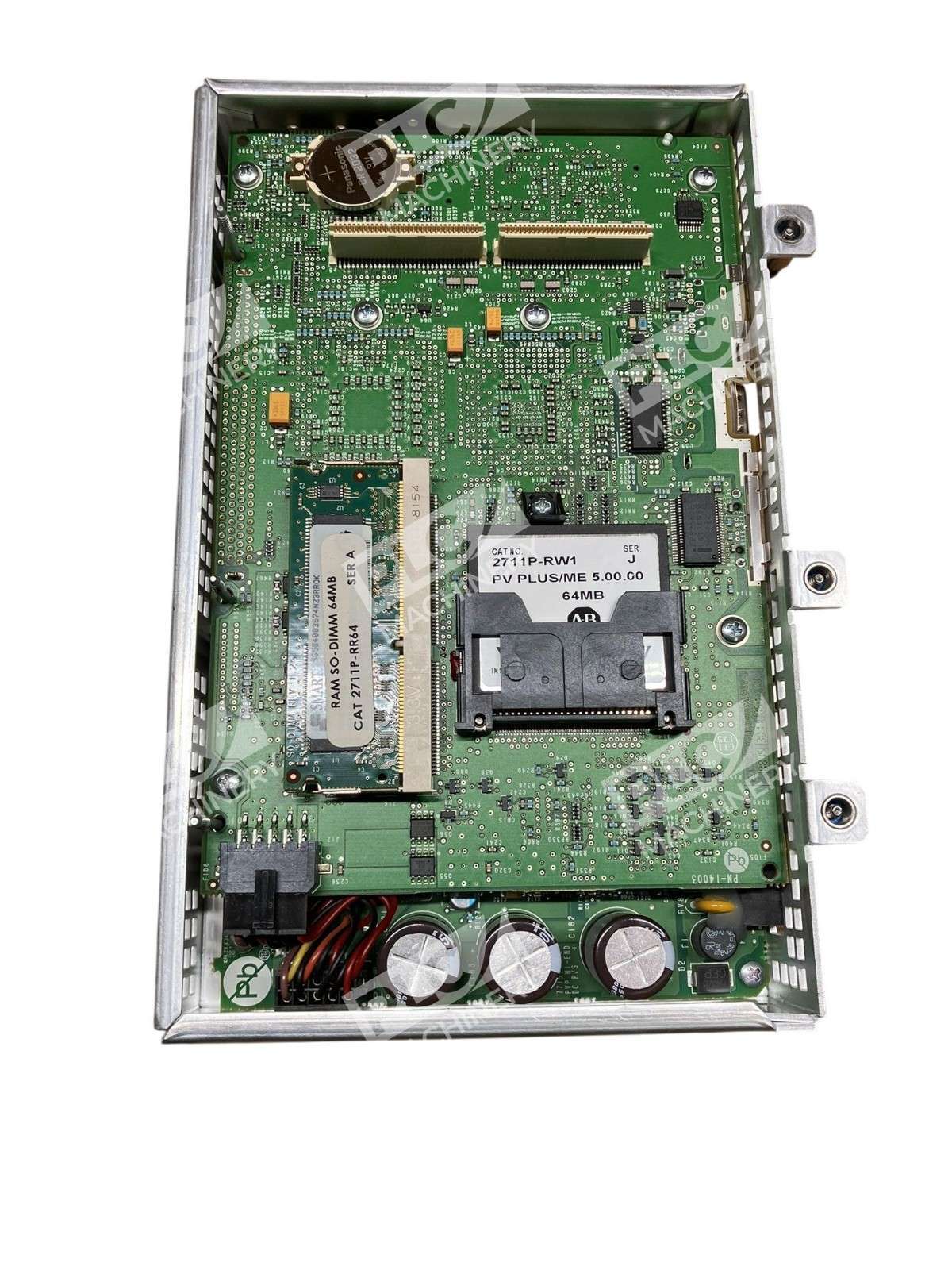

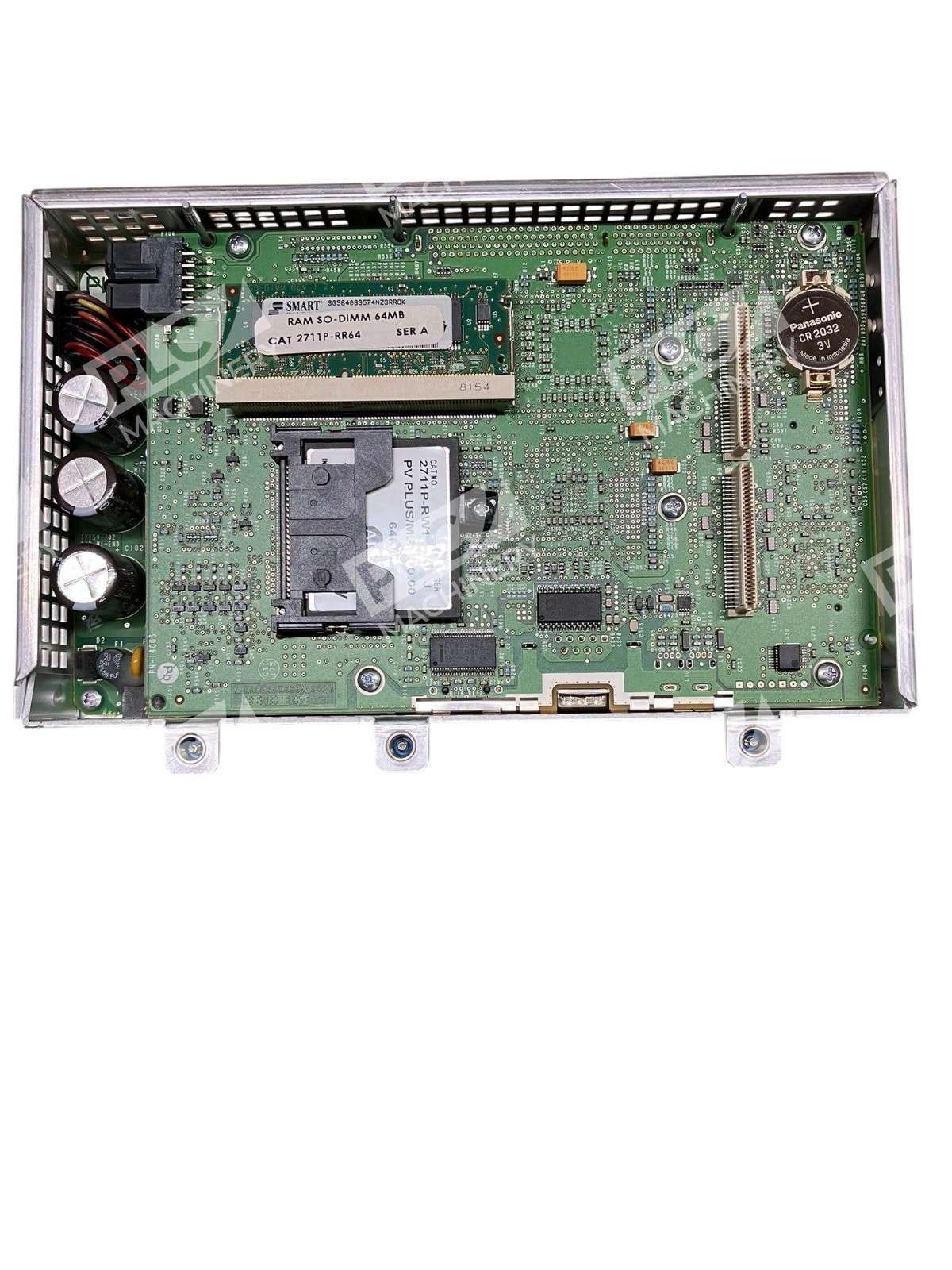

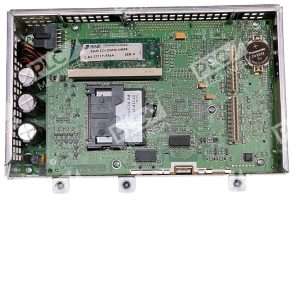

- 64 MB RAM and 64 MB internal Flash memory for efficient data processing and storage

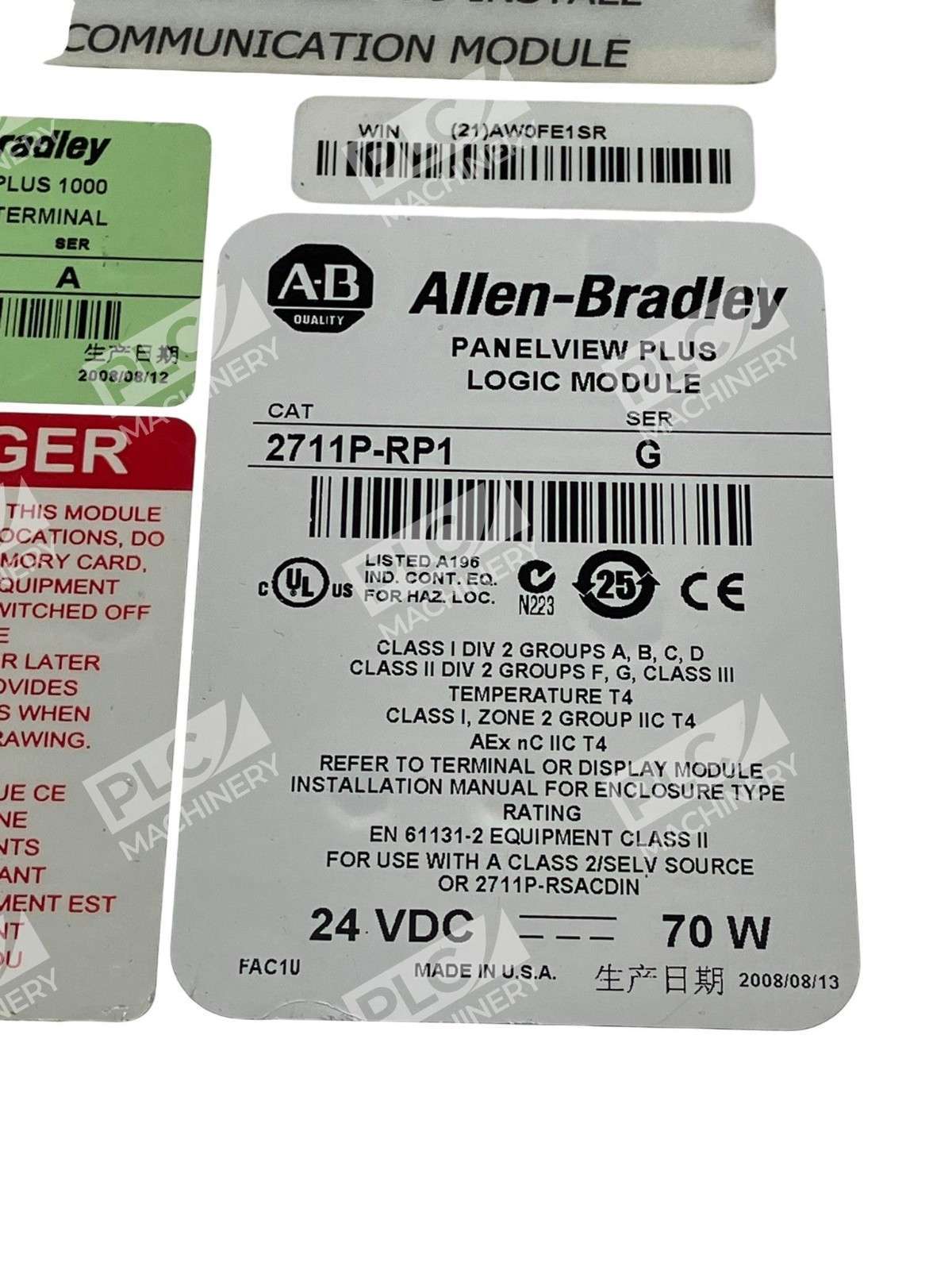

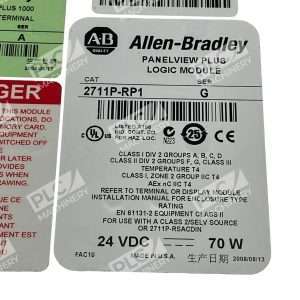

- 24 VDC power input with 70 W power consumption

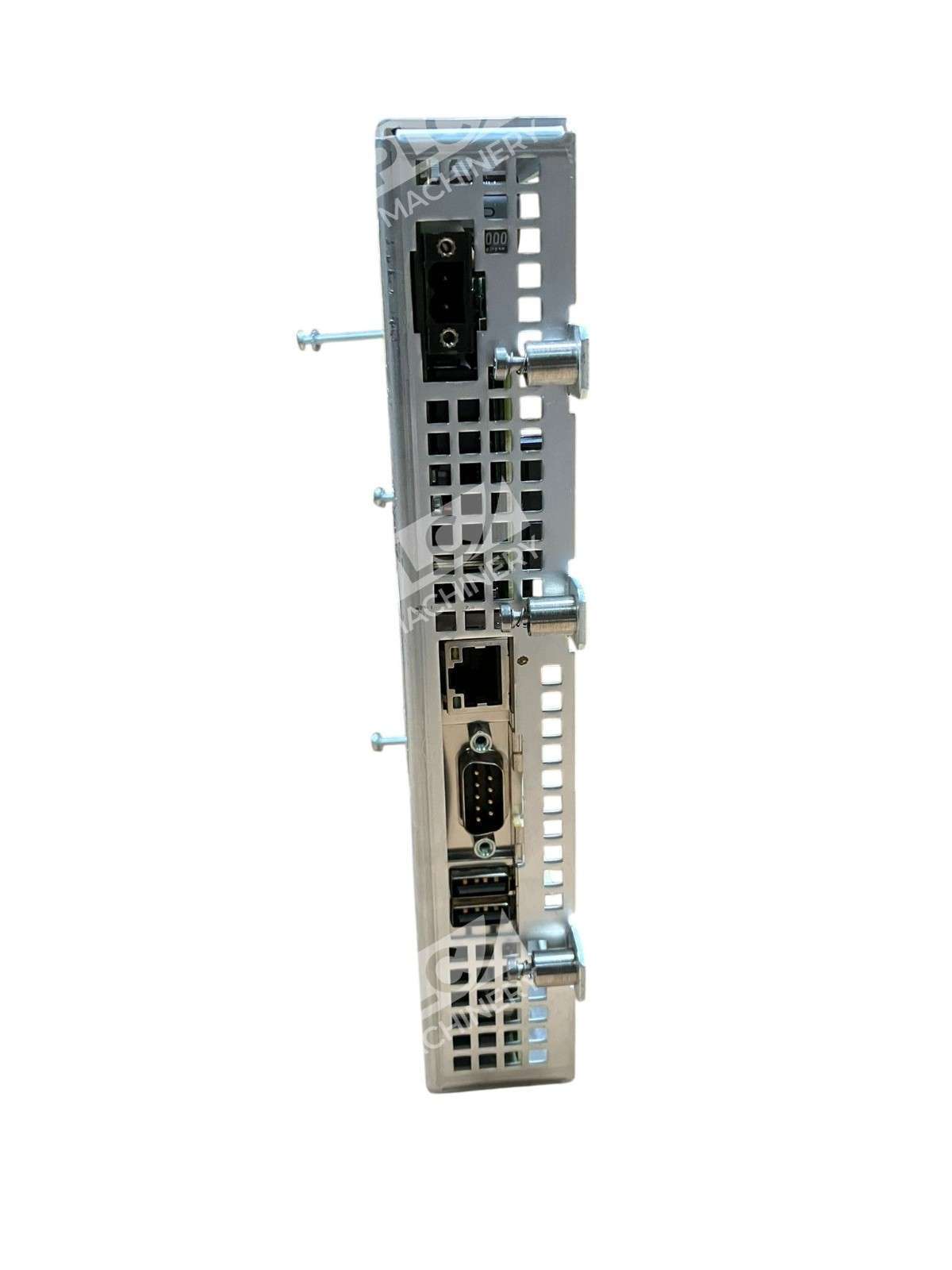

- Four communication ports: single Ethernet, RS-232 (9-pin mini DIN), and two USB ports
- Compact modular design for easy installation via slot connectors on the rear of display modules
- Status indicators for operational diagnostics
- Shock and vibration rated: 15 G operational, 30 G non-operational (11 ms duration)
- Operating temperature range 0–55 °C; storage –25 to 70 °C
- Rated for operation up to 2,000 meters above sea level
Technical Specifications
- Supply Voltage: 24 VDC
- Power Consumption: 70 W
- RAM Memory: 64 MB
- Flash Memory: 64 MB internal CompactFlash
- Communication Ports: 1× Ethernet, 1× RS-232 (9-pin mini DIN), 2× USB
- Operating Temperature: 0–55 °C
- Storage Temperature: –25 to 70 °C
- Operating Altitude: Up to 2,000 m above sea level
- Shock Rating (Operational): 15 G, 11 ms duration
- Shock Rating (Non-Operational): 30 G, 11 ms duration
- Series: G
- Compatible Terminals: PanelView Plus 700, 1000, 1250, 1500
Typical Applications
The 2711P-RP1 Series G is used in:
- Machine control and monitoring in manufacturing environments
- Process visualization and operator interface systems
- Data logging and recipe management applications
- Remote diagnostics and alarm reporting via Ethernet
- Food and beverage, pharmaceutical, and packaging line automation
- SCADA and supervisory control systems requiring HMI terminals
Compatibility & Replacements
The Allen-Bradley 2711P-RP1 is a direct replacement for the original logic module in PanelView Plus 700–1500 terminals. This module is not compatible with PanelView Plus 6 or other PanelView product families. When replacing the logic module, ensure the display module (e.g., 2711P-RDT10C or 2711P-RDT7C) is properly disconnected and that the communication module is removed beforehand. The module requires a display module to function as a complete terminal; it is the logic core only and cannot operate independently. Rockwell Automation provides firmware and configuration support through Studio 5000 Logix Designer.
