Overview

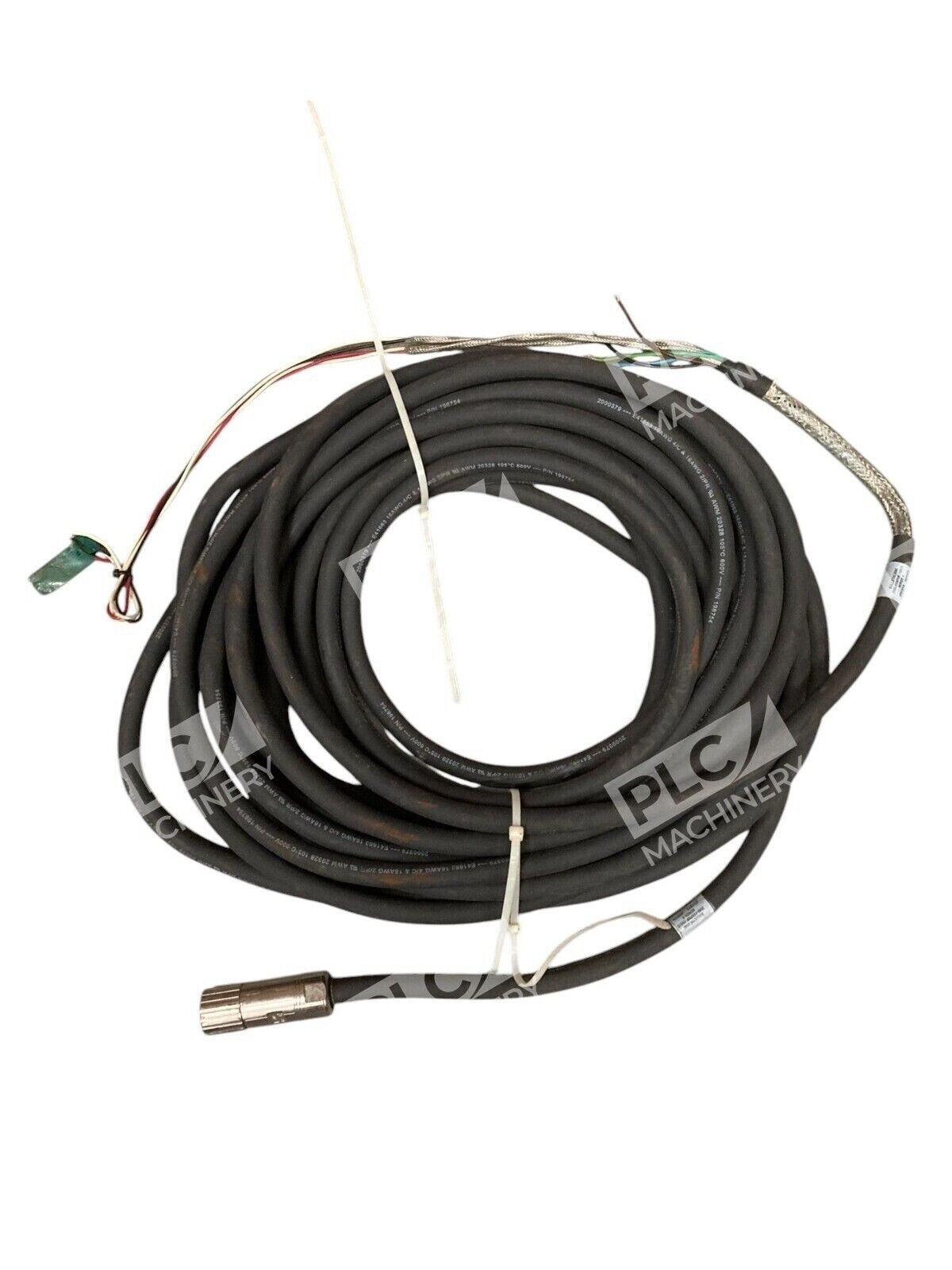

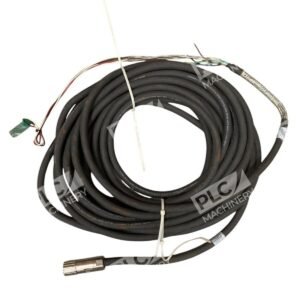

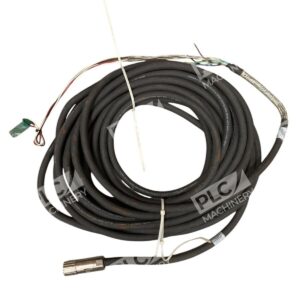

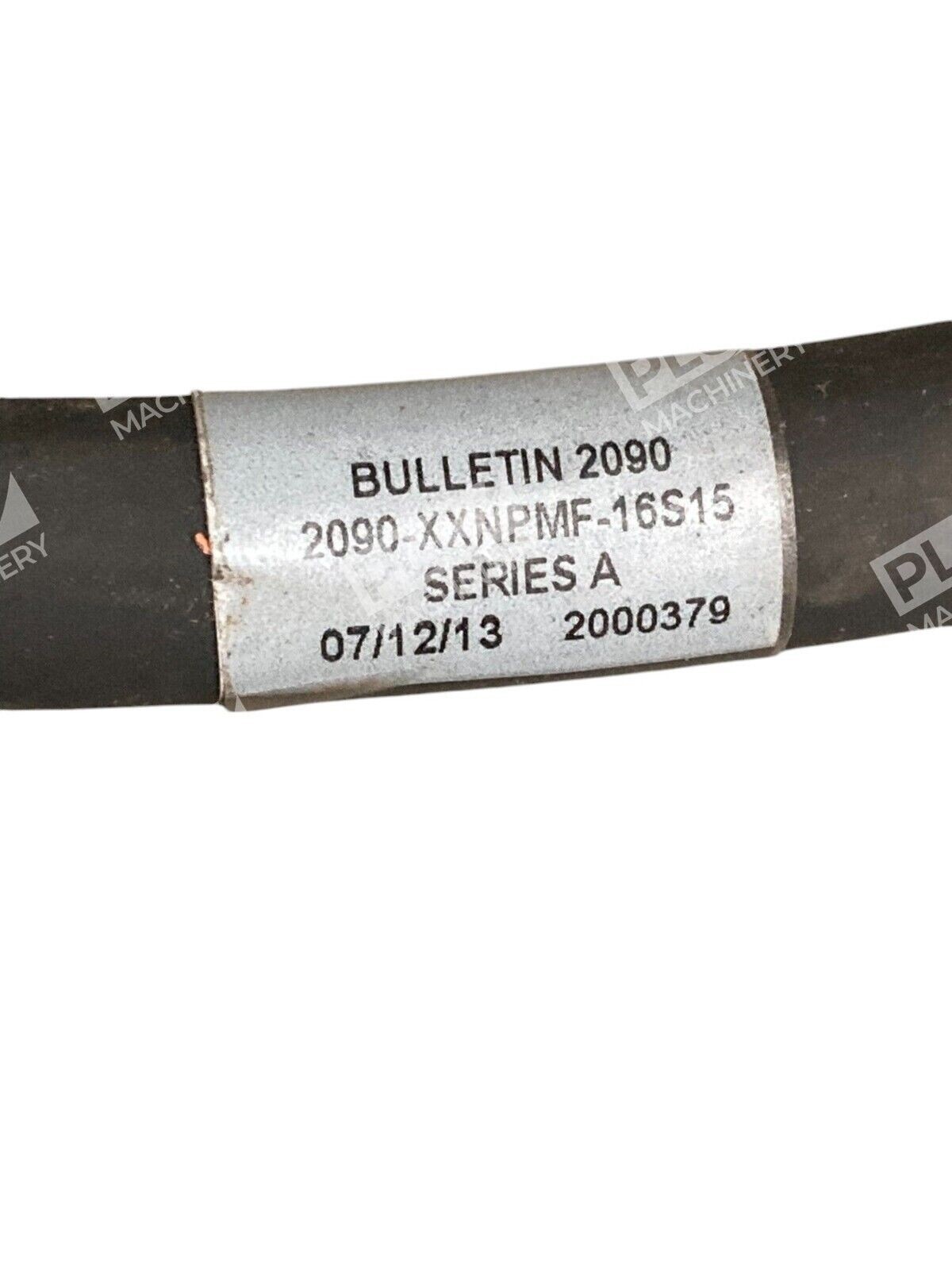

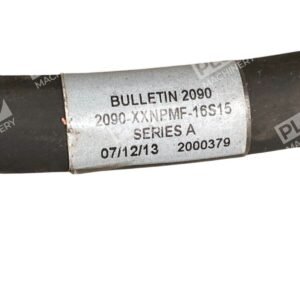

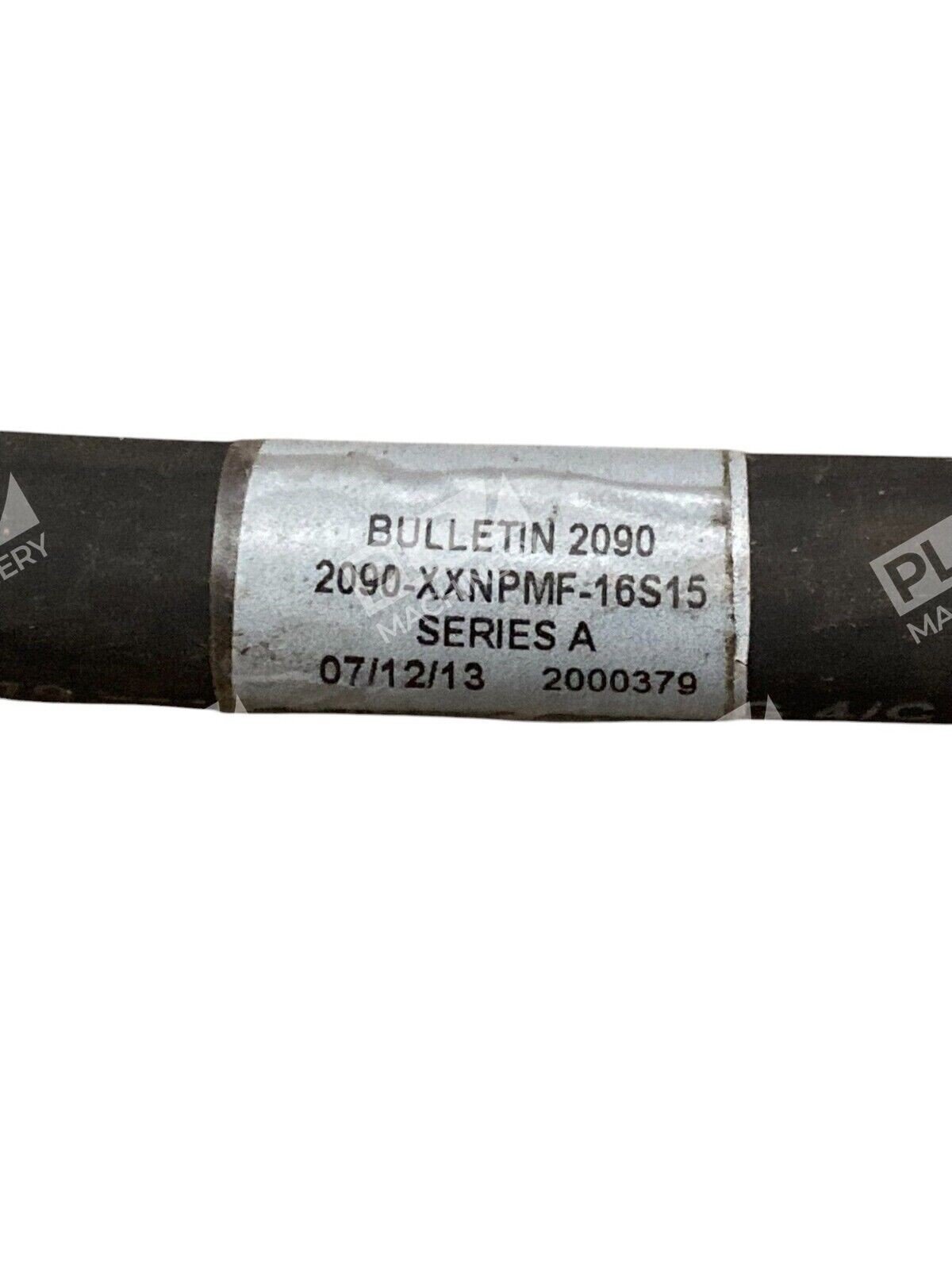

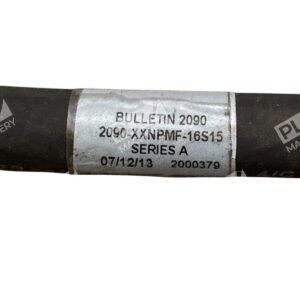

The Allen-Bradley 2090-XXNPMF-16S15 is a standard non-flex Kinetix motor power and brake cable designed for three-phase AC servo motors and motion control drives. This 15-meter cable integrates both power and brake lines in a single thermoplastic elastomer jacket, reducing installation complexity and improving system reliability in demanding industrial environments.
Key Features

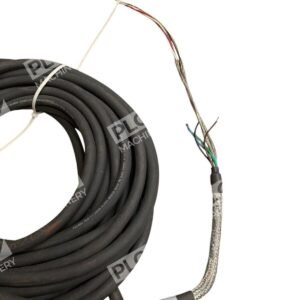

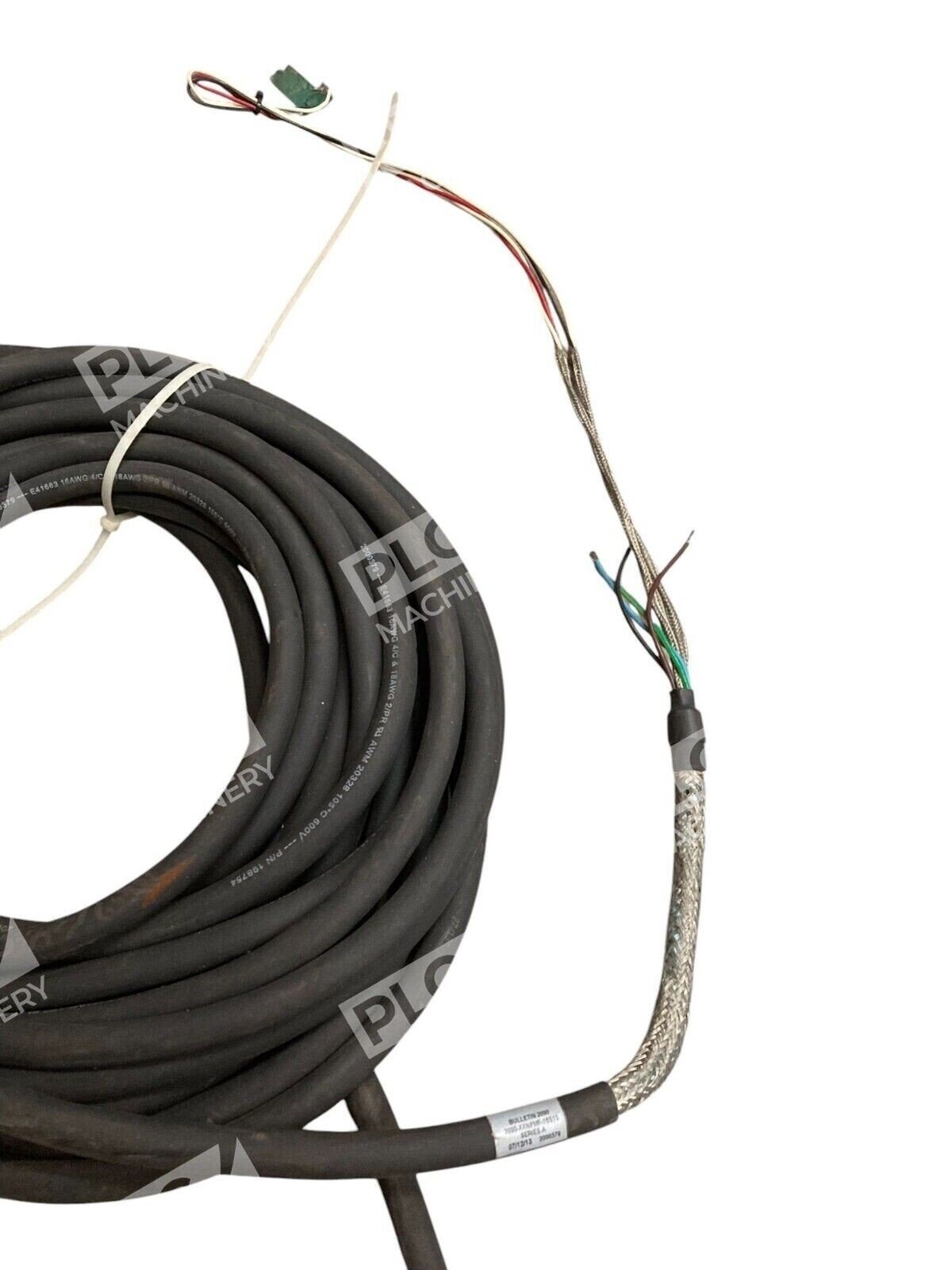

- Dual-function design: 4-conductor 16 AWG shielded power + 4-conductor 18 AWG shielded brake lines
- Industrial-grade TPE jacket: Thermoplastic elastomer rated for harsh factory floors, oil, and moderate abrasion

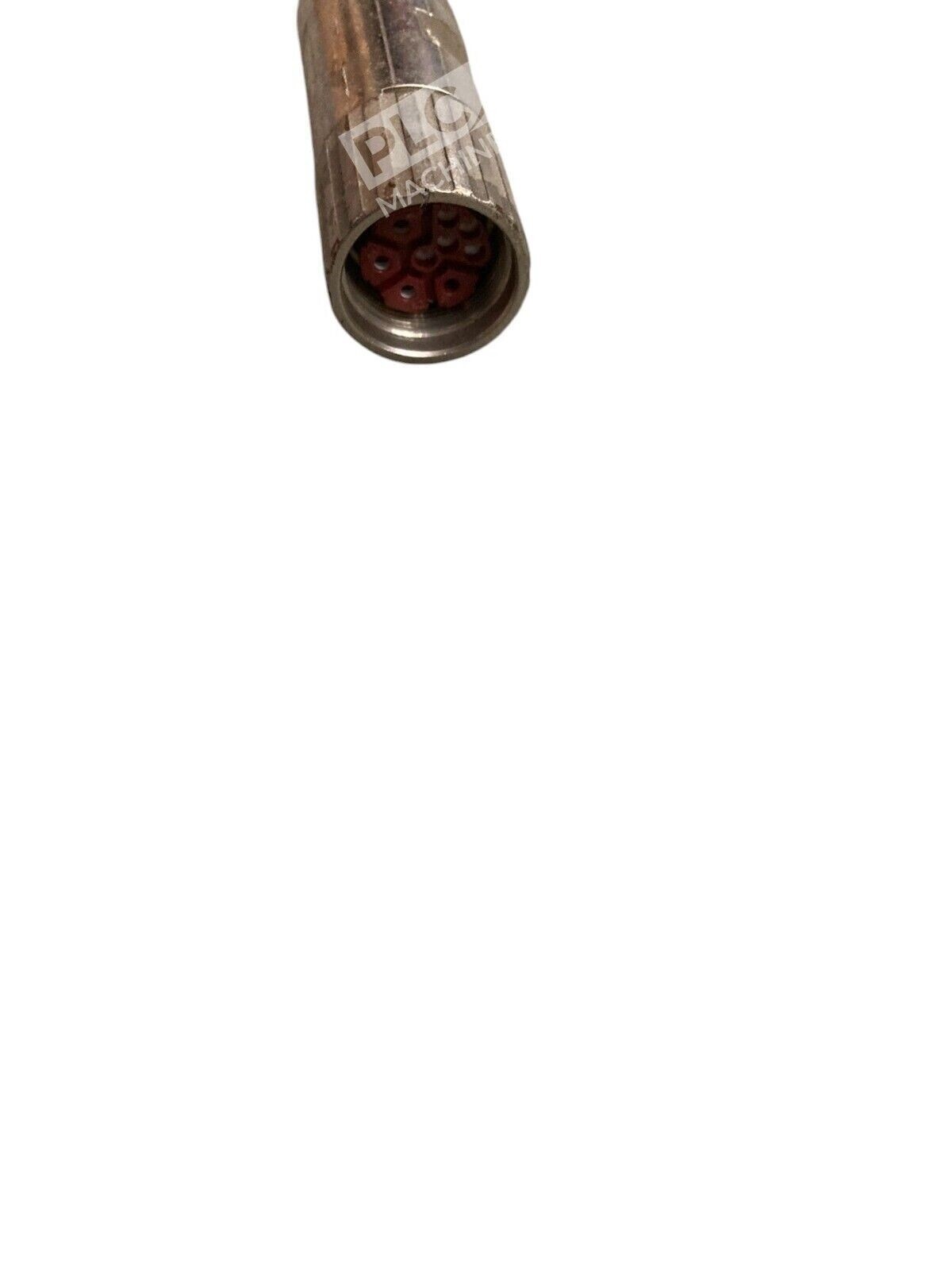

- Straight DIN M23 connectors: Non-flex threaded connectors ensure secure, vibration-resistant mating
- 15-meter length: Suitable for large machine layouts and distributed servo architectures
- Black color: Standard industrial finish with UPC 820919134135
Technical Specifications
- Cable Length: 15 m (49.2 ft)
- Power Conductor: 4 × 16 AWG, shielded
- Brake Conductor: 4 × 18 AWG, shielded
- Connector Type: DIN M23, straight, threaded
- Jacket Material: Industrial-grade thermoplastic elastomer (TPE)
- Cable Type: Standard, non-flex
- Wire Gauge: 16 AWG (power), 18 AWG (brake)
- Certifications: KC standard
- Weight: Approximately 12.1 lbs
- Color: Black
- Manufacturer: Allen-Bradley / Rockwell Automation
- UPC: 820919134135
Typical Applications
- Kinetix servo drive systems and motion controllers
- Three-phase AC servo motor installations
- Large-format manufacturing machinery (textile, packaging, printing)
- Machine tool automation and CNC platforms
- Industrial robots and material handling systems
- Distributed motion control architectures requiring long cable runs
Compatibility & Replacements
The 2090-XXNPMF-16S15 is part of the Bulletin 2090 Kinetix cable family, compatible with all threaded DIN M23 servo motor and drive connectors. This part number is a standard non-flex variant—verify your application does not require flex-rated or MP-Series alternatives. Always cross-reference connector type (DIN M23, straight) and power rating before installation. This used unit carries no original manufacturer warranty; verify continuity and insulation before deployment in safety-critical circuits.
