Overview

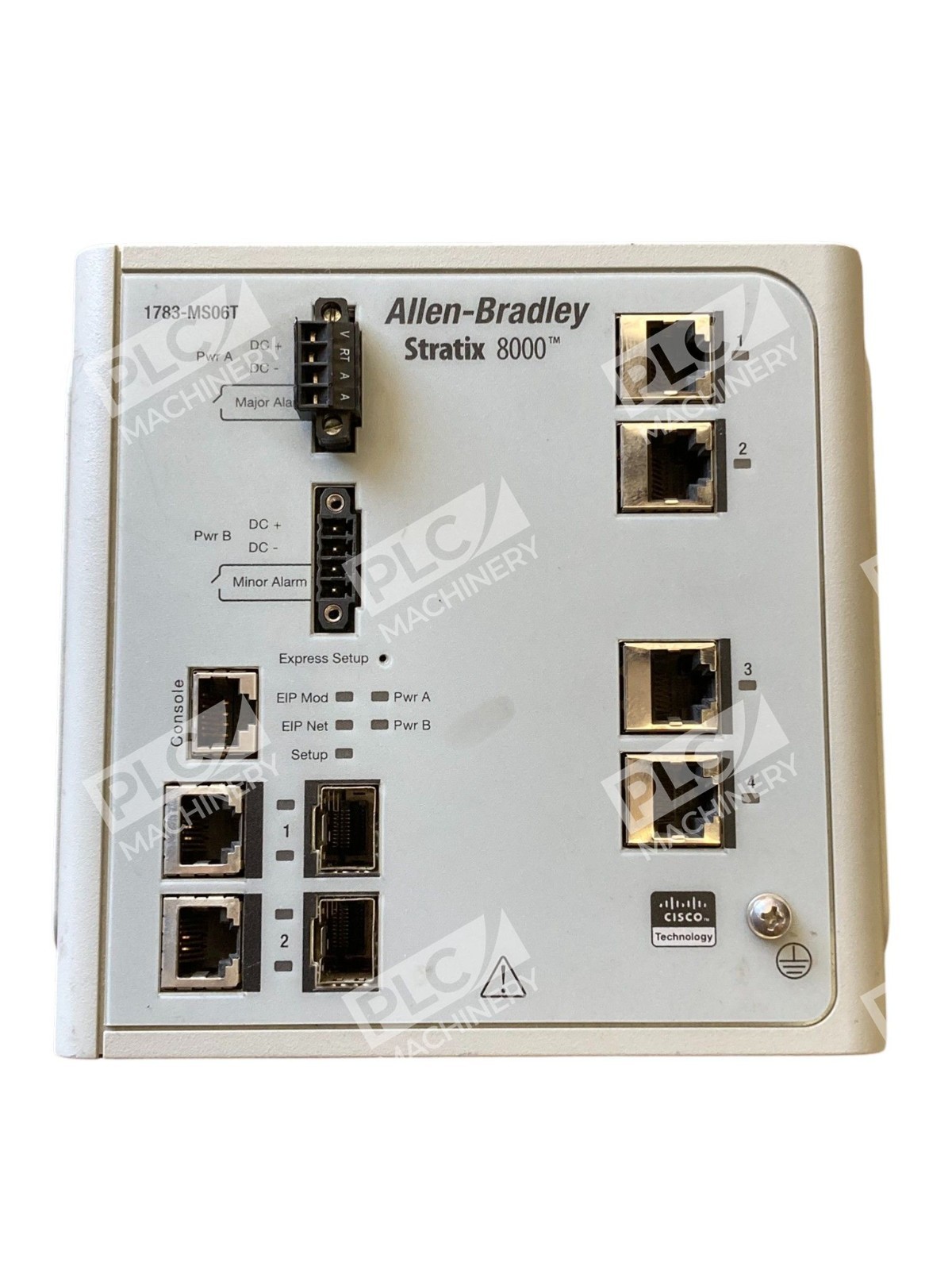

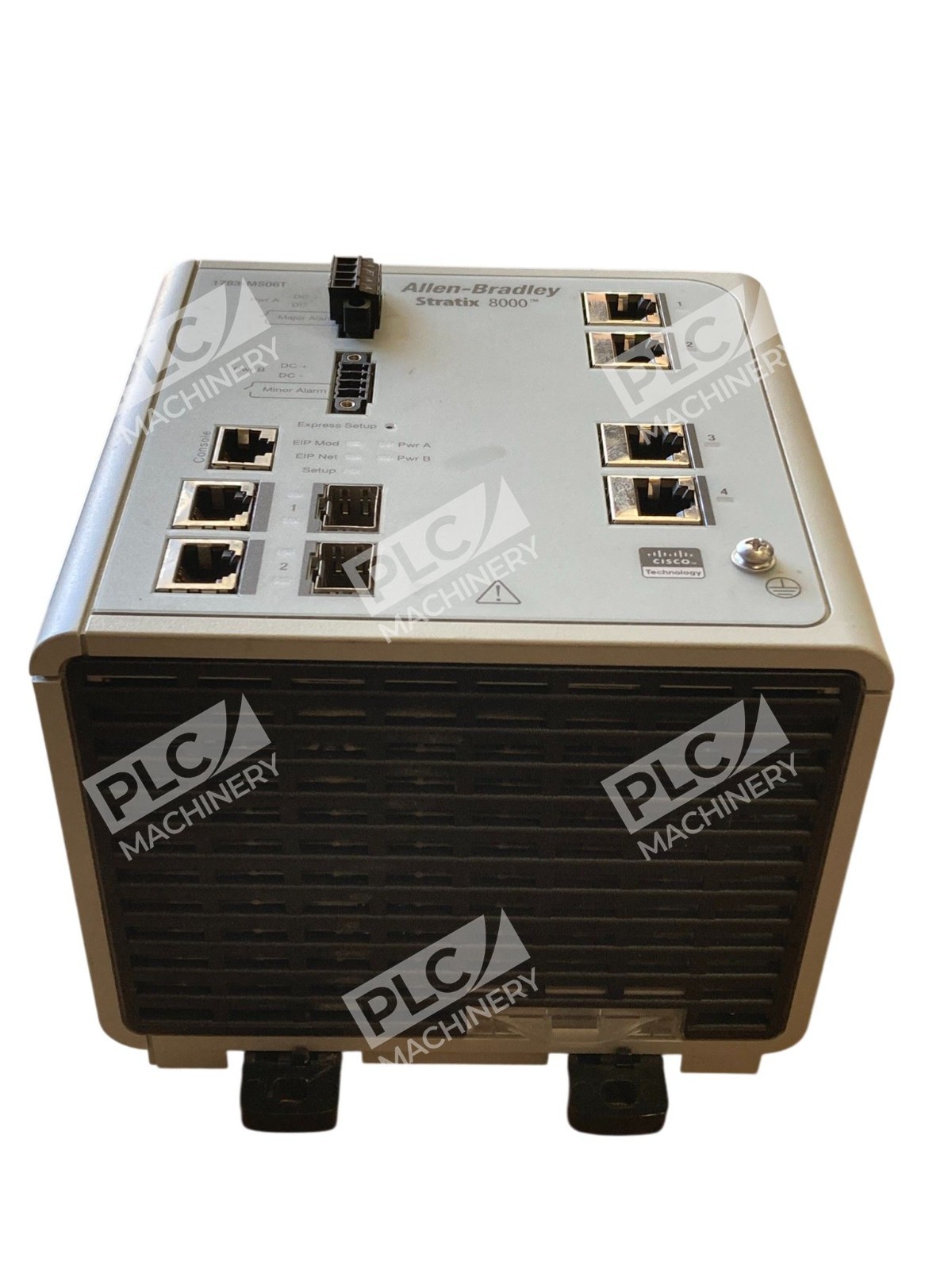

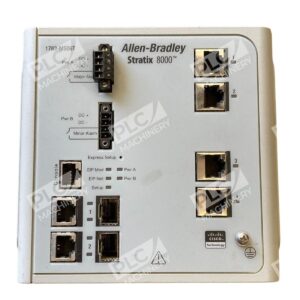

The Allen-Bradley 1783-MS06T is a 6-port base module from the Stratix 8000 series, delivering Layer 2 managed Ethernet switching for industrial automation networks. This modular switch integrates four 10/100 Mbps copper ports and two 10/100/1000 Mbps dual-purpose combo ports with SFP slot support, providing flexible network connectivity options. Designed for control systems that require robust Ethernet/IP integration, the 1783-MS06T combines powerful configuration tools with Cisco Catalyst architecture for secure, scalable industrial networks.
Key Features
- Layer 2 managed switch with 4 copper ports and 2 dual-purpose combo ports supporting SFP fiber modules
- Power over Ethernet (PoE) support via optional expansion modules, reducing installation costs by eliminating dedicated power cables
- CompactFlash memory (1783-MCF) support for simplified configuration backup and device replacement
- Standard RJ45 copper Ethernet connections and SFP-based fiber interface options per IEC 60603-7
- Integrated diagnostic and security functions for managed traffic control and network monitoring
- Cisco IOS-based management platform enabling advanced configuration and control
Technical Specifications

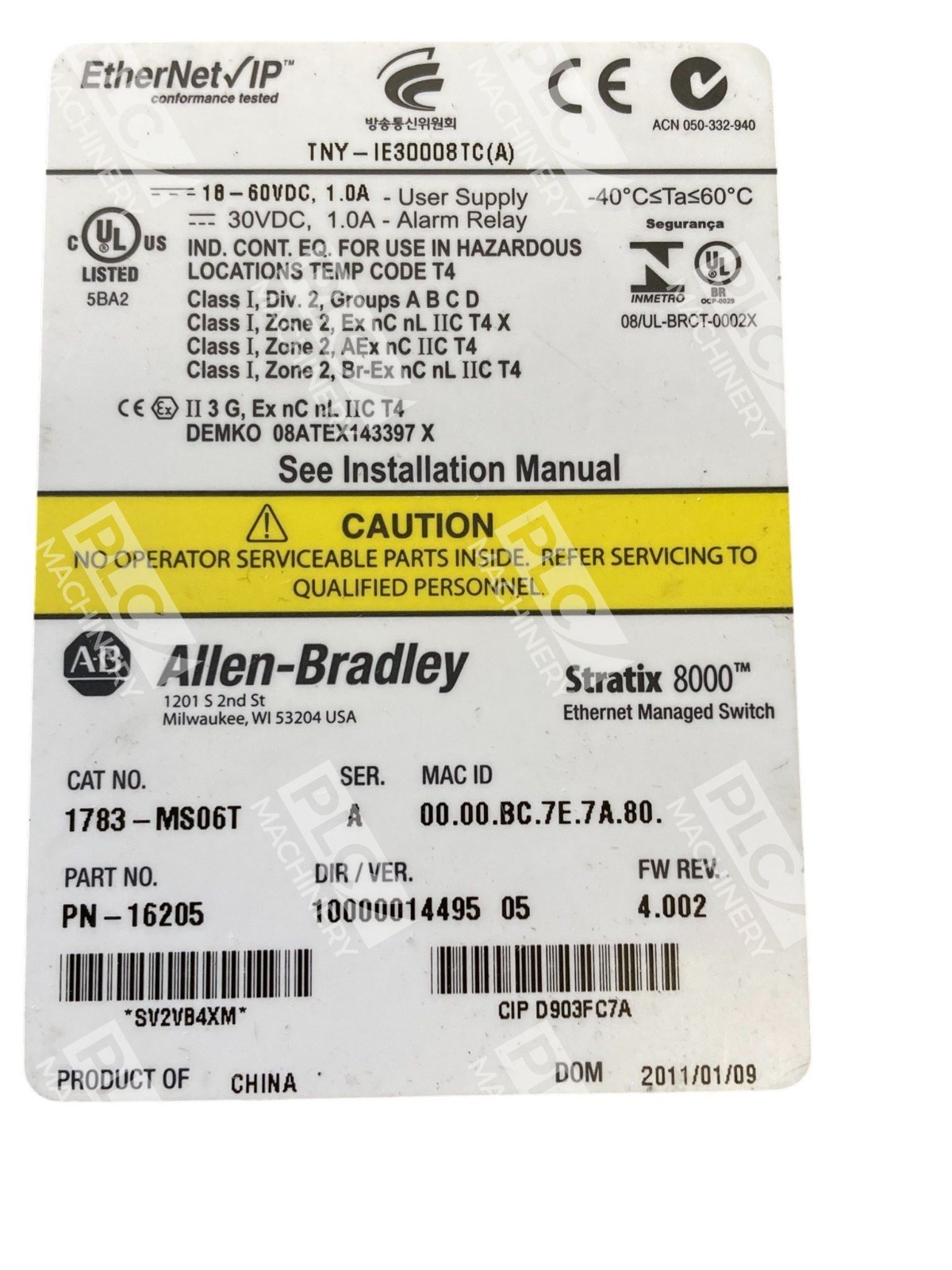

Electrical Specifications: Rated for maximum input current of 2 A at 18–60 V DC (CL2/SELV). Maximum inrush current: 2.0 A. Power dissipation: 15.1 W. Alarm relay rating: 1 A maximum at 30 V DC (CL2/SELV). Isolation voltage: 75 V (continuous), basic insulation type.
Environmental: Operating temperature: −40 to +60 °C. Storage temperature: −40 to +85 °C. Relative humidity: 5–95% non-condensing.
Connectivity Standards: RJ45 connectors per IEC 60603-7. Category 5e minimum cable required. CompactFlash memory support via 1783-MCF card.
Typical Applications
- Building secure, scalable EtherNet/IP networks for plant-floor control systems
- Integrating plant-floor and enterprise-level networks in distributed automation environments
- Network segmentation and traffic prioritization in large-scale factory automation systems
- Connecting distributed I/O modules, motion controllers, and safety devices across industrial Ethernet
- Device redundancy and failover configurations in mission-critical automation architectures
- Remote monitoring and diagnostics in decentralized control topologies
Compatibility & Replacements
Compatible With
- Rockwell Automation CompactLogix, ControlLogix, and Micro800 controllers
- EtherNet/IP networks and protocol suite
- Studio 5000 engineering environment and FactoryTalk View HMI software
- Rockwell Automation SFP fiber modules (per technical data publication 1783-TD001)
- Industrial Ethernet expansion modules (1783-MX04E, 1783-MX04T04E, 1783-MX08T)
- PROFINET via compatible expansion modules
Replaces / Drop-In Replacement For
The 1783-MS06T serves as the entry-level 6-port base module in the Stratix 8000 and 8300 modular managed switch family. Related models in the series include 1783-MS10T (10-port base), 1783-RMS06T (redundant 6-port), and 1783-RMS10T (redundant 10-port). Expansion modules include 1783-MX08T (8 copper ports), 1783-MX08F (8 fiber ports), 1783-MX04S, and 1783-MX08S. Verify exact replacement requirements with your system integrator.
Works With
- Studio 5000 Logix Designer and Studio 5000 Connectors
- FactoryTalk View and FactoryTalk Live
- EtherNet/IP communication protocol
- Cisco IOS-based configuration and management tools
- CompactFlash memory cards (1783-MCF) for configuration storage
- PoE expansion modules for extended powering capabilities
