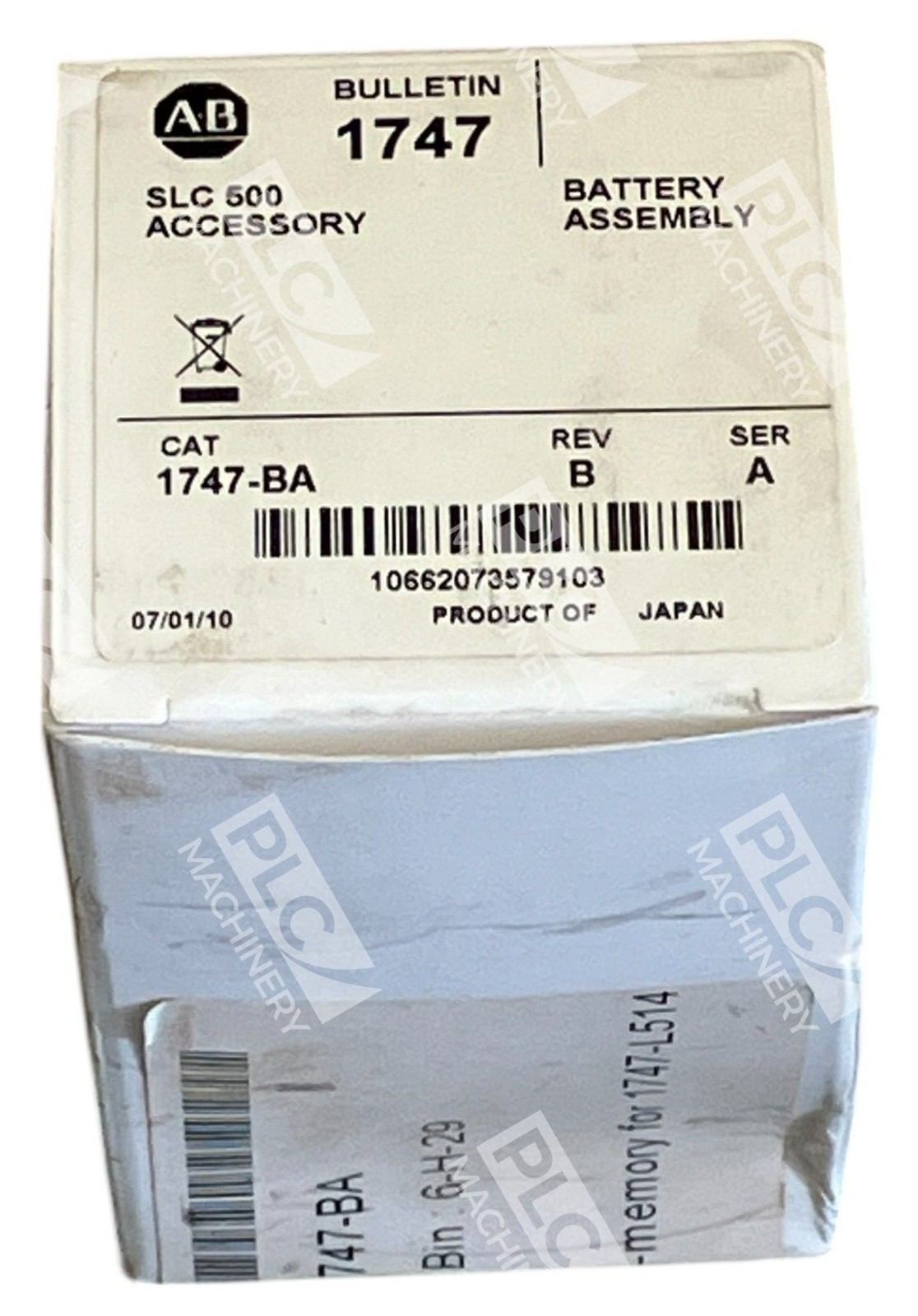

Allen Bradley AB SLC500 Rev B Battery Assembly 1747-BA /A

Allen-Bradley SLC 500 Series Lithium Battery Assembly 1747-BA /A

The Allen-Bradley 1747-BA /A is a lithium battery assembly designed to provide reliable memory backup for the SLC 500 series programmable logic controllers (PLCs). This battery ensures that critical data and system configurations are preserved during power interruptions, maintaining the integrity and continuity of industrial automation processes.

Key Features

• Voltage and Capacity: Delivers a stable 3.0 volts with a capacity of 1200mAh, offering dependable power for memory retention.
• Compatibility: Specifically engineered for use with Allen-Bradley SLC 500 series controllers, including models such as SLC 5/01, SLC 5/02, SLC 5/03, SLC 5/04, and SLC 5/05.
• Battery Life: Provides approximately 2 years of backup power, depending on the specific controller model and operating conditions.
• Operating Temperature Range: Functions effectively within a temperature range of 0°C to 60°C, suitable for various industrial environments.
• Dimensions: Compact design with a diameter of 0.58 inches (14.74mm) and a height of 1.04 inches (26.42mm), facilitating easy installation within the PLC system.

Installation and Maintenance

The 1747-BA /A battery assembly is designed for straightforward installation and replacement, minimizing system downtime. It is recommended to monitor the battery status regularly and replace it promptly when the low battery indicator is activated to ensure continuous memory backup.

Safety and Storage Guidelines

• Storage Conditions: Store the battery in a cool, dry environment with an ambient temperature between 20°C and 25°C (68°F to 77°F) and relative humidity of 40-60%.
• Handling Precautions: Avoid short-circuiting, disassembling, or exposing the battery to excessive heat. Do not place the battery on conductive surfaces or mix with other batteries.
• Transportation: Complies with UN regulations for the transportation of lithium metal batteries; ensure adherence to local shipping regulations.

By integrating the Allen-Bradley 1747-BA /A lithium battery assembly into your SLC 500 series controllers, you can maintain critical system data integrity and enhance the reliability of your industrial automation systems.
