Overview

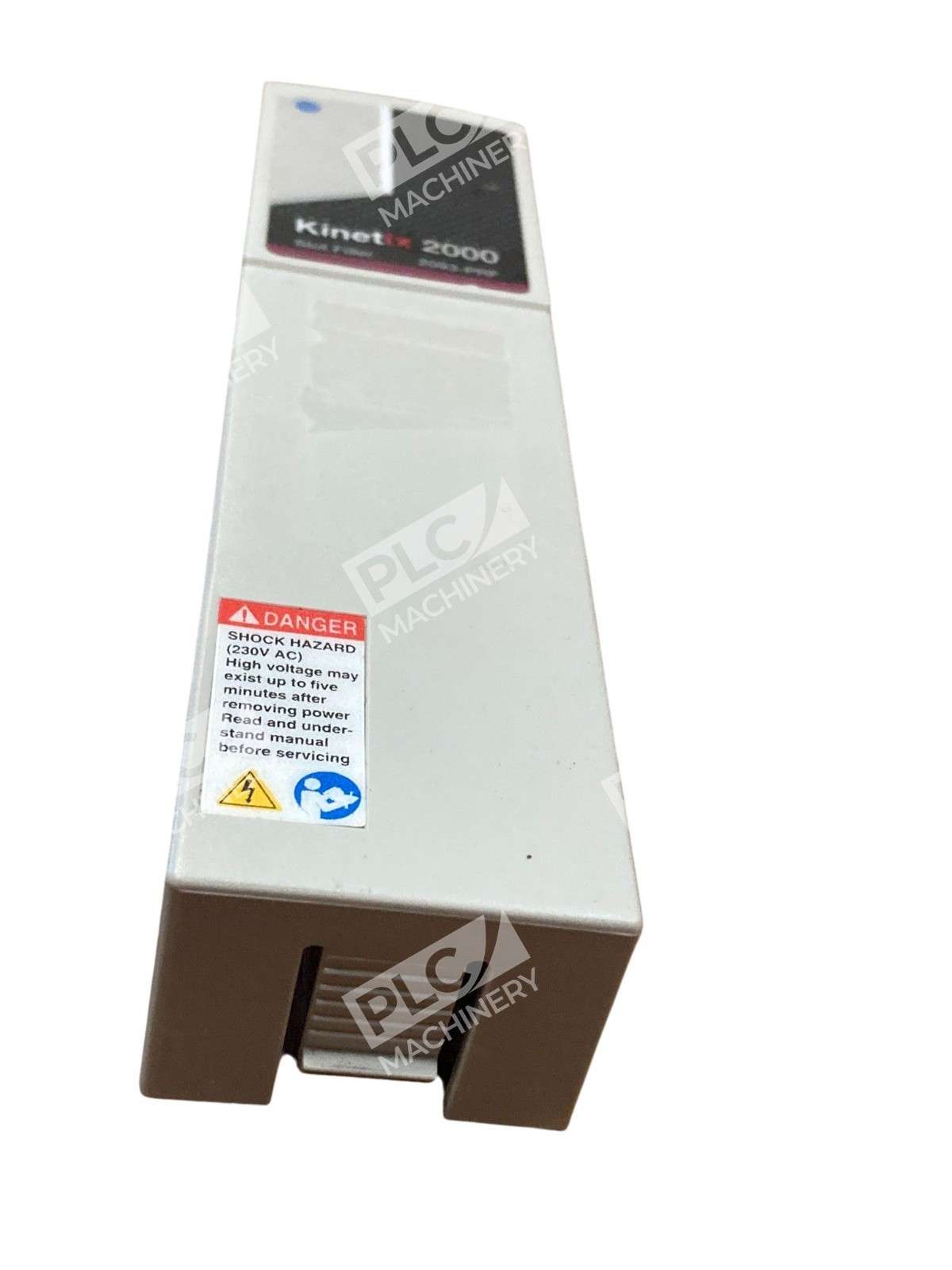

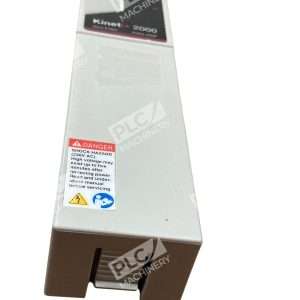

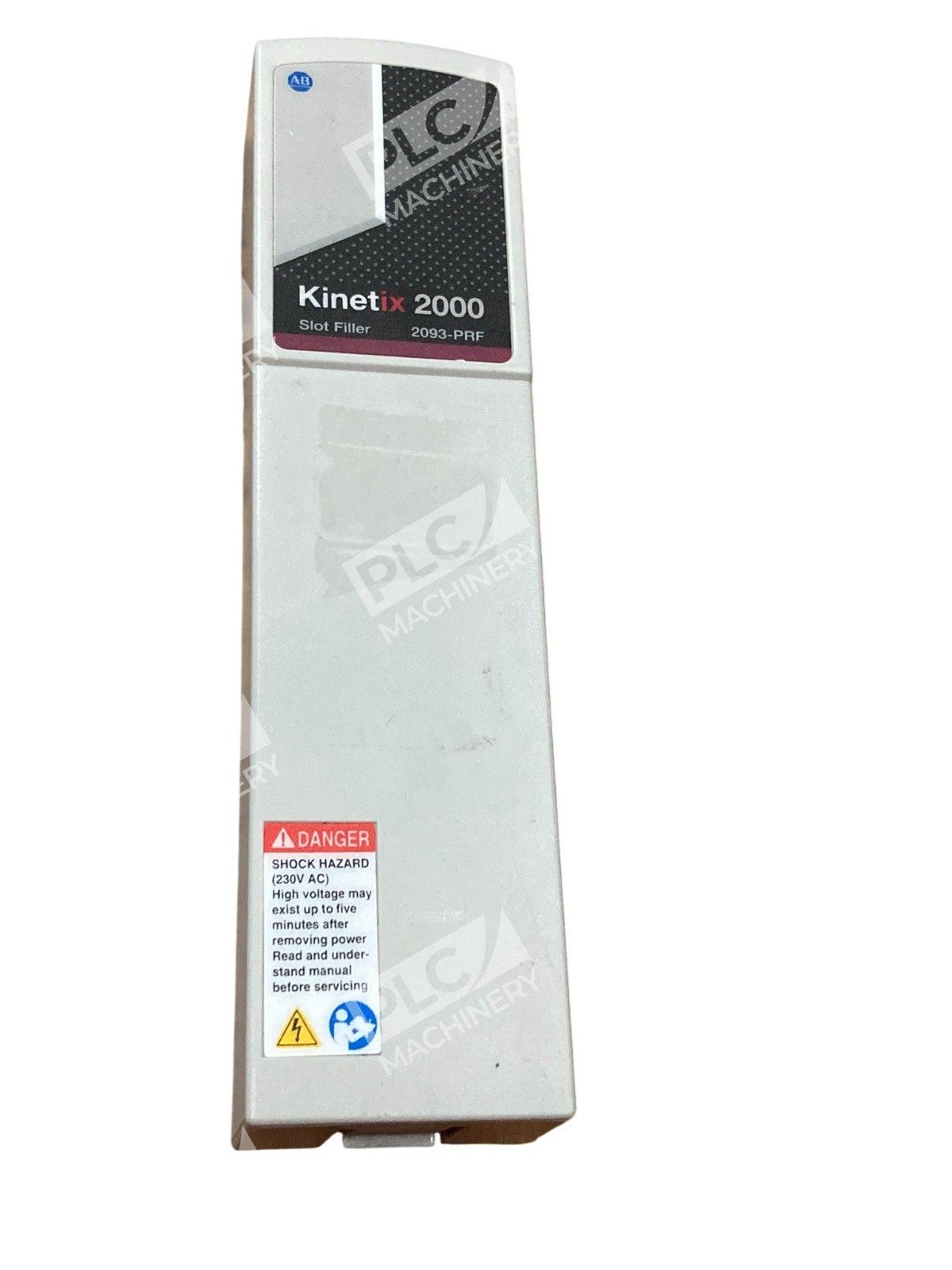

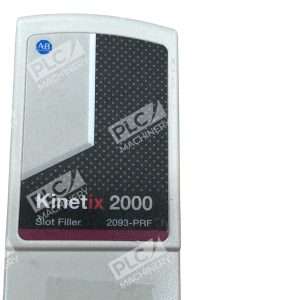

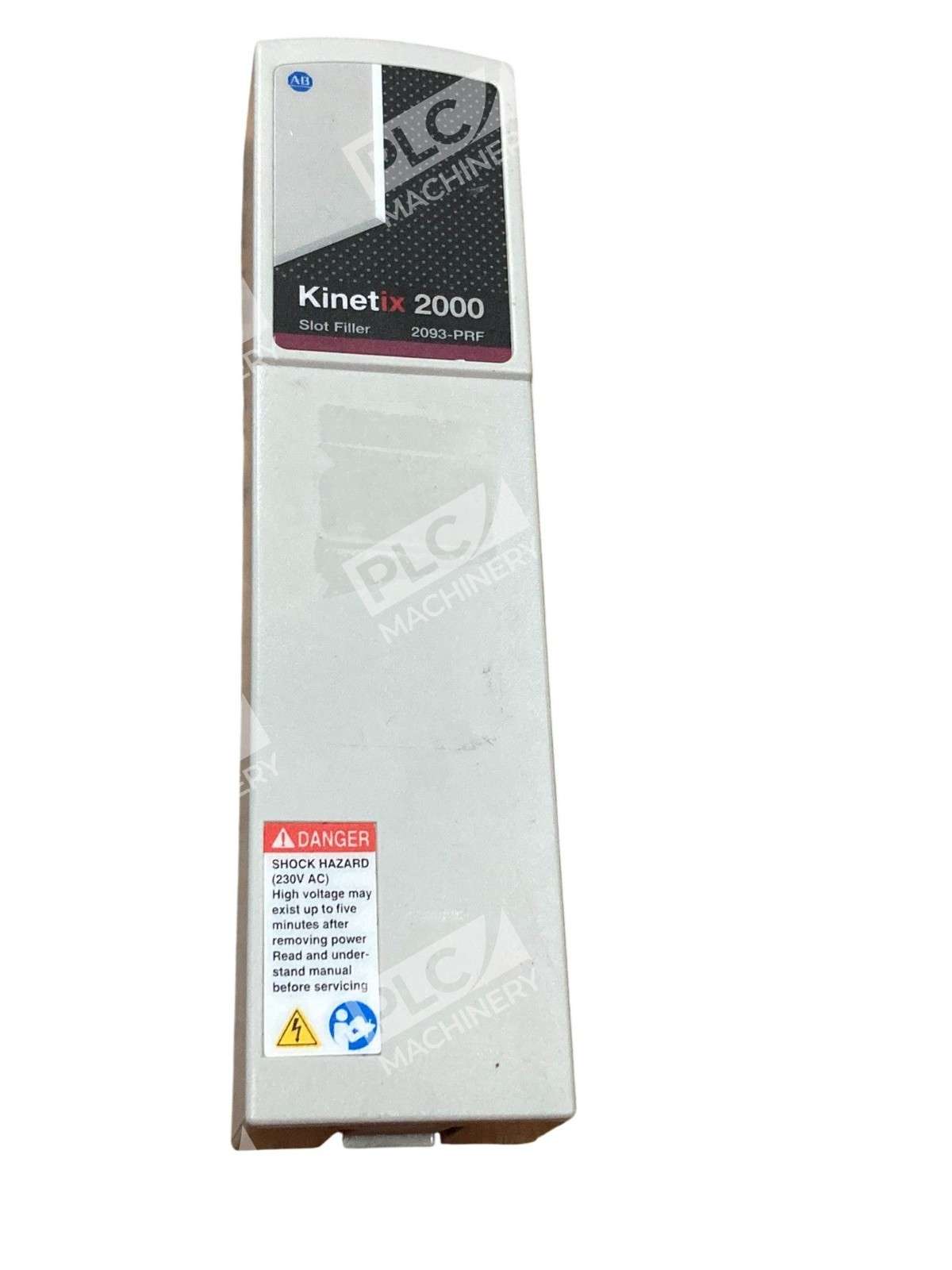

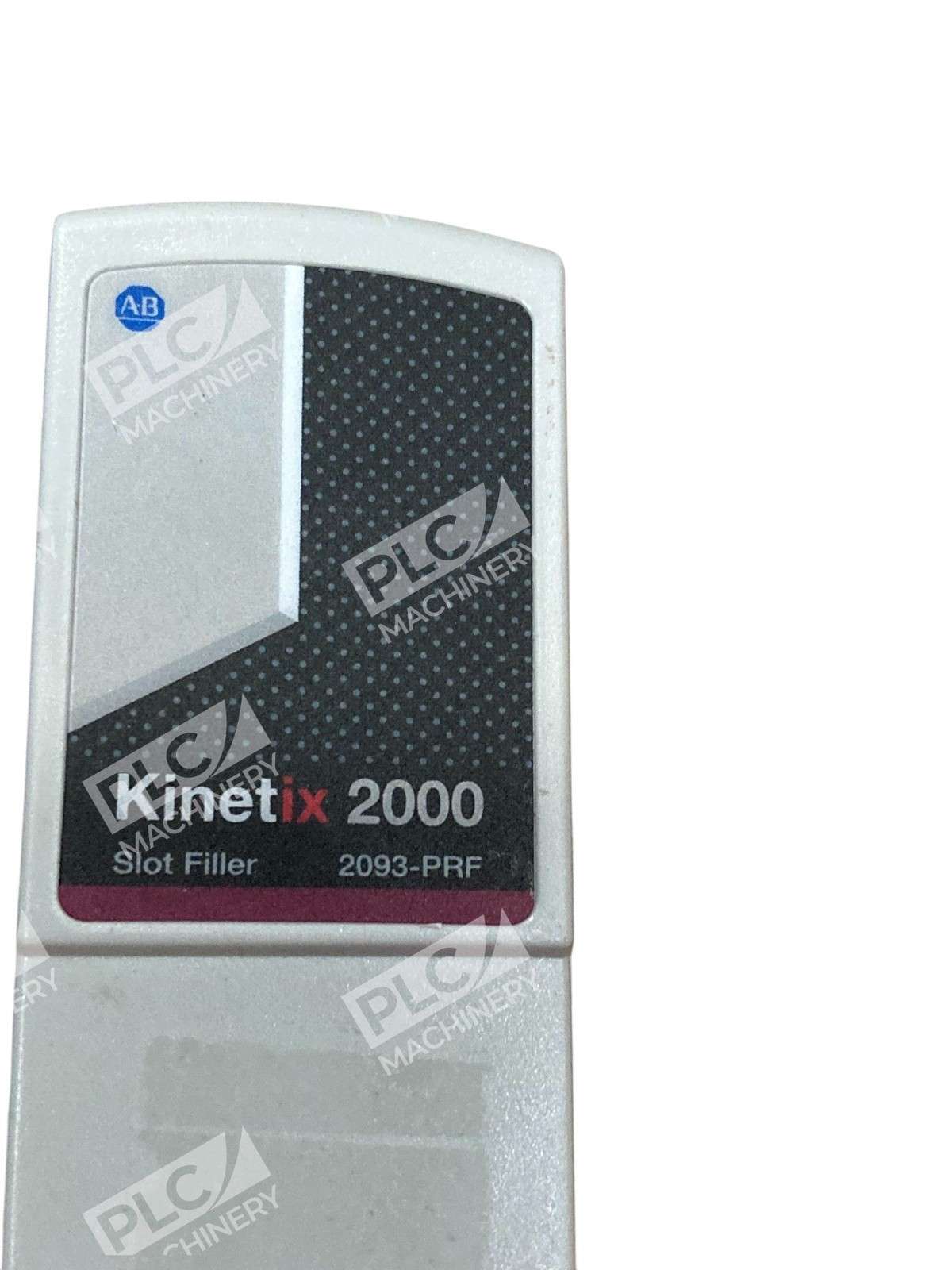

The Allen-Bradley 2093-PRF slot filler is a passive protective component designed for the Kinetix 2000 power rail architecture. It functions as a safety cover for any unused inverter slot position, protecting both the power rail connectors and personnel from accidental contact during system operation. As part of the Kinetix 2000 modular ecosystem, the 2093-PRF ensures compliance with industrial safety standards by preventing dust ingress, moisture contamination, and unintended electrical contact on vacant slots.
Key Features
- Drop-in design fits all Kinetix 2000 power rail variants (1-axis, 3-axis, 7-axis models)
- Passive module requires no external power or communication
- Conformal-coated PCB assembly for durability and environmental resistance

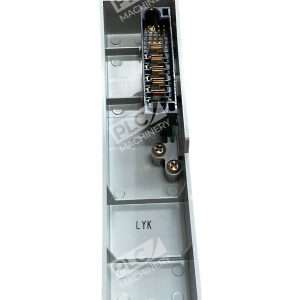

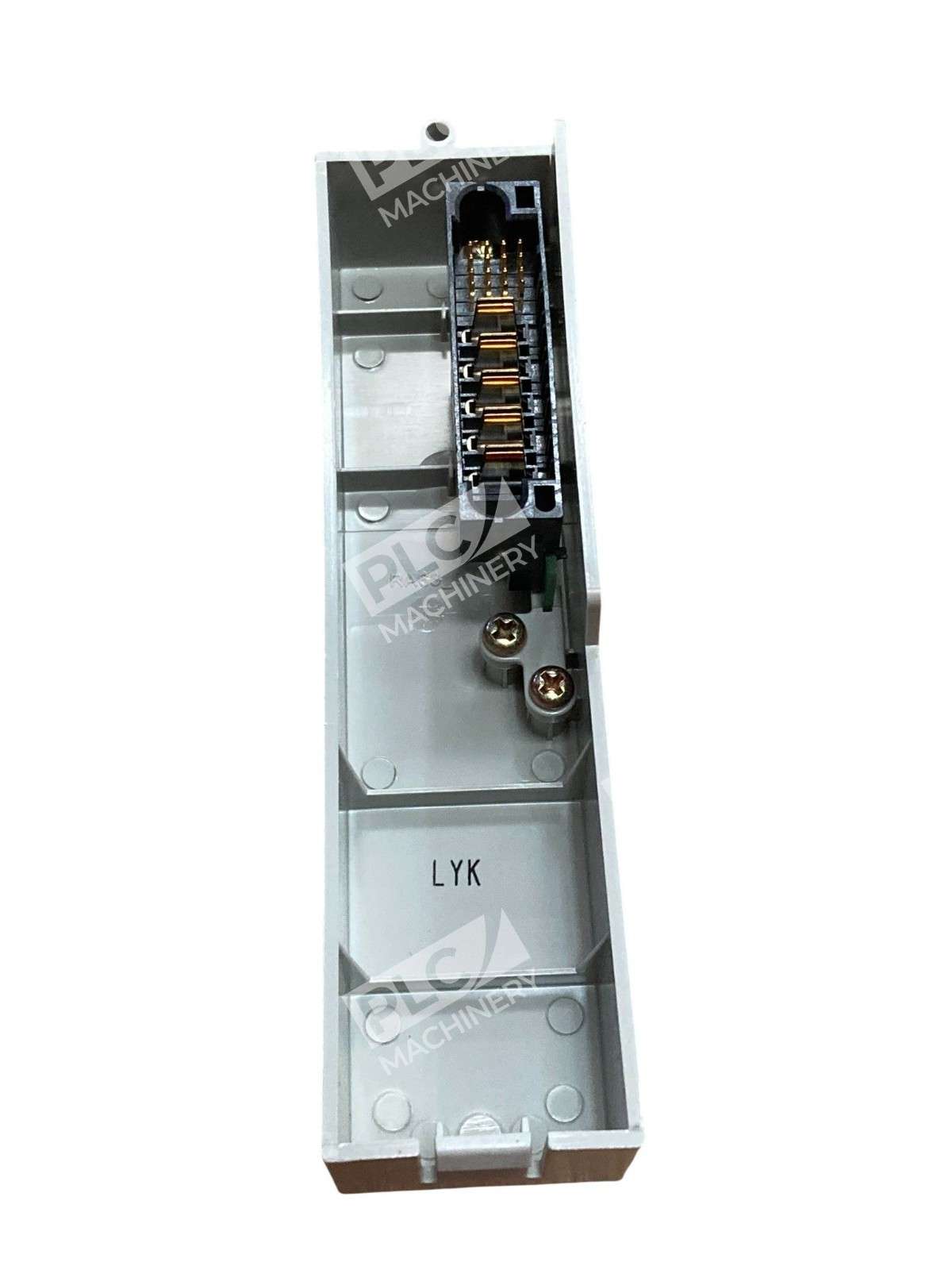

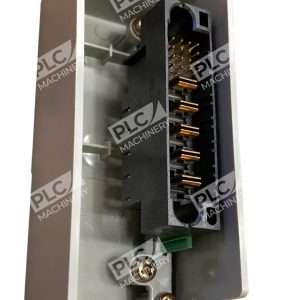

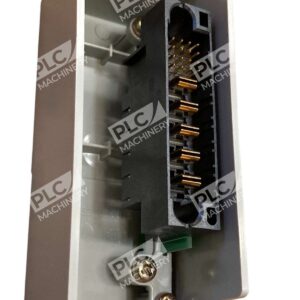

- Prevents damage to exposed connector pins and protects against shock hazards
- Series A designation confirms compatibility with established Kinetix 2000 installed base

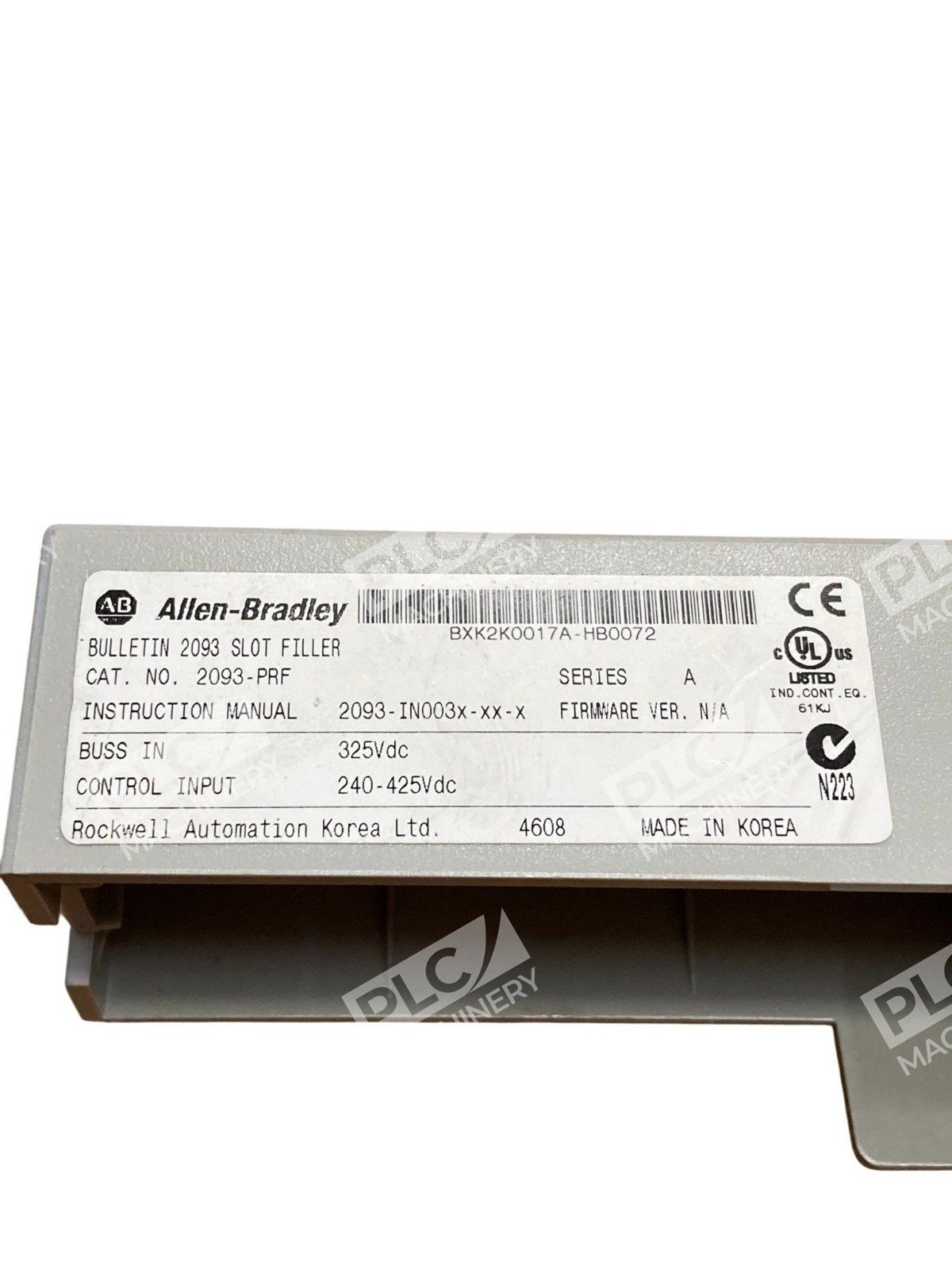

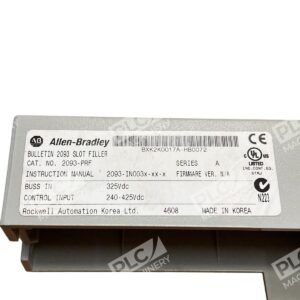

Technical Specifications
- Part Number: 2093-PRF
- Series: A
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Product Type: Power Rail Filler / Slot Cover
- Controller Platform: Kinetix 2000 (multi-axis servo drives)
- Operating Temperature: 0–50°C (32–122°F)
- Storage Temperature: −40–85°C (−40–185°F)
- Relative Humidity: 5–95% (non-condensing)
- Weight: 0.5 lbs (0.23 kg)
- Dimensions: 10.0″ W × 9.0″ H × 12.0″ D
- Certifications: c-UL-us, CE
- Country of Manufacture: Korea
Typical Applications
- Multi-axis Kinetix 2000 servo drive enclosures with partially populated power rails
- OEM machinery and motion control systems requiring modular axis configurations
- Factory automation, robotics, and packaging equipment
- Any installation where unused power rail slots must be protected from environmental and operational hazards
Compatibility & Replacements
The 2093-PRF is a direct fit for all Kinetix 2000 power rail modules, including the 2093-PRS1 (1-axis), 2093-PRS3 (3-axis), and 2093-PRS7 (7-axis) models. It provides the same protective function as filler modules used in older Kinetix generations but is optimized for the 2000 series architecture. No programming or configuration is required; simply insert into any vacant inverter slot. As a consumable protective component, stock multiple units for inventory to support rapid system assembly and troubleshooting scenarios. Compatible with all Rockwell Automation Kinetix 2000 servo system configurations and integration platforms including Studio 5000.
