Overview

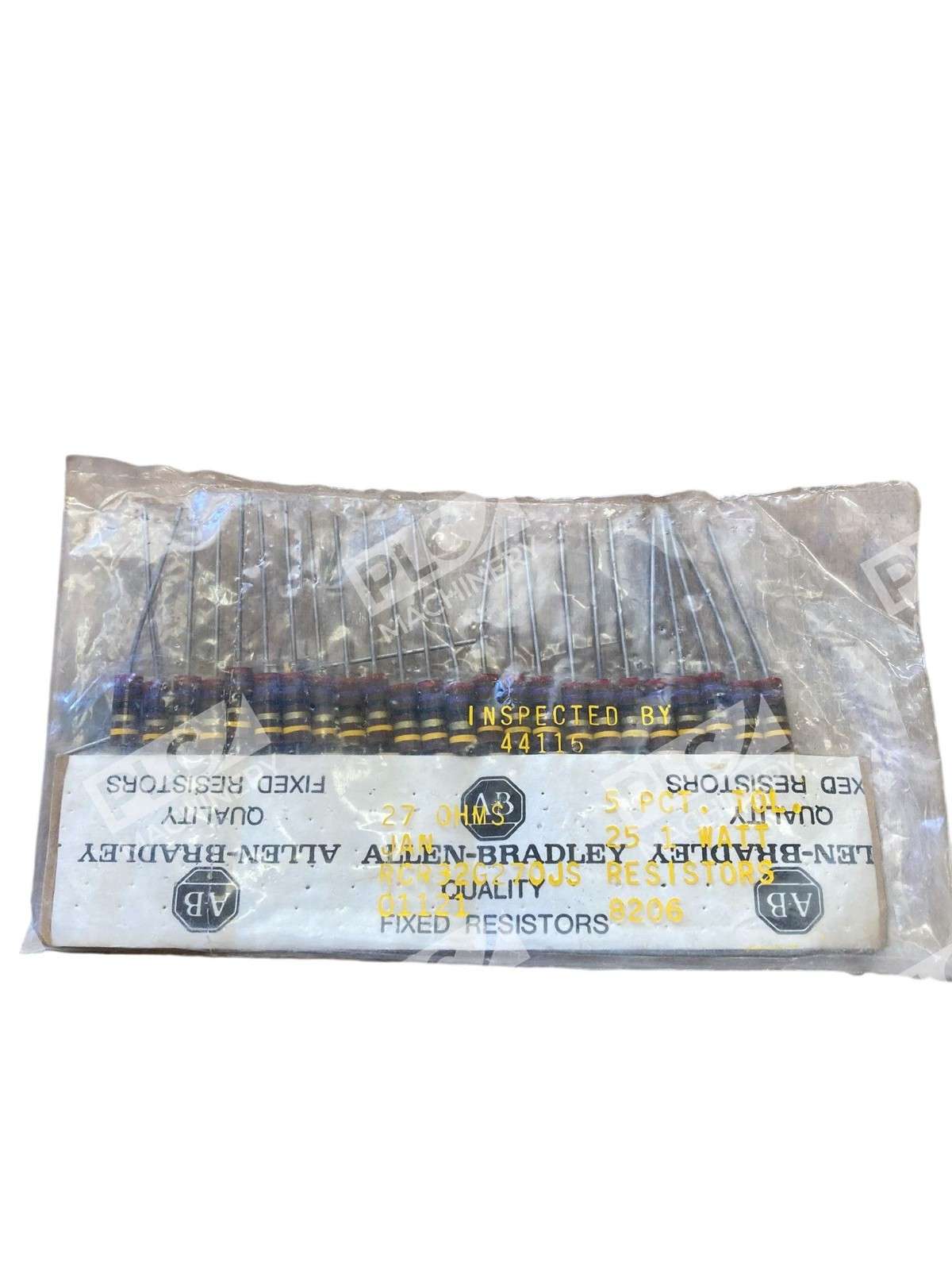

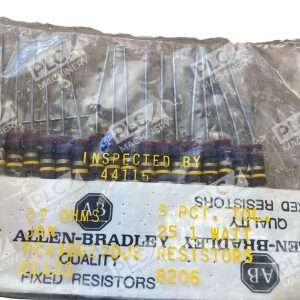

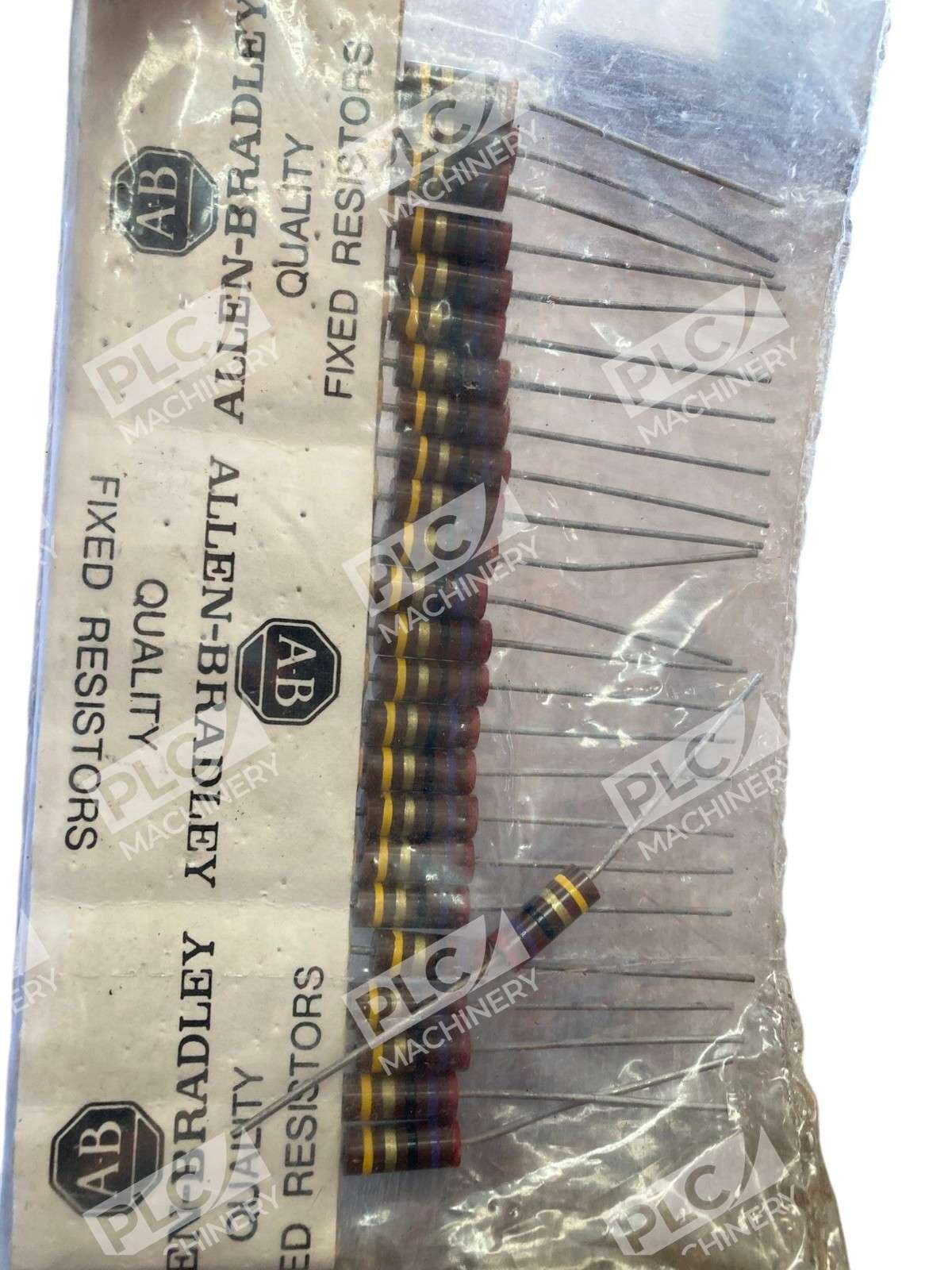

The Allen-Bradley RCR32G270JS is a fixed carbon composition resistor engineered for demanding industrial and military applications. With a 27-ohm resistance value and 1-watt power rating, this resistor delivers stable, reliable performance in harsh environments. The RCR32G designation indicates MIL-R-39008 established reliability classification, ensuring high-quality construction and rigorous testing compliance.
Key Features
- MIL-SPEC established reliability (MIL-R-39008 RCR type) with rigorous burn-in testing
- Hot-molded carbon composition construction for exceptional durability and pulse withstanding capability
- Non-magnetic and non-inductive characteristics ideal for high-frequency stability
- American-made precision engineering with proven field longevity in mission-critical systems
- Axial lead configuration for easy installation and reliable termination
Technical Specifications
| Resistance Value | 27 Ω (27 ohms) |
| Power Rating | 1 W (1 watt) |
| Tolerance | ±5% |
| Type | Fixed Carbon Composition |
| Military Specification | MIL-R-39008 (RCR Series) |
| Lead Style | Axial |
| Construction | Hot-molded carbon composite |
| Condition | New in Box |
Typical Applications
- Military and aerospace equipment requiring established reliability components
- Industrial control systems and PLC input/output circuits
- Power supply filter and biasing networks
- Current-limiting and termination resistances in signal conditioning
- Legacy equipment repair and equipment restoration
Compatibility & Replacements
The RCR32G270JS is part of the Allen-Bradley RCR32 series (1-watt) carbon composition resistor family. Established reliability (RCR) types conform to MIL-R-39008 specifications. When selecting replacement resistors, verify that alternatives match this part’s tolerance and MIL-SPEC rating to maintain reliability in critical applications. Contact technical support for specific interchangeability requirements for your system.
