Overview

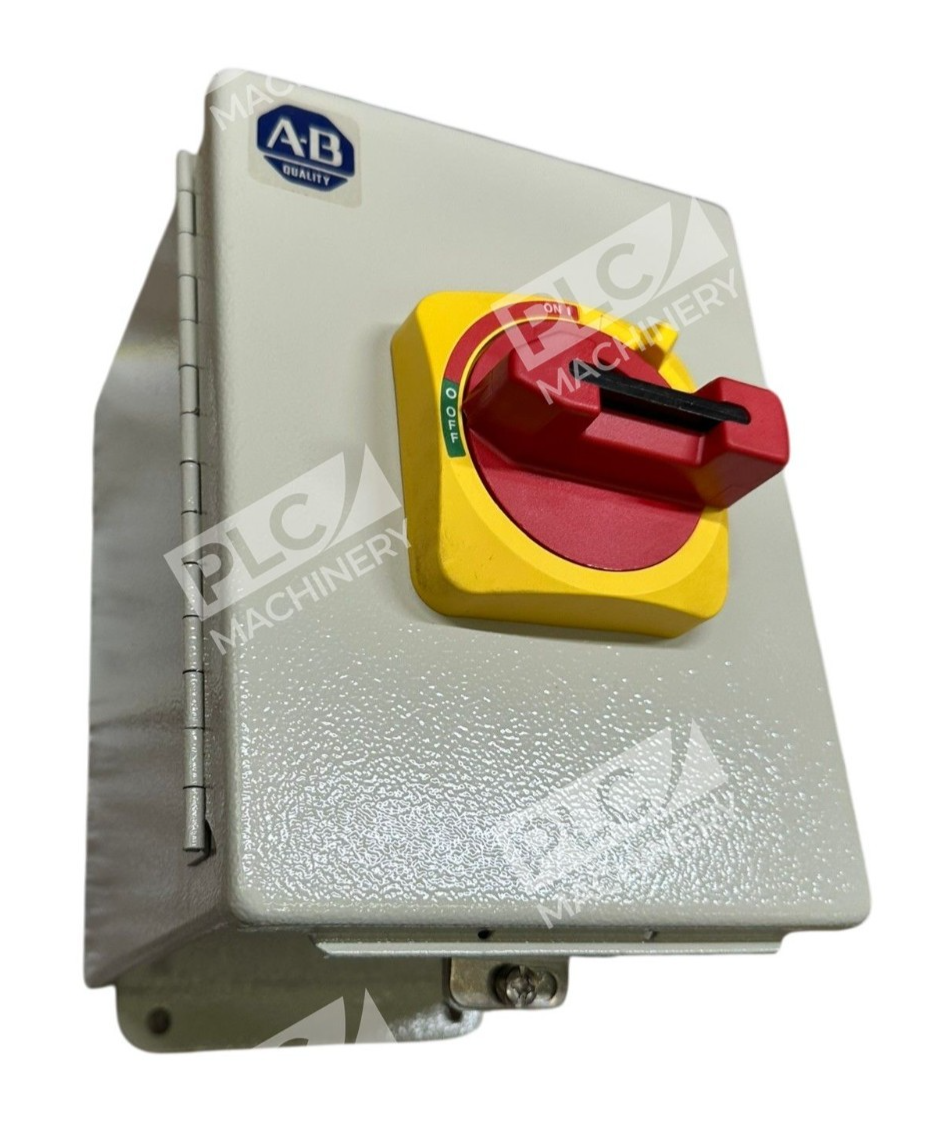

The Allen-Bradley 194E-FA00E is an enclosed load switch designed for reliable motor isolation and disconnect applications in industrial automation systems. The switch is designed for use as a local motor isolation and disconnect switch, making it ideal for controlling inductive loads in manufacturing and processing facilities.
Key Features
- 100 A rated current with OFF-ON 90° operation
- 3 Normally Open Power Poles configuration
- NEMA Type 3/4/12 – IP66 Painted Steel (Rectangular) enclosure
- Base/DIN Rail mounting configuration
- Two-position OFF-ON switch for connecting or disconnecting inductive loads, including solenoids, valves, magnetic starters, relays, and motors
- Red/Yellow actuator for high visibility
- Available with add-on additional poles, grounding and neutral terminals and auxiliary contacts options
Technical Specifications
- Rated Current: 100 A
- Poles: 3
- Configuration: 3 Normally Open Power Poles
- Operation: OFF-ON 90°
- Enclosure Type: NEMA 3/4/12-IP66 Painted Steel (Rectangular)
- Mounting: Base/DIN Rail
- Enclosure Size: Standard
- Handle Style: Red/Yellow
- UL Listed (File No. E54612, Guide NLRV)
Typical Applications
Designed for use as local motor isolation and disconnect switch applications, the 194E-FA00E is suitable for:
- Motor control and isolation
- Machine startup and shutdown procedures
- Maintenance disconnect points
- Inductive load switching (solenoids, valves, starters, relays)
- Food processing, packaging, and manufacturing equipment
- HVAC and utility power distribution
Compatibility & Replacements
Compatible With
- Base/DIN Rail mounting systems
- Standard industrial control panels
- Same operating handles as Bulletin 194L Control and Load Switches
- 600 VAC industrial power systems
- Allen-Bradley automation ecosystems
Replaces / Drop-In Replacement For
- Other 194E-FA series load switches (same amperage rating)
- Similar enclosed 3-pole motor disconnect switches
- Verify current model compatibility with your system integrator before ordering
Works With
- IEC 60947-3 industrial switch standards
- UL Type 3/4/12 compliant systems
- Auxiliary contact block modules (add-on available)
- Grounding and neutral terminal accessories
- Standard industrial control cabinets and enclosures
