Overview

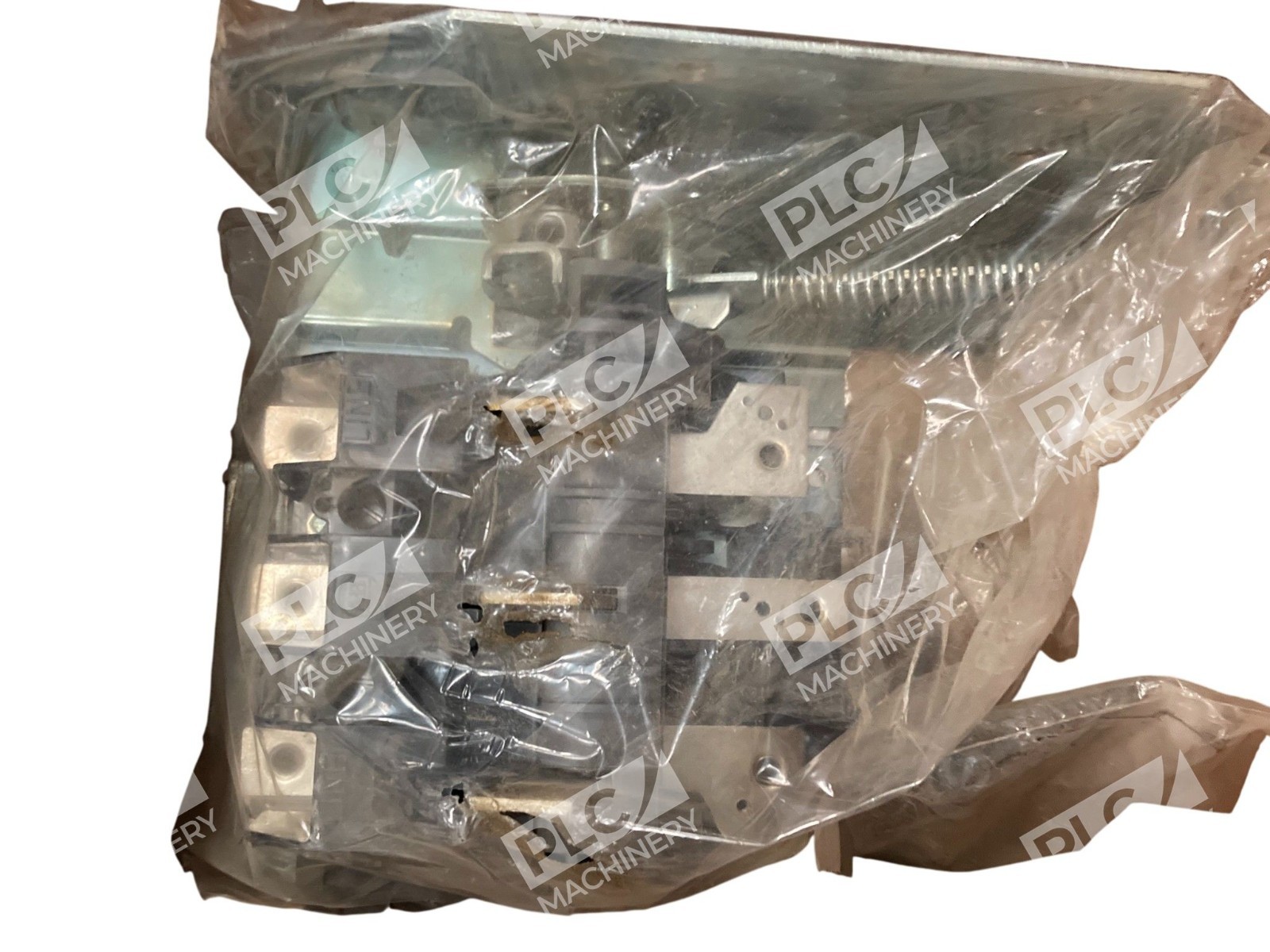

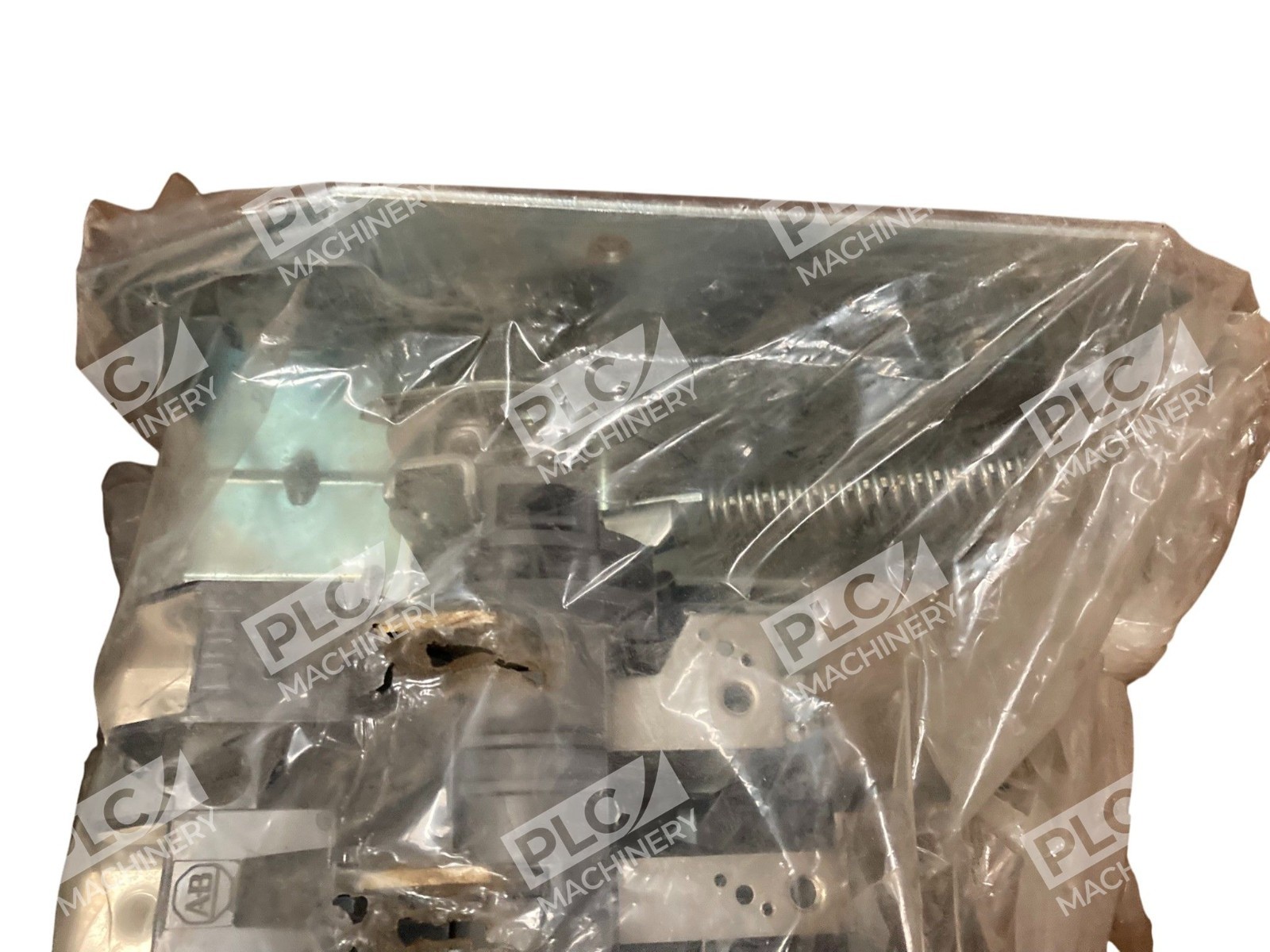

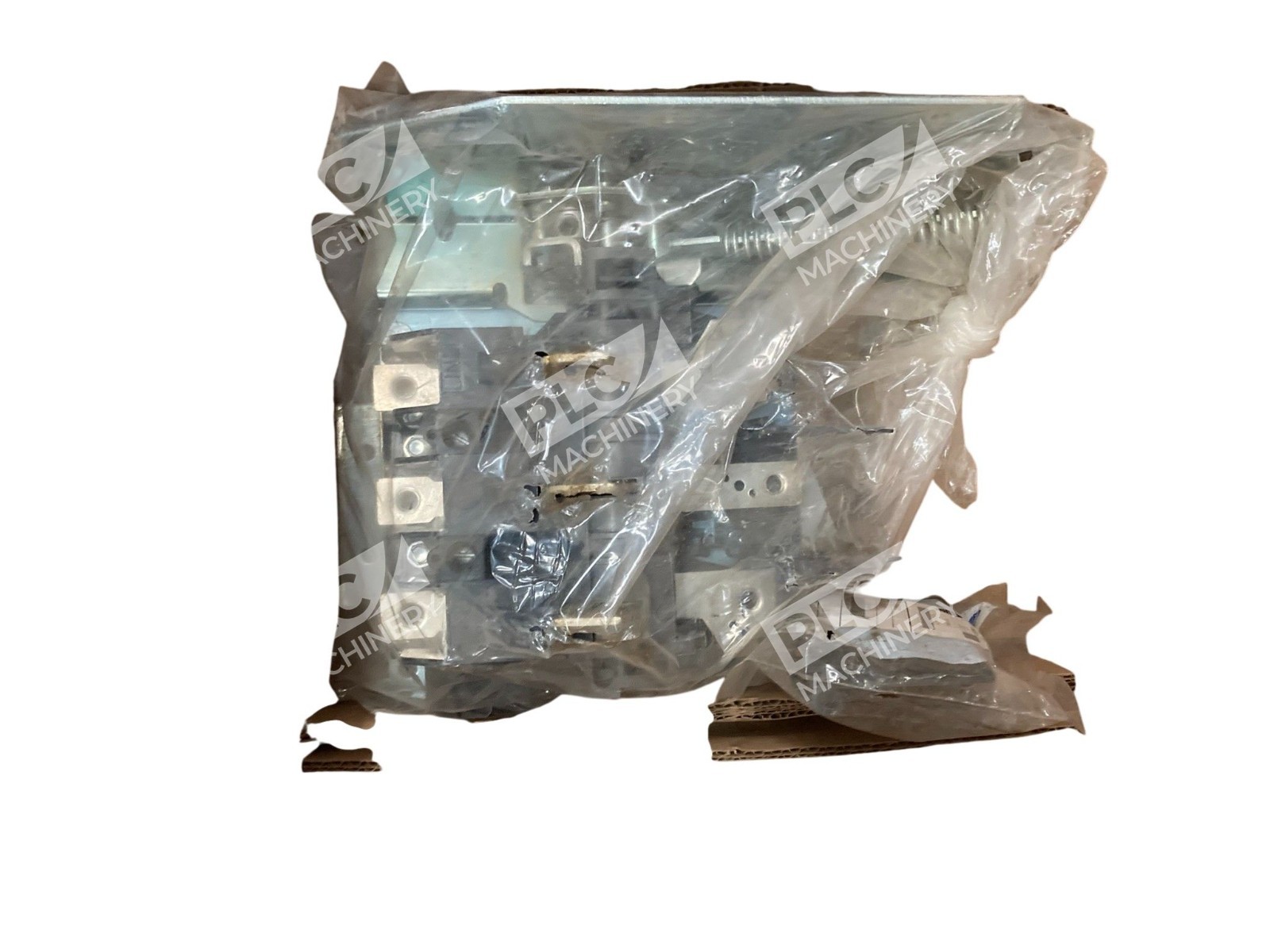

The Allen-Bradley 1494V-DS200 is a 3-pole, variable-depth, flange-mounted disconnect switch kit designed for industrial power isolation in motor control centers, panels, and equipment. Rated for 200 Amps at 660 Volts AC or 250 Volts DC, this non-fusible switch provides a reliable means of manually disconnecting circuits for maintenance and safety. The unit was discontinued by the manufacturer on May 31, 2019; however, surplus inventory remains available from authorized industrial distributors.
Key Features
- Rated for 200 Amps and can be used with both DC and AC line voltages
- Field-convertible from right-hand to left-hand flange operation
- Features screw-type terminals and a 3-pole design rated for 200 A at up to 600 V
- Maximum output power ratings: 150 HP at 575V AC, 125 HP at 460V AC, and 60 HP at 230V AC
- Certifications include UL, CSA, CE, C-TICK, KC, and CUL for global industrial safety standards
Technical Specifications
- Electrical life: 6000 operations; Mechanical life: 8000 operations
- Peak operating frequency: 300 operations per hour
- Operating temperature range: -20 to 60°C
- Weight: 14.00 lbs
- Maximum operational voltage: 660 Volts AC
- Non-fusible design; optional fuse blocks available separately (e.g., 1494V-FS200)
Typical Applications
The 1494V-DS200 is part of Allen-Bradley’s 1494V disconnect switch family, engineered for durable power isolation in motor control centers, panels, and industrial equipment. It serves as the core switching mechanism in a flange-mounted disconnect system for motor control centers or industrial panels, is rated for 200 A and supports both AC and DC applications, and allows safe disconnection of loads during maintenance or emergency shutdown.
Compatibility & Replacements
Compatible With
- Motor control centers (MCCs) and industrial control panels
- Systems requiring 200A current capacity at 600VAC or 250VDC
- NEMA Type 1, 3, 3R, 4, 4X, and 12 enclosures
- Variable-depth enclosure mounting (172–585 mm)
Replaces / Drop-In Replacement For
Rockwell Automation designates the 1494U-D200 as the official engineering replacement for this discontinued model. The 1494V-DS200 was discontinued on May 31, 2019, and is no longer available from Rockwell Automation. For new installations, contact your system integrator to confirm compatibility with the 1494U series upgrade.
Works With
- Compatible operating handles include the 1494V-H1 (Type 1, 3, 3R, 12), 1494V-W1 (Type 4/4X), and 1494V-R1 (right-flange Type 4/4X only)
- Connecting rods: 1494V-RA1 (172–232 mm enclosure depth) and 1494V-RA2 (232–585 mm enclosure depth)
- Optional fuse blocks (e.g., 1494V-FS200) for overcurrent protection
- Note: Operating handle and connecting rod sold separately
