Overview

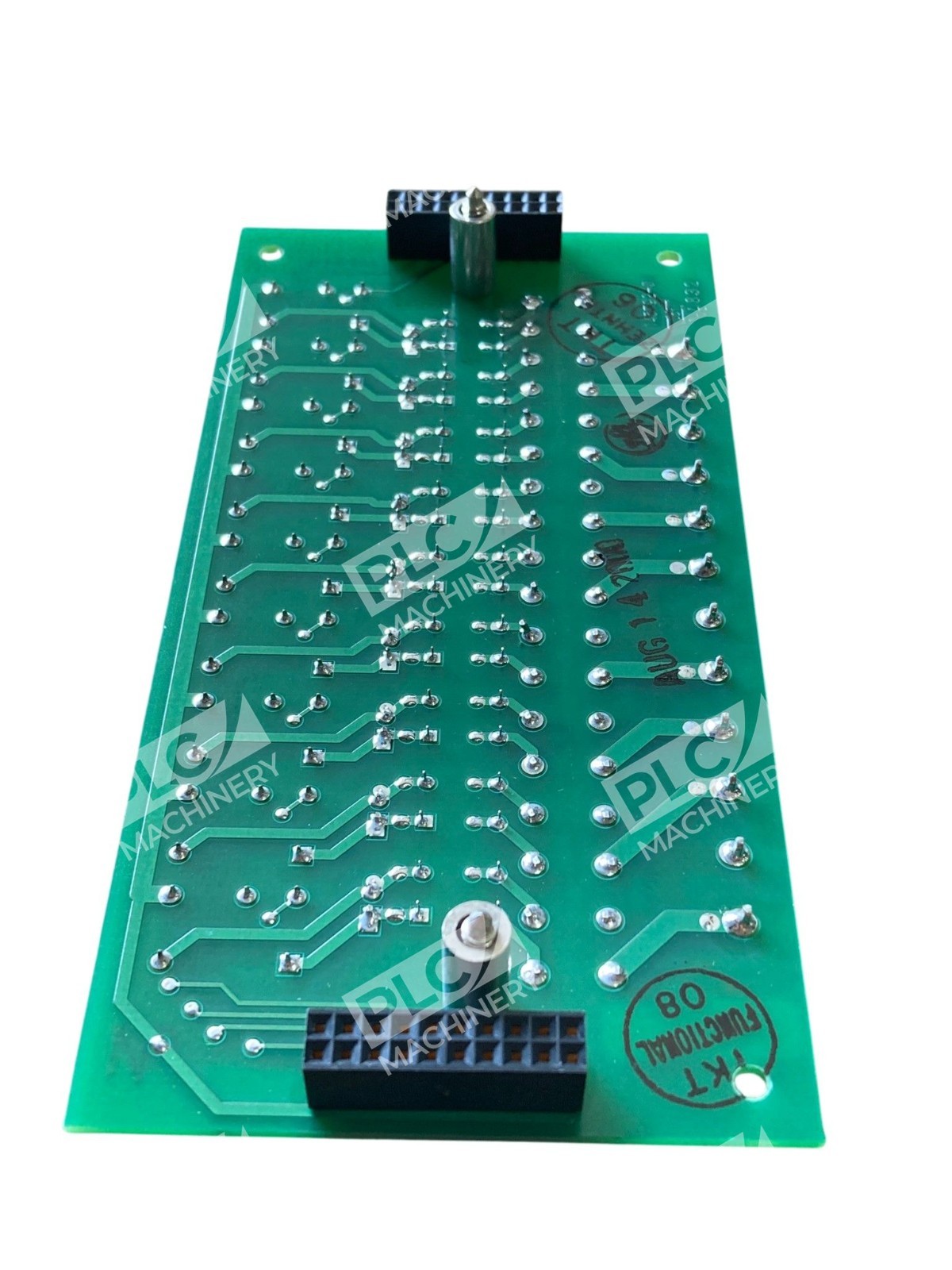

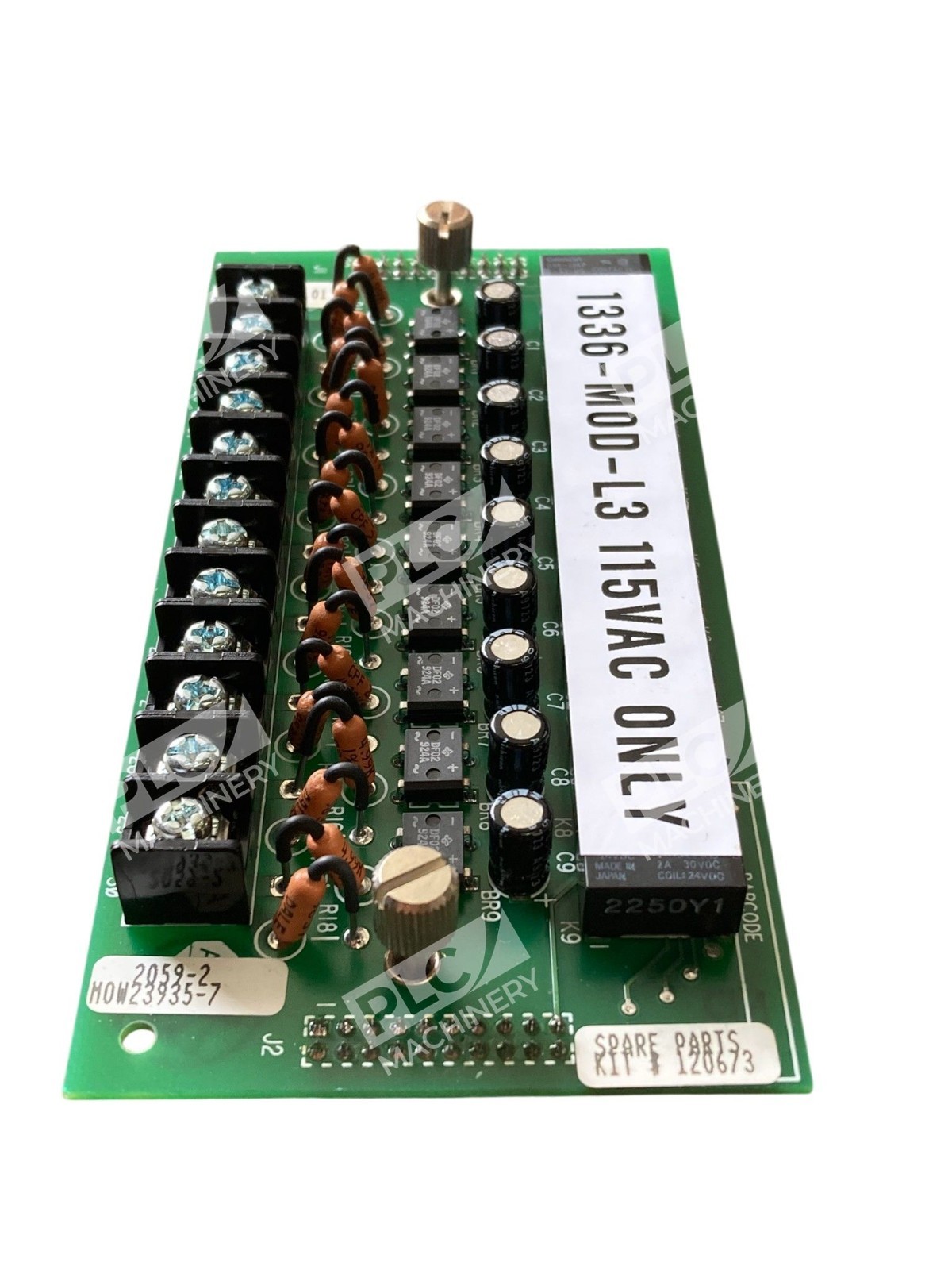

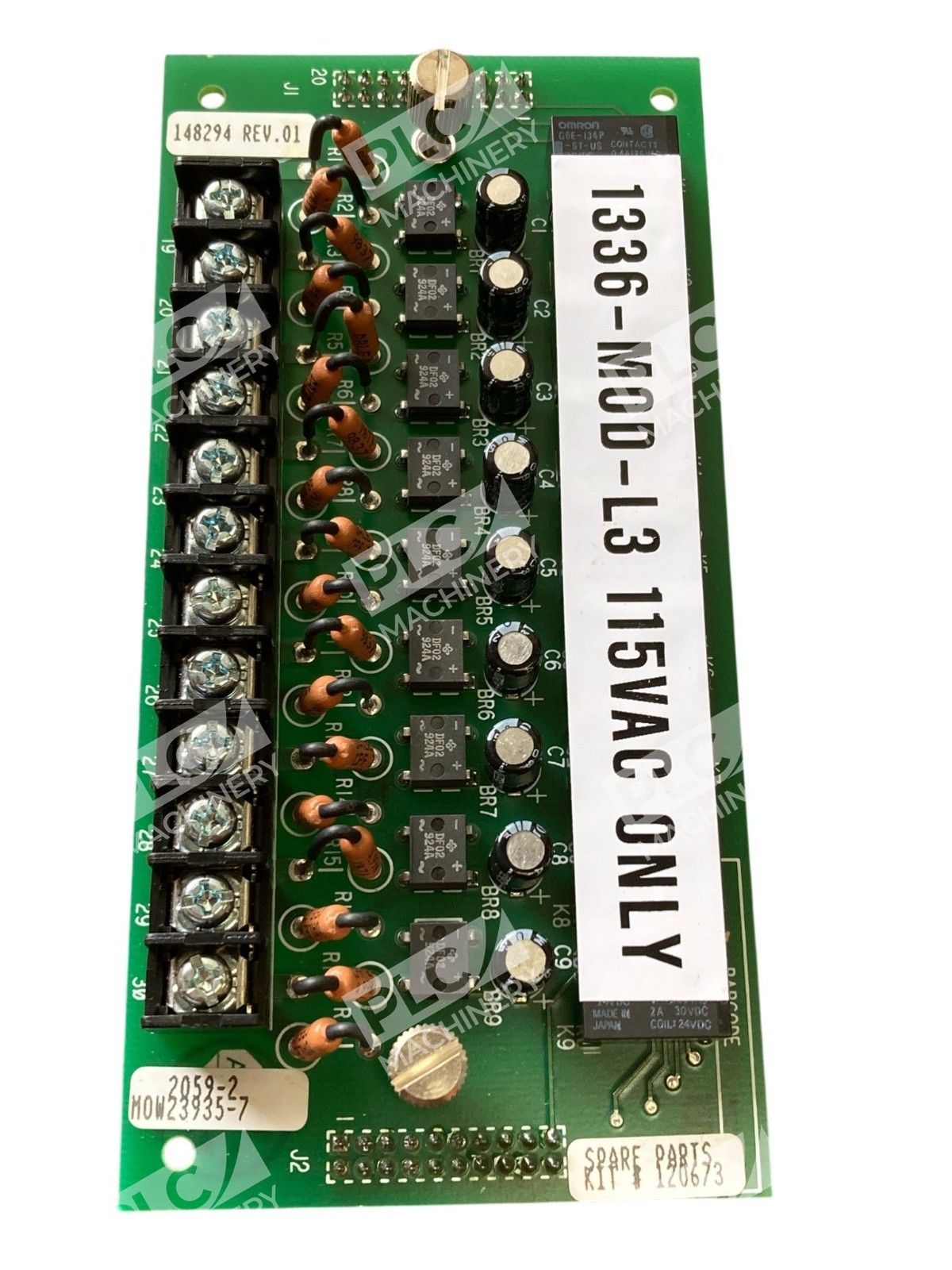

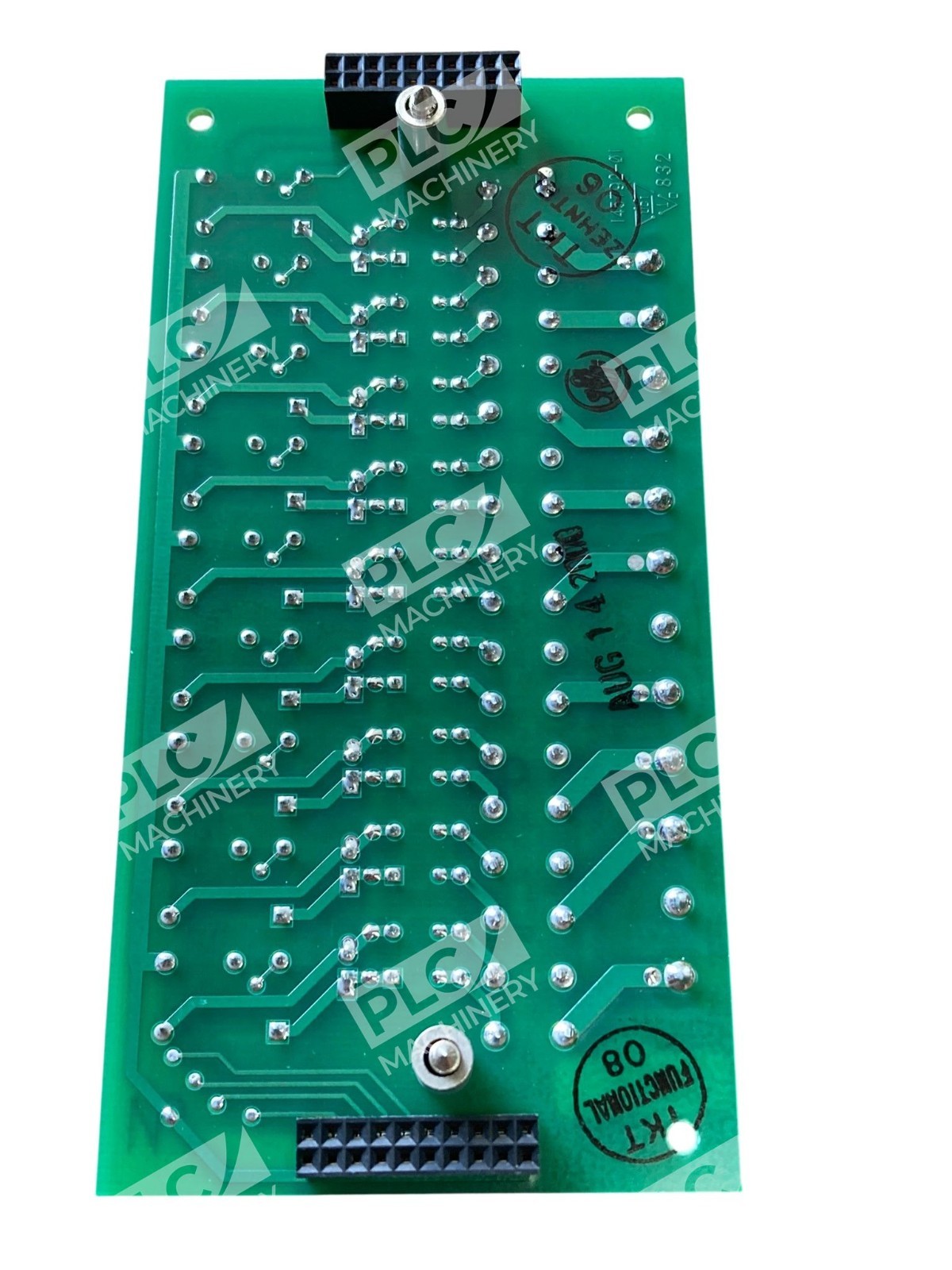

The Allen-Bradley 1336-MOD-L3 is a logic interface board for the 1336 series adjustable frequency AC drive. This board provides an isolated connection to the 1336 drive with a NEMA Type 4 enclosure for protection in harsh industrial environments. Operating at 115 Volts AC, the 1336-MOD-L3 enables flexible control of motor speed and torque through external logic signals and pushbutton inputs.
Key Features
- Isolated MOD-L3 interface architecture for reliable signal isolation from drive main control circuits
- NEMA Type 4 / IP54 enclosure rating for protection in dusty and wet industrial environments
- 115 Volts AC operating voltage with self-contained wired assembly
- Supports intuitive pushbutton control for run, stop, reverse, and jog functions
- Parameter programming via organized group and element structure for quick configuration
- Serial communication capability for integration with peripheral equipment and monitoring systems
Technical Specifications
- Part Number: 1336-MOD-L3
- Manufacturer: Allen-Bradley / Rockwell Automation
- Input Voltage: 115 Volts AC
- Enclosure Type: NEMA Type 4 (IP54)
- Interface Type: Isolated logic interface
- Control Functions: Run, stop, reverse, jog via external inputs
- Communication: Serial communication with 1336 drive main control board
- Temperature Range: 0 to +40°C operating (open rating)
- UPC Code: 662453299075
- Condition: New in Box
Typical Applications
The 1336-MOD-L3 is used in manufacturing facilities requiring flexible motor control with logic-based inputs. Common applications include:
- Conveyor belt systems with pushbutton start/stop control
- Fan and pump speed regulation via external controllers
- Machine automation requiring jog and reverse capability
- Equipment integration with legacy industrial control panels
- OEM machine builder systems using 1336 drive technology
Compatibility & Replacements
Compatible With
- Allen-Bradley 1336 series adjustable frequency AC drives
- 1336 main control board via isolated interface connection
- Industrial control systems requiring TTL and logic-level inputs
- Systems with 115 Volts AC control power availability
Replaces / Drop-In Replacement For
The 1336-MOD-L3 is specific to the 1336 drive family. For alternative logic interface options on 1336 drives, consult the 1336-MOD-L1 or 1336-MOD-L2 boards. Verify compatibility with your system integrator before ordering.
Works With
- Allen-Bradley 1336 drive series documentation and instruction manuals
- External pushbutton panels and relay logic circuits
- Serial communication protocols supported by 1336 main control board
- NEMA-rated enclosure systems for industrial duty environments
