Overview

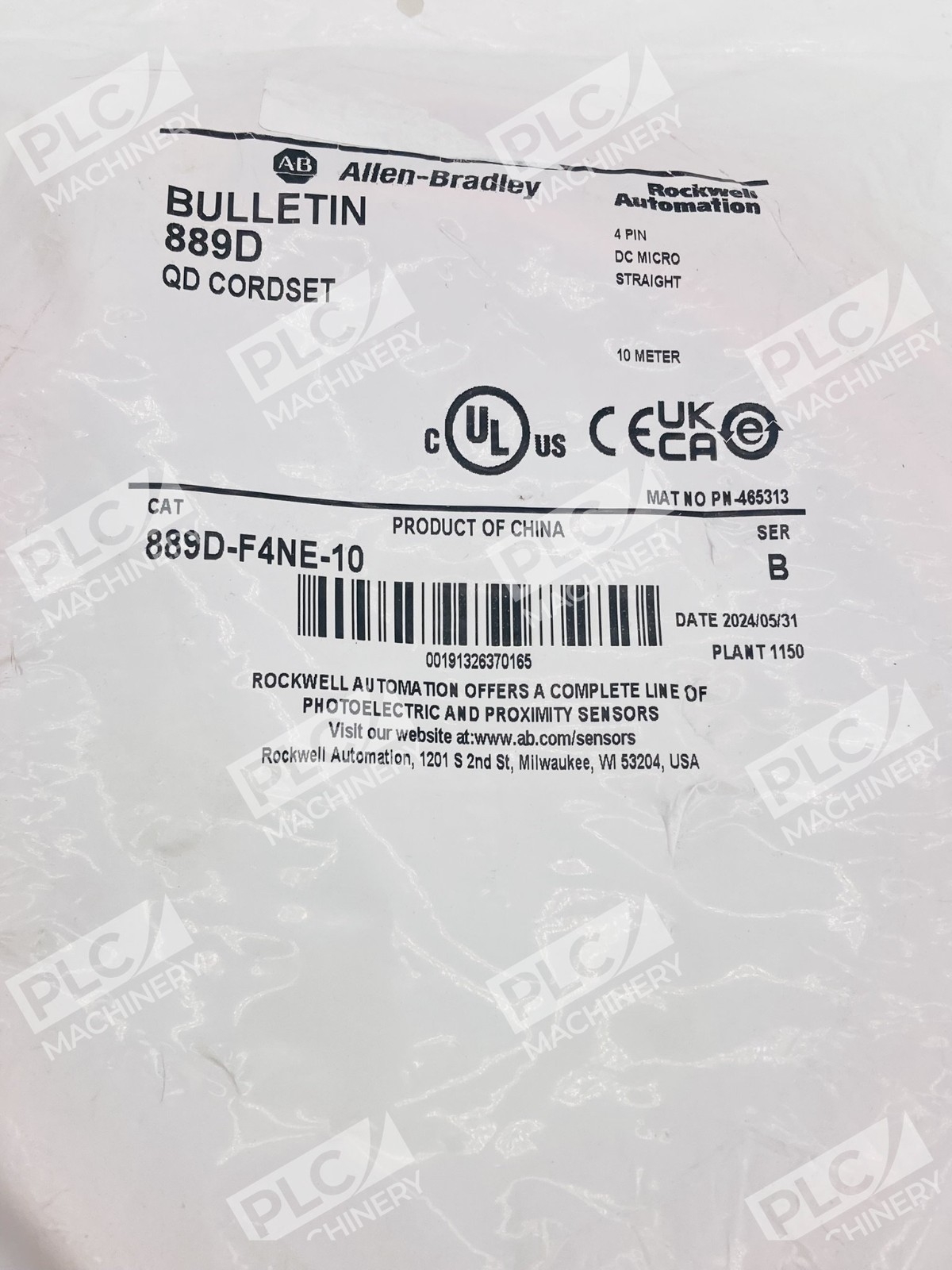

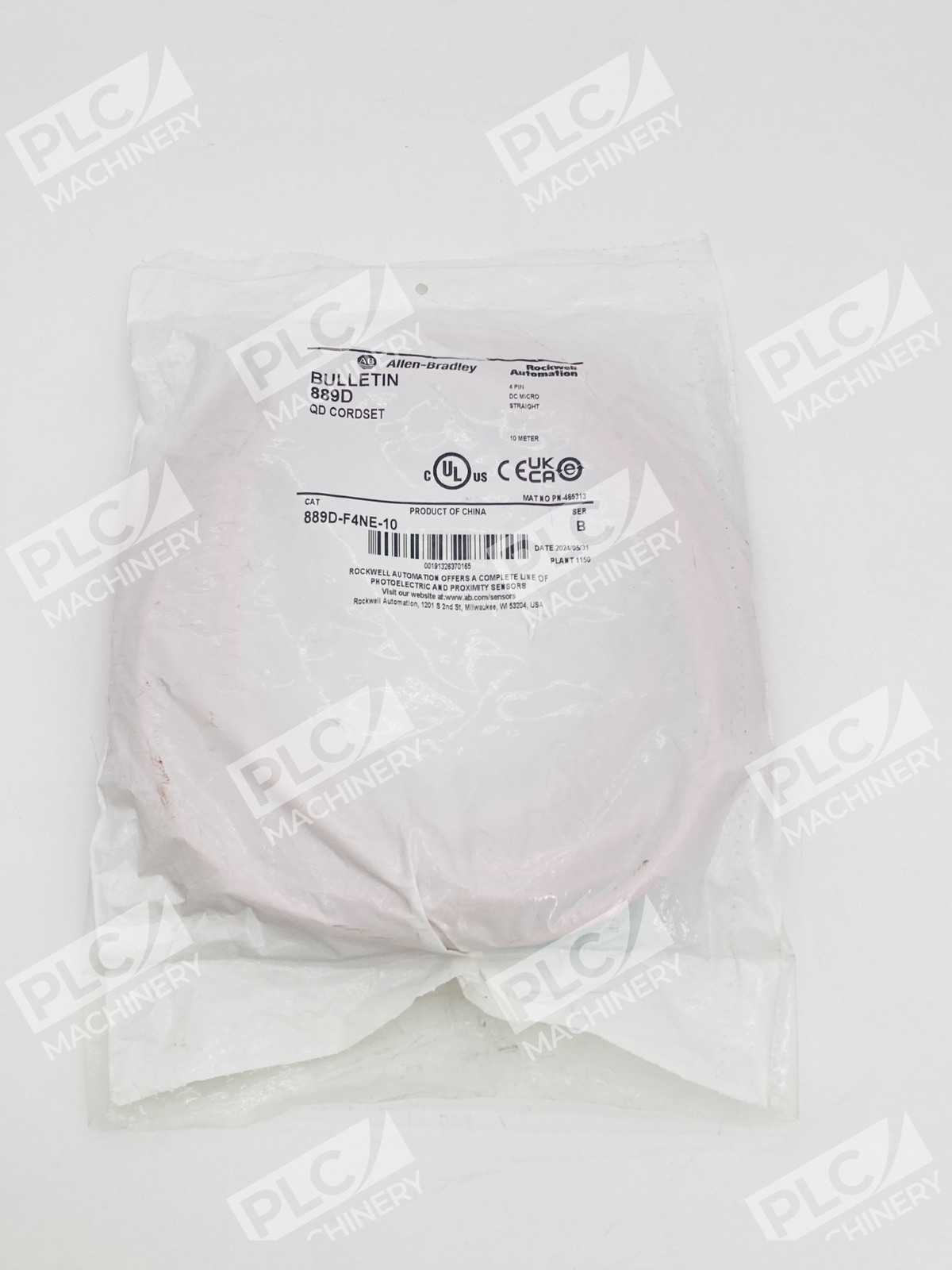

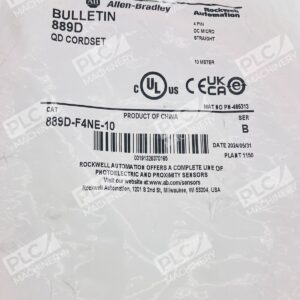

The Allen-Bradley 889D-F4NE-10 is a DC Micro quick-connect cordset from the industry-standard Bulletin 889D series. This pre-assembled cable assembly features a female M12 straight connector with integral threads, 4-pin configuration, and 10-meter length. Designed for harsh industrial environments, it delivers reliable connectivity for sensor and actuator applications across manufacturing and process control systems.
Key Features
- M12 female connector, straight orientation with integral threads—ready for field attachment
- 4-pin DC Micro configuration supporting standard sensor/actuator wiring
- 10-meter length (32.8 feet) for extended cable runs in production facilities
- IEC standard color-coded red PVC outer jacket for easy identification
- Unshielded design suitable for dry, non-EMI-critical installations
- 18 AWG conductor gauge for low-voltage DC circuit compatibility
Technical Specifications
- Connector Type: M12 Micro, Female, Straight
- Pin Configuration: 4-Pin
- Cable Length: 10 meters (32.8 feet)
- Conductor Size: 18 AWG
- Outer Jacket Material: PVC, Red, IEC standard color code
- Shielding: Unshielded
- End Configuration: Flying lead (no connector on opposite end)
- Series: Bulletin 889D DC Micro Standard
Typical Applications
- Proximity and photoelectric sensor connections
- Motor and valve solenoid control lines
- Industrial equipment wiring in assembly lines and packaging systems
- Factory automation sensor networks requiring standard M12 connectors
- Process control systems with distributed I/O
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix and ControlLogix systems with 889D-series networks
- Industrial devices with M12 4-pin female receptacles (sensors, actuators, gateways)
- EtherNet/IP and other Allen-Bradley fieldbus architectures supporting DC Micro cabling
- Third-party automation controllers and PLCs with M12 connectivity
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 889D-F4NE-10 is the standard configuration for this part number; equivalent versions from the 889D series may use different connector endings (889D-F4AC, 889D-F4NM, etc.).
Works With
- Studio 5000 and RSLogix 5000 programming environments (indirect—cable carriers physical signals)
- CompactLogix, MicroLogix, and SLC 500 controllers with appropriate I/O modules
- Ethernet and hardwired industrial automation networks
- Standard M12 sensors and actuators from Rockwell, Omron, Sick, IFM, and other manufacturers
