Overview

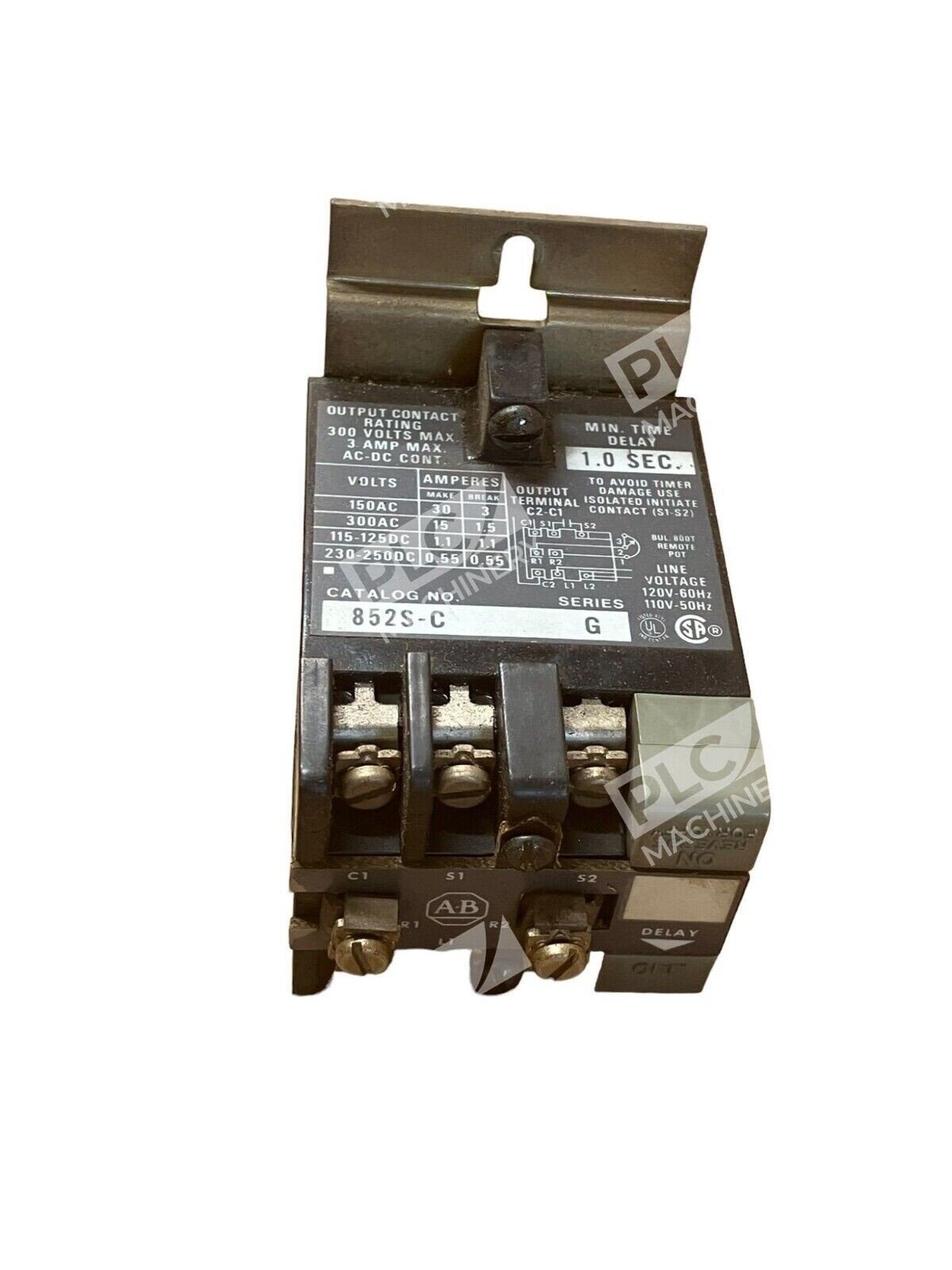

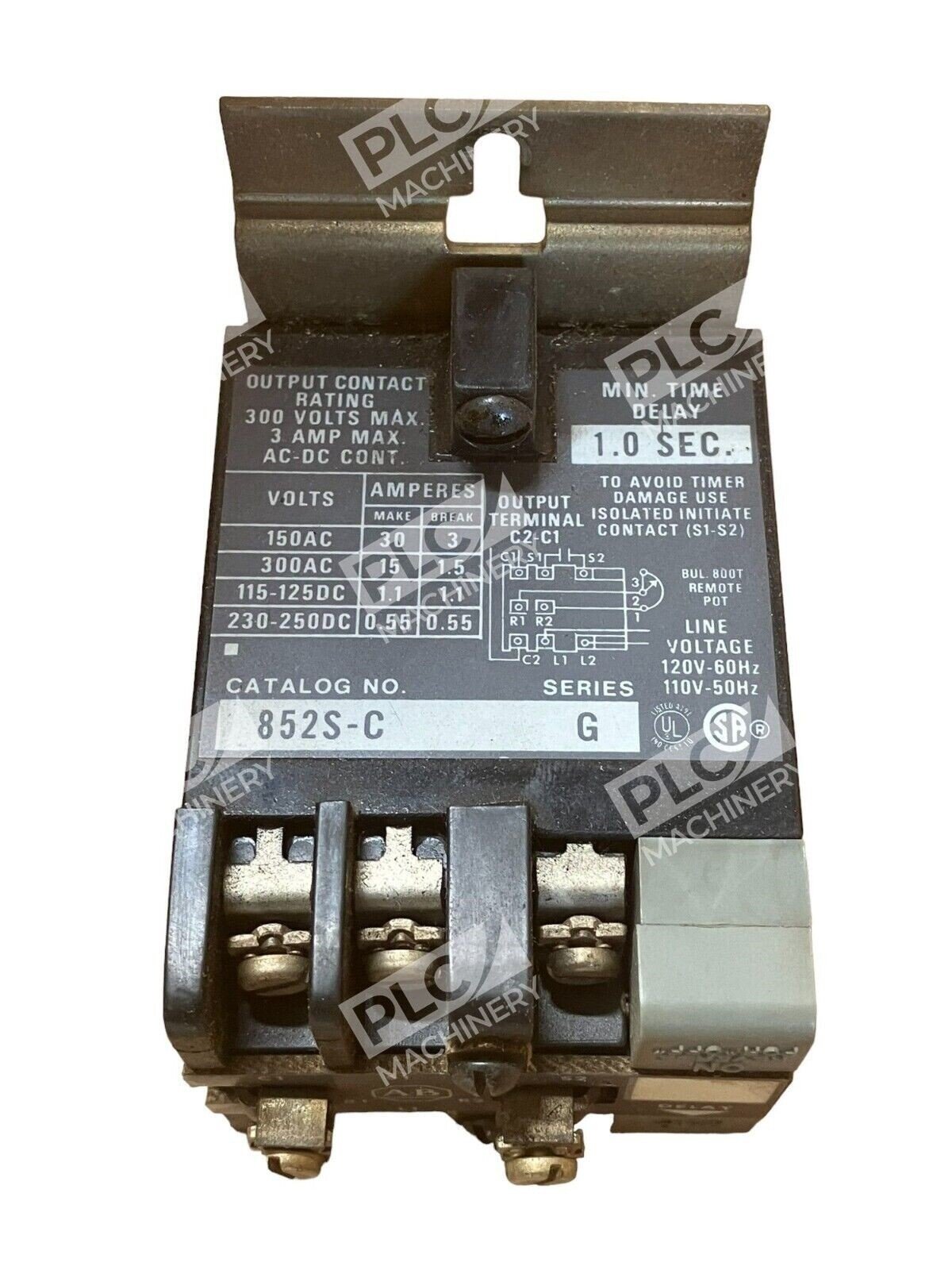

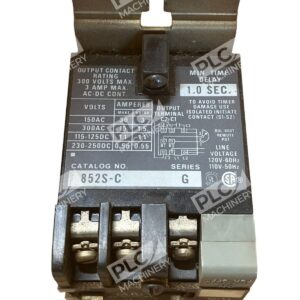

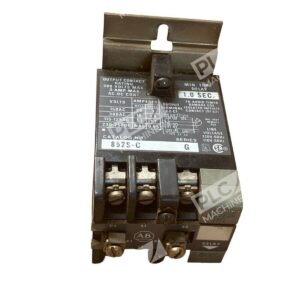

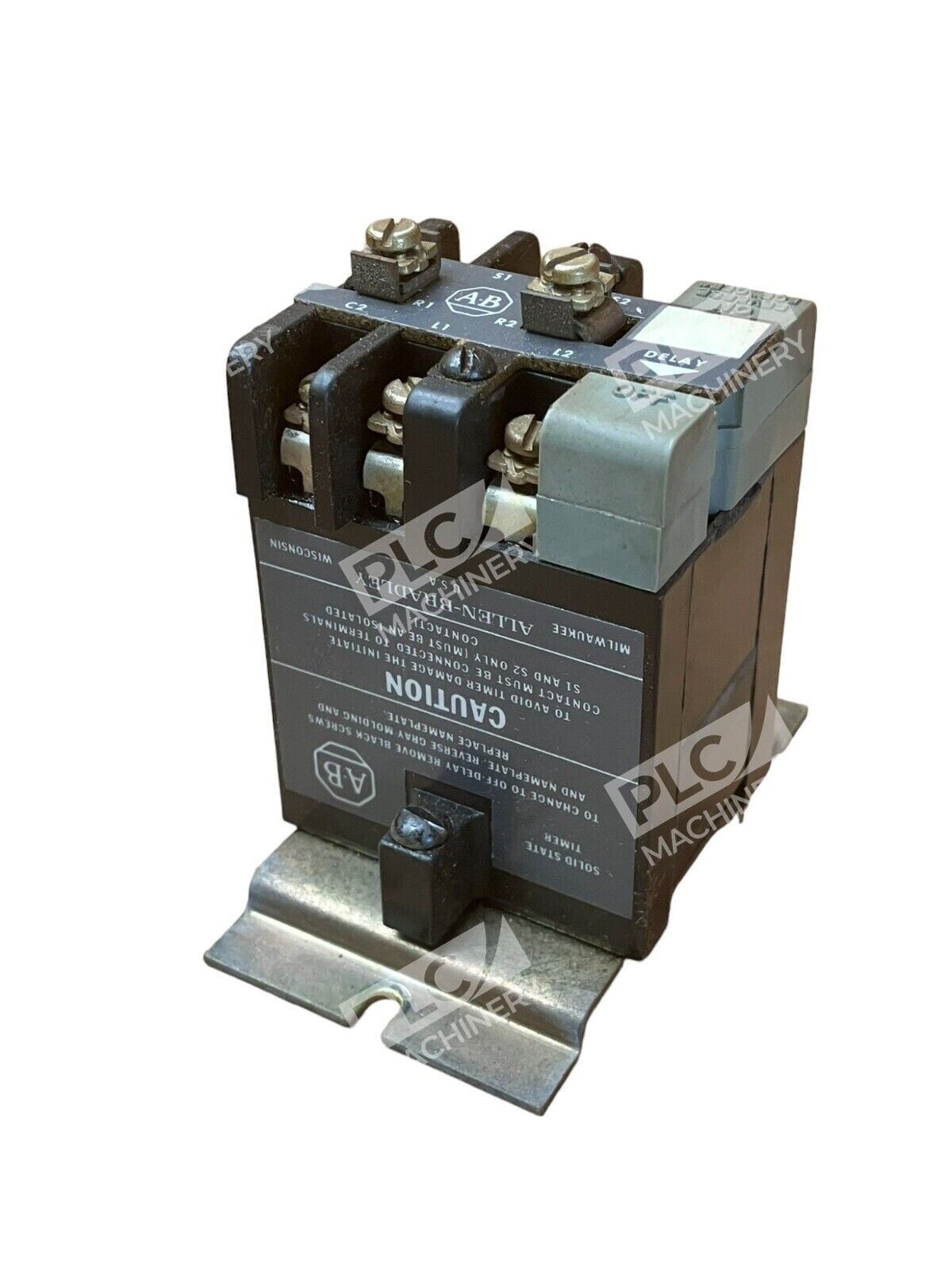

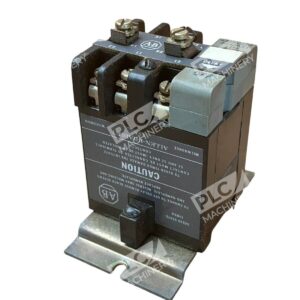

The Allen-Bradley 852S-C /G timing relay is a solid-state delay timer engineered for industrial control applications. This unit delivers reliable on-delay timing functionality in a compact, cost-effective package. The 852S-C /G is ideal for machinery control, process automation, and equipment sequencing where precise time-delay switching is required.
Key Features
- Solid-state design with no moving parts for improved reliability
- Flexible mounting: stand-alone operation or mounted on 700-N relay bases
- Adjustable time delay range accommodates various timing requirements
- Industry-standard Allen-Bradley construction and compatibility
- Used condition—fully functional and cost-effective for replacement projects
Technical Specifications
The Allen-Bradley 852S-C /G timing relay meets the following electrical and operational requirements:
- Maximum Output Rating: 300V AC/DC
- Maximum Output Current: 3 amps
- Input Voltage: 120V-60Hz or 110V-50Hz
- Time Delay Range: 1.0 to 160.0 seconds
- Connection Type: Open terminal (screw-clamp leads)
- Operating Principle: On-Delay (energize-to-make)
Typical Applications
The 852S-C /G timing relay is well-suited for:
- Equipment startup sequencing and motor soft-start circuits
- Conveyor and material-handling system control
- Pump and compressor delay-start protection
- Safety interlocks and alarm timing circuits
- General industrial machinery control requiring precise time delays
Compatibility & Replacements
The 852S-C /G is part of the Bulletin 852S solid-state timing relay family and maintains compatibility with Allen-Bradley control systems and 700-N relay mounting bases. This used unit provides a cost-effective alternative to new inventory and is suitable for replacement applications where the original 852S-C /G specification is required. Verify mounting configuration and time-delay range before installation.
