Overview

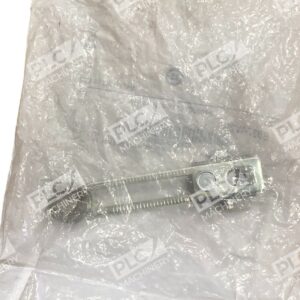

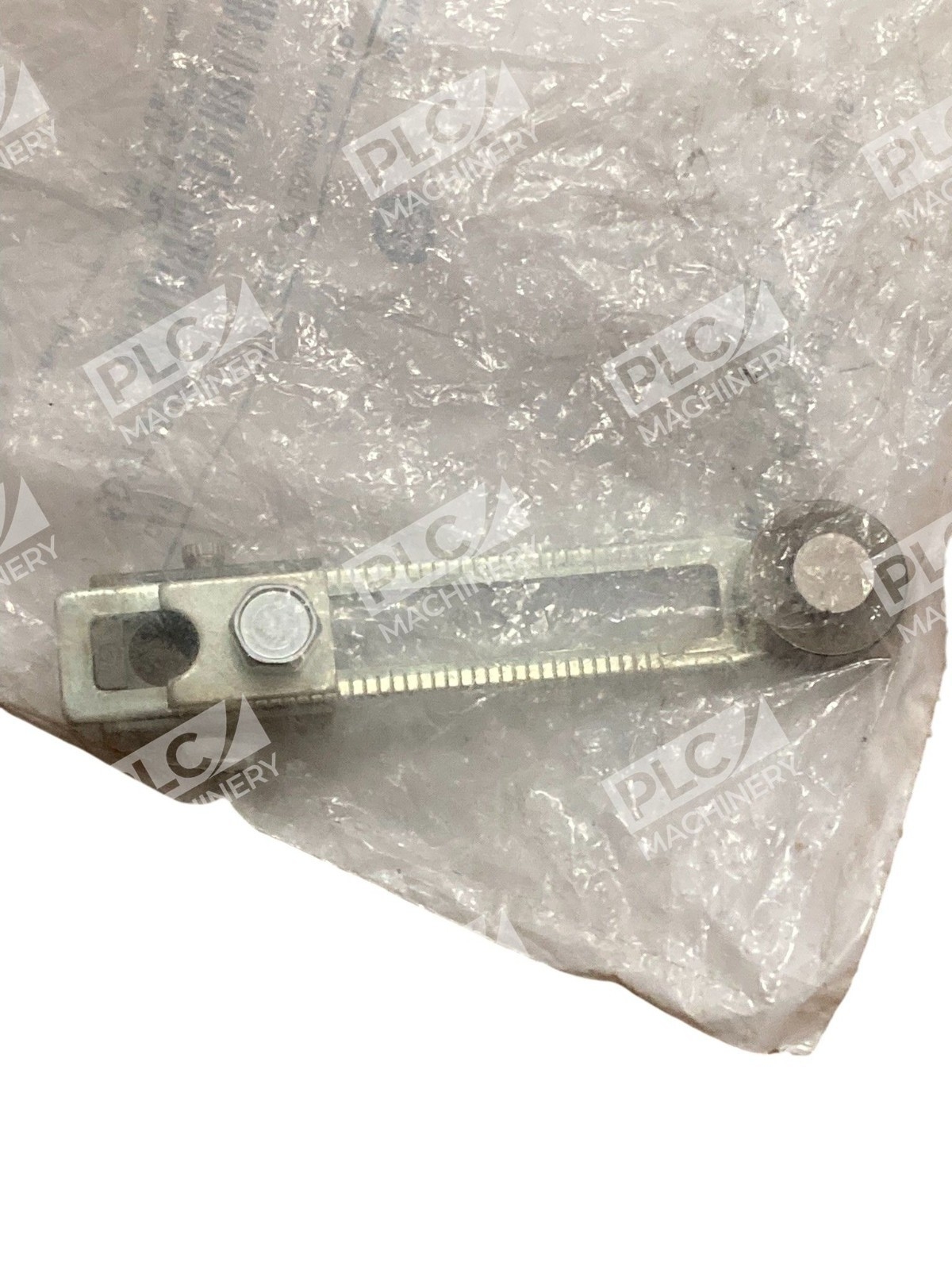

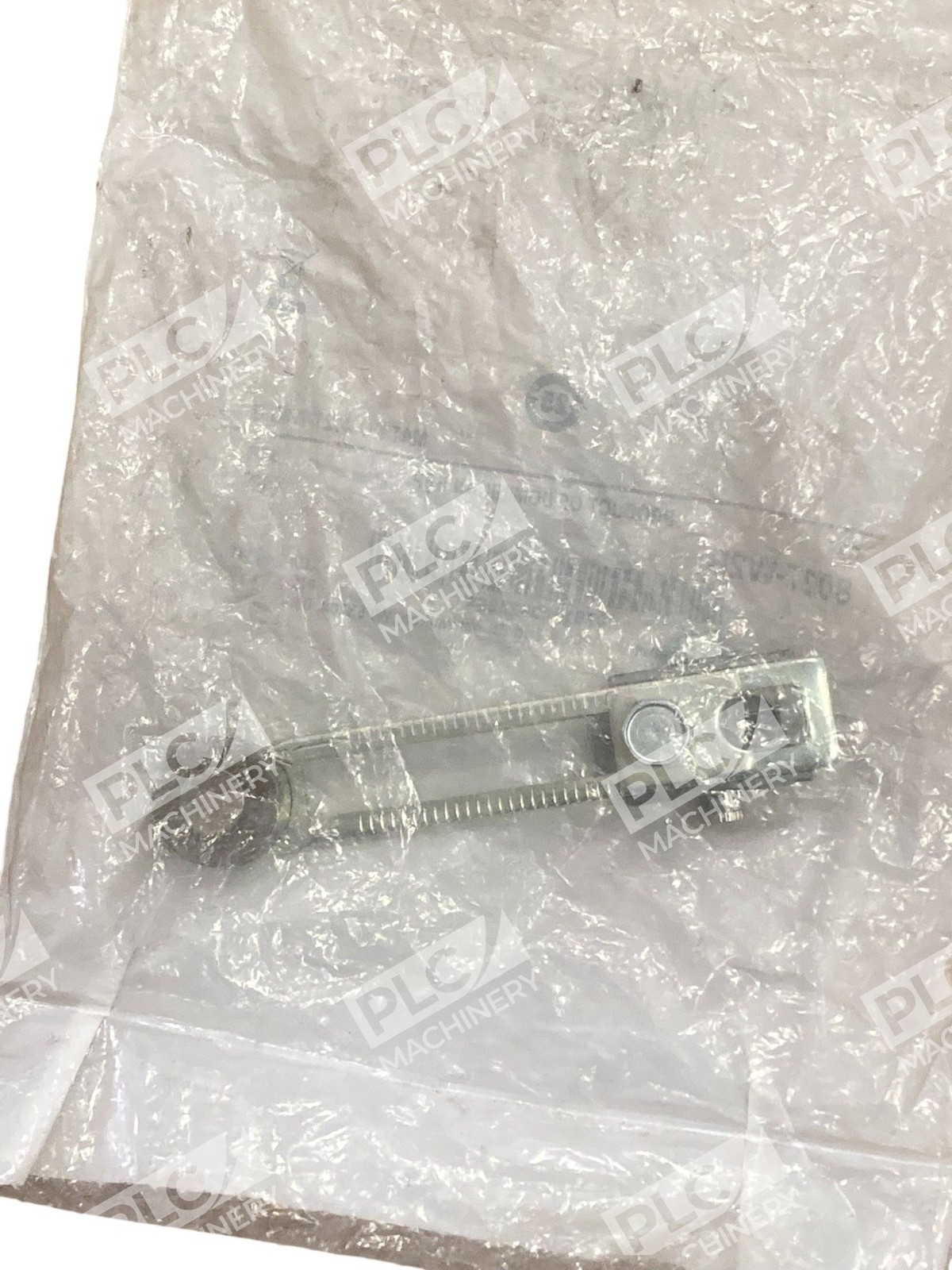

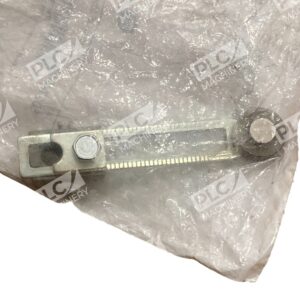

The Allen-Bradley 802T-W2B is an adjustable cast roller lever component designed for Bulletin 802T oiltight limit switches. This lever assembly enables precise positioning and smooth operation in heavy-duty industrial automation applications. The 802T-W2B features a steel roller mechanism rated for reliable snap-action switching across a wide range of voltages and environmental conditions.
Key Features
- Adjustable range: 1.9 to 3.0 inches allows precise mounting and actuation positioning
- Steel roller construction: 0.75 inch diameter roller with 0.25 inch width for durability and consistent operation
- Cast roller lever design: Provides smooth engagement with machine cams and rotary actuators
- NEMA Type 13 oiltight construction: Rugged enclosure rated for harsh industrial environments
- Heavy-duty performance: Suitable for pilot-rated switching in machine control and automation systems
- Snap-action mechanism: Reliable, consistent switching action for safety-critical applications
Technical Specifications
- Lever type: Adjustable cast roller lever
- Adjustment range: 1.9 to 3.0 inches
- Roller diameter: 0.75 inch
- Roller width: 0.25 inch
- Roller material: Steel
- Enclosure rating: NEMA Type 13, IP67
- Operating temperature: -18 to +110°C standard (-18 to +54°C with wobble stick/cat whisker actuators)
- Certifications: CCC, CE, CSA, KC
- Compatible bulletin: 802T oiltight limit switches
Typical Applications
The Allen-Bradley 802T-W2B lever is widely used in:
- Machine tool position sensing and limit detection
- Conveyor and material handling systems
- Automated assembly line equipment
- Press brake and punch press control
- Hoist and lift positioning
- Door and gate position monitoring
- Industrial process automation requiring NEMA 13 oiltight switching
Compatibility & Replacements
Compatible With
- Bulletin 802T oiltight limit switches (standard and plug-in styles)
- Rotary and linear cam actuators
- Fixed and adjustable mounting bases for 802T switches
- NEMA standard industrial control systems
- Allen-Bradley and third-party motor starters and contactors
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 802T-W2B is a lever component designed to work with complete 802T switch heads and bodies; always confirm the full switch assembly meets your application requirements.
Works With
- Allen-Bradley 802T-series switch bodies and heads
- Industrial push-button and limit switch control circuits
- Pilot-rated switching for motor starters and relays
- Standard AC/DC industrial control voltage ranges
- NEMA and IEC-rated control systems
