Overview

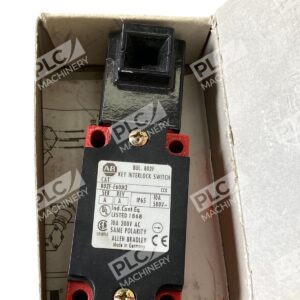

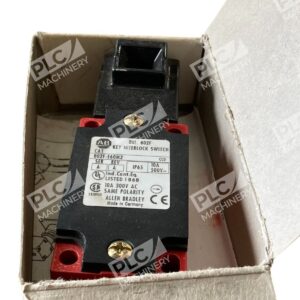

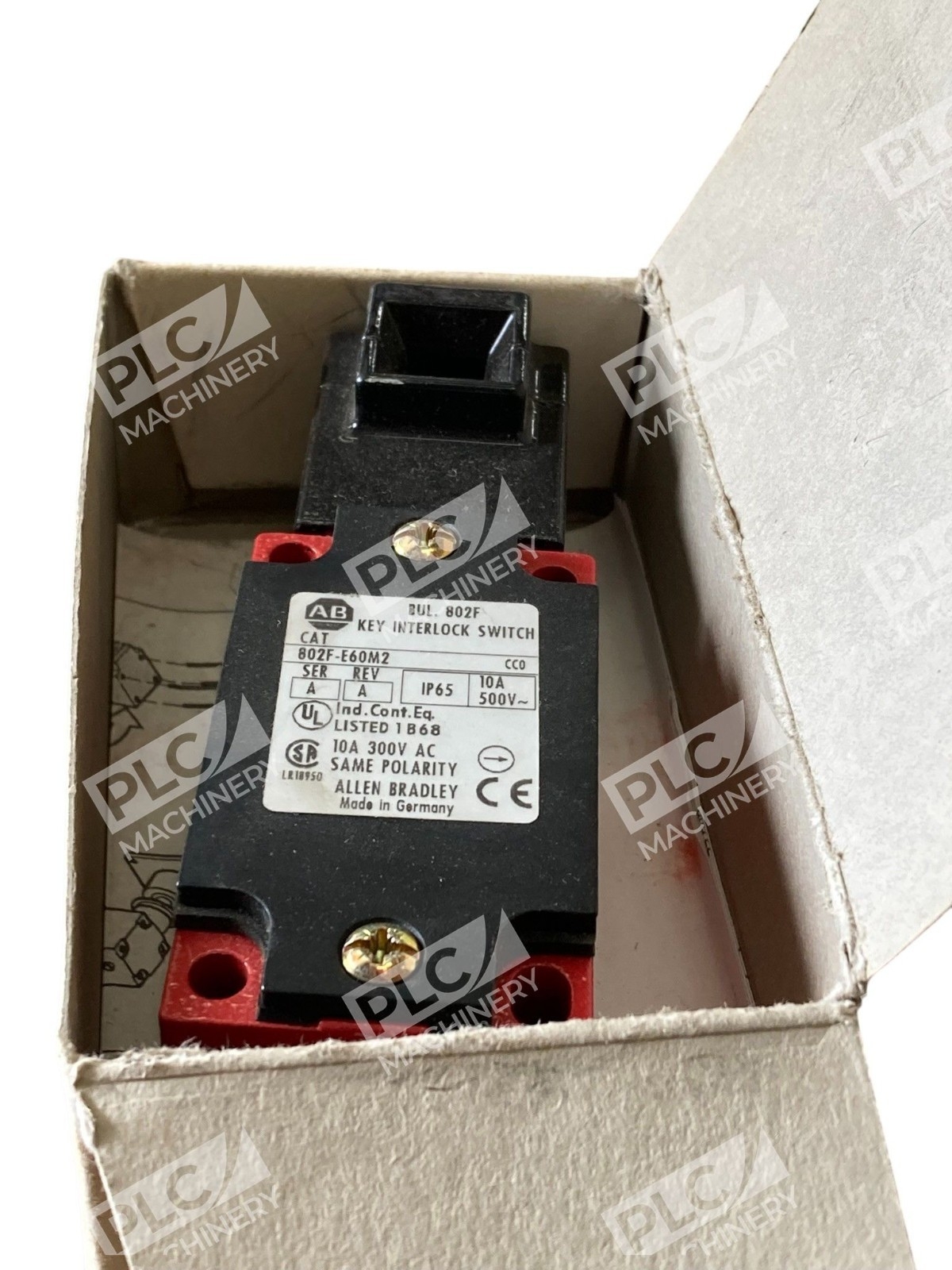

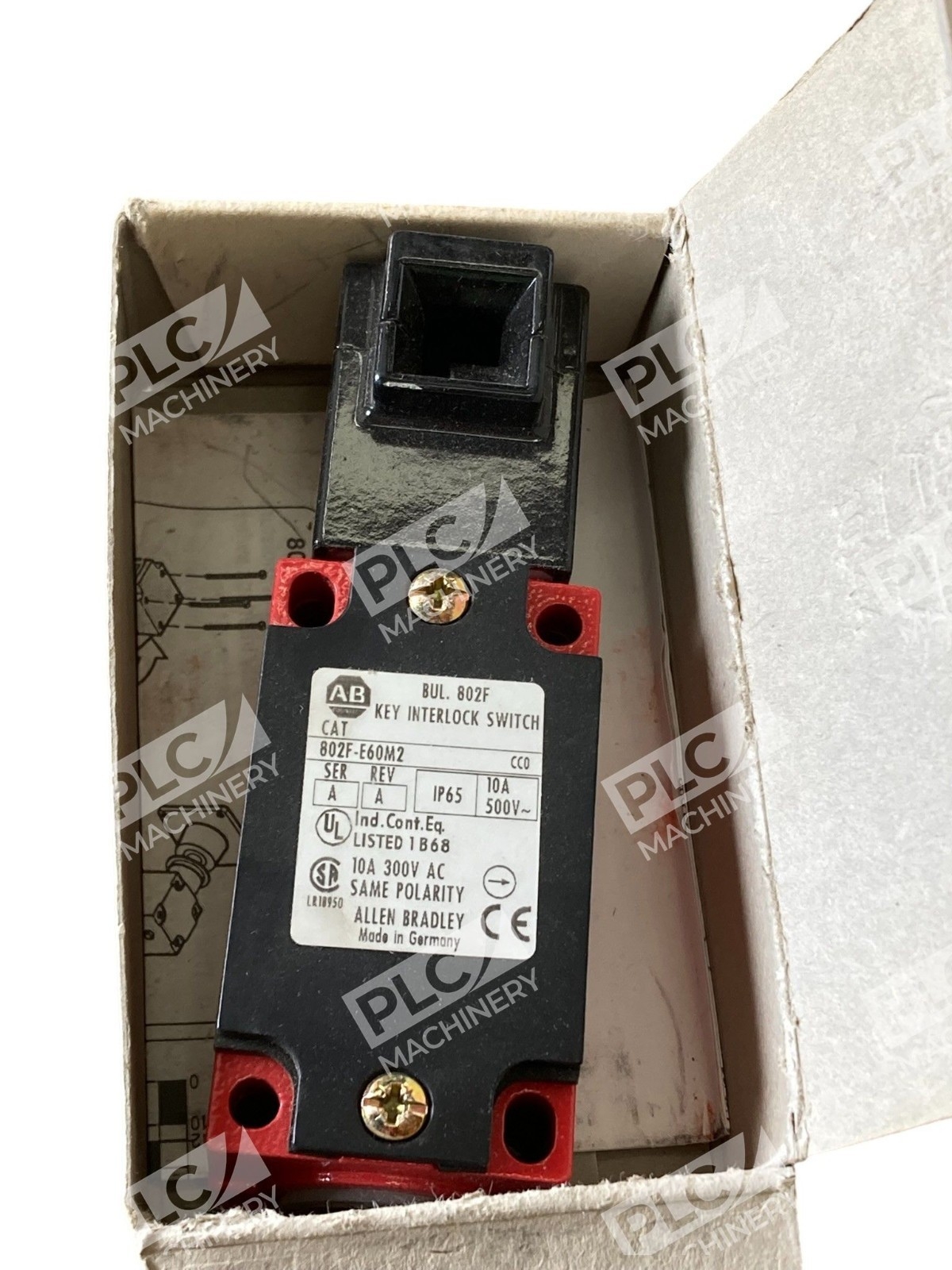

The Allen-Bradley 802F-E60M2 /A key interlock safety switch is a mechanical control component engineered for industrial electrical systems requiring positive position confirmation. Rated at 10A and 500V AC, this switch provides reliable actuation in machine guarding, equipment interlocking, and safety-critical control circuits. The key interlock mechanism ensures that the switch cannot be manually overridden, making it ideal for applications where operator safety is paramount.
Key Features
- Key interlock mechanism prevents unauthorized or accidental operation
- Rated for 10A at 500V AC continuous duty
- Compact, industrial-grade construction built for harsh environments
- Mechanical actuation with positive contact closure
- Compatible with standard industrial control enclosures and mounting surfaces
Technical Specifications

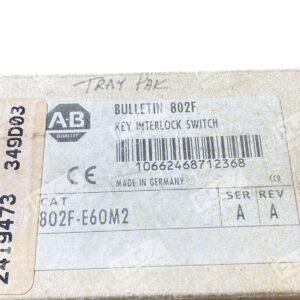

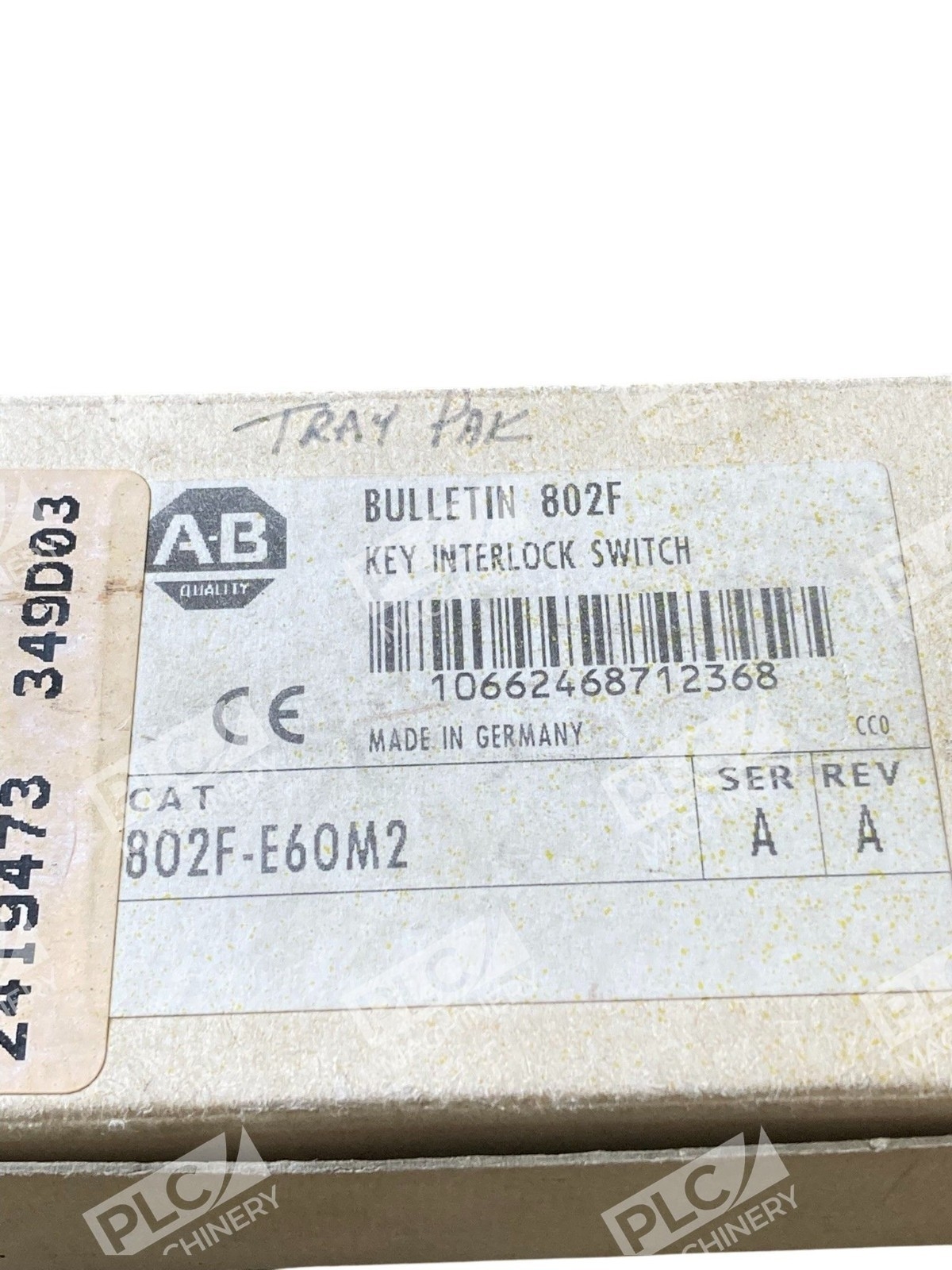

- Part Number: 802F-E60M2 /A
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Current Rating: 10A
- Voltage Rating: 500V AC
- Contact Type: Single Pole (SP)
- Mechanism: Key Interlock
- Operating Principle: Positive Position Indication

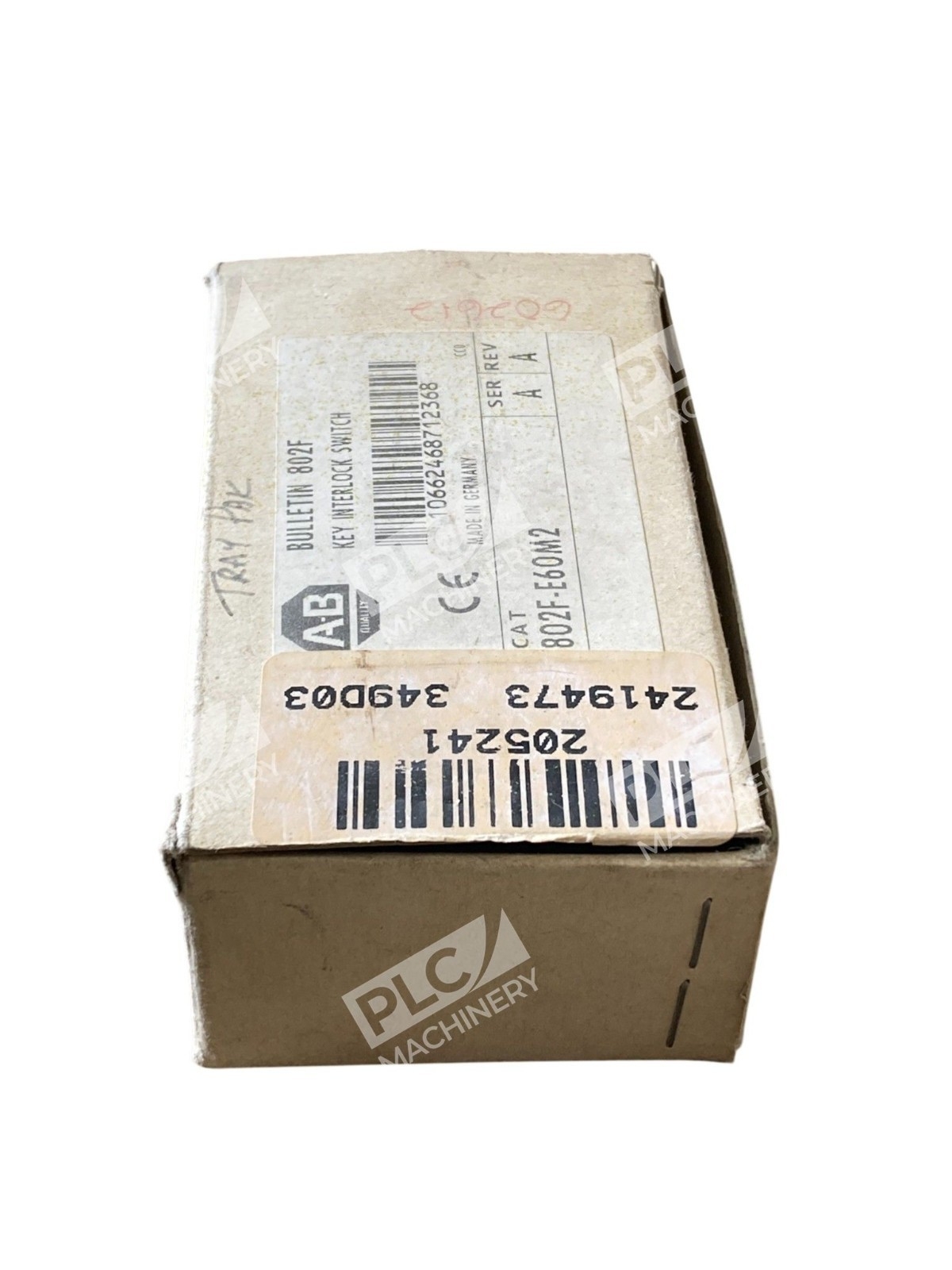

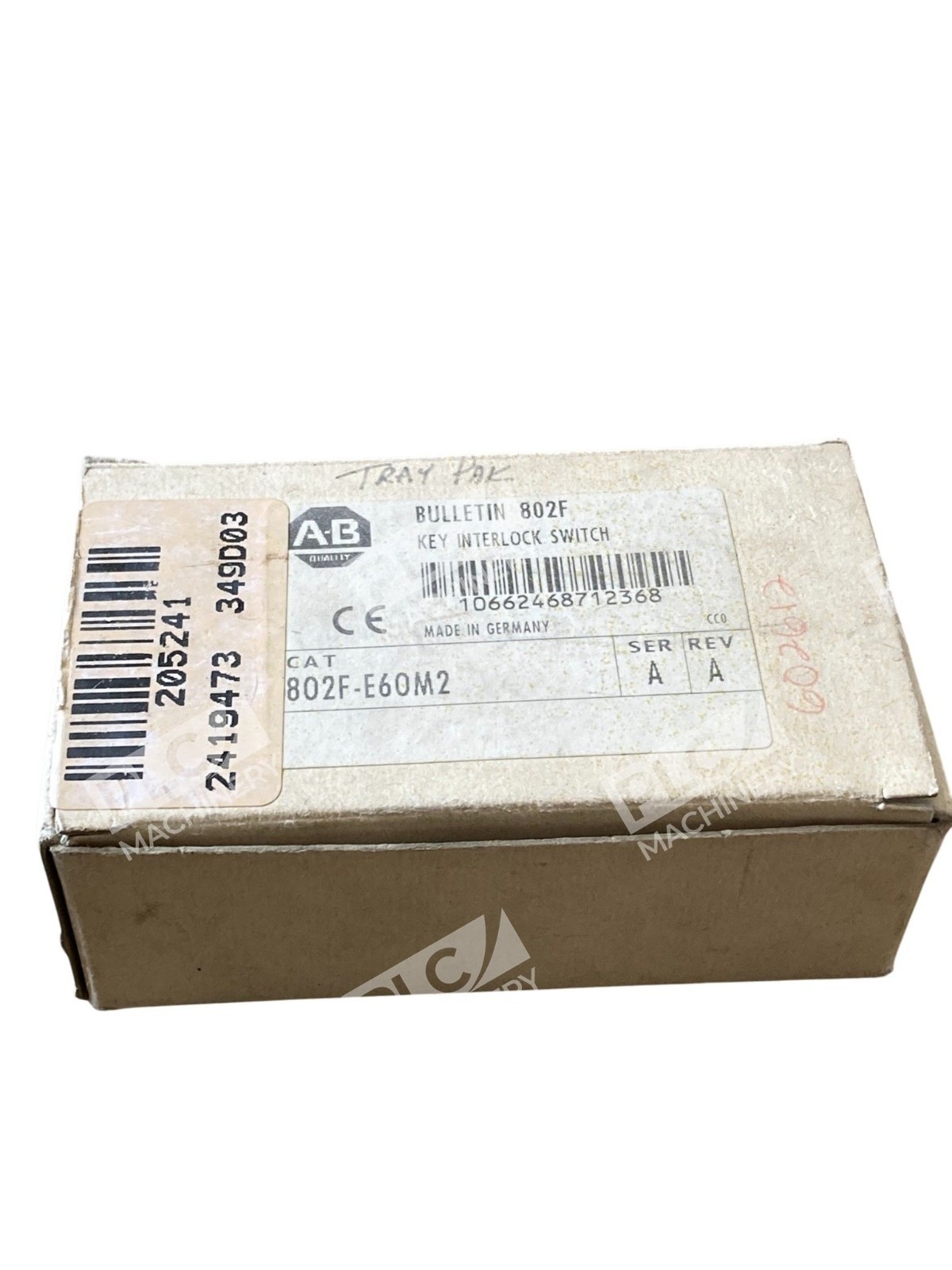

- Condition: New in Box
Typical Applications
- Machine guarding and safety door interlocks
- Emergency stop circuits and safety control systems
- Conveyor and material handling equipment control
- Industrial equipment access point monitoring
- Manufacturing facility electrical interlocking systems
Compatibility & Replacements
Compatible With
- Allen-Bradley electrical control systems and enclosures
- Standard DIN rail or panel-mounted switch installations
- Industrial safety control circuits operating at 500V AC nominal
- Equipment requiring positive position confirmation
Replaces / Drop-In Replacement For
- Other Allen-Bradley 802F series interlock switches in equivalent configurations
- Verify compatibility with your system integrator before ordering if replacing legacy equipment
Works With
- Allen-Bradley control relays, contactors, and motor starters
- Industrial safety systems using hardwired logic control
- Standard AC motor control circuits and safety interlocks
