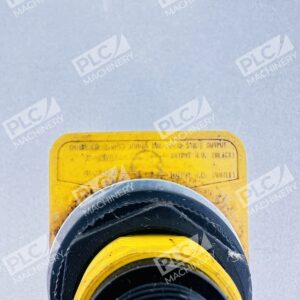

Overview

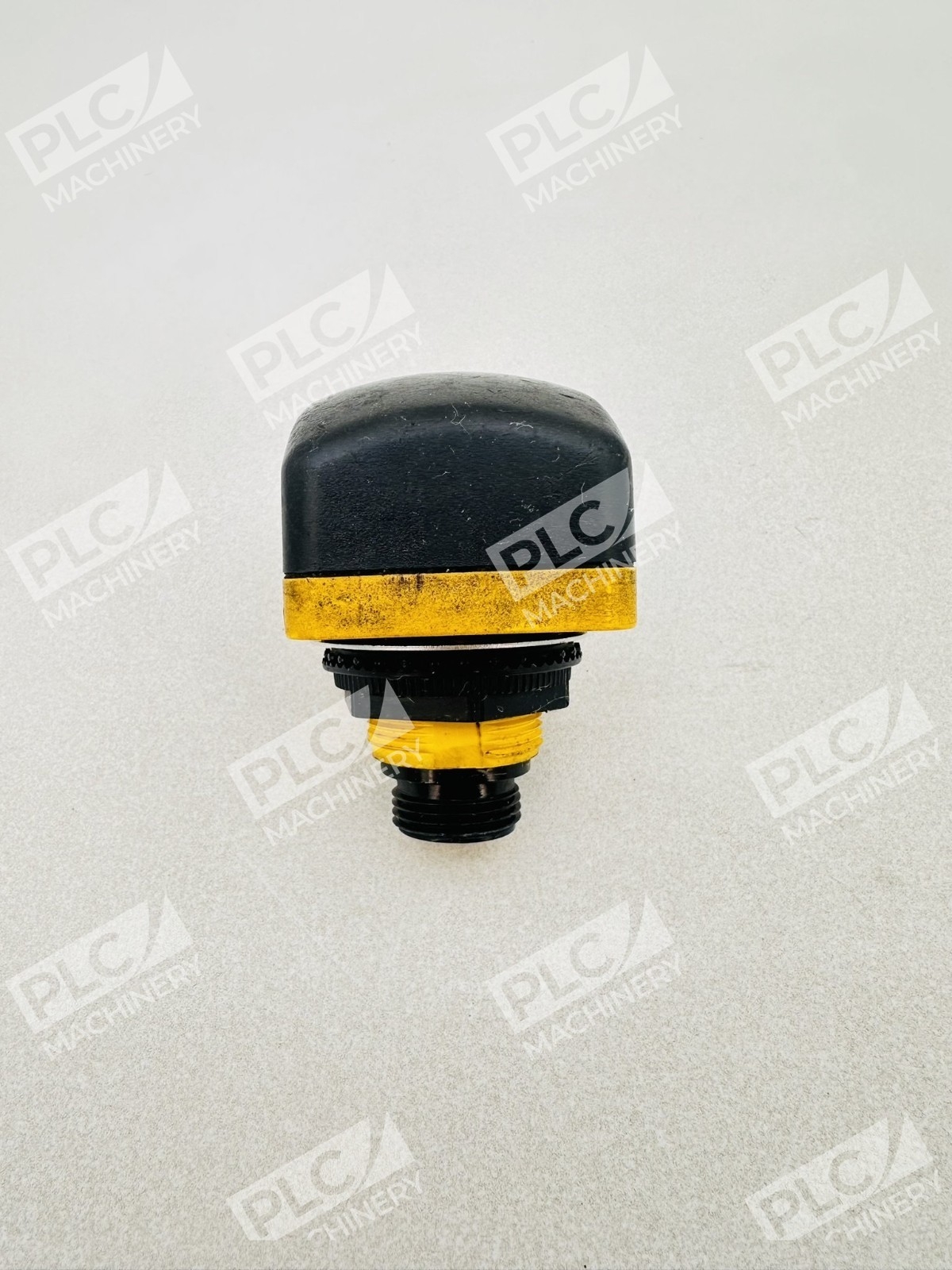

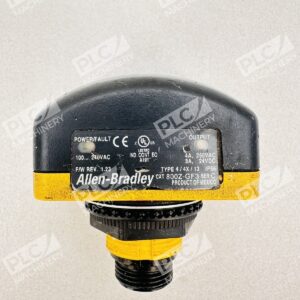

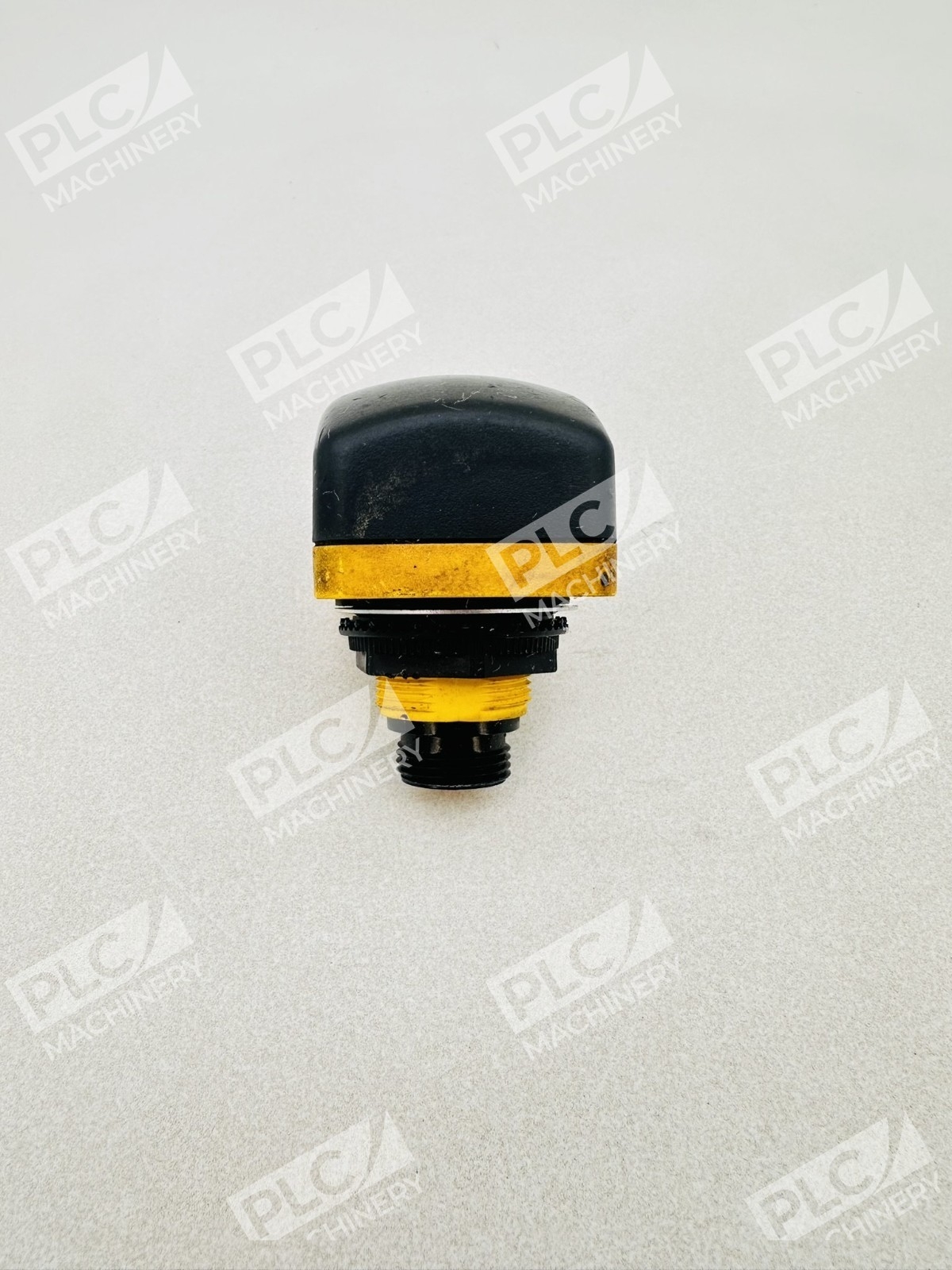

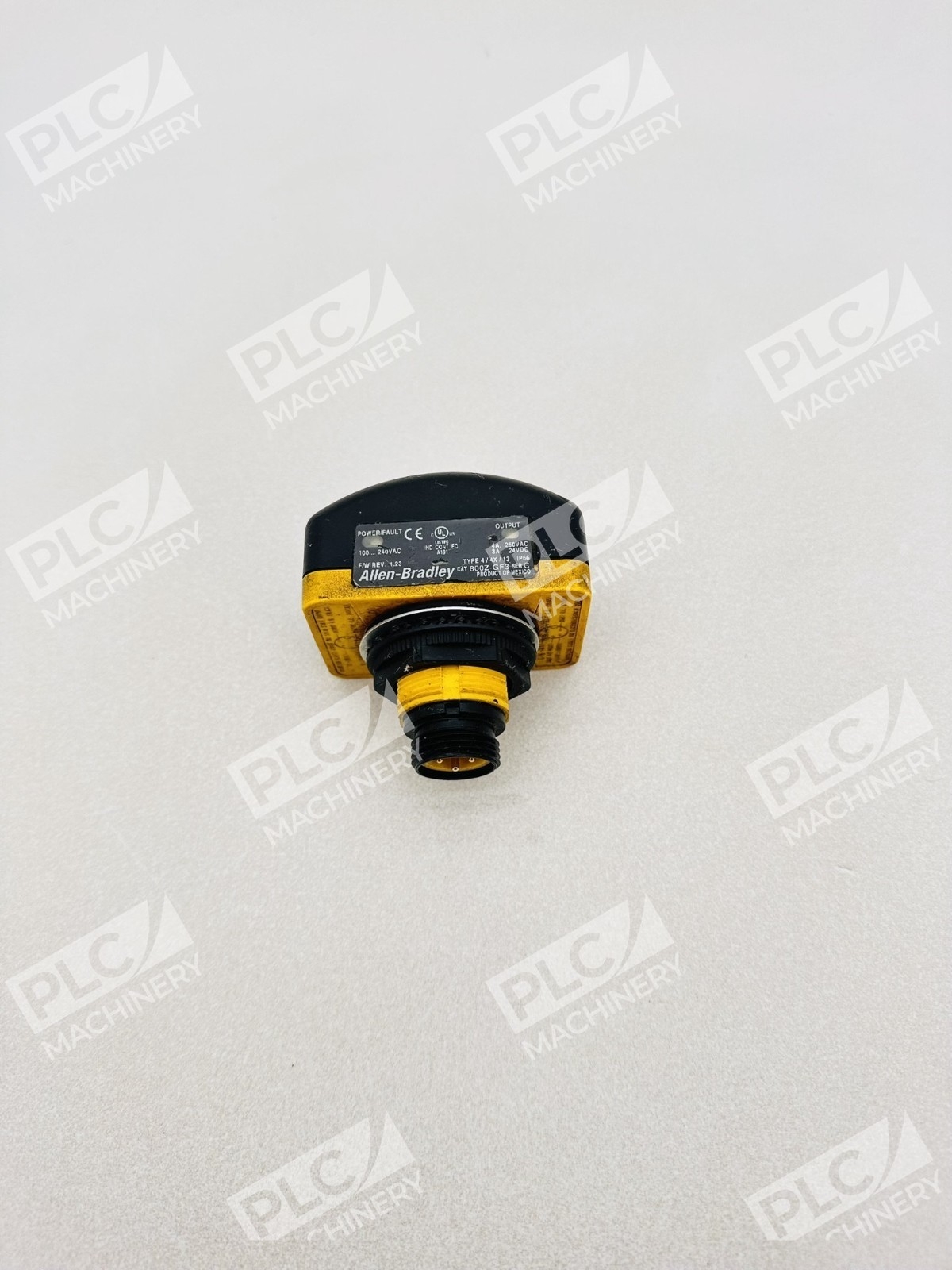

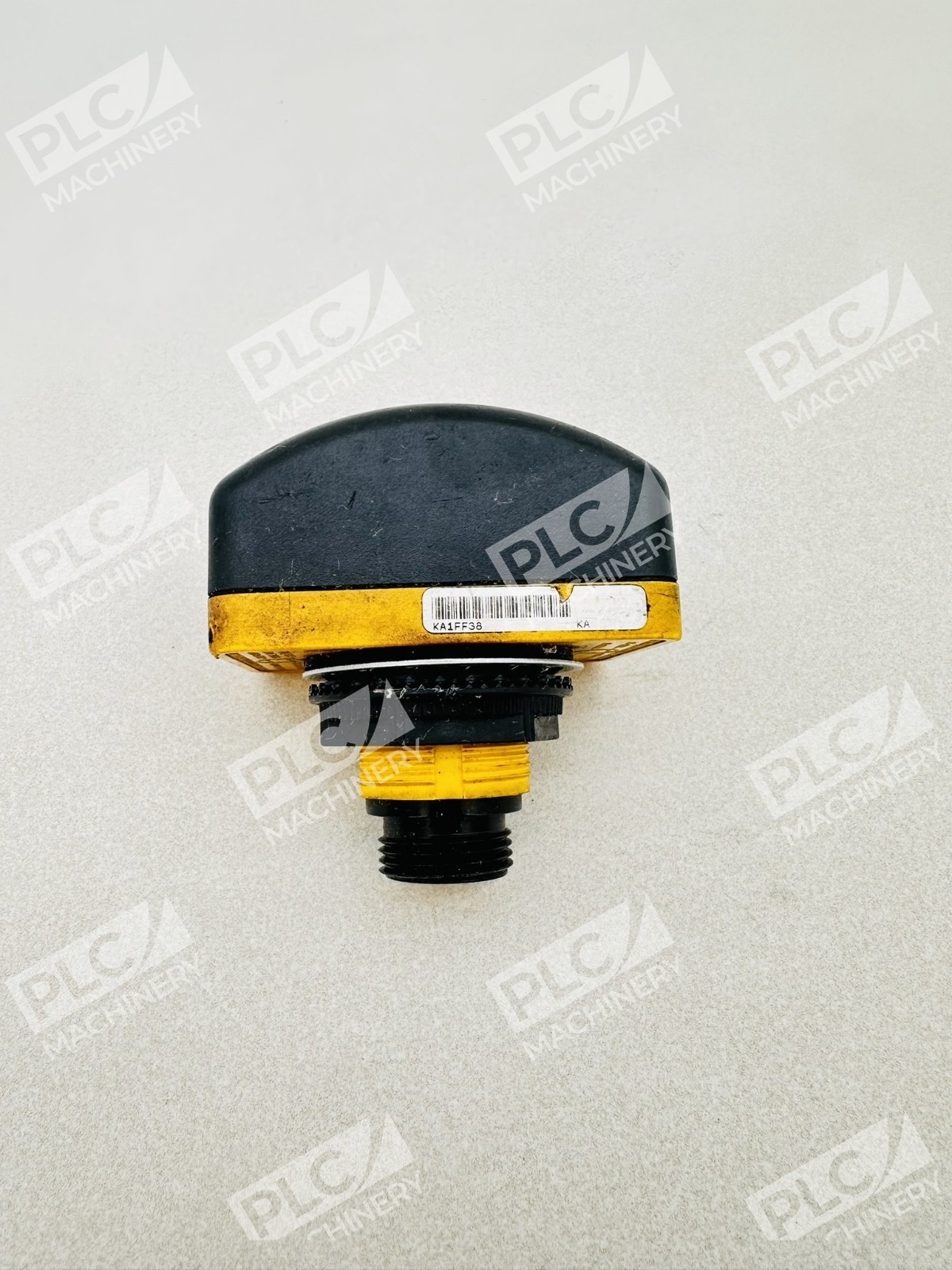

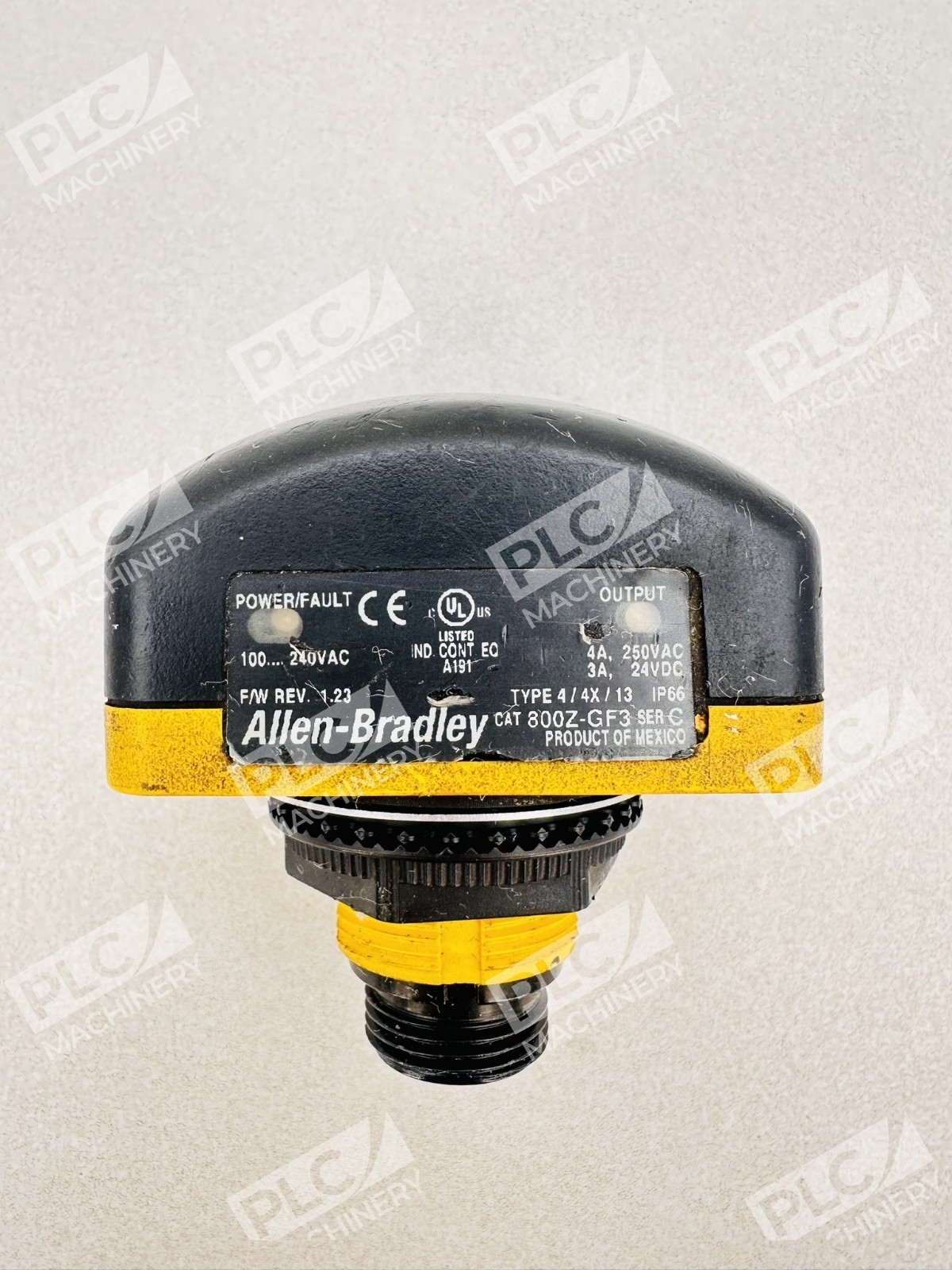

The Allen-Bradley 800Z-GF3 is a zero-force touch button from the acclaimed 800Z series of touchless pushbuttons. Zero-force touch technology eliminates the need for physical pressure to activate, providing consistent operation and reduced operator fatigue. Designed specifically for two-hand control systems, this touch button features an interlinked capacitive sensor surface that detects hand presence even through most industrial gloves, making it essential for safety-critical machine control applications.
Key Features
- Capacitive sensing technology with dual offset-plane sensors for enhanced sensitivity
- Zero-force actuation—no physical pressure required to activate the button
- Hand-conforming contour design prevents accidental bypass in two-hand control mode
- Works through industrial gloves and protective equipment
- Coil voltage range: 100-240V AC/DC for flexible integration
- Series C construction with industry-standard certifications (UL 508, CSA 22.2 No. 14, EN/IEC 60947-5-1)
- Quick-disconnect terminal configuration for field serviceability
Technical Specifications
- Input Voltage: 100-240V AC/DC
- Operating Temperature: -10°C to +50°C
- Sensor Type: Capacitive (offset dual-plane)
- Actuation: Zero-force (touch-activated)
- Control Type: Two-hand control systems

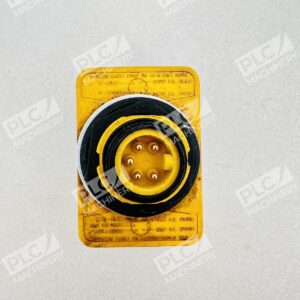

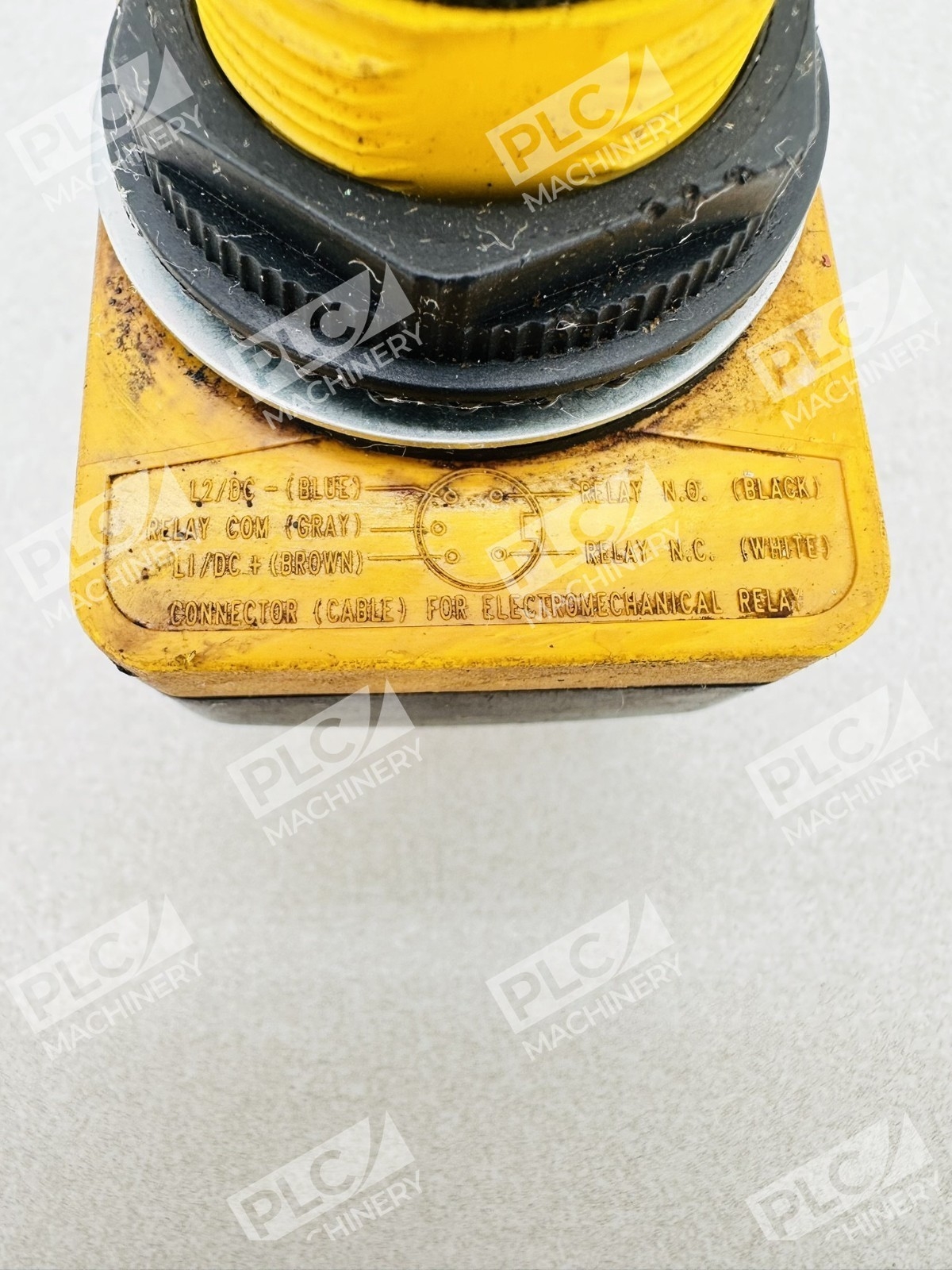

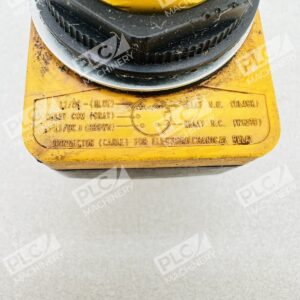

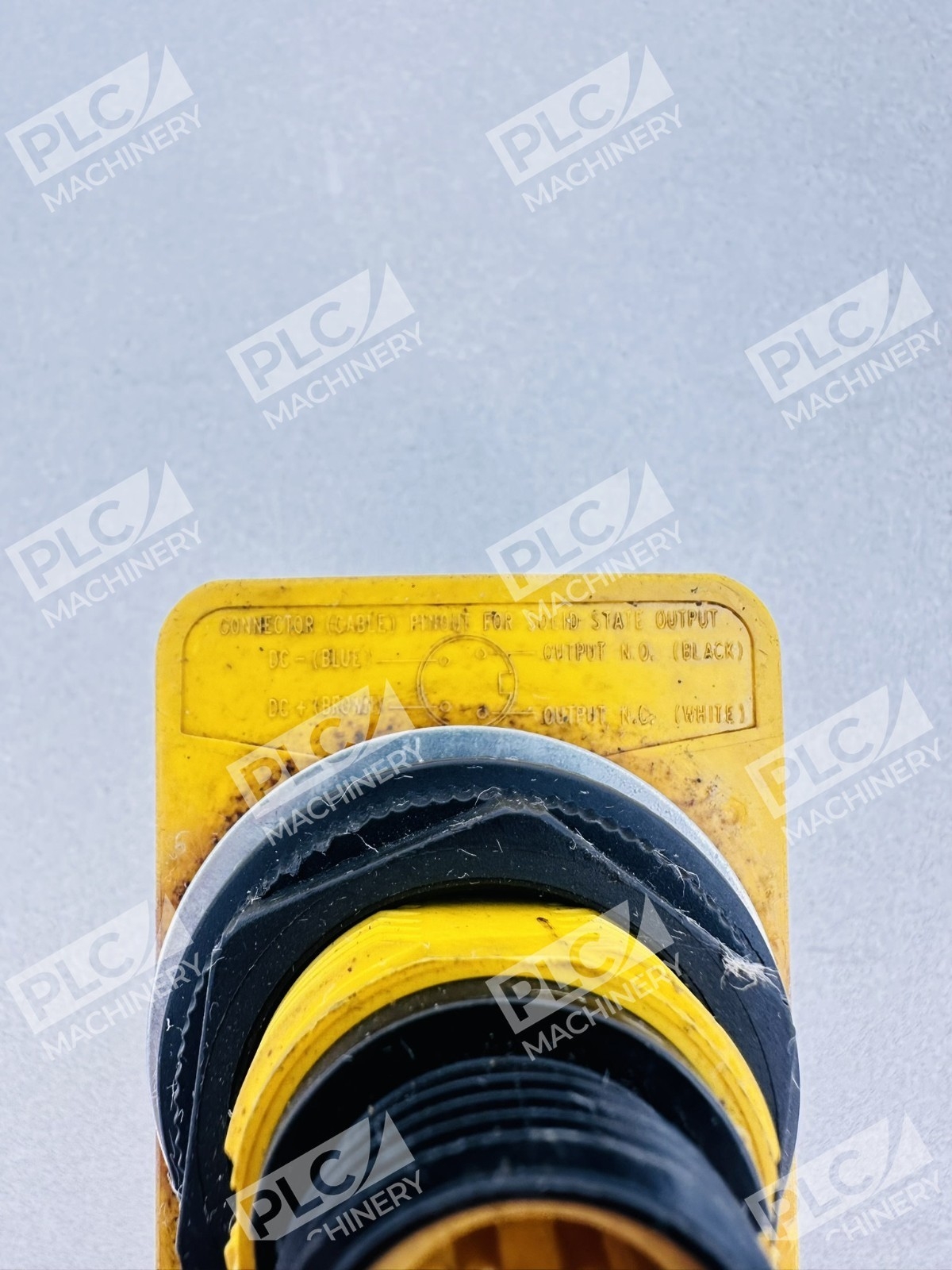

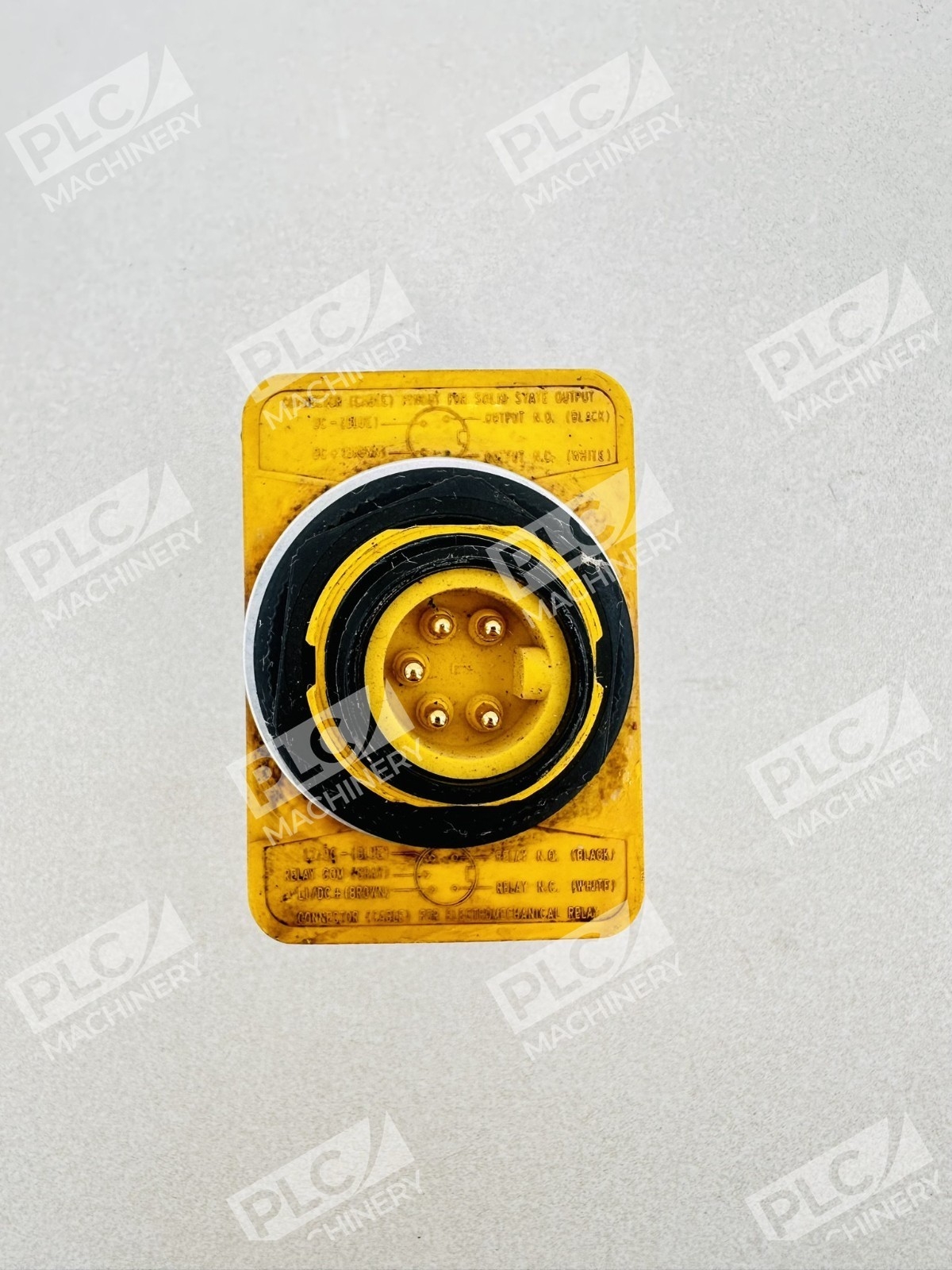

- Connector Type: 5-pin quick disconnect
- Response Time (On): ≤76 ms
- Response Time (Off): ≤60 ms
- Certifications: UL 508, CSA 22.2 No. 14, EN/IEC 60947-5-1, EN50081-2, EN61000-6-2, EN60954-1, EN60204-1
- Series: 800Z, Series C
- Manufacturer: Allen-Bradley / Rockwell Automation
Typical Applications
The Allen-Bradley 800Z-GF3 is commonly deployed in:
- Industrial presses, punch presses, and stamping machines requiring two-hand control for operator safety
- Conveyor system control panels and material handling equipment
- Packaging machinery and labeling systems
- Manufacturing automation systems with interlocked safety circuits
- Heavy equipment and machine tool control systems where guard-against-defeat operation is critical
- Applications requiring consistent, pressure-independent actuation in high-vibration environments
Compatibility & Replacements
Compatible With
- Allen-Bradley Bulletin 440R safety relays (for certified two-hand control circuits)
- Rockwell Automation CompactLogix, ControlLogix, and Micro800 controllers via 24V relay modules
- 24V, 120V, and 240V industrial control systems
- Standard industrial safety relay circuits and PLC input modules
- Two-hand control safety standards (EN574, ISO/IEC 13851)
Replaces / Drop-In Replacement For
The Allen-Bradley 800Z-GF3 is a direct replacement for earlier 800Z-GF series models in the same voltage class. Verify compatibility with your system integrator before ordering, as wiring configurations may differ between series revisions.
Works With
- Allen-Bradley Studio 5000 Automation Engineering & Design Environment
- RSLogix 5000 legacy programming platforms
- Rockwell Automation CompactLogix and ControlLogix processors
- Any 24V/120V/240V relay-based automation system
- Two-hand control safety interlock circuits using Bulletin 440R relays
