Overview

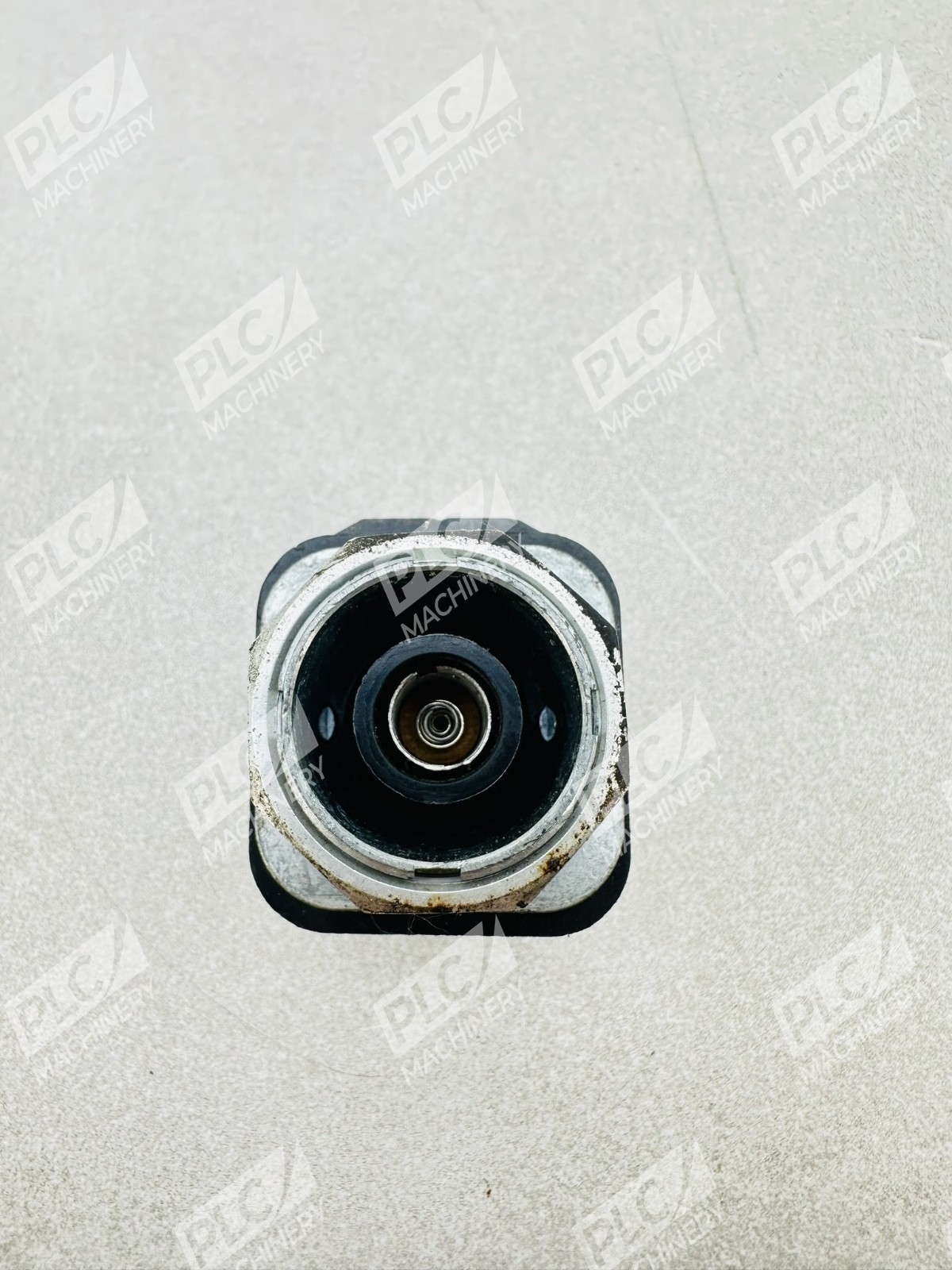

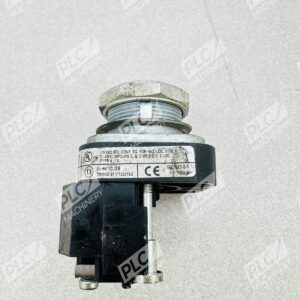

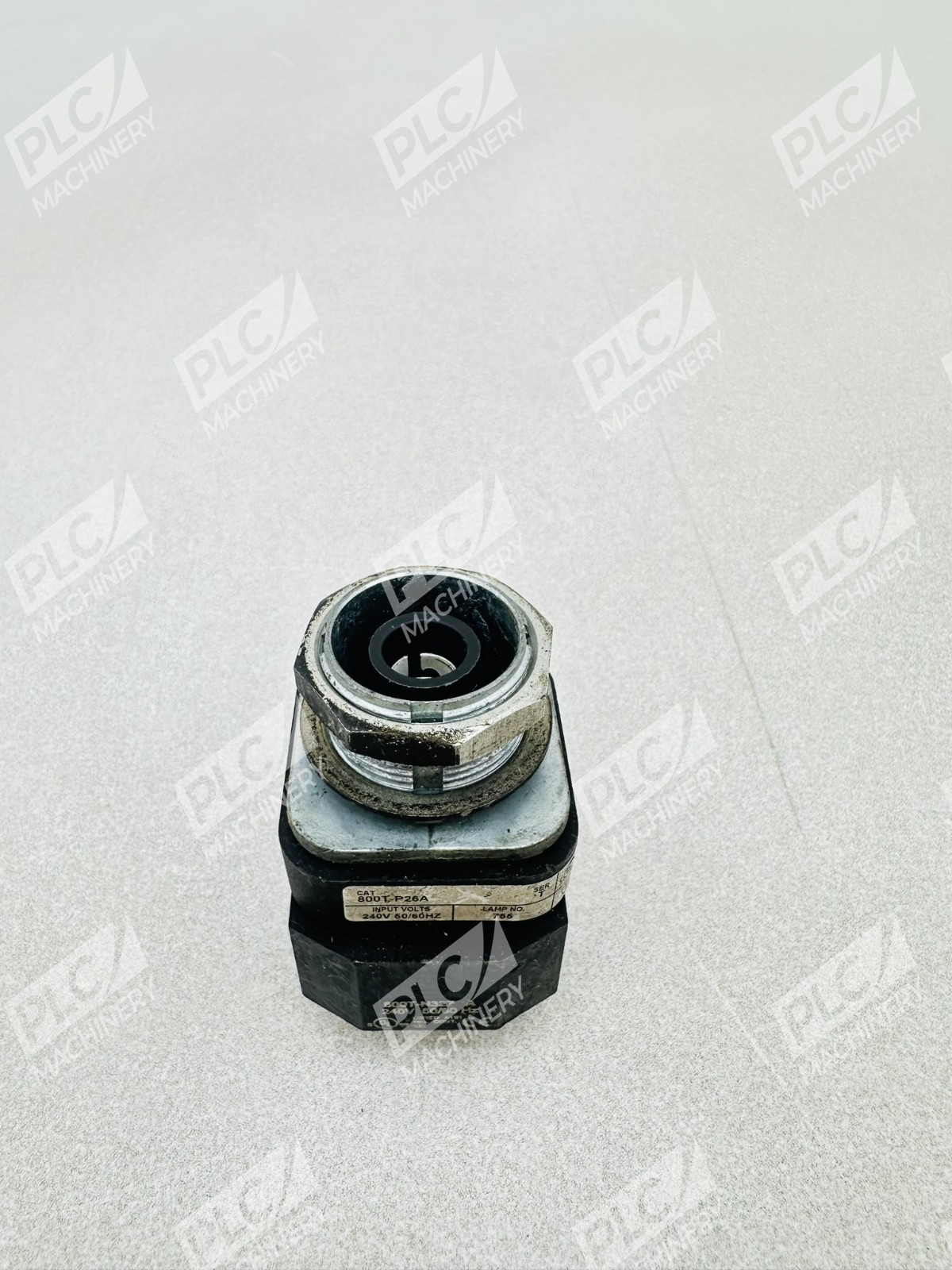

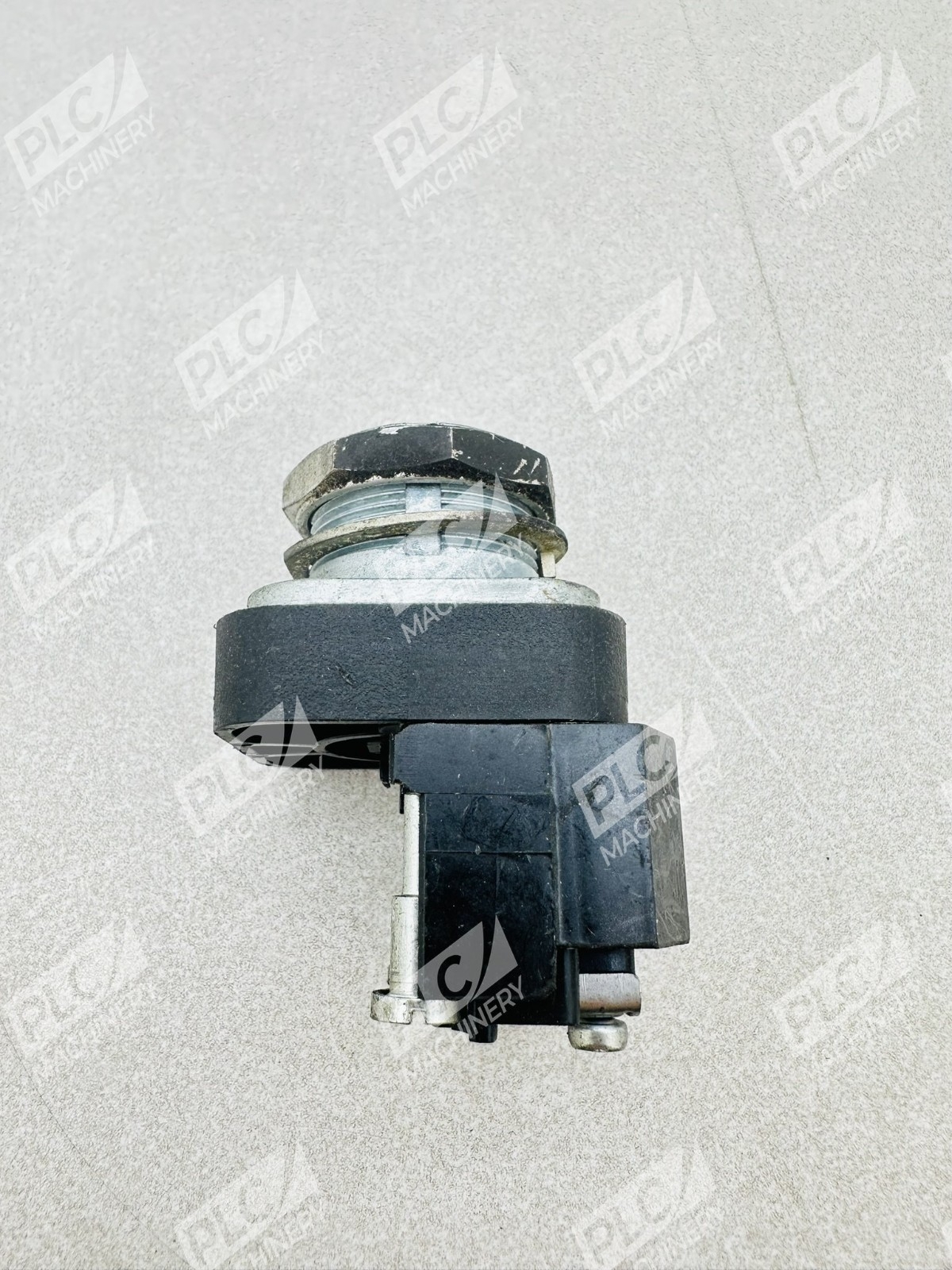

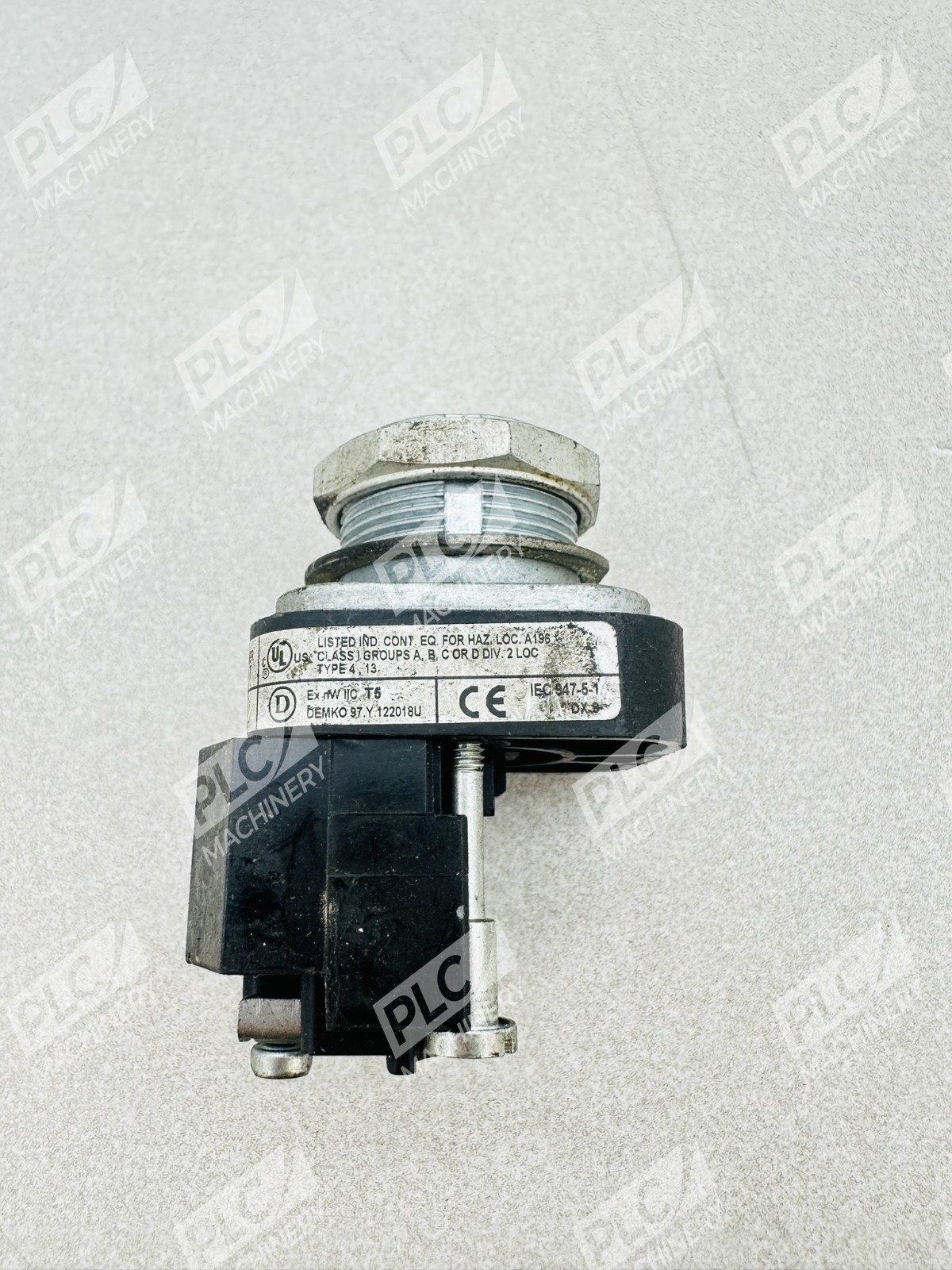

The Allen-Bradley 800T-P26A push-to-test pilot light is a compact 30mm indicator designed for reliable visual feedback in industrial control panels. Rated for 240VAC operation with an amber incandescent lens, this unit combines durability with straightforward installation on standard 22mm panel cutouts. The push-to-test feature enables field verification of lamp operation without disrupting the control circuit, making it ideal for preventive maintenance routines.
Key Features
- Push-To-Test Function: Momentary test capability allows operators to verify lamp status without interrupting system operation
- NEMA 4/13 Rating: Provides Type 4 watertight and Type 13 oiltight protection for harsh industrial environments
- 30mm Compact Size: Standard mounting footprint compatible with most Allen-Bradley control stations and panel enclosures
- Incandescent Amber Lens: High-visibility amber color provides clear status indication in well-lit control rooms
- Durable Construction: Rugged materials and proven 800T series design ensure long service life in demanding applications
Technical Specifications
- Voltage Rating: 240VAC
- Operating Frequency: 50/60 Hz
- Illumination Type: Incandescent
- Lens Color: Amber
- Mounting: 30mm panel mount, standard 22mm cutout
- Enclosure Rating: NEMA 4 (watertight), NEMA 13 (oiltight)
- Function: Push-to-test
- Certifications: UL, CSA, CUL, CE, KC, MARINE
- Country of Origin: China
Typical Applications
- Control panel indicator status lights in manufacturing and process automation
- Machine operator interface feedback (run, alarm, maintenance due)
- Heavy-duty industrial environments requiring NEMA 4/13 environmental protection
- Food processing, automotive assembly, and chemical plant control stations
- Preventive maintenance verification with field push-to-test capability
Compatibility & Replacements
Compatible With
- Allen-Bradley 800T series pushbutton stations and control modules
- Standard 22mm panel cutout control enclosures
- 30mm operator mounting bases and contact blocks from the 800T family
- Industrial control panels rated for 240VAC pilot light circuits
Replaces / Drop-In Replacement For
- Other 800T-P26 series variants (800T-P26R, 800T-P26G, 800T-P26 standard versions)
- Earlier generation Allen-Bradley equivalent 240V amber pilot lights
- Verify compatibility with your system integrator before ordering for mission-critical applications.
Works With
- Allen-Bradley ControlLogix and CompactLogix control systems
- Rockwell Automation Studio 5000 programming environment
- Standard industrial 240VAC control circuit wiring
- NEMA 4/13-rated control enclosures and panel assemblies
