Overview

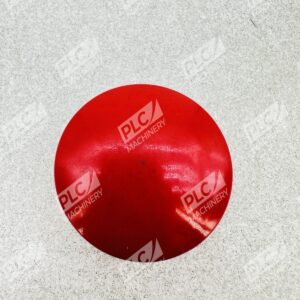

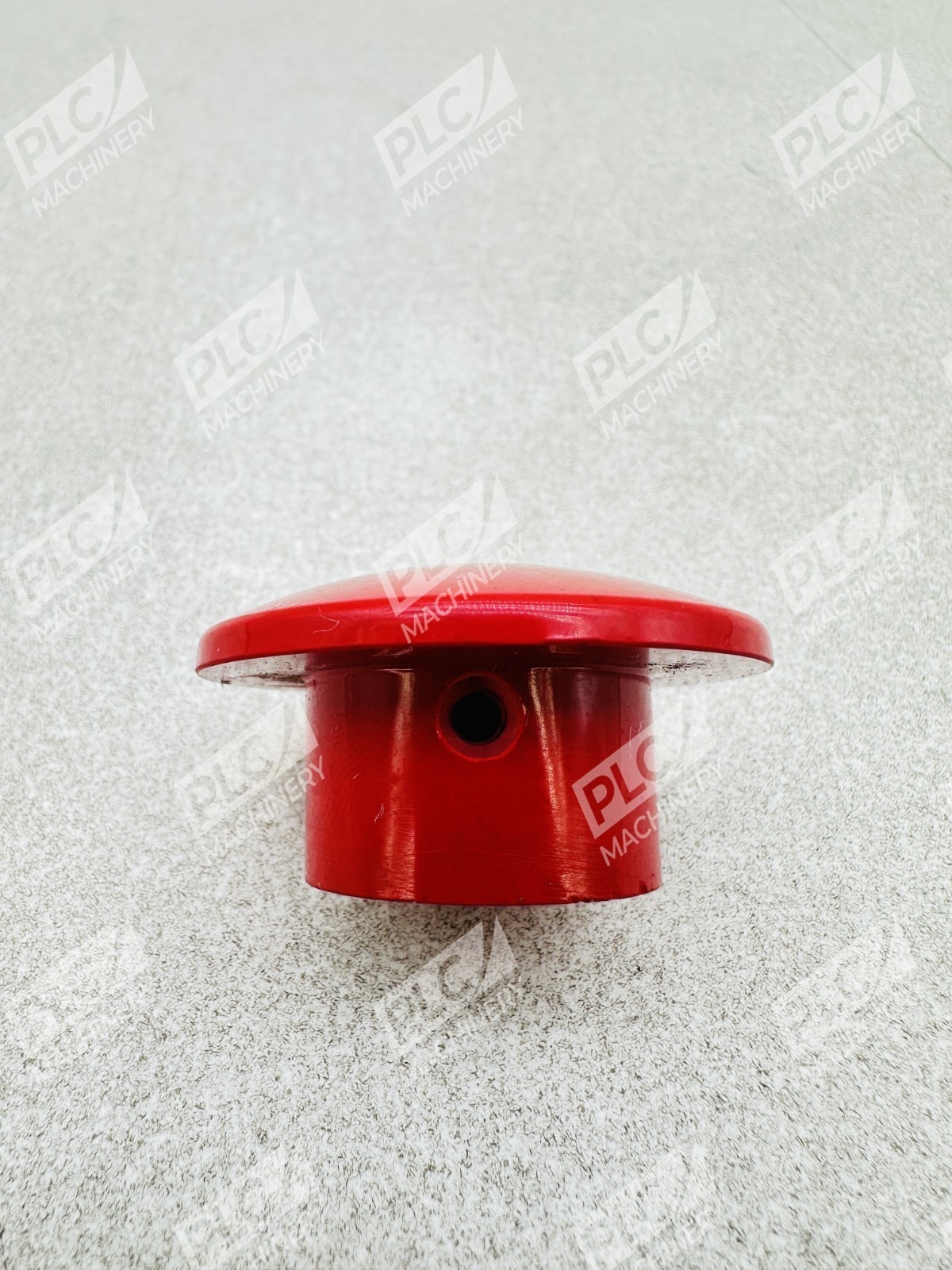

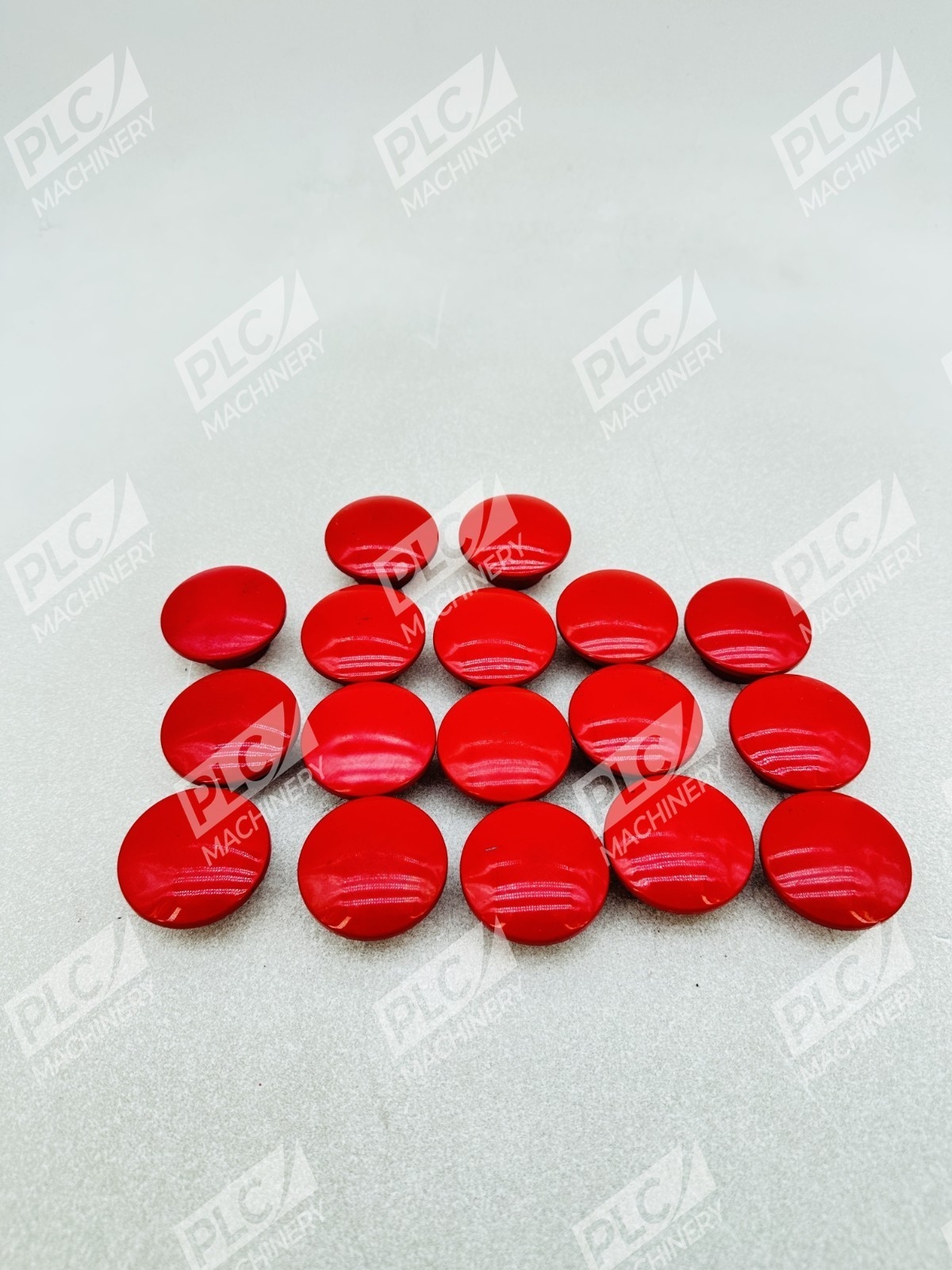

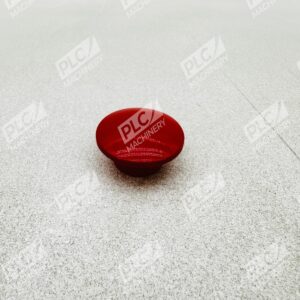

The Allen-Bradley 800T-N246R is a red, 30mm non-illuminated mushroom push button cap manufactured by Rockwell Automation. This catalog item serves as a replacement accessory for the 800T series push button line, widely used in industrial control and automation applications. The mushroom-style cap provides clear visual identification and reliable tactile feedback in demanding environments.
Key Features
- Red color for immediate visual identification and safety compliance
- 30mm mushroom head design for ergonomic operation and easy grip
- Non-illuminated plastic construction for cost-effective installations
- Compatible with 800T series momentary contact push buttons
- Rugged design built for industrial and commercial control applications
- Authentic Rockwell Automation/Allen-Bradley product
Technical Specifications
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Part Number: 800T-N246R
- Alternate Part Number: 800TN246R
- Product Type: Non-Illuminated Plastic Mushroom Cap
- Size: 30mm push button
- Color: Red
- Cap Diameter: 40mm
- Series: 800T
- Operation Type: Momentary Contact
- UPC: 662073193739
Typical Applications
The 800T-N246R cap is used across a wide range of industrial automation and control scenarios:
- Emergency stop (E-stop) systems and safety circuits
- Panel-mounted control stations in manufacturing equipment
- Machine start/stop and mode selection controls
- HVAC and building automation systems
- Pump and motor control stations
- Industrial process control and operator interfaces
Compatibility & Replacements
Compatible With
- Allen-Bradley 800T series push button switches (30mm non-illuminated)
- 800T and 800H series accessory ecosystems
- Standard industrial control panel mounting configurations
- Momentary contact push button assemblies
Replaces / Drop-In Replacement For
The 800T-N246R is a direct replacement cap for existing 800T 30mm mushroom push button installations. For specific model confirmations with your existing equipment, verify the 30mm mushroom button base compatibility before ordering.
Works With
- Allen-Bradley Studio 5000 and RSLogix 5000 (I/O configuration)
- Standard industrial control networks and operator interfaces
- Hardwired control circuits and relay logic systems
- PLC and motion controller input modules
