Overview

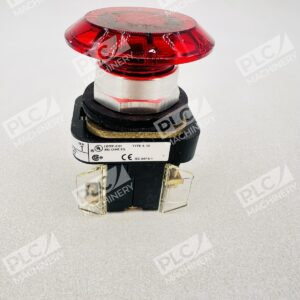

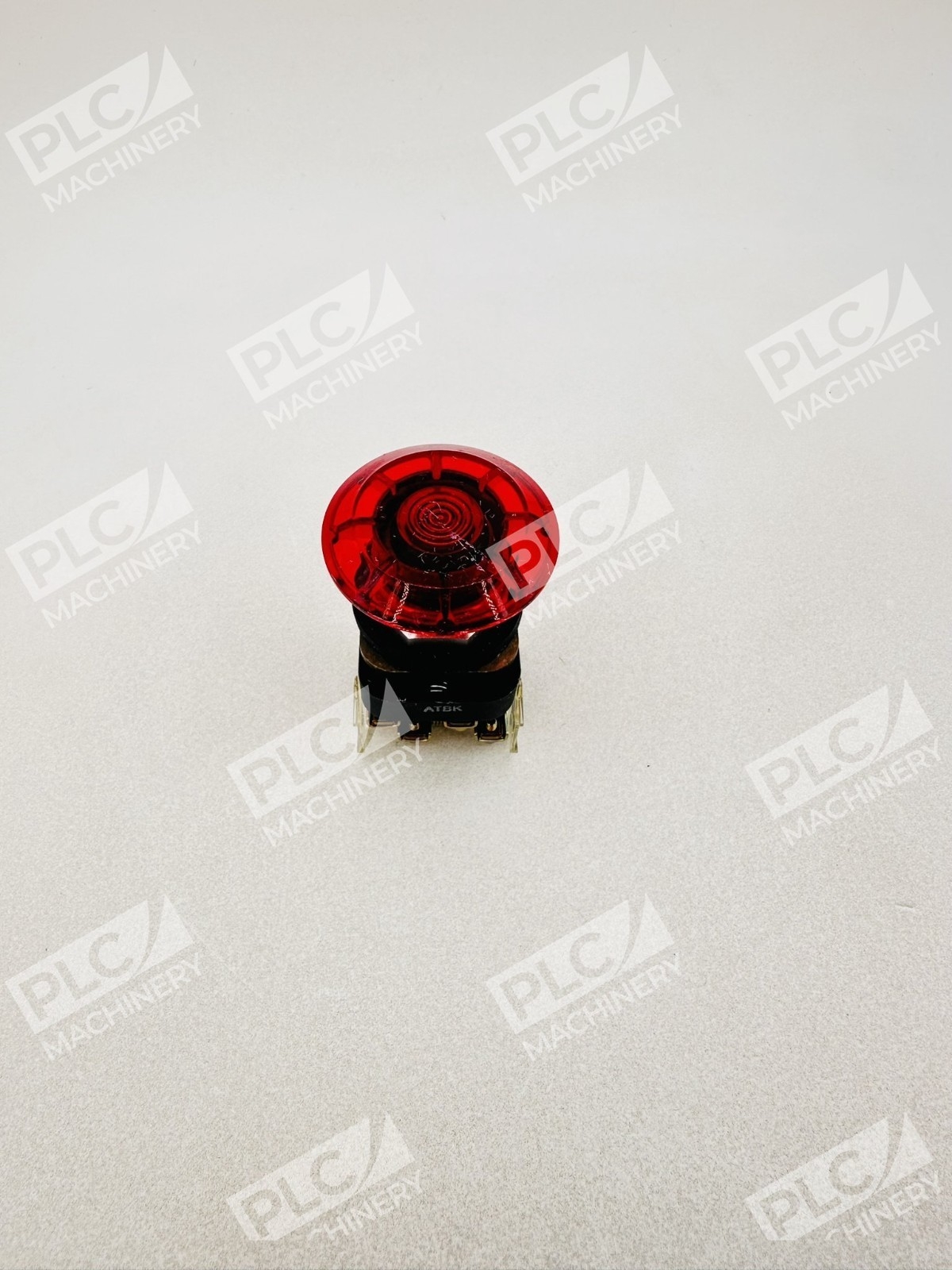

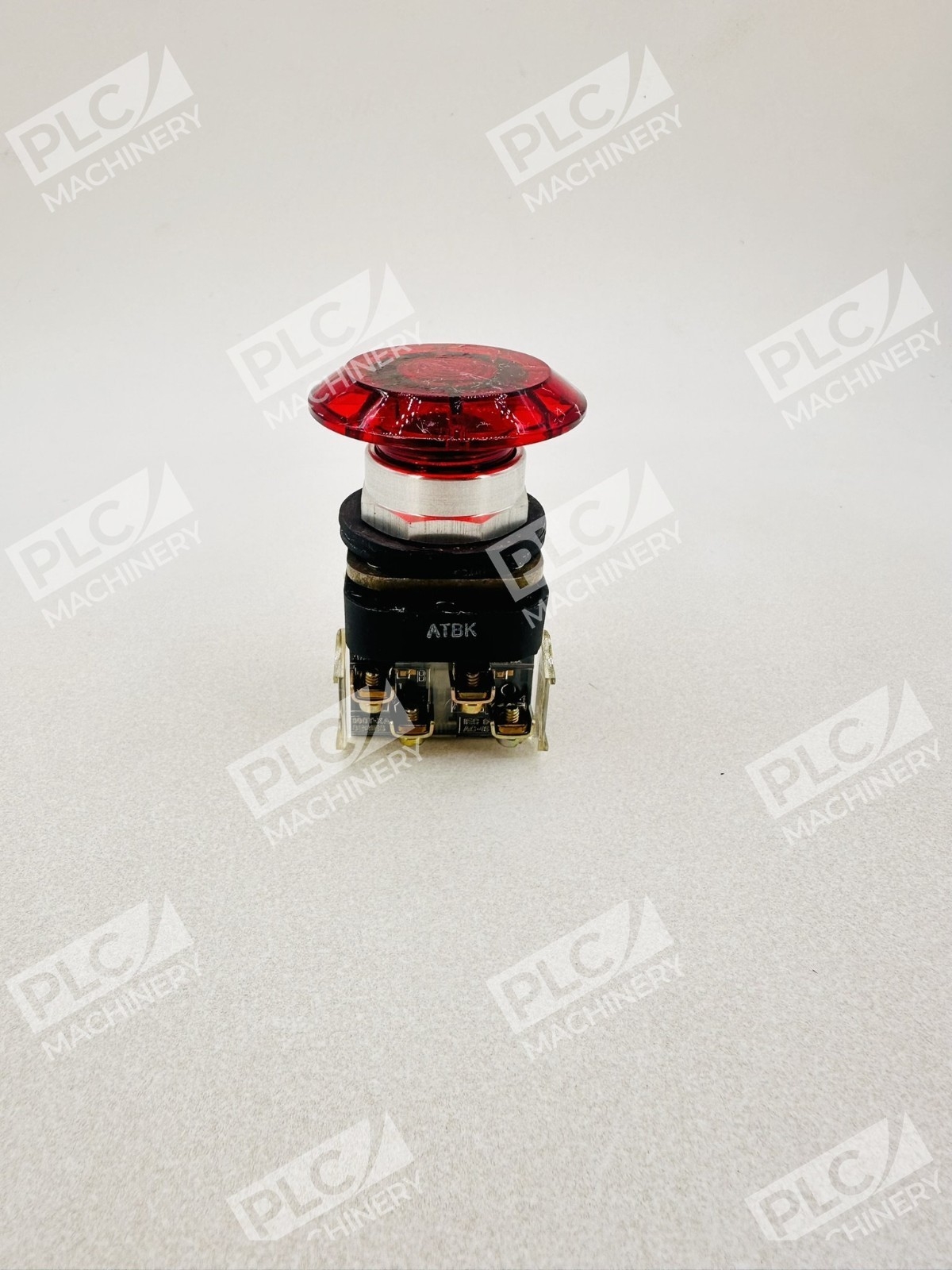

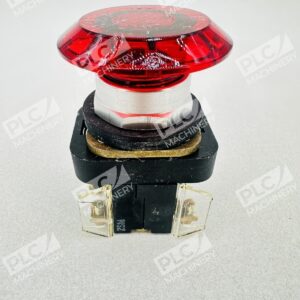

The Allen-Bradley 800T-FXJQ24RA is a 30mm push-pull device engineered for industrial control panels and automated systems. As part of the renowned 800T series pushbutton line, this illuminated mushroom pushbutton delivers dependable performance for applications requiring clear visual feedback and push-pull actuation. The integrated illumination feature ensures operators can quickly verify switch status in diverse lighting conditions, making it ideal for both operator safety and system diagnostics.
Key Features
- 30mm push-pull mushroom button head design for ergonomic, positive actuation
- Illuminated indicator for clear status visibility in industrial environments
- 24V rated for standard industrial control voltages
- Modular construction compatible with standard 800T series contact blocks and accessories
- Robust design rated for extensive mechanical duty cycles
- Suitable for Type 4/13 NEMA-rated control enclosures
Technical Specifications
- Model: 800T-FXJQ24RA
- Voltage Rating: 24 VAC/VDC
- Button Type: Push-Pull Mushroom
- Size: 30mm
- Illumination: LED or lamp-based (field-configurable with power modules)
- Actuation Style: Push-Pull
- Contact Configuration: Normally Open (NO) or Normally Closed (NC) with optional contact blocks
- Operating Temperature: -25°C to +60°C (without moisture)
- Enclosure Rating: NEMA 4/13 indoor
- Condition: New in Box
Typical Applications
- Emergency stop (E-stop) stations in automated machinery
- Operator control panels for industrial equipment
- Start/stop and mode selection controls in manufacturing systems
- Illuminated status indication in process automation
- Heavy-duty industrial environments requiring reliable tactile feedback
- Food, pharmaceutical, and chemical processing applications
Compatibility & Replacements
Compatible With
- Allen-Bradley 800T series control stations and modular components
- Standard 800T contact blocks (NO, NC, and dual-channel configurations)
- Rockwell Automation control enclosures rated NEMA 4/13
- Industrial pushbutton stations using 30mm standard mounting
- 24V DC and AC powered control systems
Replaces / Drop-In Replacement For
- 800T-FXQ24RA (standard push version without pull function)
- 800T-FXJQ24RA1 (variant with integrated contact blocks)
- Legacy Allen-Bradley 30mm pushbutton switches with 24V rating
Works With
- Allen-Bradley 800T contact block assemblies
- Rockwell Automation control software and HMI systems
- 24V DC power modules for illumination (field-selectable LED or lamp options)
- Standard industrial relay logic and PLC-based control schemes
- NEMA-rated enclosure wiring and terminal blocks
