Overview

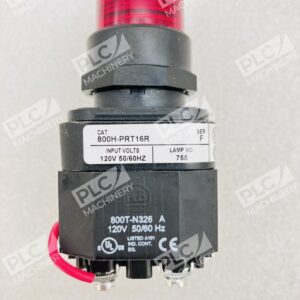

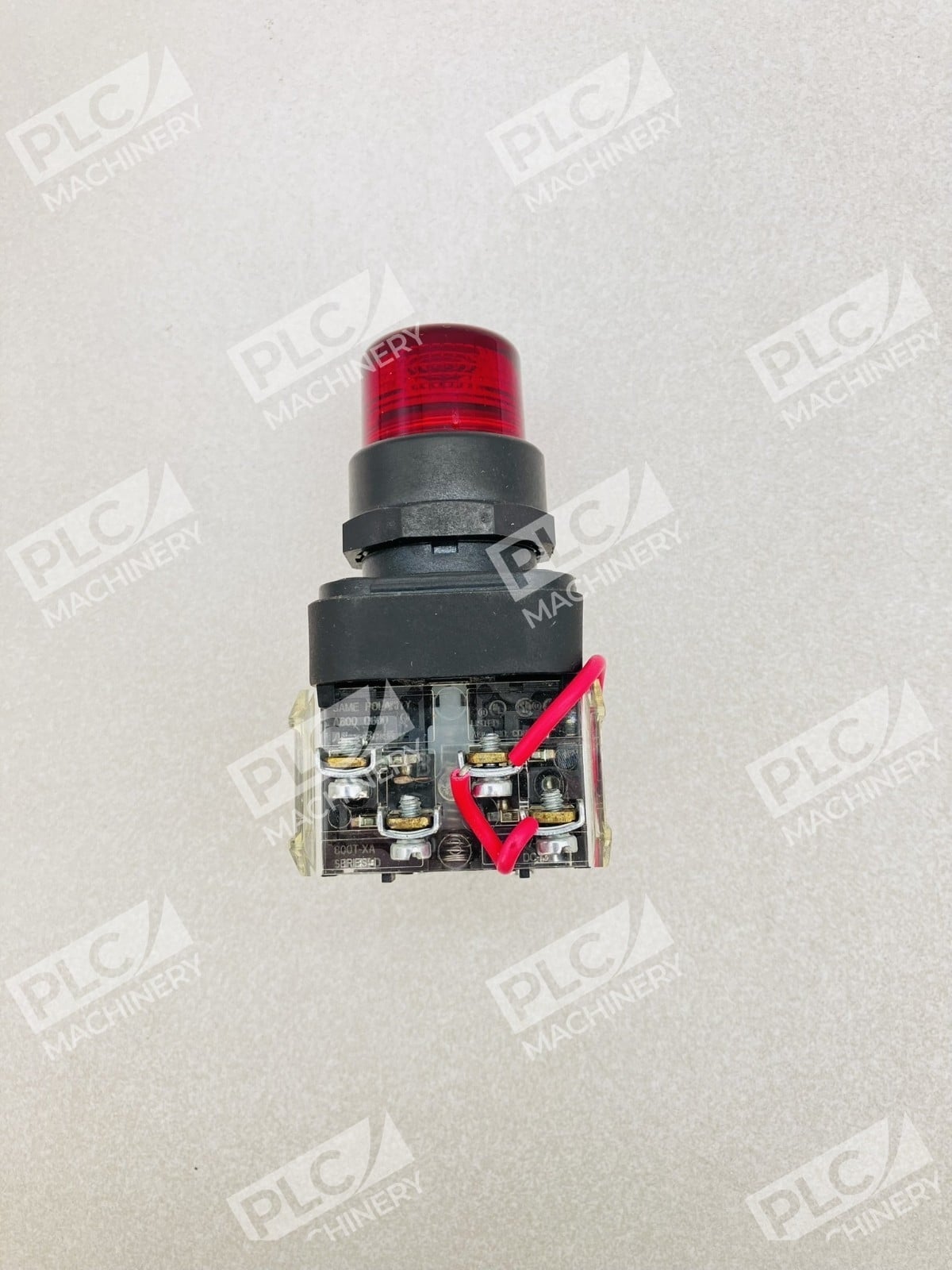

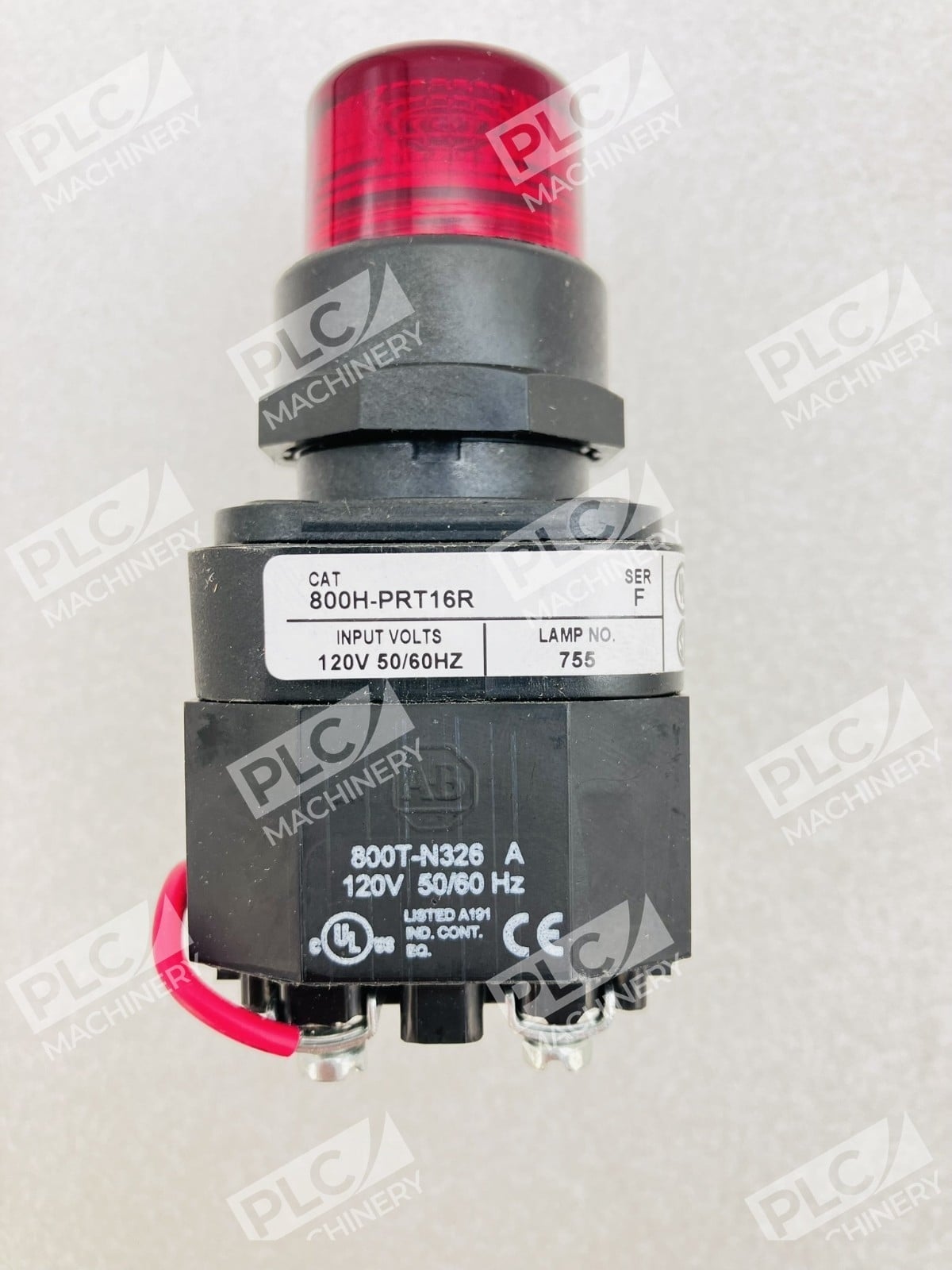

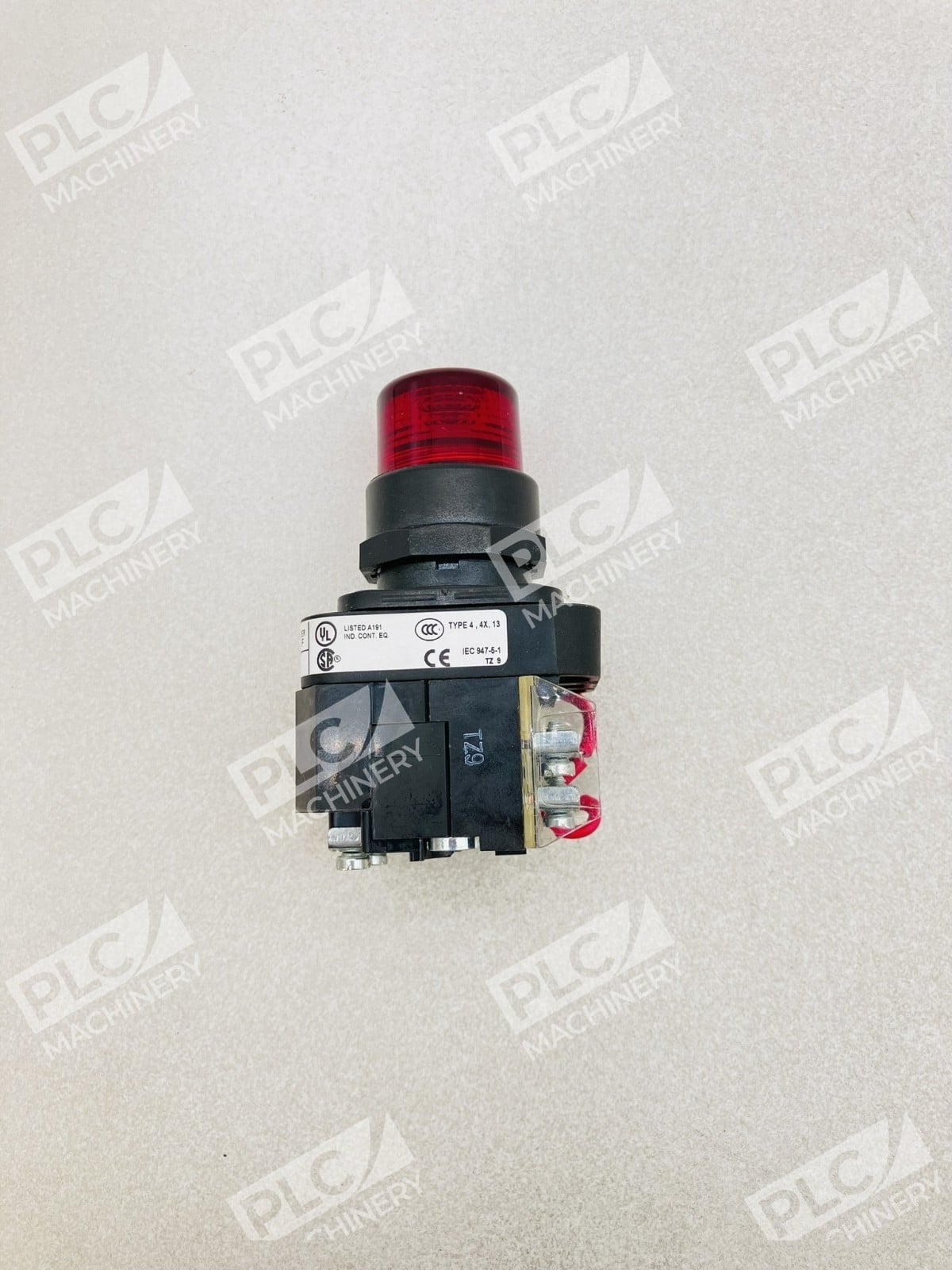

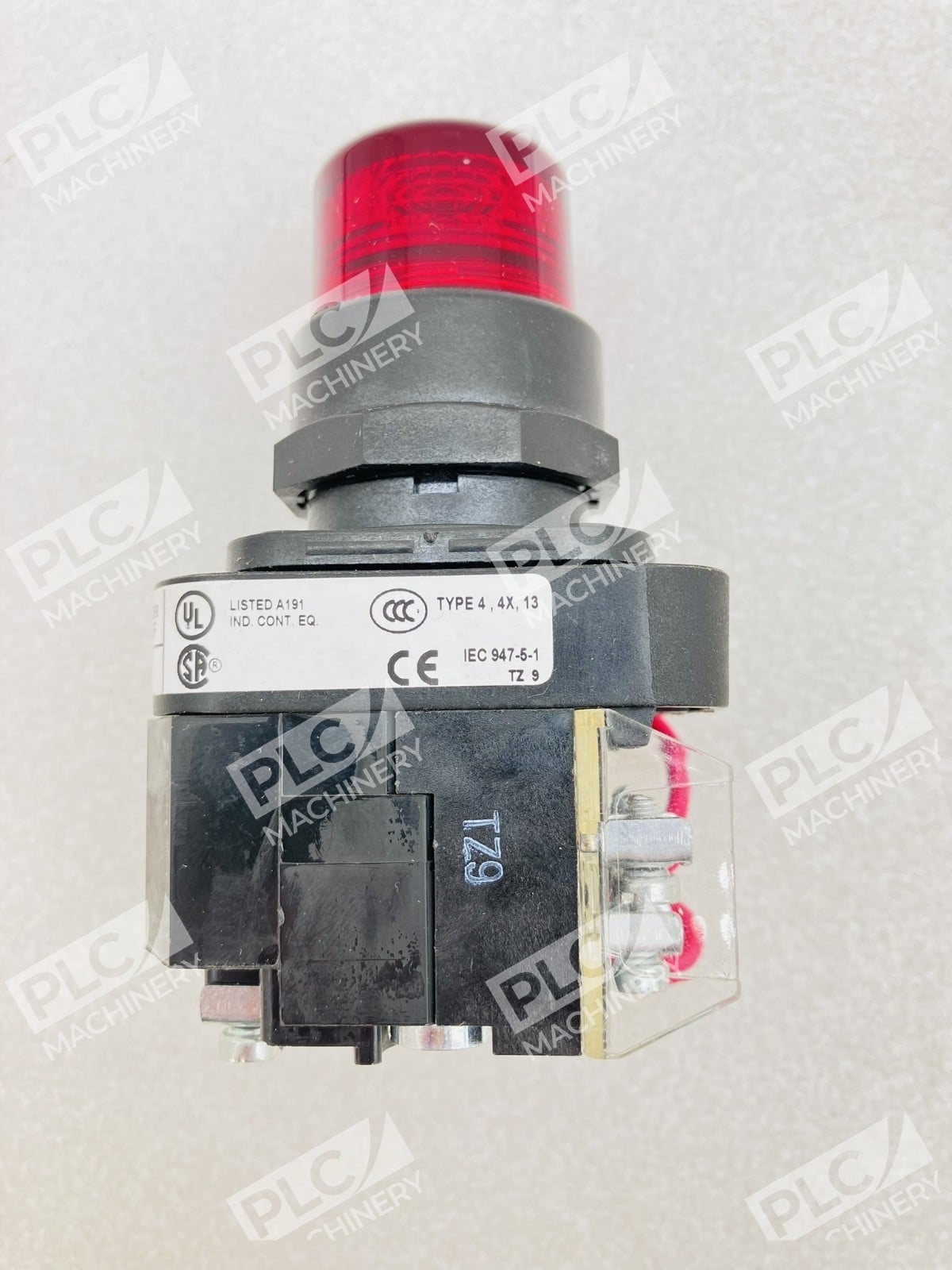

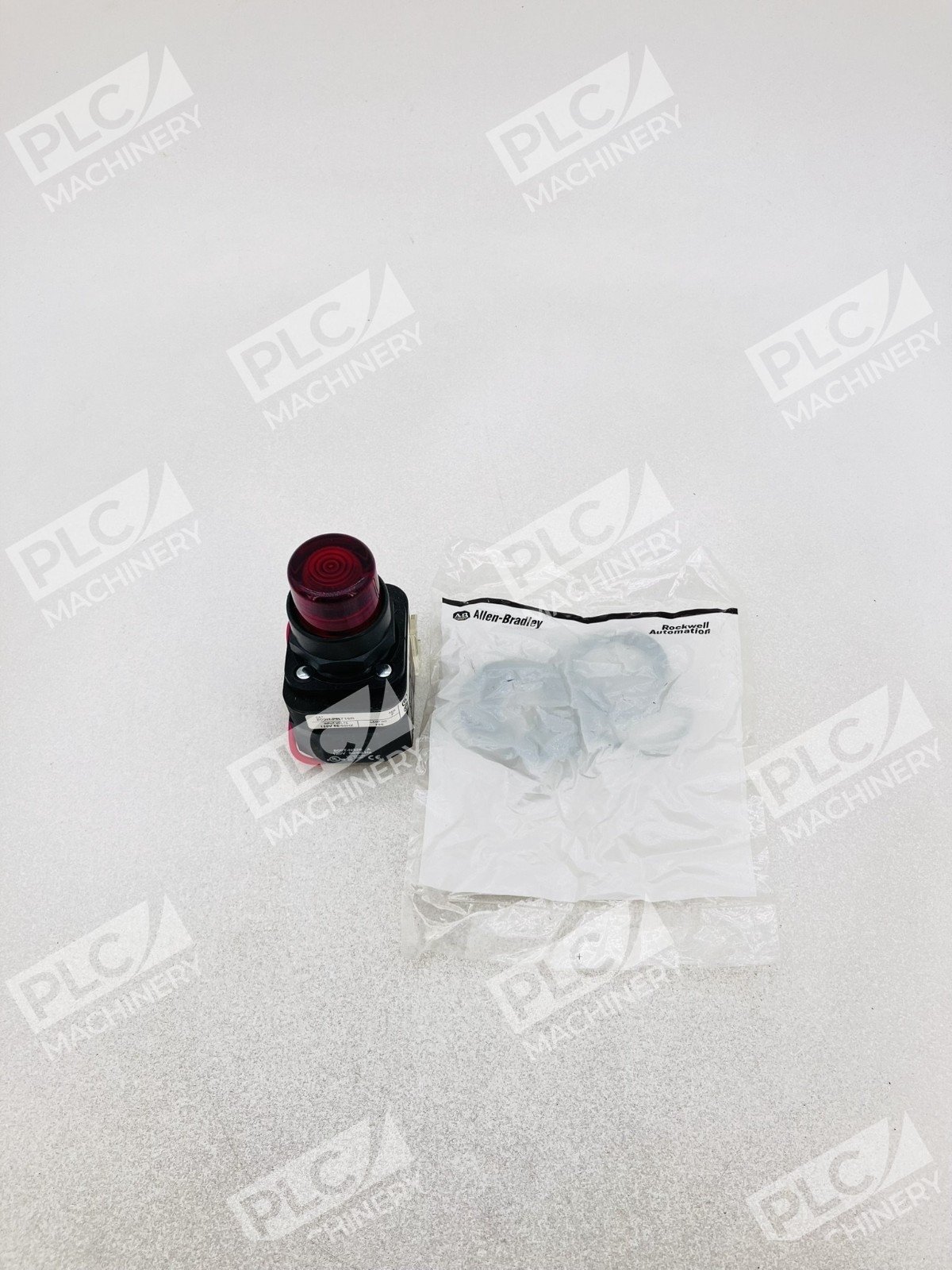

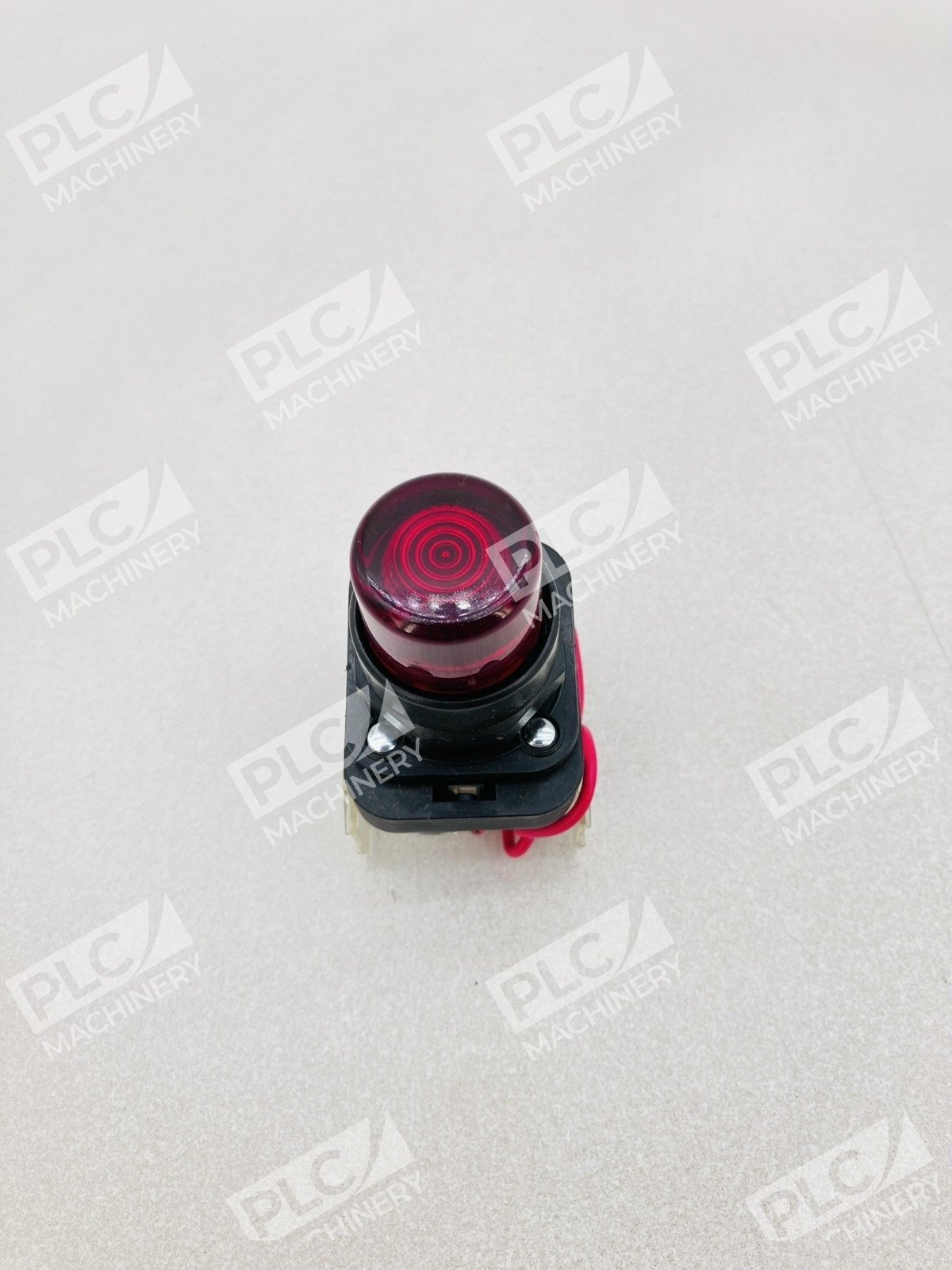

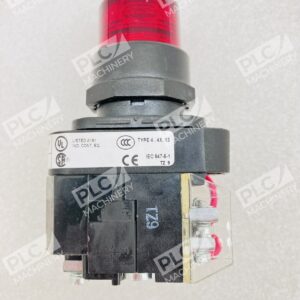

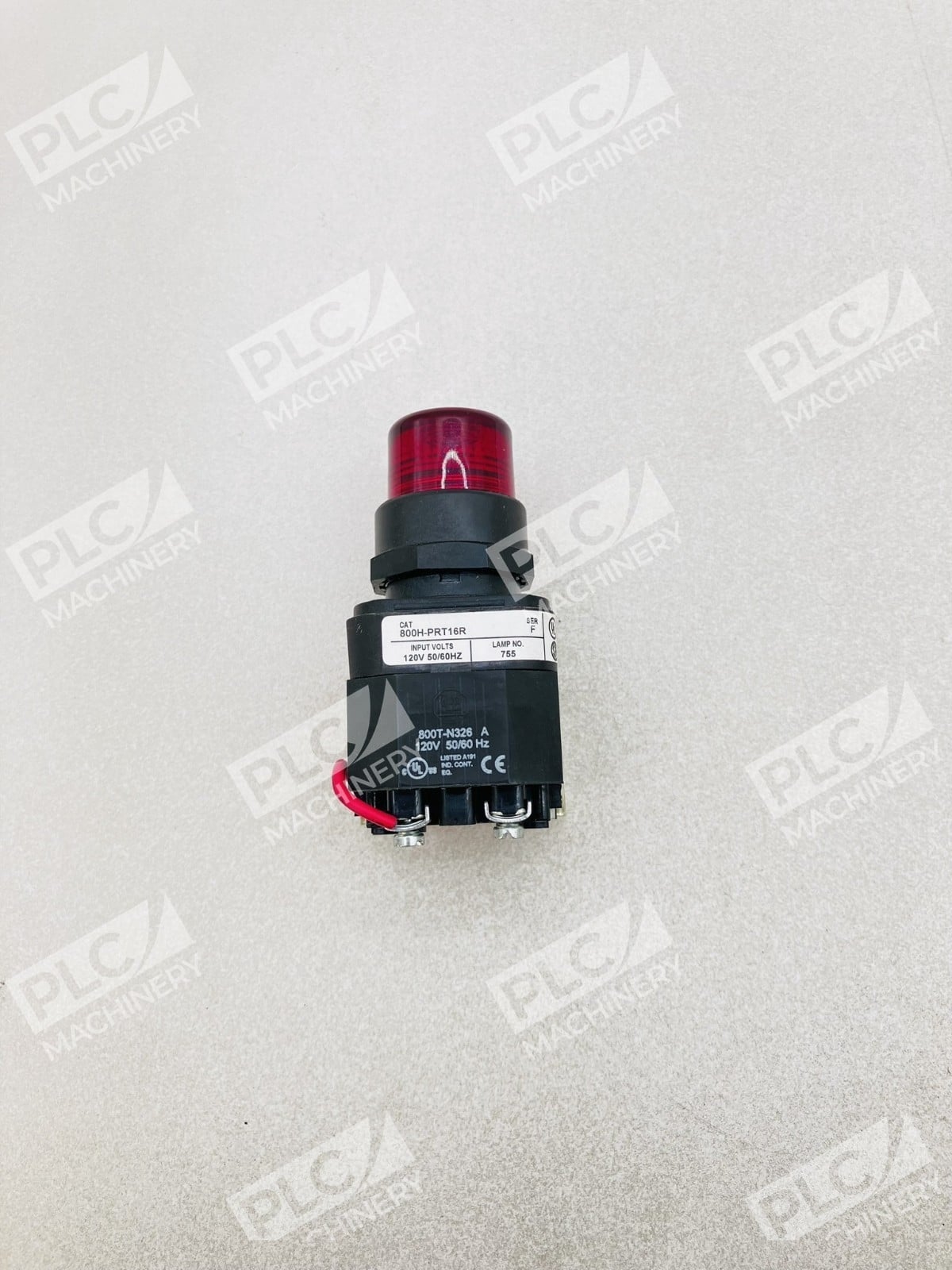

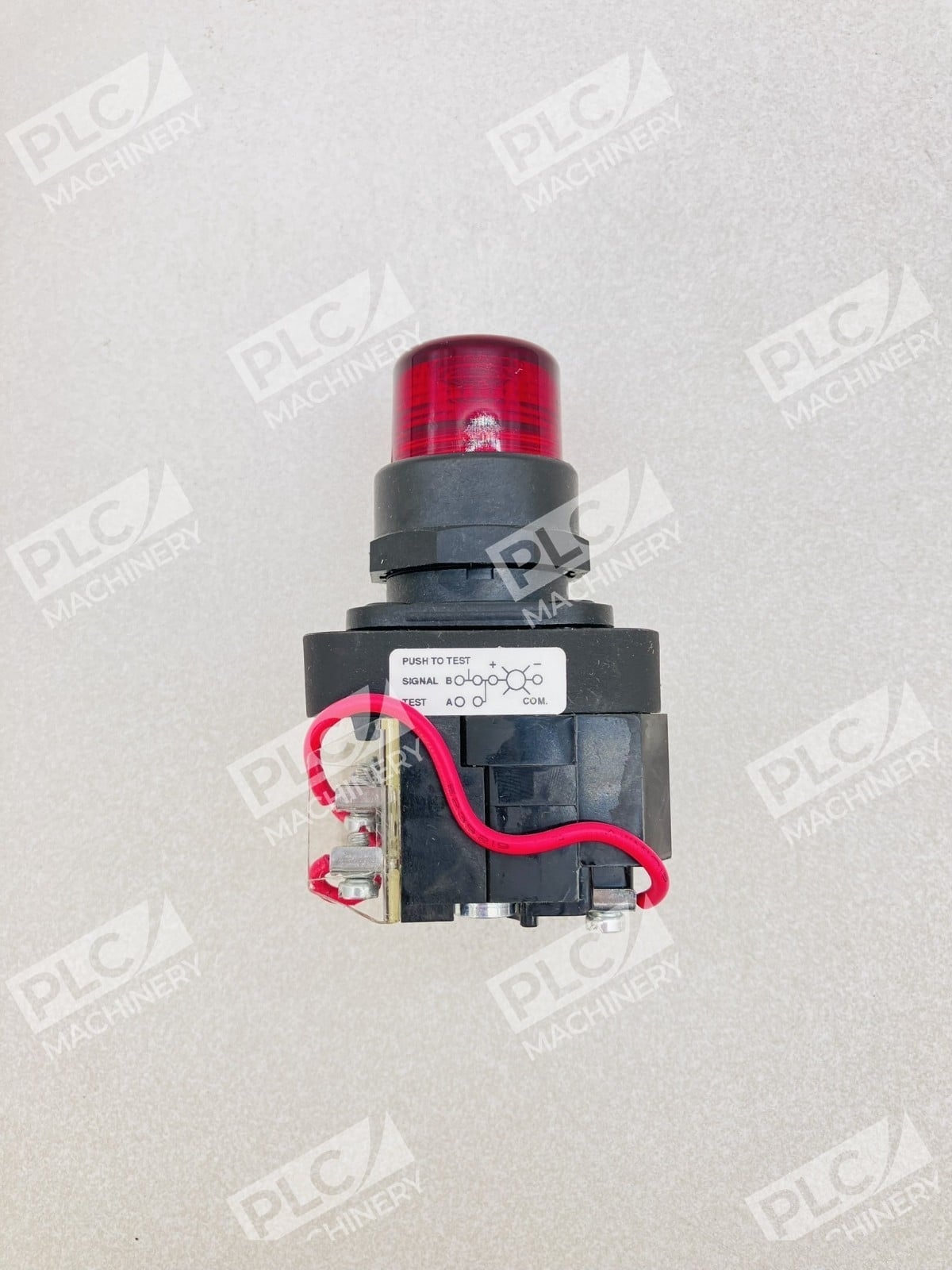

The Allen-Bradley 800H-PRT16R is a 30mm push-to-test pilot light designed for industrial control panels and electrical applications. This transformer-type unit operates at 120VAC (50/60 Hz) and features an incandescent lamp with no lens cover. The push-to-test functionality allows operators to verify lamp operation without disrupting the control circuit, making it ideal for mission-critical process monitoring.
Key Features

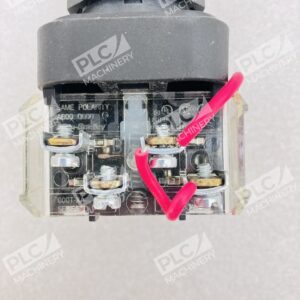

- Push-To-Test Capability — Momentary test function with factory-jumpered contact block for simple integration
- NEMA 4/4X/13 Rating — Sealed construction provides protection in wet, corrosive, and washdown environments
- Transformer Input — 120VAC primary voltage with internal step-down for safe lamp operation
- Incandescent Illumination — Bright, reliable light output with proven performance history
- Compact 30mm Form Factor — Fits standard pushbutton stations and control enclosures
- Fingersafe Terminals — Built-in protection against accidental contact during installation
Technical Specifications

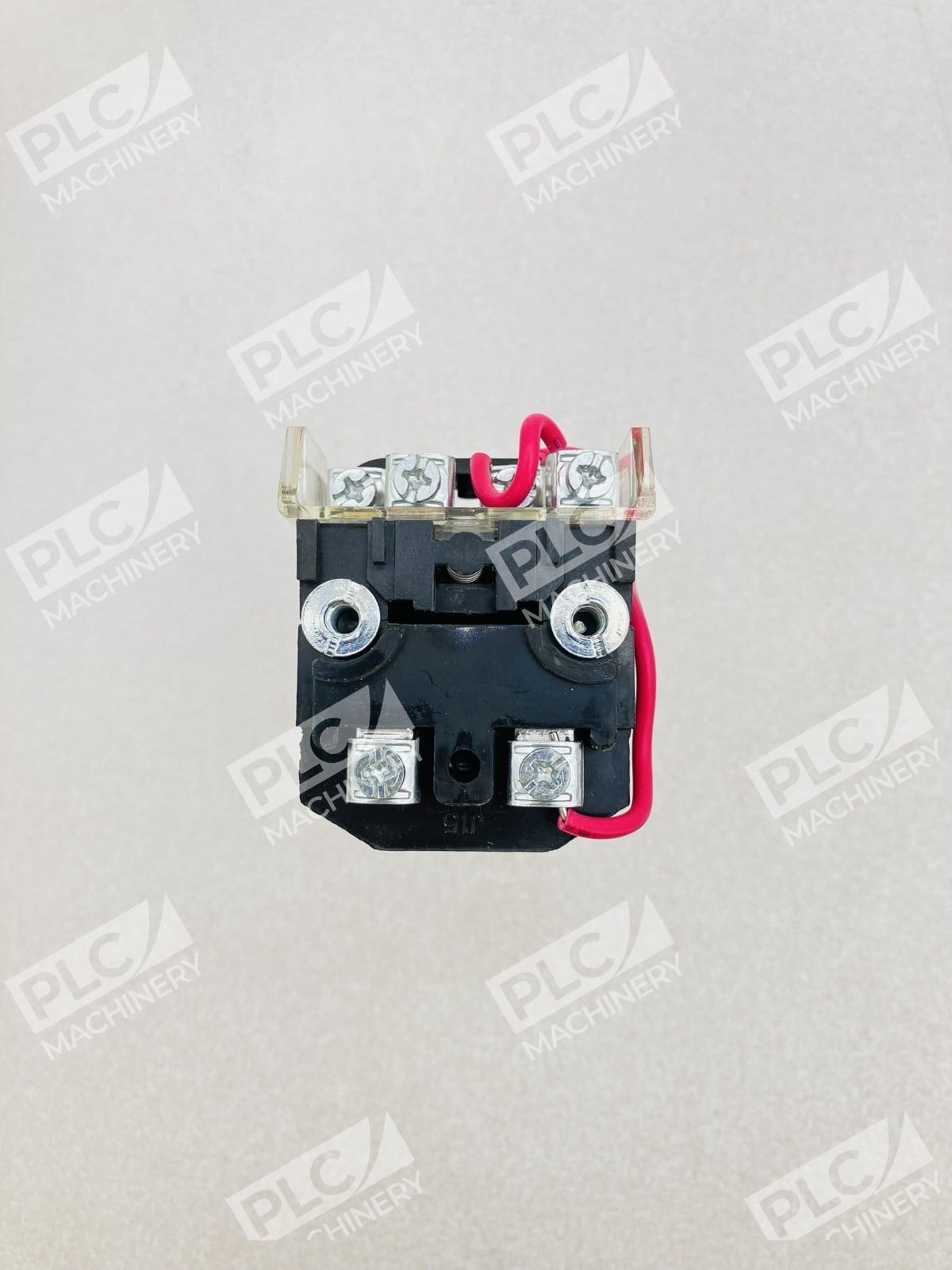

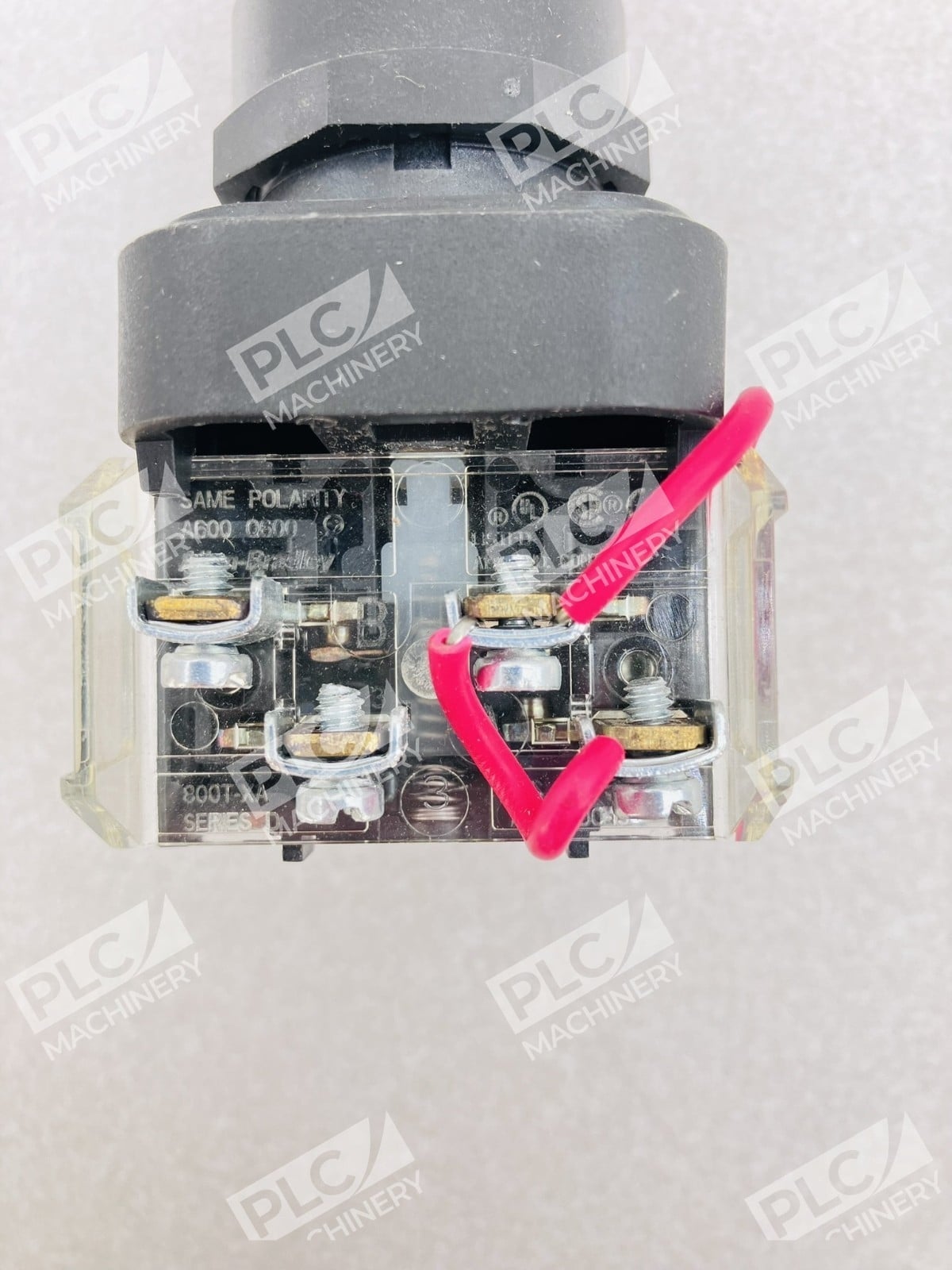

| Model Number | 800H-PRT16R |
| Operator Type | 30mm Pilot Light, Push-To-Test |
| Size | 30.5mm diameter |
| Illumination Type | Incandescent |
| Lens Color | Red (PRT16R designation) |
| Input Voltage | 120VAC, 50/60 Hz |
| Power Type | Transformer (Xfmr) |
| Contact Configuration | 1 NO – 1 NC (factory jumpered) |
| Contact Type | Sealed Switch |
| NEMA Rating | Type 4/4X/13 |
| Enclosure Application | NEMA 4, 4X, or Type 13 (IP65/IP66 equivalent) |
| Lens Cap | Not included; order separately if needed |
| Brand | Allen-Bradley (Rockwell Automation) |
| Series | Bulletin 800H |
Typical Applications
- Motor control centers and starter enclosures
- Industrial automation panels and PLC control systems
- Pump and compressor status indication
- Machinery on/off and alarm indication
- Food and beverage processing equipment
- Pharmaceutical and chemical manufacturing facilities
- Water treatment and environmental control systems
Compatibility & Replacements
Compatible With
- Rockwell Automation Bulletin 800H 30mm pushbutton stations
- Standard 30mm pilot light mounting holes
- NEMA 4/4X/13 control enclosures
- 120VAC, 50/60 Hz industrial power systems
- Hardwired control circuits (relay logic, panel wiring)
- Allen-Bradley contact blocks and modular station components
Replaces / Drop-In Replacement For
- 800H-PR16 (non-push-to-test version, with identical mounting and voltage)
- 800H-PRT16 (standard version without red lens designation)
- Other 30mm incandescent pilot lights with 120VAC transformer input from competing manufacturers (verify terminal spacing and mounting)
Works With
- Allen-Bradley 800H pushbutton operators and emergency stops
- Rockwell Automation Studio 5000 / CompactLogix control systems (via relay logic outputs)
- Standard industrial relay panels and hardwired logic
- Any 120VAC power distribution system rated for incandescent lamp loads
