Overview

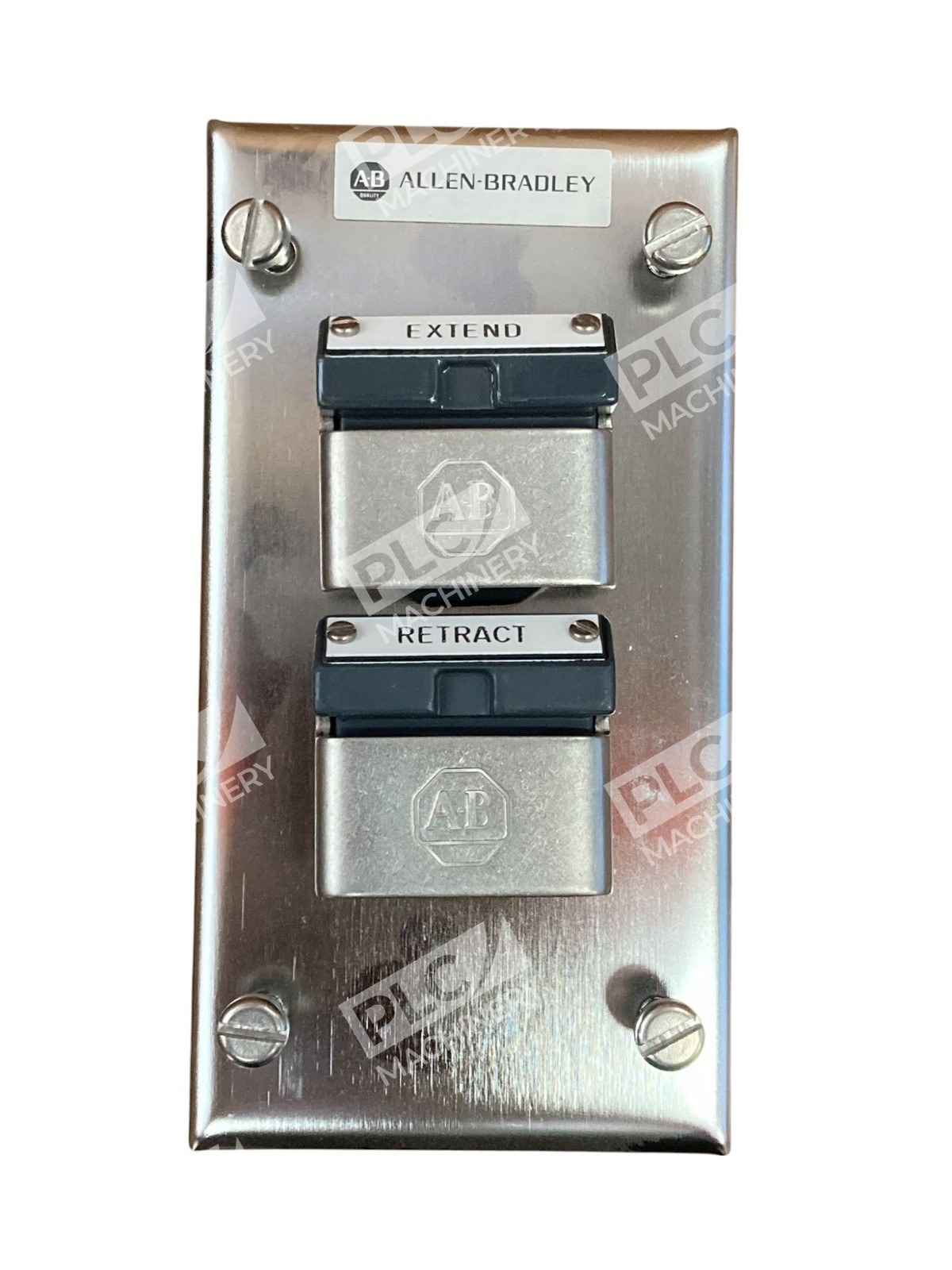

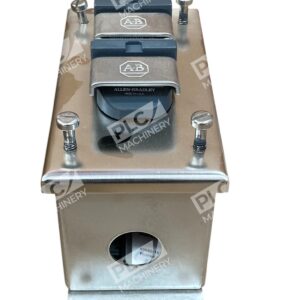

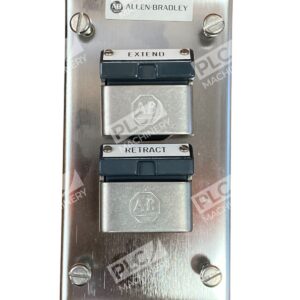

The Allen-Bradley 800H-2HN4 is a 30mm heavy-duty momentary contact push button station from Rockwell Automation’s proven 800H bulletin line. This robust device is engineered for industrial control panel applications where durability and reliability are critical. The 800H-2HN4 combines durable construction with tamper-resistant front-of-panel mounting and a non-removable operator head, making it ideal for harsh factory environments, manufacturing cells, and control stations that require dependable operator interface solutions.
Key Features
- 30mm momentary contact push button design for standard industrial control applications
- Tamper-resistant front-of-panel mounting prevents unauthorized adjustment or removal
- Non-removable operator head increases safety and security in shared control environments
- Compliant with global E-stop standards including EN ISO 13850 and EN 60947-5-5
- Integrates seamlessly into existing Rockwell Automation control systems and enclosures
- Heavy-duty construction with proven reliability across heavy industrial sectors
Technical Specifications

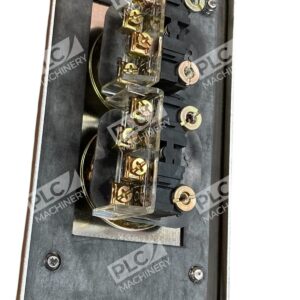

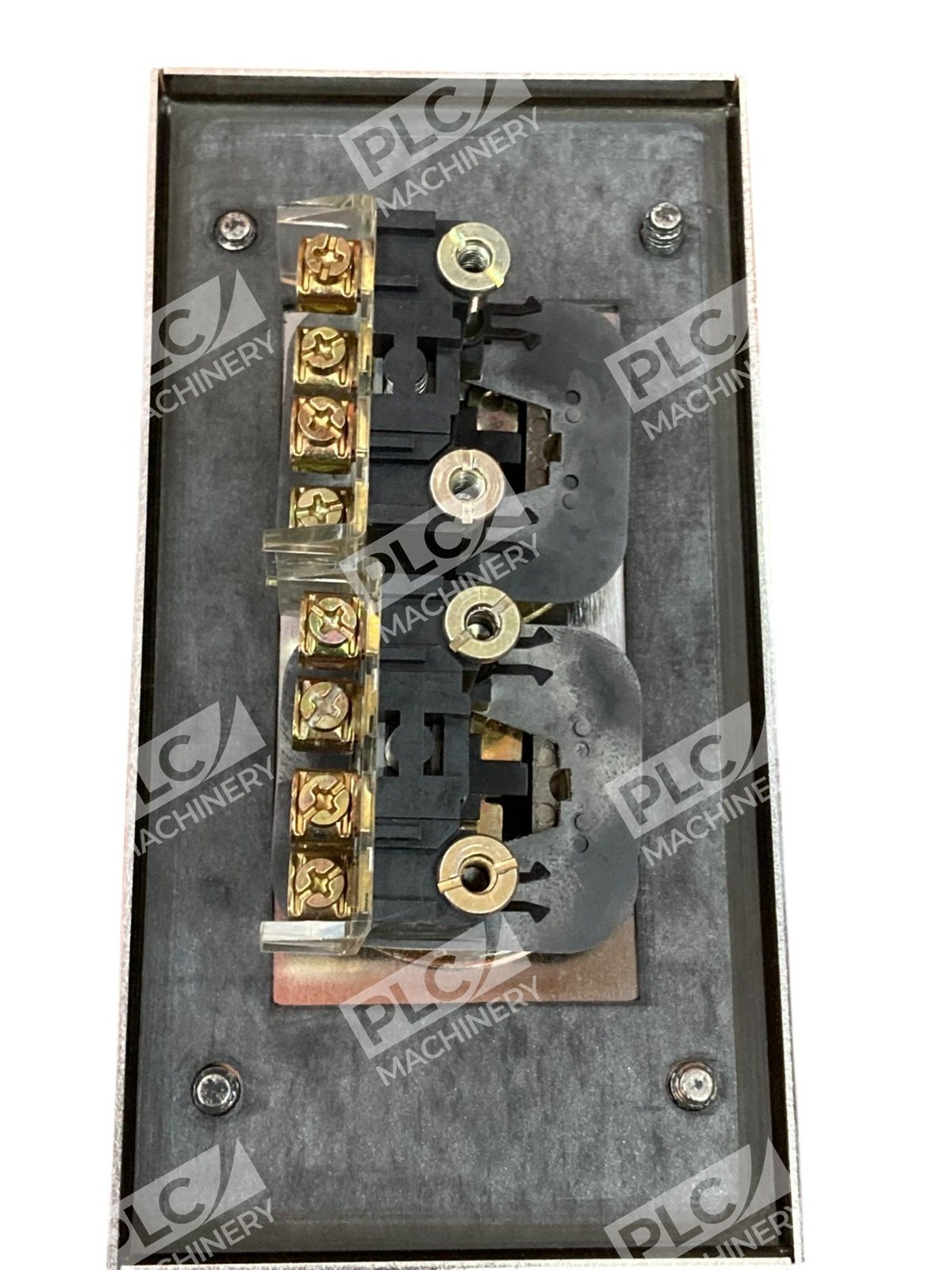

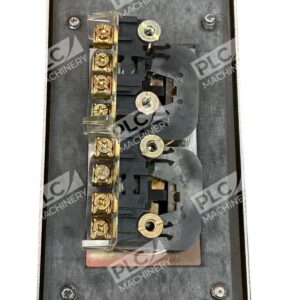

The 800H-2HN4 is manufactured to meet strict industrial automation standards. It supports multiple contact block configurations for customized electrical performance. Operating temperatures range across standard industrial environments, and the unit is rated for extended design lifecycles typical of momentary contact push button applications. Contact ratings accommodate both AC and DC control circuits, with options for standard contacts, PenTUFFâ„¢ sealed contacts, and Logic Reed configurations depending on voltage and current requirements. The device meets UL and CSA certification requirements for North American industrial applications.
Typical Applications
- Manufacturing automation and production line control panels
- Material handling equipment and conveyor system stations
- Heavy machinery operator interface stations
- Industrial press and pump control applications
- Utility distribution and electrical maintenance panels
- Machine tool and CNC operator stations
Compatibility & Replacements
The Allen-Bradley 800H-2HN4 integrates with the complete 800H/800T push button ecosystem from Rockwell Automation. It supports standard Rockwell contact blocks, LED illumination modules, and protective boot accessories. Engineers can configure this station with various contact block types to match specific control voltage and current requirements. For hazardous location applications or outdoor use, check with your Rockwell Automation distributor regarding Type 7, Type 9, Type 4, and Type 4X enclosure options. The 800H series is widely used in retrofit and upgrade projects where direct replacement of older industrial push button stations is required.
