Overview

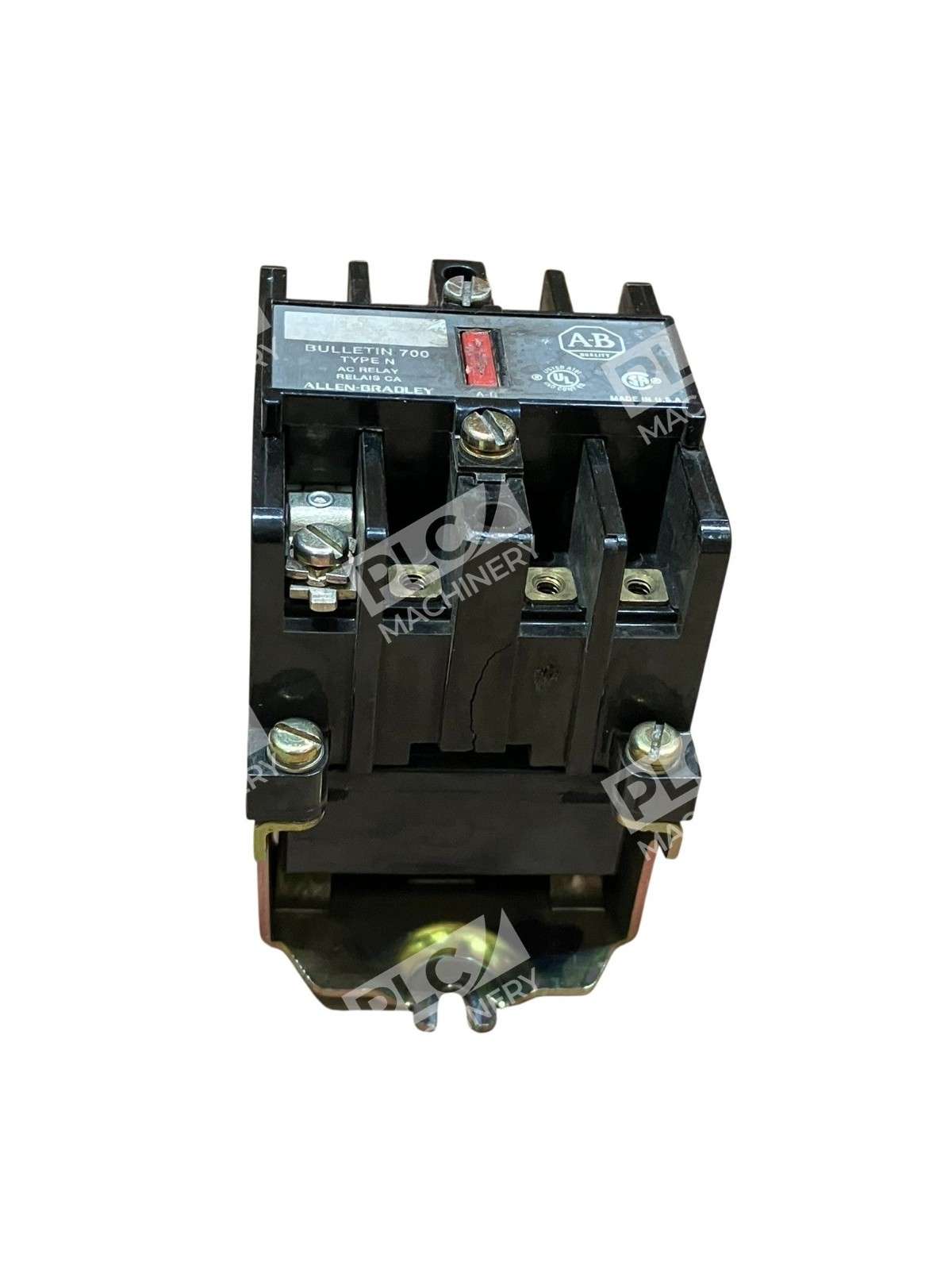

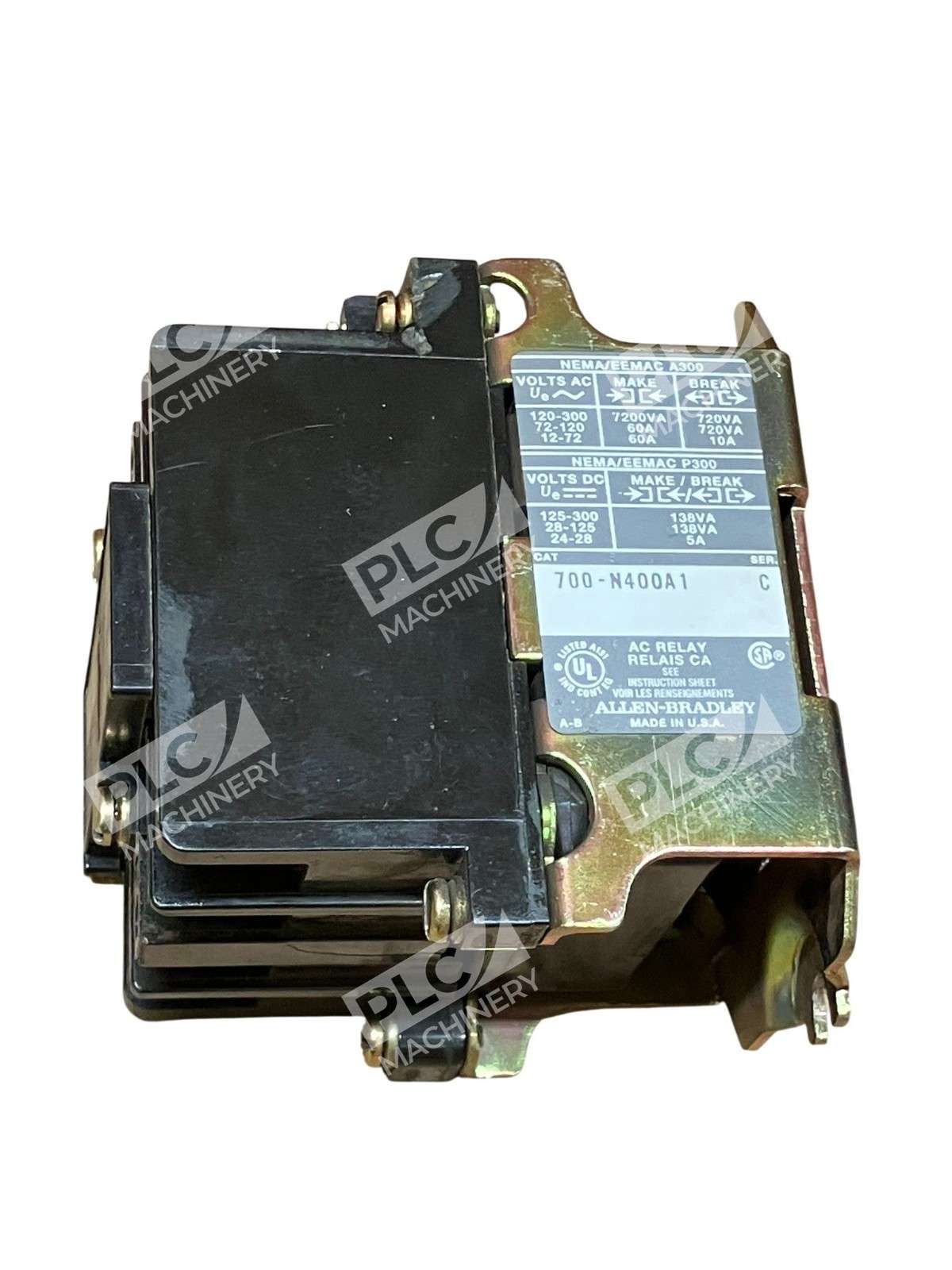

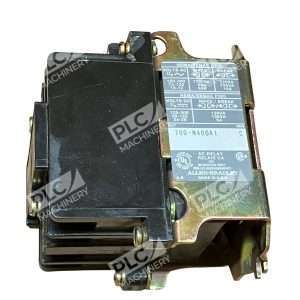

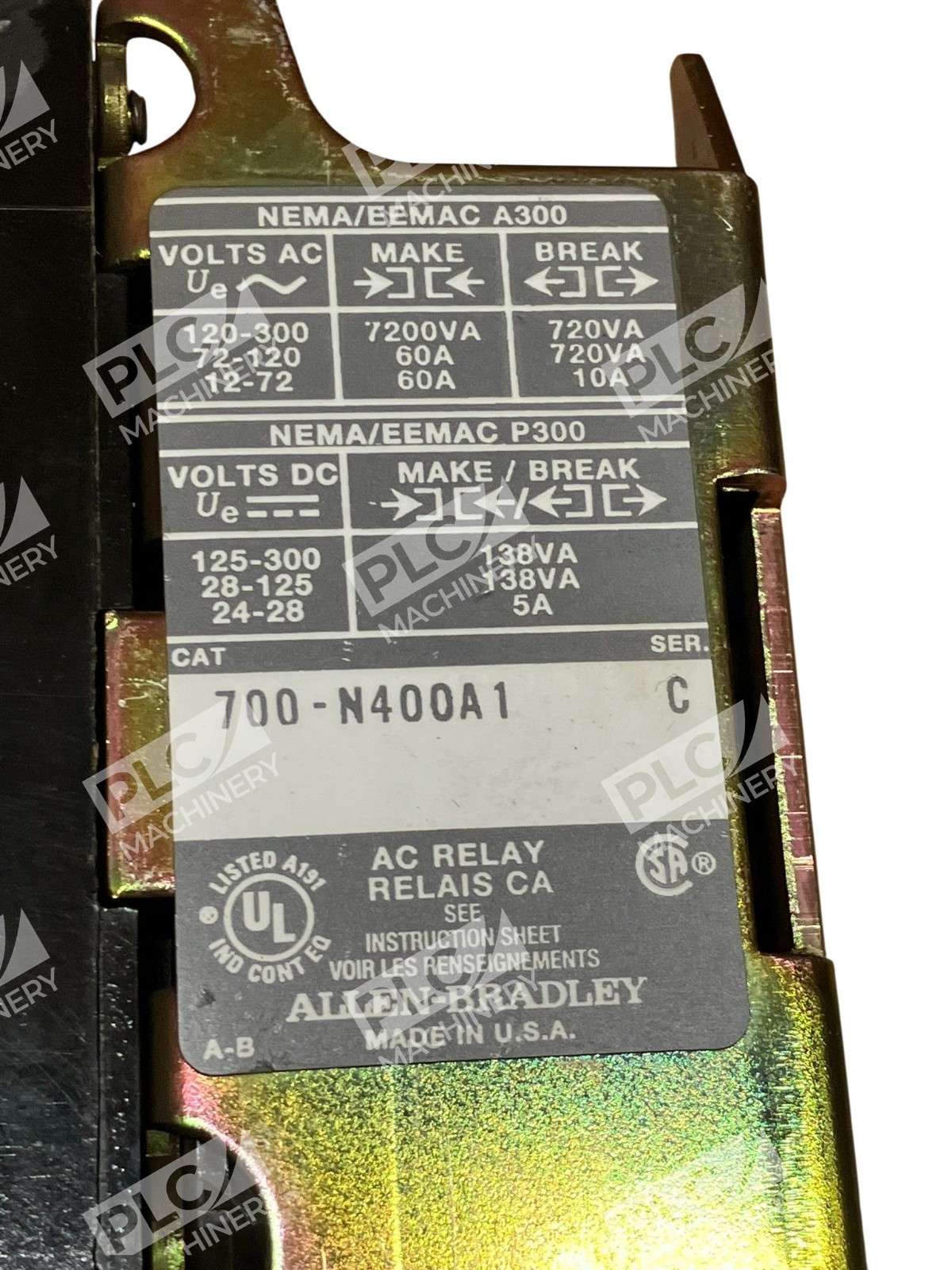

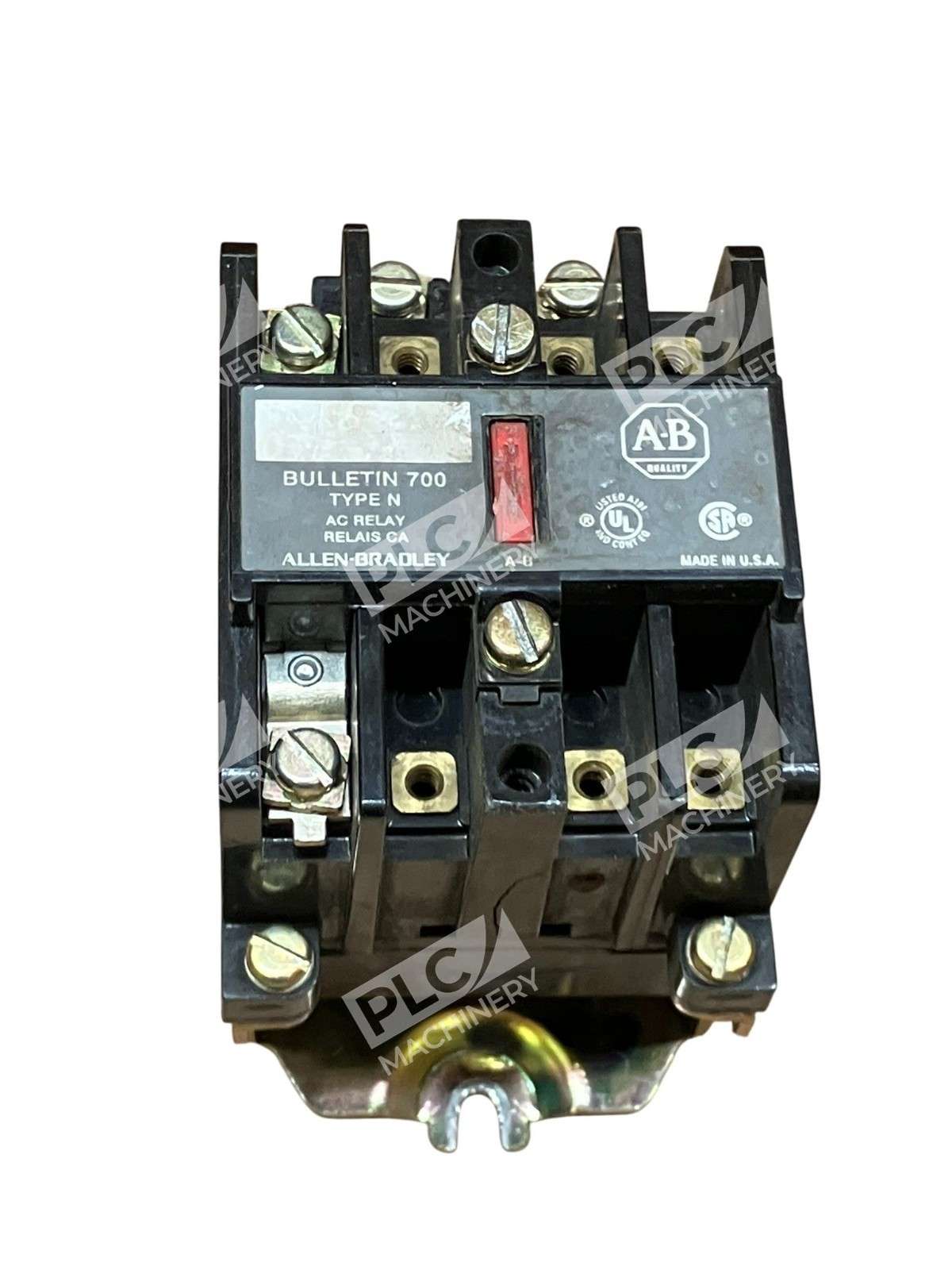

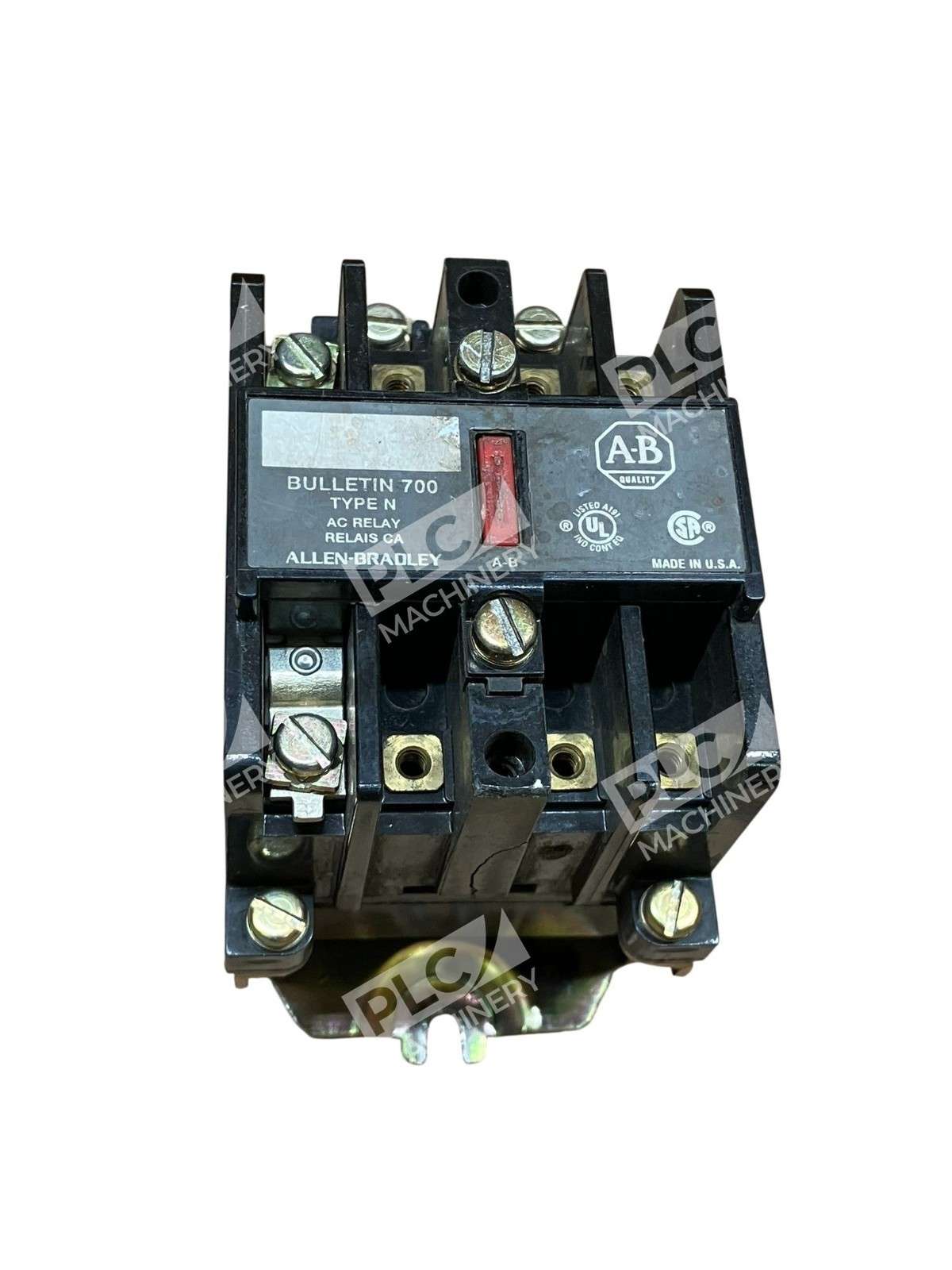

The Allen-Bradley 700-N400A1 is a compact, high-reliability 4-pole industrial control relay designed for general-purpose motor control switching applications. Part of the proven Bulletin 700-N series, this relay delivers dependable performance in automation control systems, motor starters, and industrial machinery control assemblies. The relay operates on 110V AC (50Hz) or 120V AC (60Hz) coil voltage with a maximum control voltage rating of 300V AC.
Key Features
- 4 normally open (N.O.) contacts with 10 amp maximum rating
- Electrically held design with manual override capability for safe maintenance operations
- Convertible contact cartridges—easily configured from N.O. to N.C. as application demands change
- Low-profile form factor enables compact panel mounting and integration
- Highly visible red status indication bar for quick visual verification of relay state
- UL 508 and CSA C22.2 No. 14 certified (cULus listed) for North American installations
Technical Specifications
- Series: Bulletin 700-N
- Poles/Configuration: 4-Pole, 4 N.O. contacts
- Coil Voltage: 110V AC 50Hz / 120V AC 60Hz
- Maximum Contact Current: 10 Amp
- Maximum Voltage Rating (Control): 300V AC 50/60Hz
- Contact Type: Convertible N.O. to N.C. cartridges
- Manual Override: Yes
- Certifications: UL 508, CSA C22.2 No. 14 (cULus listed)
- Condition: Used
Typical Applications
The 700-N400A1 is widely used in:
- Motor control centers and starter cabinets
- Machine automation and sequential control logic
- Industrial pump and fan controls
- Conveyor and material handling systems
- HVAC and thermal equipment interlocking
- General-purpose switching and load control in plant floor equipment
Compatibility & Replacements
The 700-N400A1 integrates seamlessly into existing Bulletin 700-N relay infrastructure. Its convertible contact design and standard bolt-on mounting footprint ensure compatibility with legacy and current industrial control panel designs. The relay’s 10A contact rating and dual-voltage coil make it suitable as a drop-in replacement for other 4-pole, 120VAC-rated industrial relays in similar duty classes. Verify mounting hole spacing, coil voltage, and contact configuration requirements before installation.
