Overview

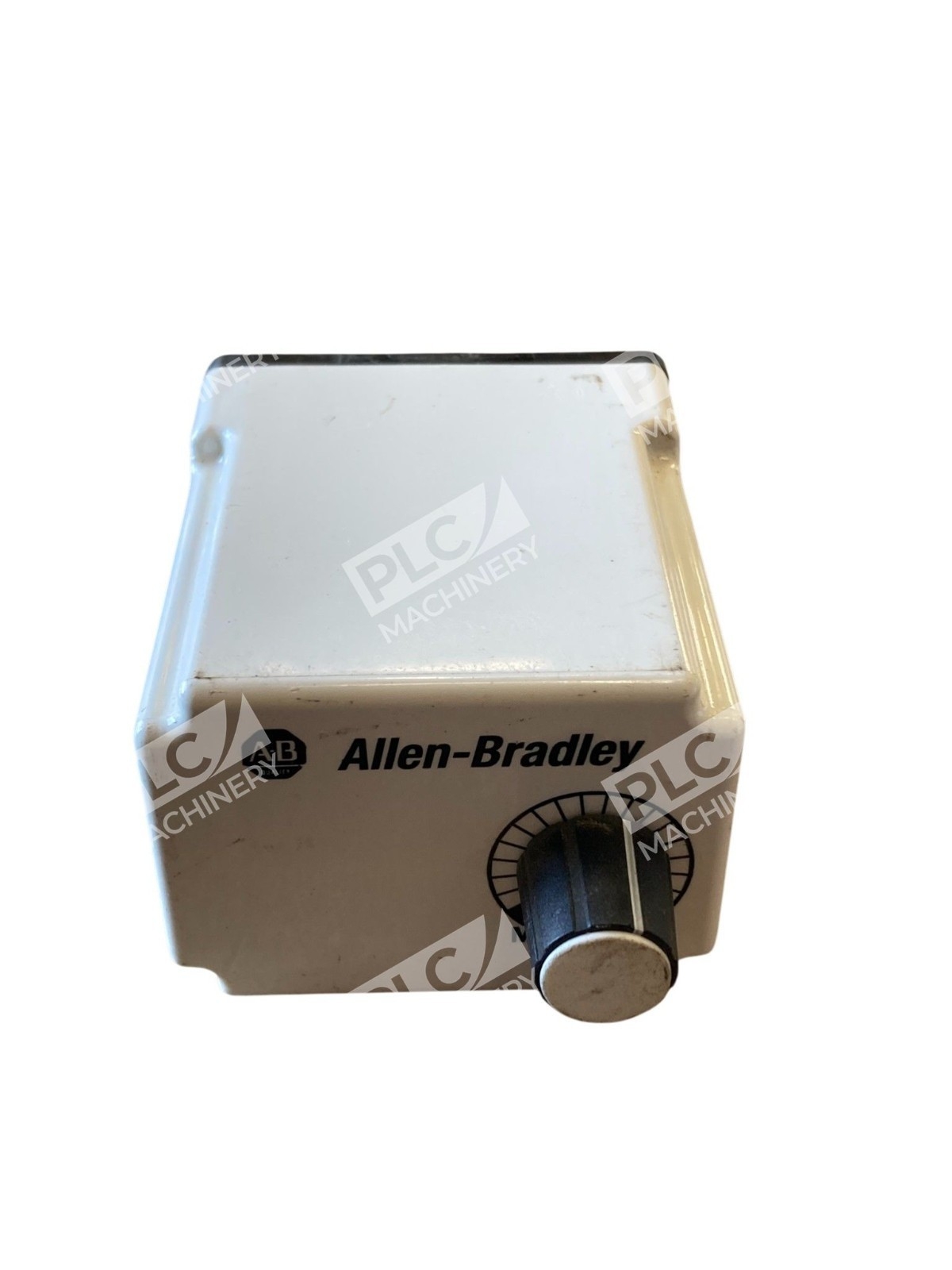

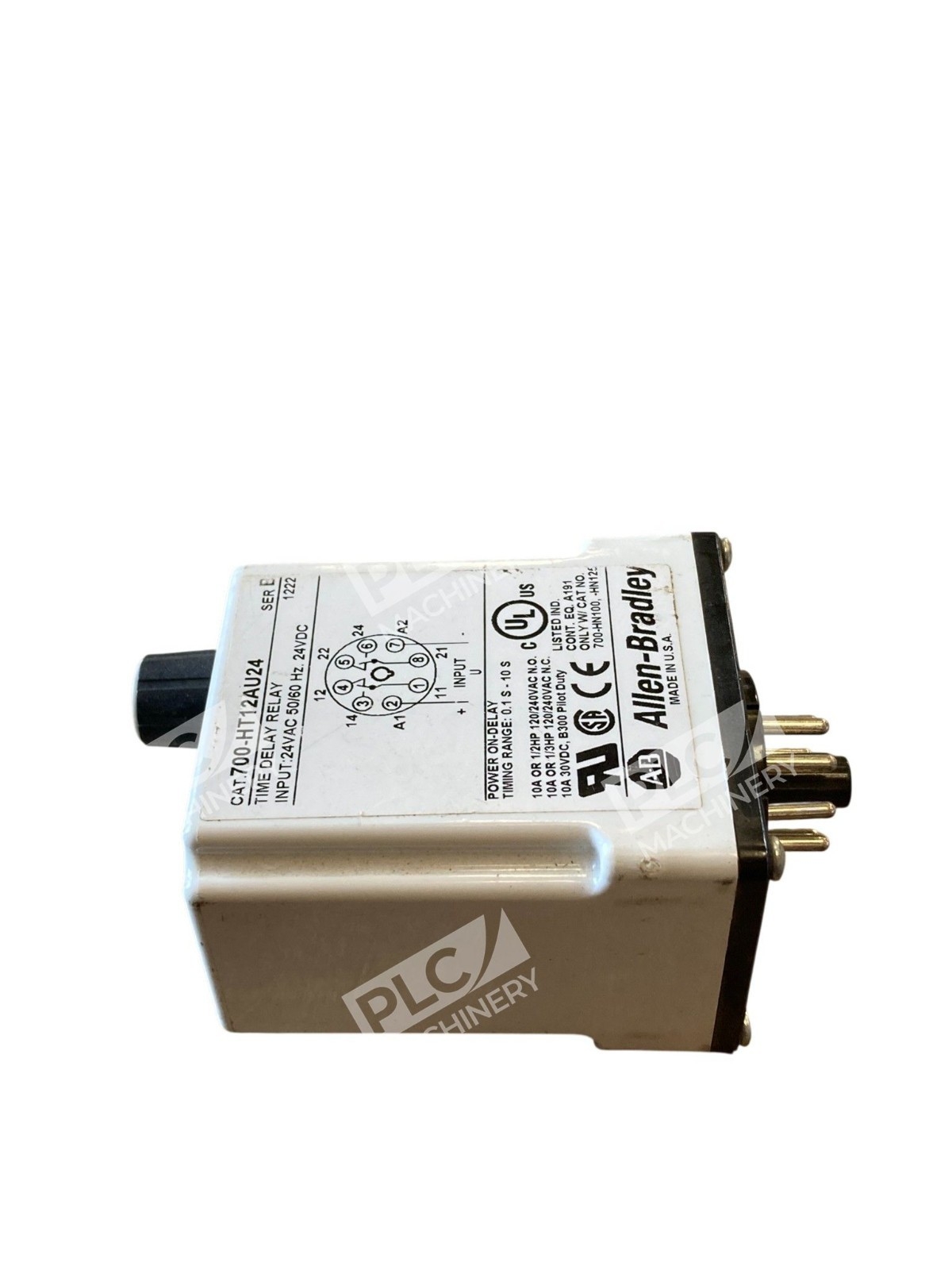

The Allen-Bradley 700-HT12AU24 is a tube base timing relay designed for on-delay applications in industrial control and automation systems. This DPDT (Double Pole Double Throw) relay is rated for 24V AC/DC operation and provides adjustable timing between 0.1 and 10 seconds, making it suitable for a wide range of timing-critical processes. Its rugged construction and pin-style socket mounting ensure reliable performance in demanding environments.
Key Features
- On-Delay Timer: Adjustable timing range 0.1 to 10 seconds for precise control of timing-dependent operations
- DPDT Contact Configuration: Double Pole Double Throw provides flexible switching logic for control circuits
- 10A Contact Rating: Sufficient capacity for most general purpose relay applications and motor control circuits
- Tube Base Mounting: Pin-style socket mounting allows for tool-free replacement in compatible sockets
- 24V AC/DC Coil: Accepts either AC or DC input, eliminating need for separate coil versions
- Industrial Grade: UL Listed and CSA Certified for safety-critical industrial installations

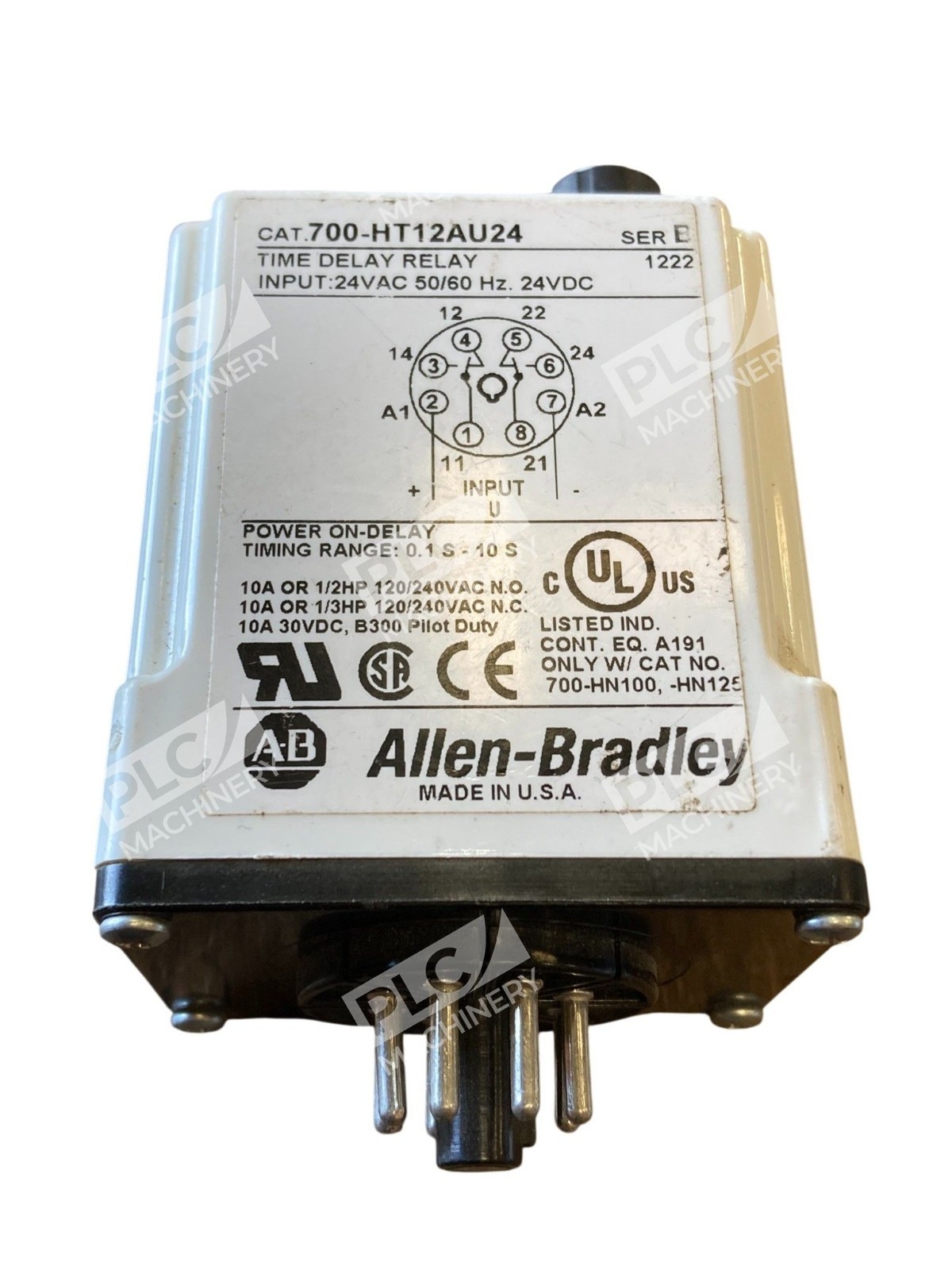

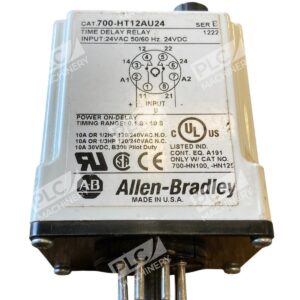

Technical Specifications
- Contact Configuration: DPDT (2 C/O)
- Coil Voltage: 24V AC/DC, 50/60 Hz
- Contact Rating: 10A per contact
- Timing Type: On-Delay
- Adjustable Range: 0.1 to 10 seconds

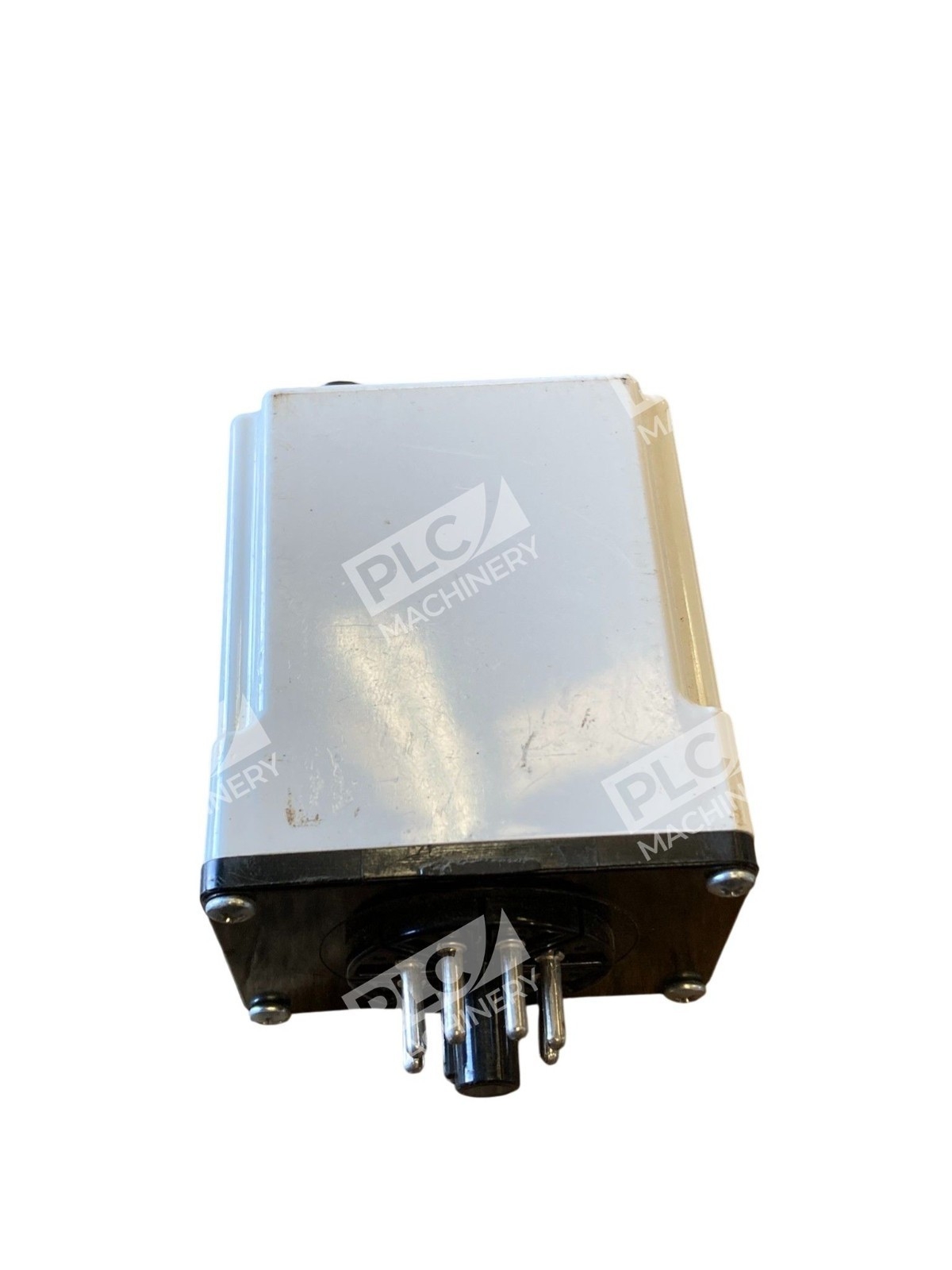

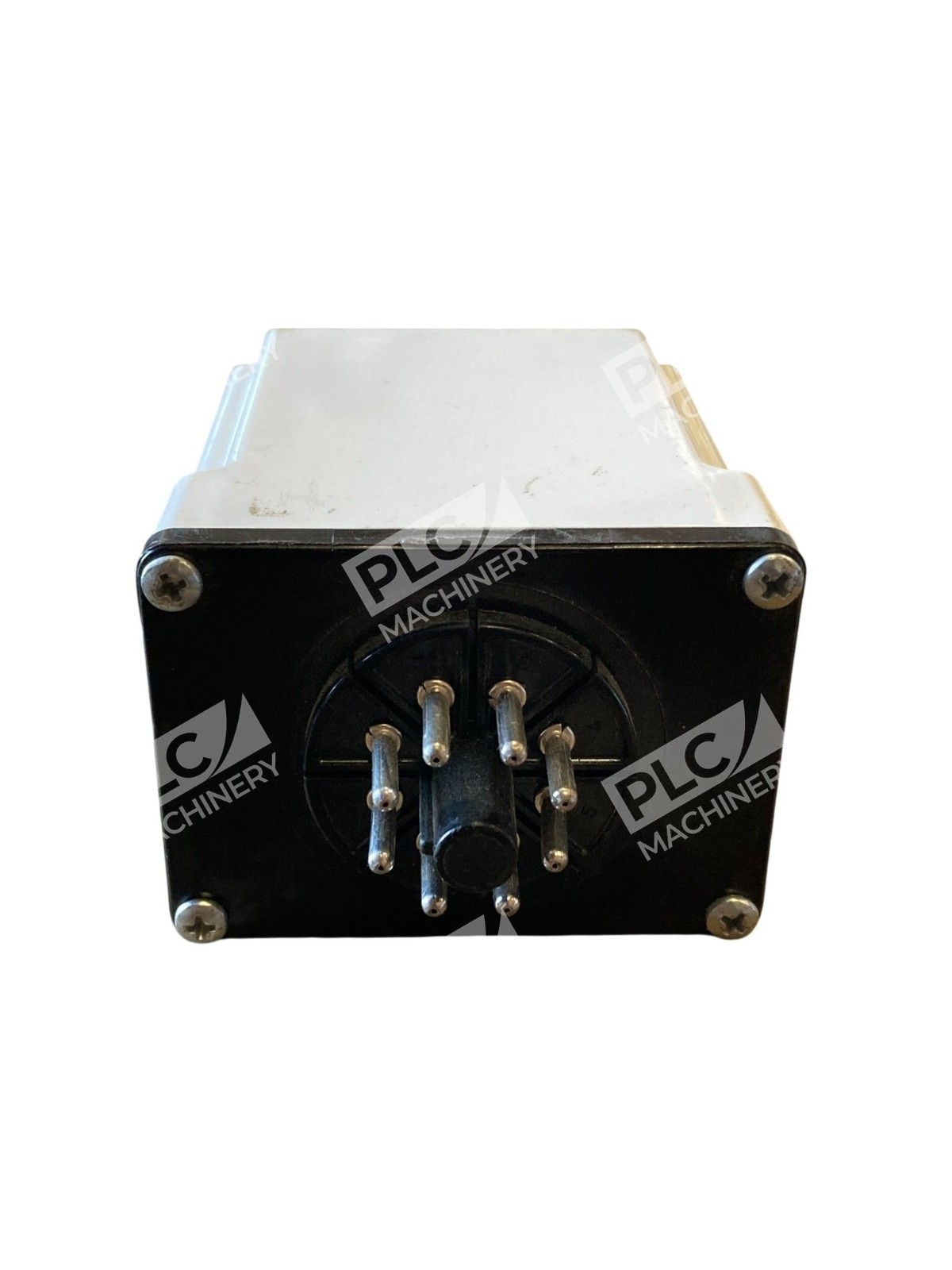

- Socket Mounting: Tube Base (Pin-Style)
- Contact Type: Silver contacts
- Certifications: UL Listed (File No. E3125), CSA Certified (File 223833), CE Marked
- Manufacturer: Rockwell Automation / Allen-Bradley
Typical Applications
- Industrial machine startup and shutdown timing sequences
- Motor soft-start and ramp-down control circuits
- Process automation and conveyor belt control systems
- Safety interlocking systems requiring time-delayed response
- HVAC and pump control applications with delay requirements
- General purpose control and sequencing in manufacturing environments
Compatibility & Replacements
Compatible With
- Allen-Bradley 700-HN100, 700-HN101, 700-HN125, 700-HN126 tube bases (UL Listed socket mounting)
- Standard 8-pin octal relay sockets
- 24V AC/DC control circuits in industrial automation systems
- General purpose relay racks and enclosures with pin-style mounting
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 700-HT12AU24 is part of the Allen-Bradley 700-HT series and may interchange with other on-delay timing relays of the same footprint, but always confirm with manufacturer documentation.
Works With
- Standard industrial relay and timer control schemes
- 24V AC/DC control voltage systems (50/60 Hz)
- Pin-style tube base relay sockets (700-HN series)
- Motor control centers (MCCs) and control panels using relay logic
- PLC auxiliary timing circuits and backup control systems
