Overview

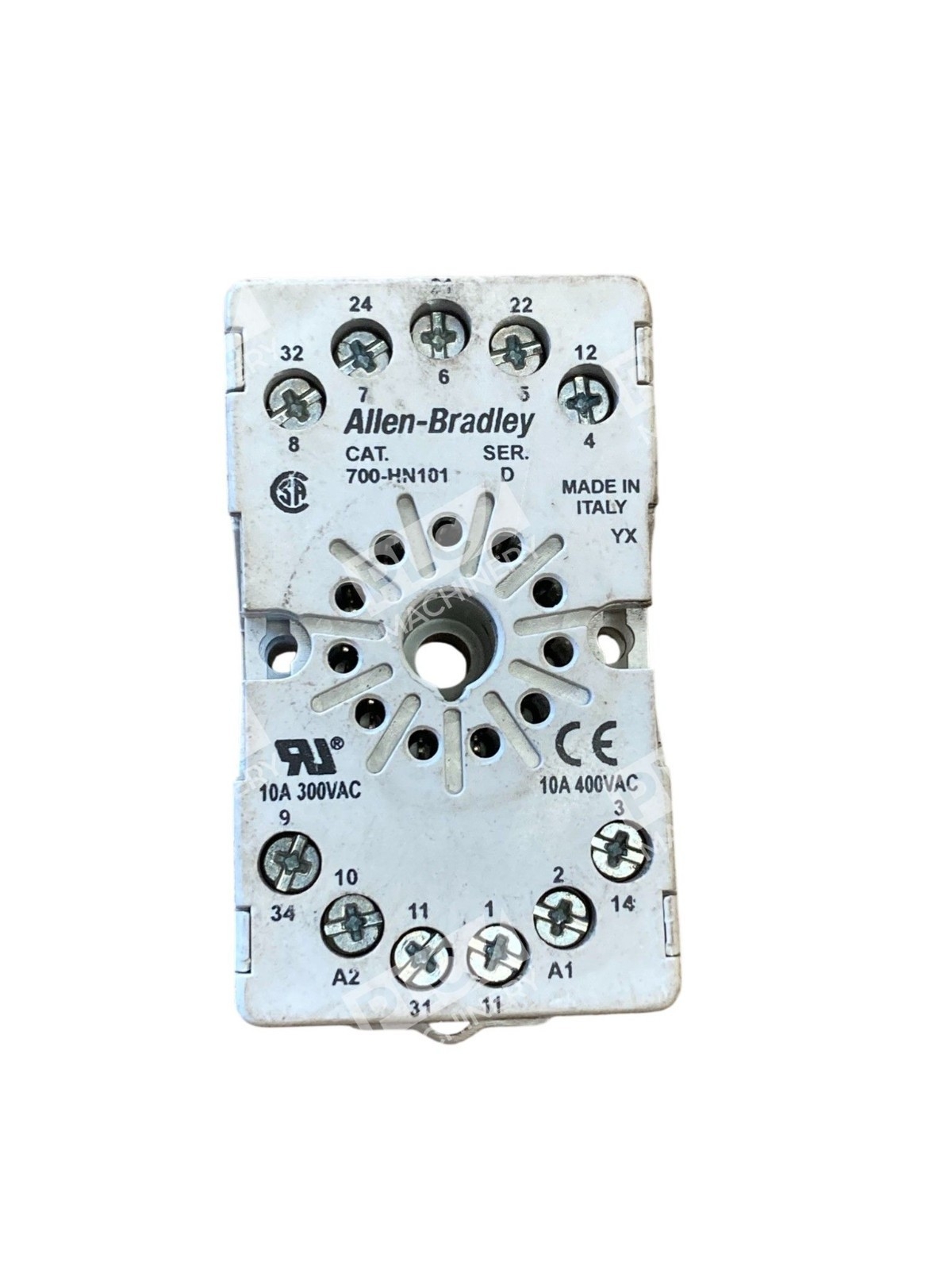

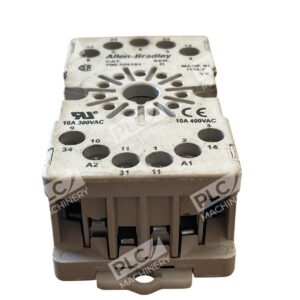

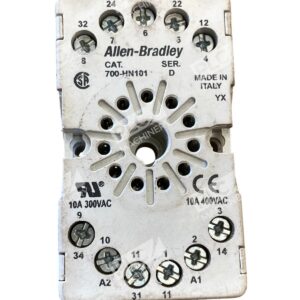

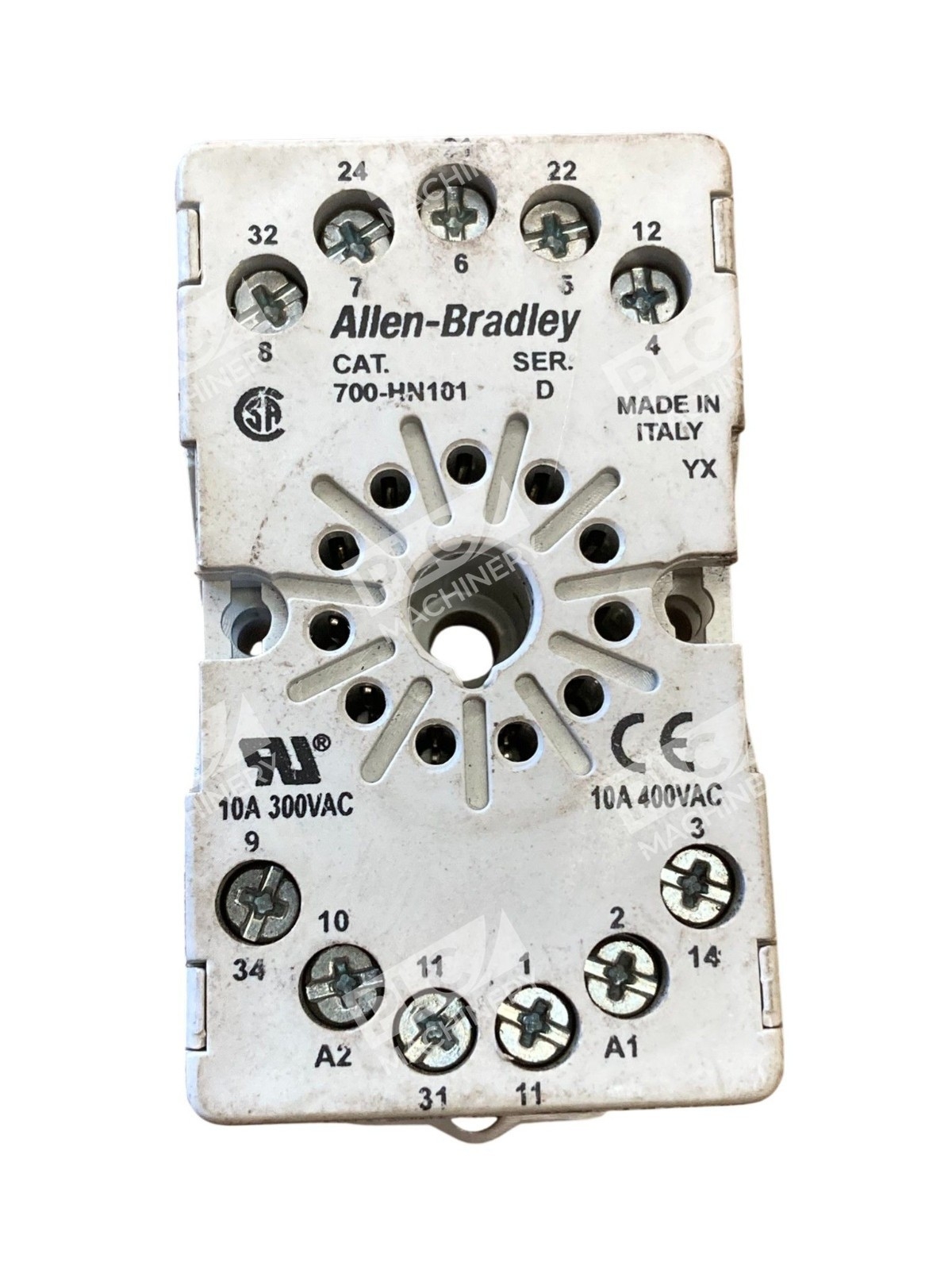

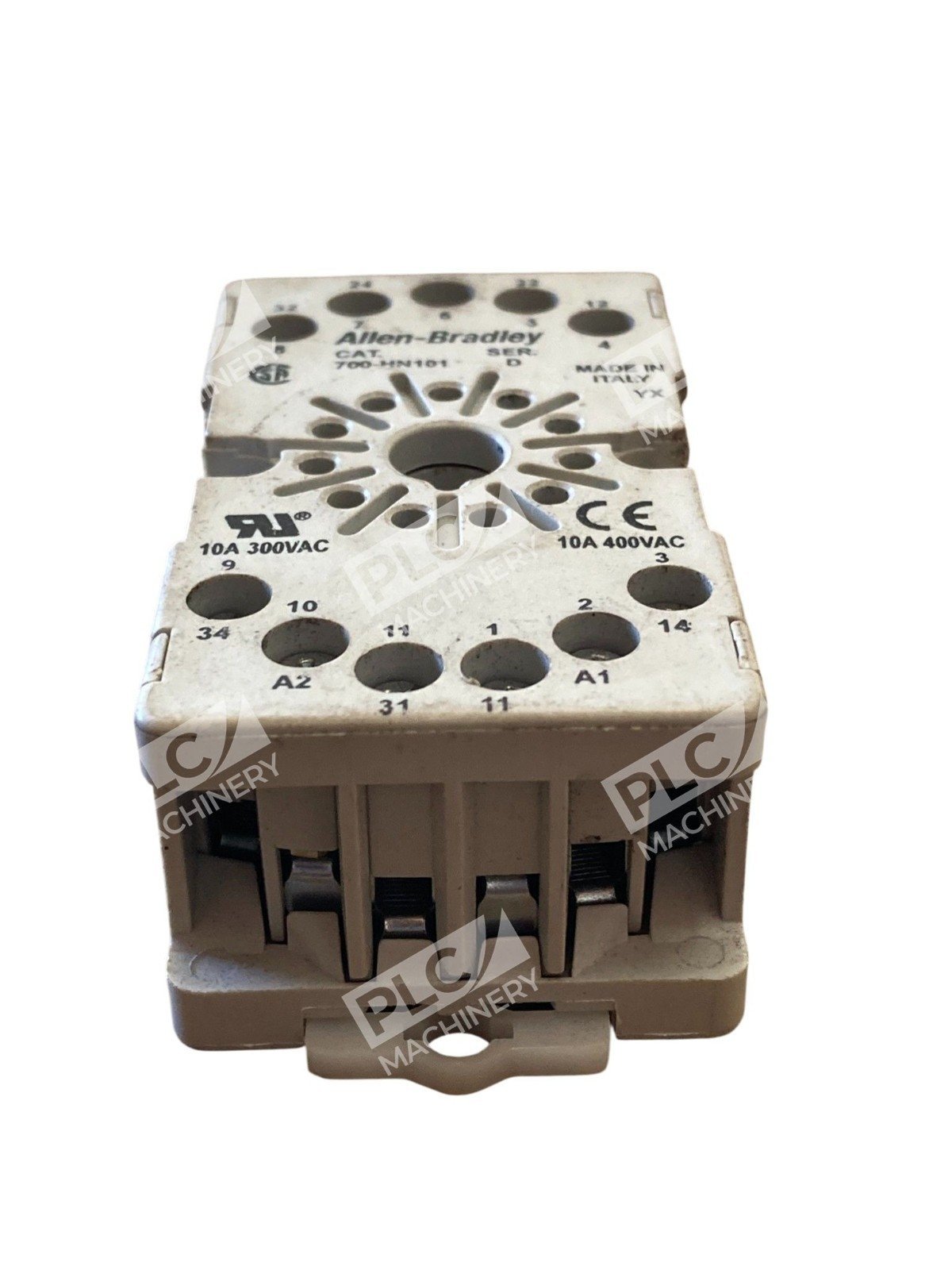

The Allen-Bradley 700-HN101 is a tube base relay socket engineered for industrial control and automation applications. This 11-pin relay socket from Rockwell Automation features guarded screw terminal construction and supports panel or DIN rail mounting. The socket accommodates 700-HA33 and 700-HR relays, making it a critical component in electrical panels where compact spacing and secure terminal design are required.
Key Features
- 11-Pin Configuration: 11-pin tube-based relay socket pack design
- Guarded Terminals: Guarded terminal construction with screw terminal style for safe, secure wiring

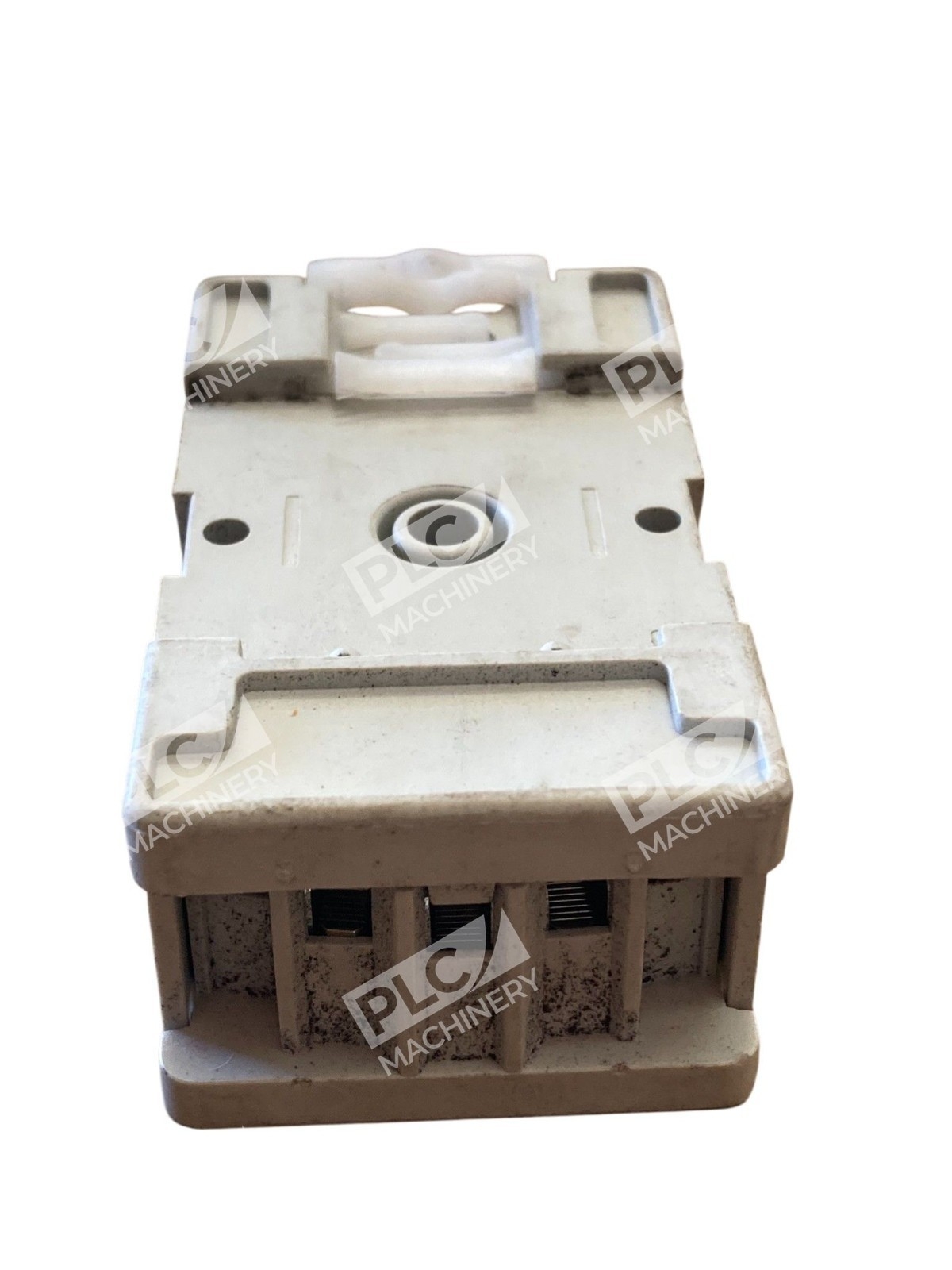

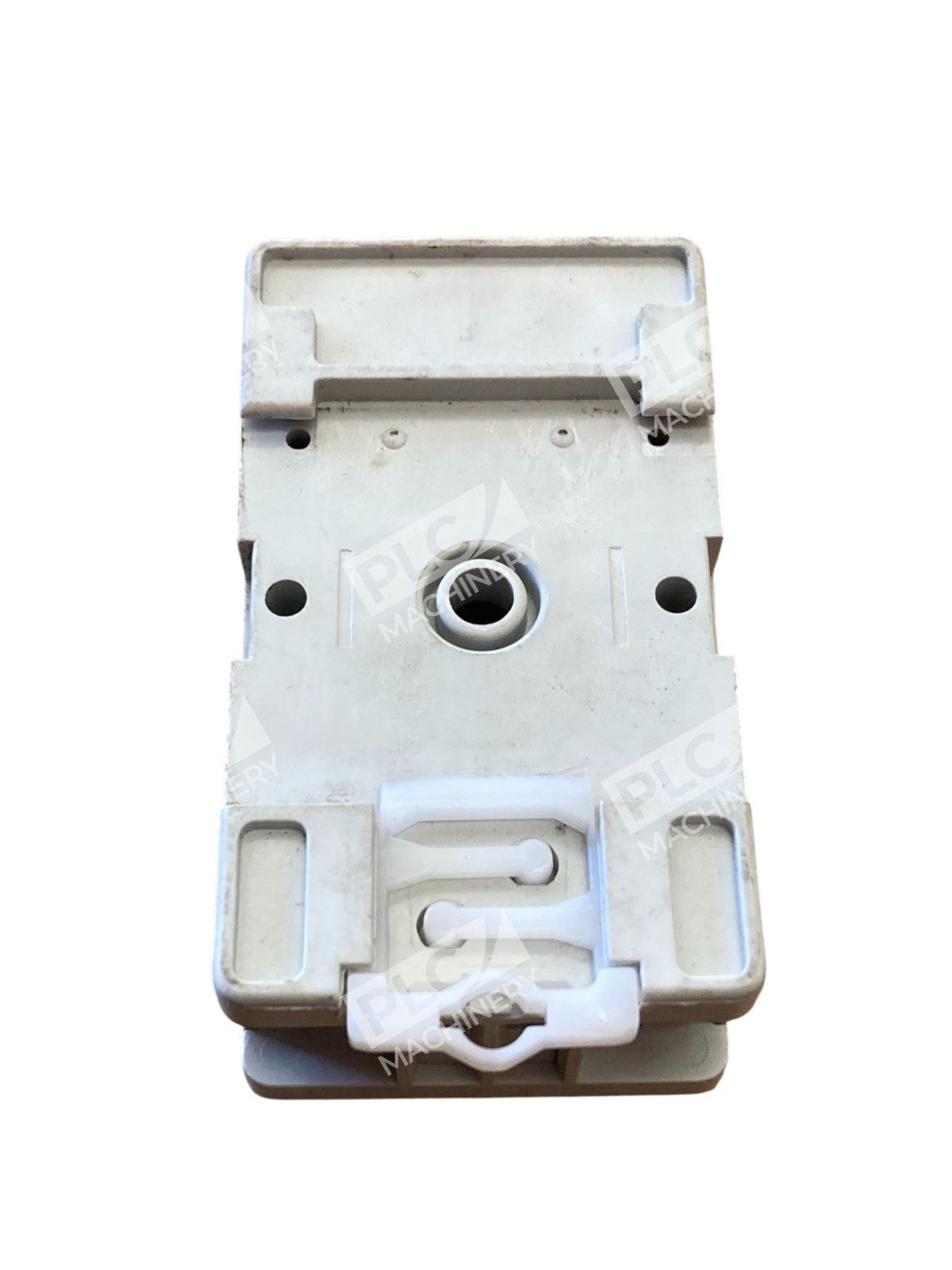

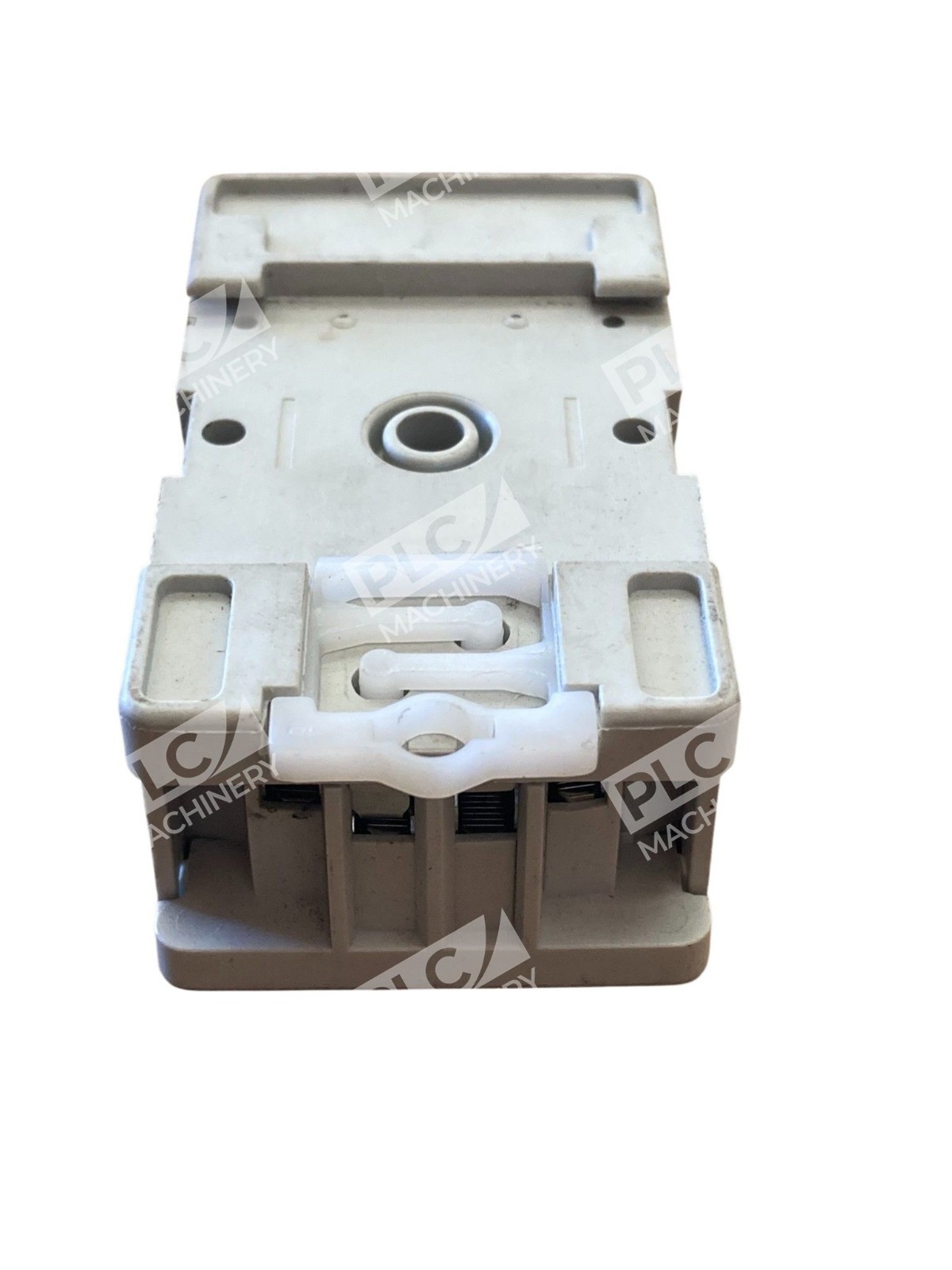

- Dual Mounting: Panel or DIN rail mount flexibility
- Compact Form Factor: Lightweight tube base design minimizes panel space consumption
- Proven Reliability: Meets CCC, CE, CSA, CUL, KC, and UL standards
Technical Specifications
The 700-HN101 delivers industry-standard electrical ratings and rugged construction:
- Current Rating: 10 AMP
- Voltage Rating: 300/400 VAC
- Base Type: Tube base
- Terminal Type: Screw terminals
- Weight: 0.10 lbs
- Certifications: CCC, CE, CSA, CUL, KC, UL
Typical Applications
The Allen-Bradley 700-HN101 is widely deployed in:
- Industrial motor control panels and automation systems
- Process control relay logic applications
- Machine automation and sequential control circuits
- OEM equipment and panel assembly
- Safety relay and timing control systems
- Legacy system upgrades and replacements
Compatibility & Replacements
Compatible With
- 700-HA33 relay series
- 700-HR relay series
- Allen-Bradley 700 Series general-purpose relays
- Standard DIN rail systems
- Panel-mount electrical enclosures
Replaces / Drop-In Replacement For
This socket directly replaces OEM part number 700-HN101 across all revisions and variants. When ordering replacement sockets, verify the relay series installed in your application (700-HA or 700-HR) to ensure compatibility.
Works With
- Allen-Bradley 700 Series relay line
- Industrial automation control panels
- Standard DIN 35 rail mounting systems
- Guarded screw terminal connections (no special adapters required)
