Overview

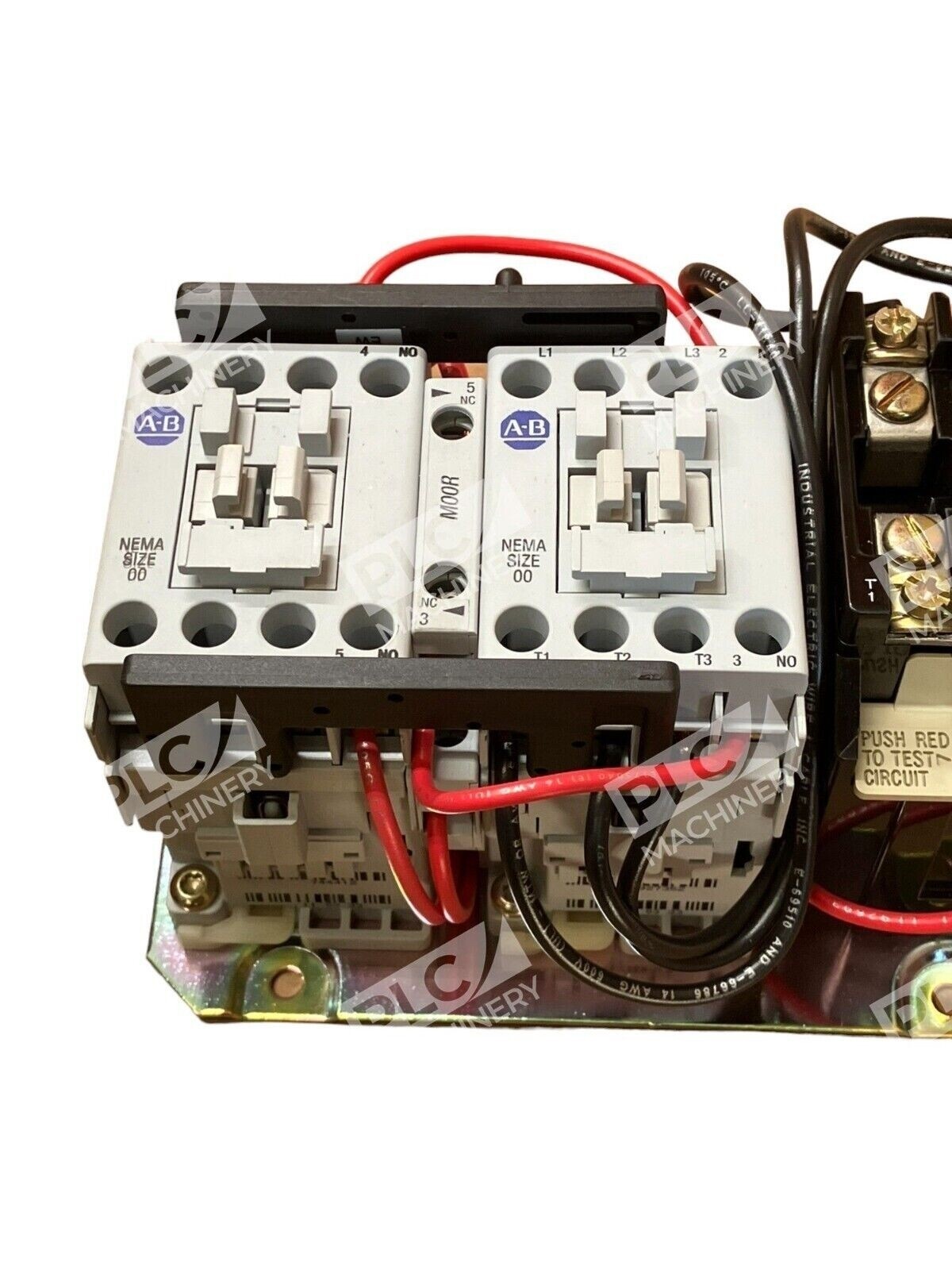

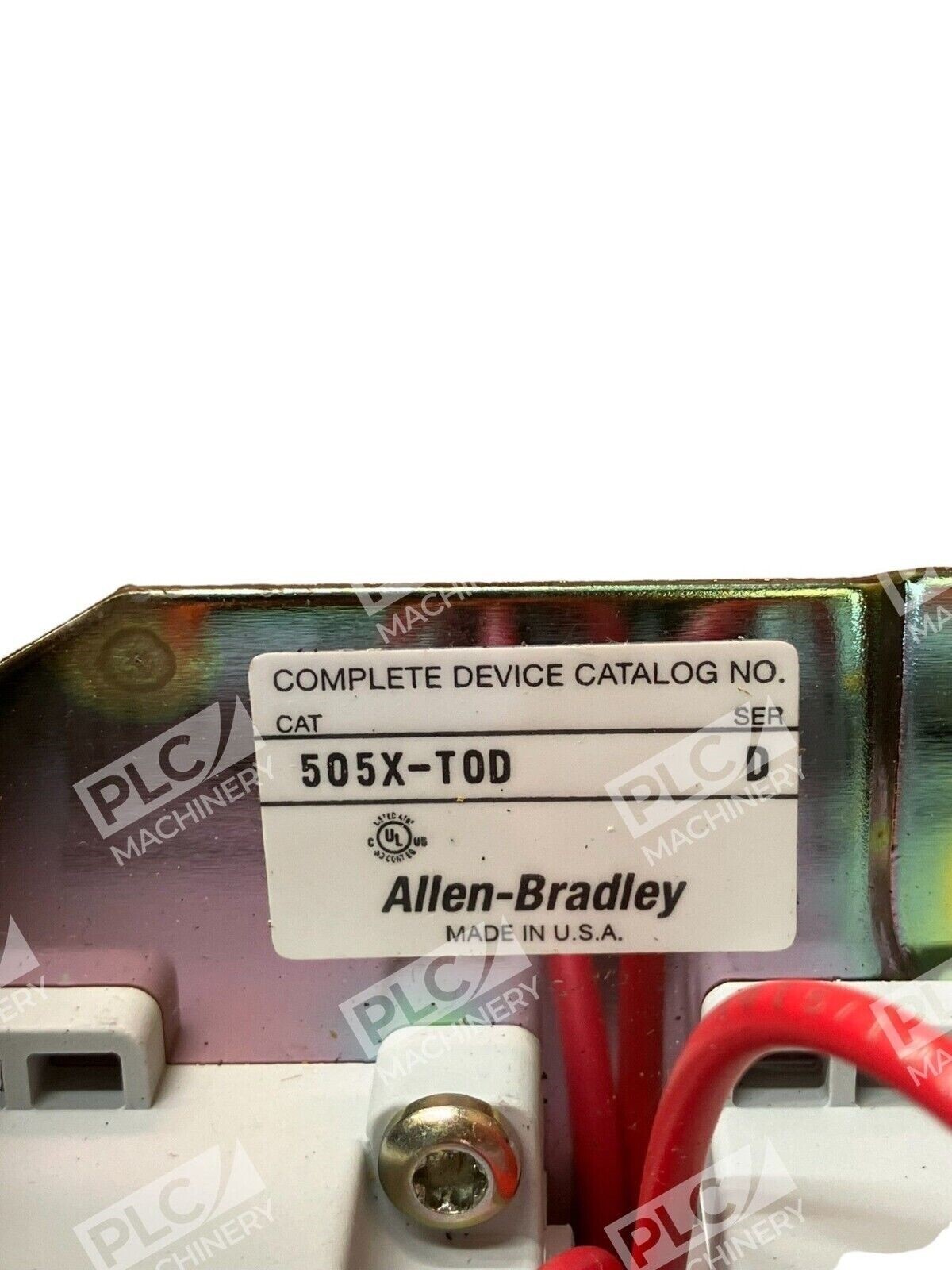

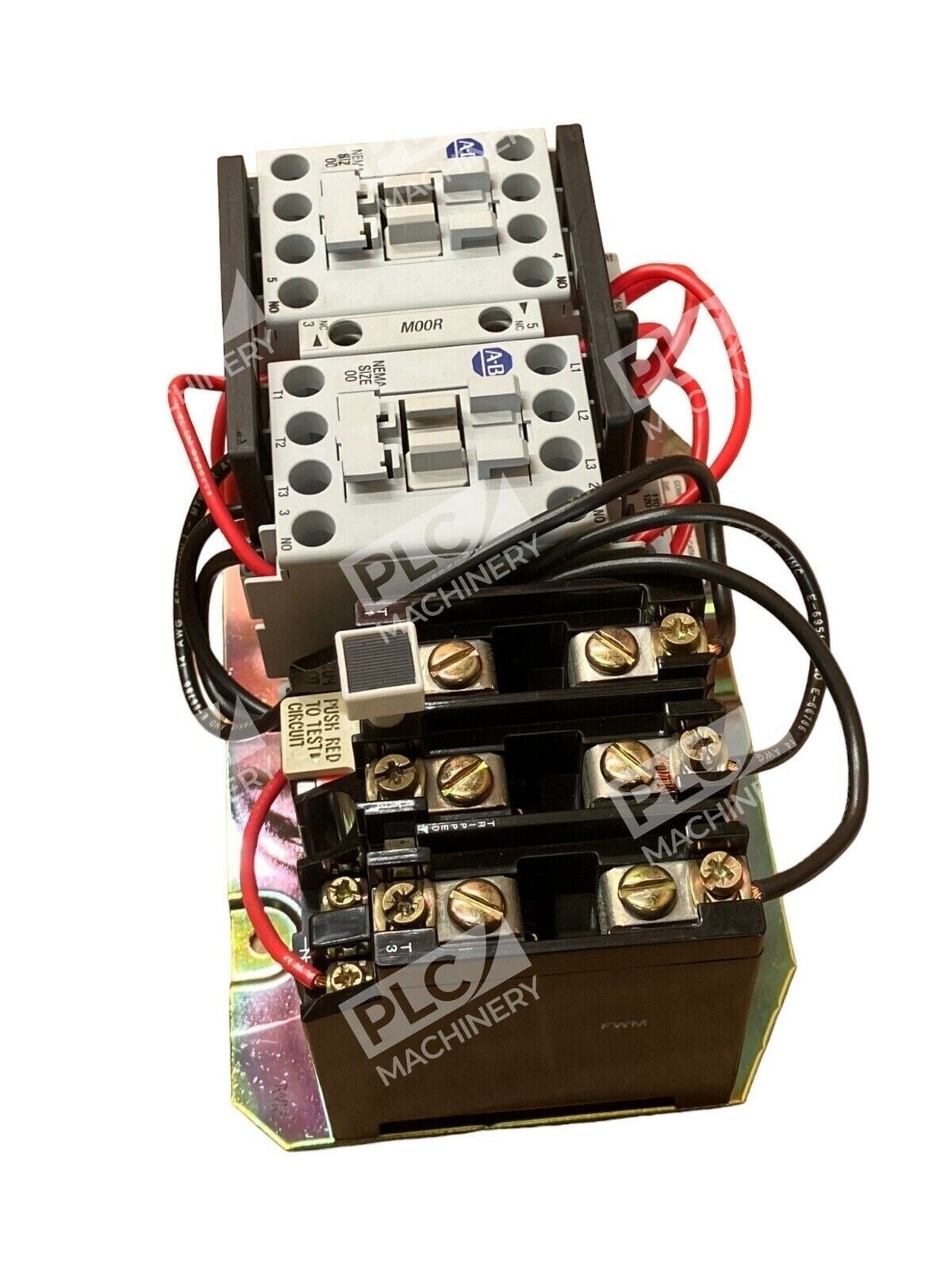

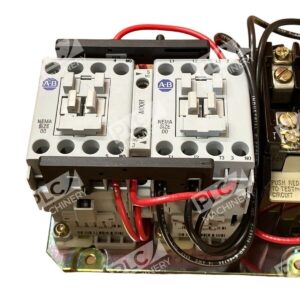

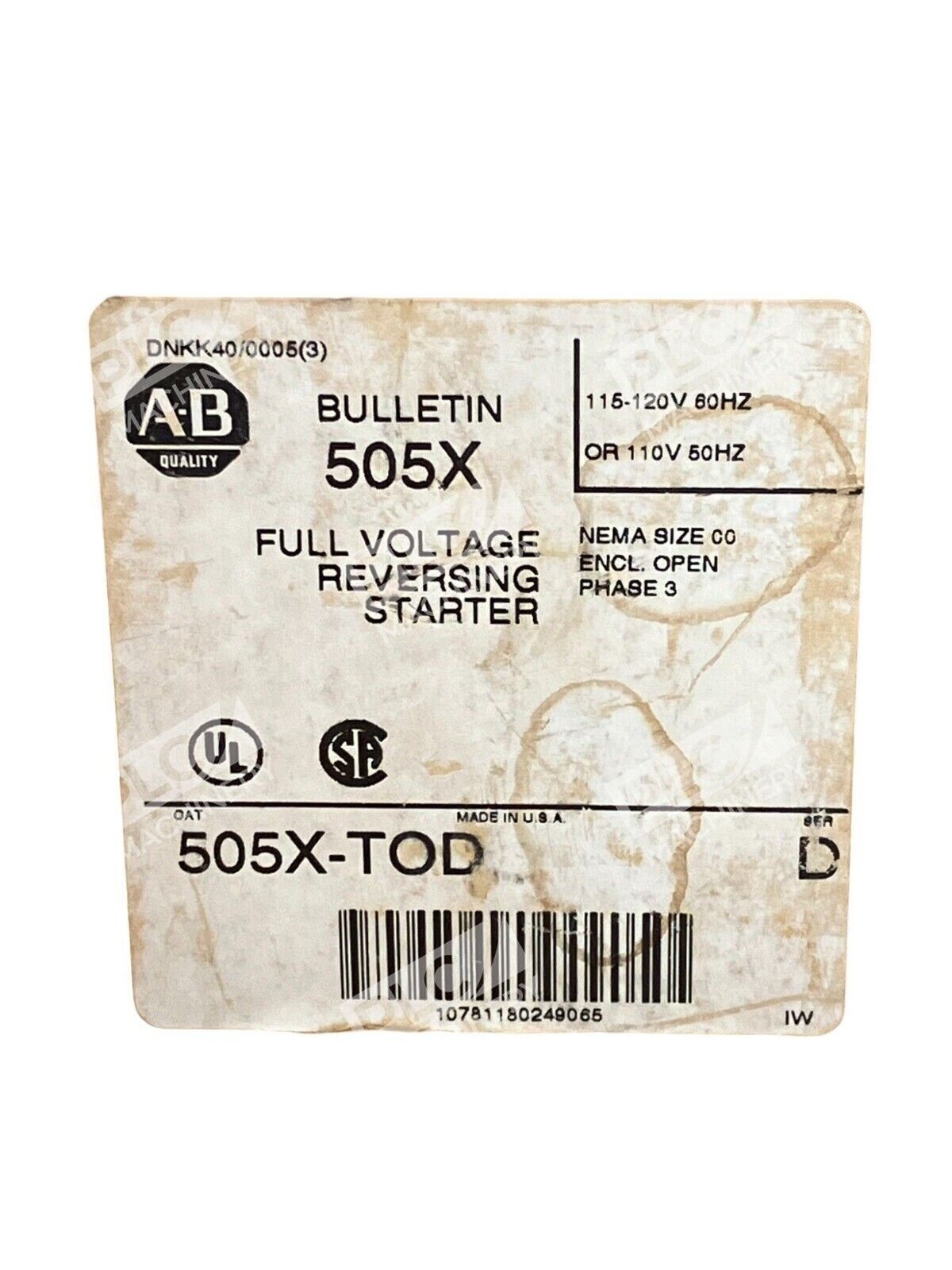

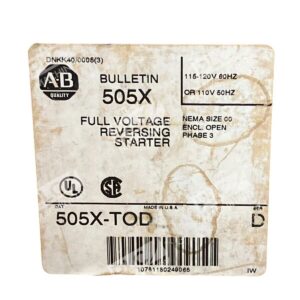

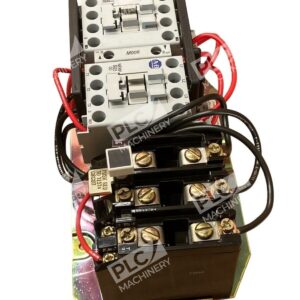

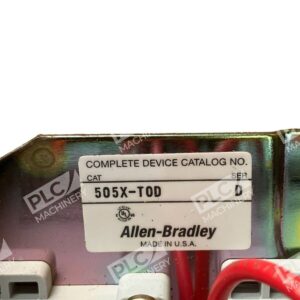

The Allen-Bradley 505X-TOD /D is a compact, open-type reversing motor starter engineered for three-phase applications requiring reversing capability. This NEMA Size 00 unit delivers full-voltage motor control with integrated overload protection, making it a standard choice for industrial motor control circuits where space is at a premium.
Key Features
- NEMA Size 00 open design—no enclosure, minimal footprint
- Three-pole (3P) reversing configuration for forward/reverse motor operation
- Full-voltage AC magnetic contactor technology

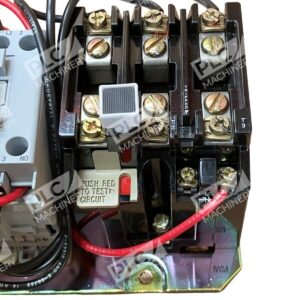

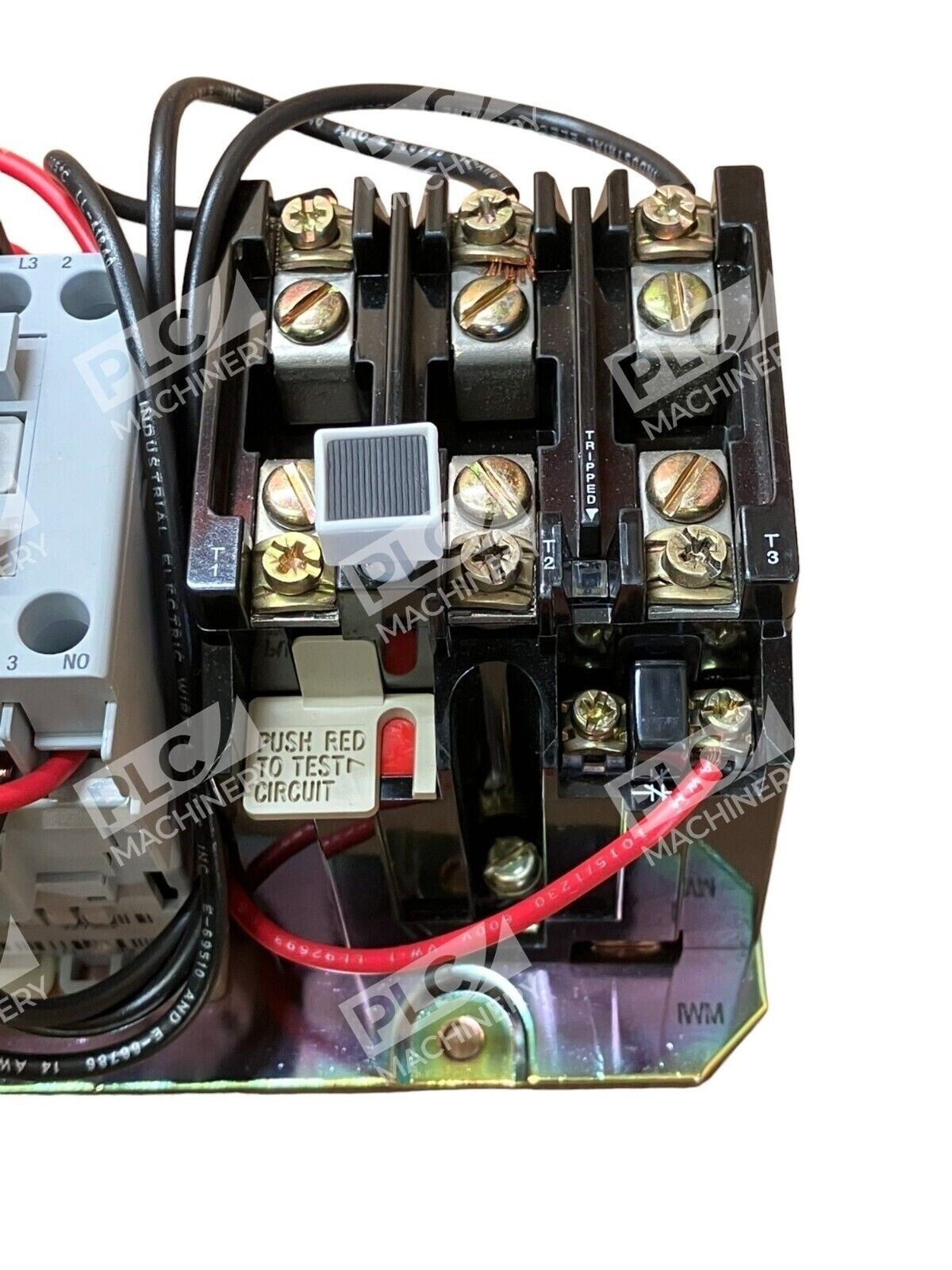

- Eutectic alloy overload relay for motor protection
- Surface-mount installation
- 120V AC coil supplied at 60Hz (110V 50Hz available)

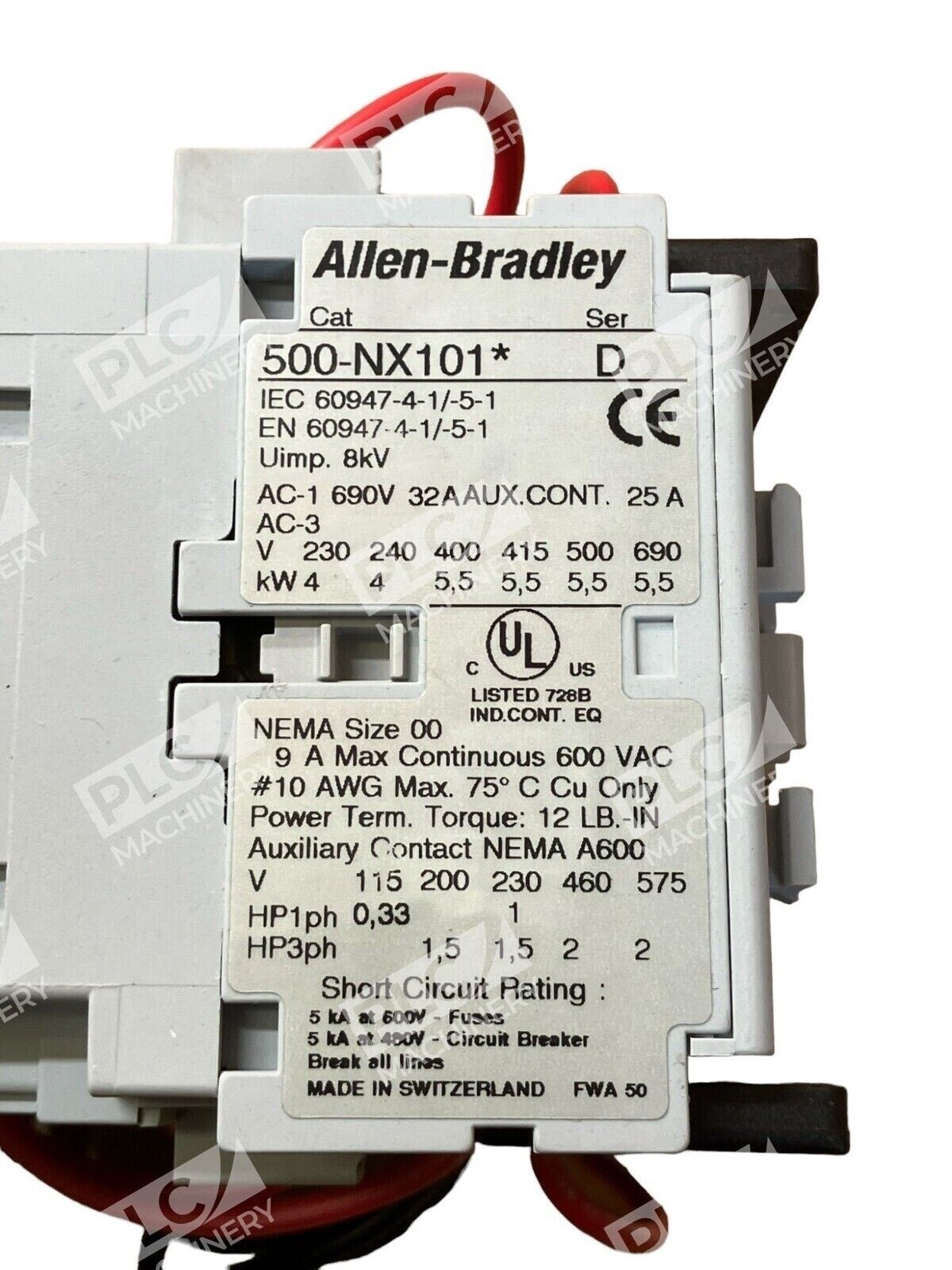

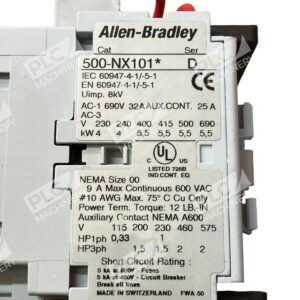

Technical Specifications
- Load Voltage: 600V AC maximum
- Contact Current Rating: 9A
- Coil Voltage: 120V AC (60Hz) / 110V AC (50Hz)
- Poles: 3 Phase, 3 Pole
- Starter Type: Reversing, Full Voltage
- Enclosure Type: Open (without enclosure)
- NEMA Class: Size 00
- Overload Protection: Eutectic Alloy Relay
- Mounting: Surface mount
- Bulletin Number: 505
- Motor Ratings: 1.5 HP @ 230V, 2 HP @ 380–415V, 2 HP @ 460–575V
- Weight: Approximately 1.81 kg (4.0 lbs)
Typical Applications
The 505X-TOD /D suits applications requiring reversible motor control in compact spaces, including:
- Conveyor systems with reversing capability
- Pump and fan motor control
- Machine tool control circuits
- HVAC equipment operation
- Industrial process machinery requiring directional control
Compatibility & Replacements
The Allen-Bradley 505X-TOD /D is part of the Bulletin 505 motor control family and is designed for use with standard Bulletin 505 motor control systems. This open-type starter requires a separate branch circuit disconnect switch or circuit protection device, as it provides no integral disconnection means. When replacing an existing 505-series starter, verify matching coil voltage, contact amperage rating, and load voltage specifications. Compatible repair parts and overload relay elements are available through Allen-Bradley distributors.
