Overview

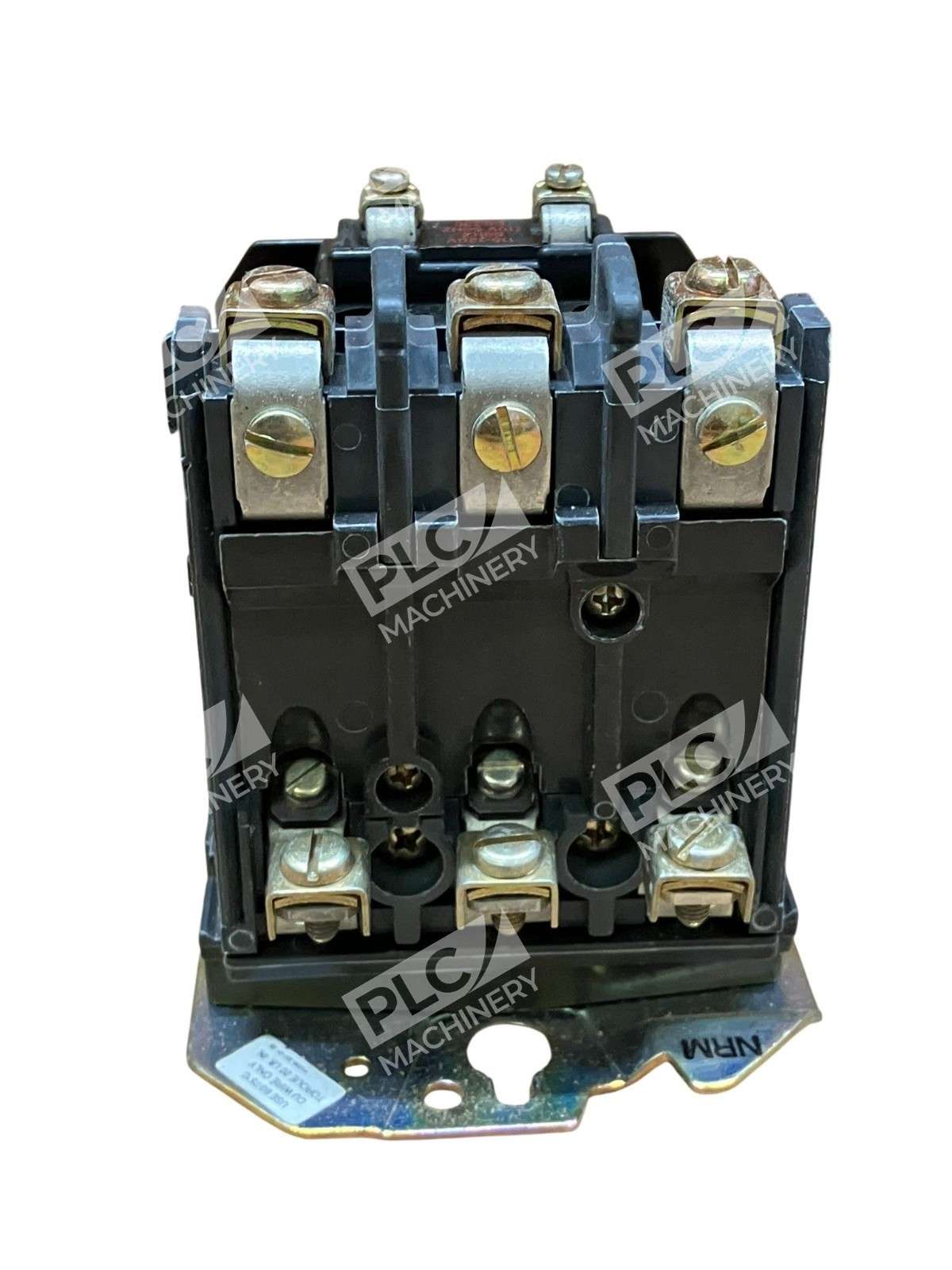

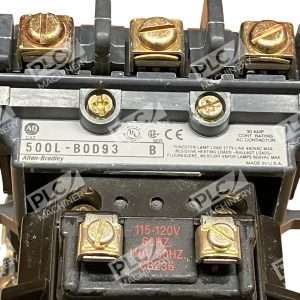

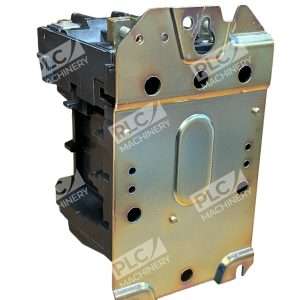

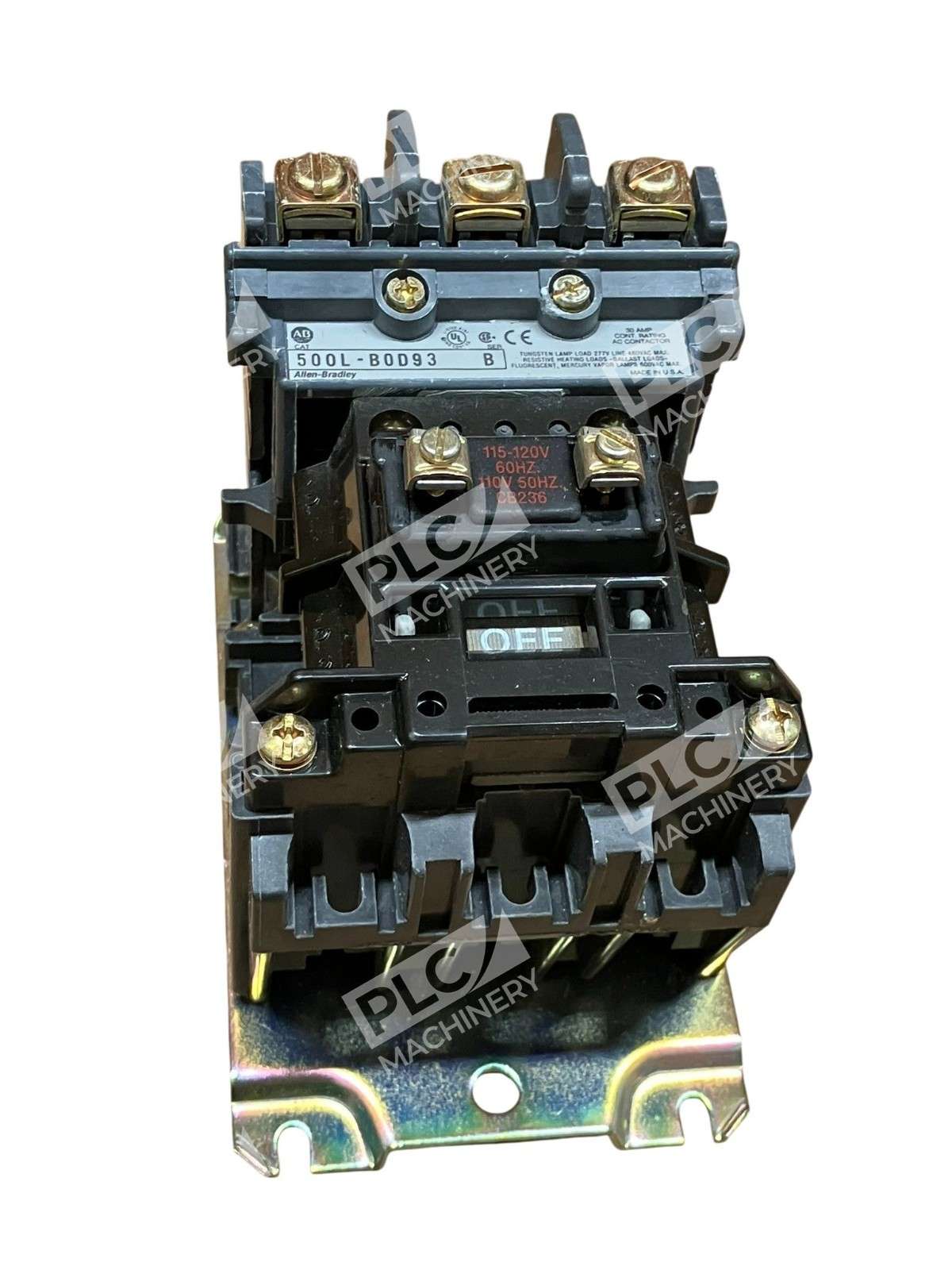

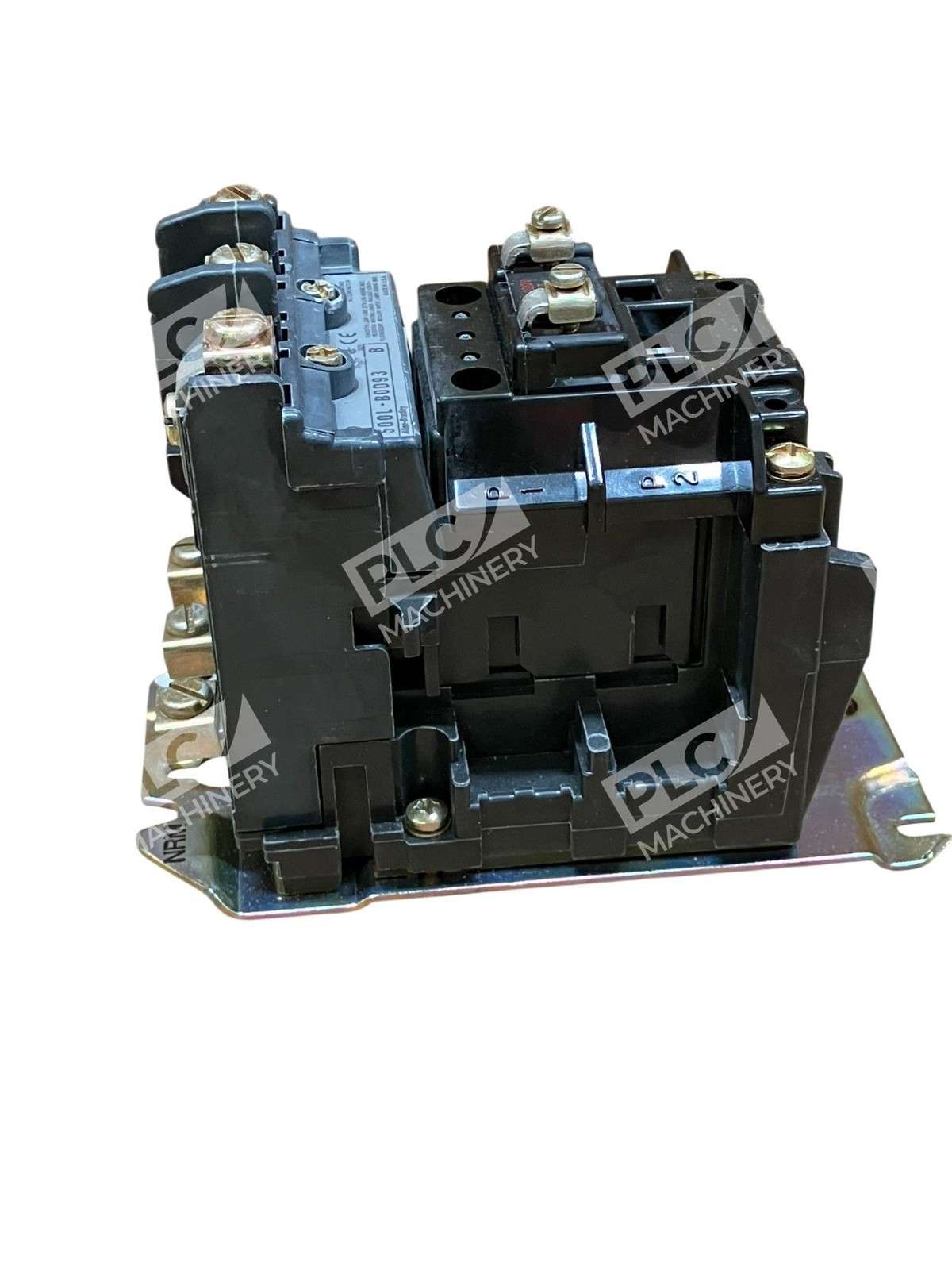

The Allen-Bradley 500L-B0D93 lighting contactor is an electrically held control device designed for switching non-motor lighting loads in industrial and commercial environments. Built to Allen-Bradley’s proven standards, this contactor delivers dependable performance in 115/120V coil voltage applications.
Key Features
- 3-Pole Configuration: Handles three-phase lighting circuits with simultaneous switching of all three lines.
- 30A Current Rating: Rated for 30A continuous load at 600VAC for non-motor and lighting applications.
- Electrically Held Design: Maintains contactor position when power is applied; drops out on de-energization.
- Top-Wired Mounting: Simplifies installation and terminal access in control panels.
- NEMA 1 Open Enclosure: Compact open-frame design suitable for panel mounting.
Technical Specifications
The 500L-B0D93 meets industry standards for switching incandescent, filament, and fluorescent lighting loads. This model is not rated for sign flasher applications.
Typical Applications
- Industrial facility lighting control
- Commercial building lighting distribution
- Warehouse and outdoor lighting circuits
- Three-phase lighting panels and distribution systems
- HVAC and building automation systems
Compatibility & Replacements
The 500L-B0D93 is part of Allen-Bradley’s Bulletin 500L lighting contactor family and integrates with Bulletin 500L motor control systems. Similar models in the 500L series (such as 500L-BOD93 variants) may serve alternative applications. For exact compatibility, verify your coil voltage, pole configuration, and amperage requirements with your system documentation.
