Overview

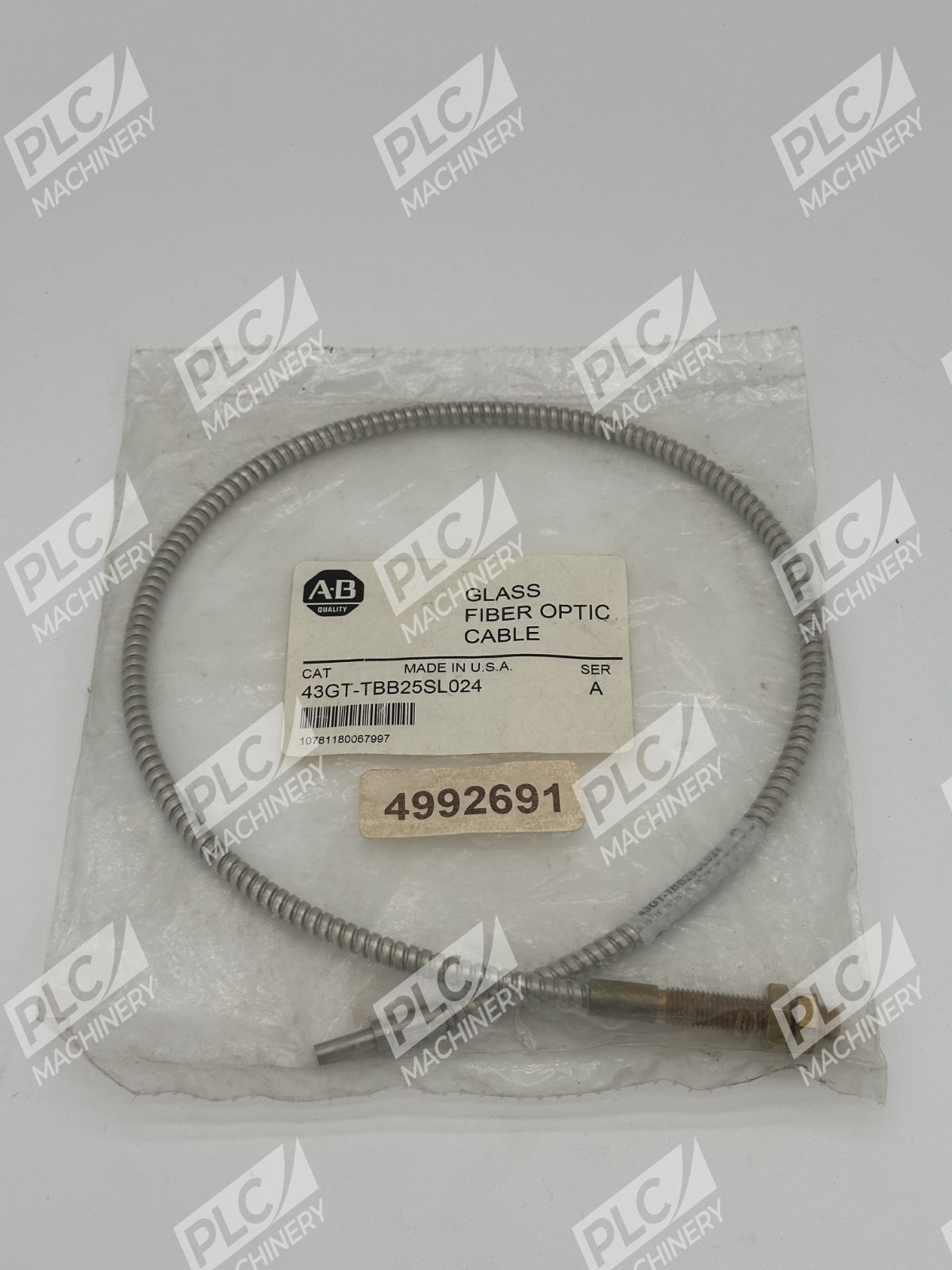

The Allen-Bradley 43GT-TBB25SL024 is a transmitted beam glass fiber optic cable designed for precision sensing and industrial automation systems. This cable operates on a light transmission principle, using glass fiber to transmit light from a light source to an object and back to a receiver, making it ideal for detection applications requiring high accuracy and immunity to electromagnetic interference.
Key Features
- Transmitted beam glass fiber optic design for reliable light transmission
- 36-inch (0.91 m) standard cable length with brass threaded 5/16″ connection
- Single-mode 9/125 glass core with 3.2 mm (0.125 in) diameter randomized fiber bundle
- Stainless steel flexible conduit jacket for durability and corrosion resistance
- Temperature rating up to 500°F, suitable for high-temperature industrial environments
- One sensing tip with axial configuration for direct object sensing
Technical Specifications
| Specification | Value |
| Part Number | 43GT-TBB25SL024 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Series | A |
| Sensor Type | Transmitted Beam Glass Fiber Optic |
| Cable Length | 36 inches (0.91 m) |
| Fiber Core Type | Single Mode 9/125, Glass |
| Fiber Bundle Diameter | 3.2 mm (0.125 in) |
| Arrangement | Randomized Bundle |
| Tip Type | Axial Threaded (TB 5/16″) |
| Sensing Tips | One Standard |
| Connection Material | Brass |
| Jacket Material | Stainless Steel Flexible Conduit |
| Max Operating Temperature | 500°F (260°C) |
| Standards | CCC, KC |
| Condition | New in Box |
Typical Applications
- Object detection on conveyor systems and production lines
- Glass detection and high-transparency material sensing
- Presence sensing in tight spaces where photoeye beam bending is required
- High-temperature furnace and oven monitoring
- Harsh environment sensing requiring stainless steel construction
- EMI/RFI-immune sensing in electrical switchgear and motor control environments
Compatibility & Replacements
Compatible With
- Allen-Bradley fiber optic photoswitch sensors and receivers
- Rockwell Automation light transmission sensing systems
- Industrial automation controllers requiring fiber optic input signals
- Control systems operating in high-temperature or electromagnetically noisy environments
- CompactLogix, ControlLogix, and MicroLogix systems via appropriate I/O modules
Replaces / Drop-In Replacement For
- Other Allen-Bradley 43GT series transmitted beam cables with equivalent 36″ length and brass 5/16″ threaded connections
- Verify specific model compatibility with your fiber optic receiver unit before ordering
Works With
- Allen-Bradley fiber optic sensors and photoswitch product family
- Transmitted beam detection systems requiring individual sensing cables
- Industrial control systems utilizing 9/125 single-mode fiber optic technology
