Overview

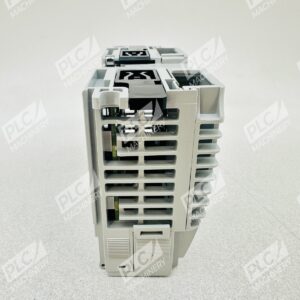

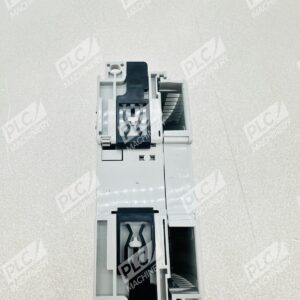

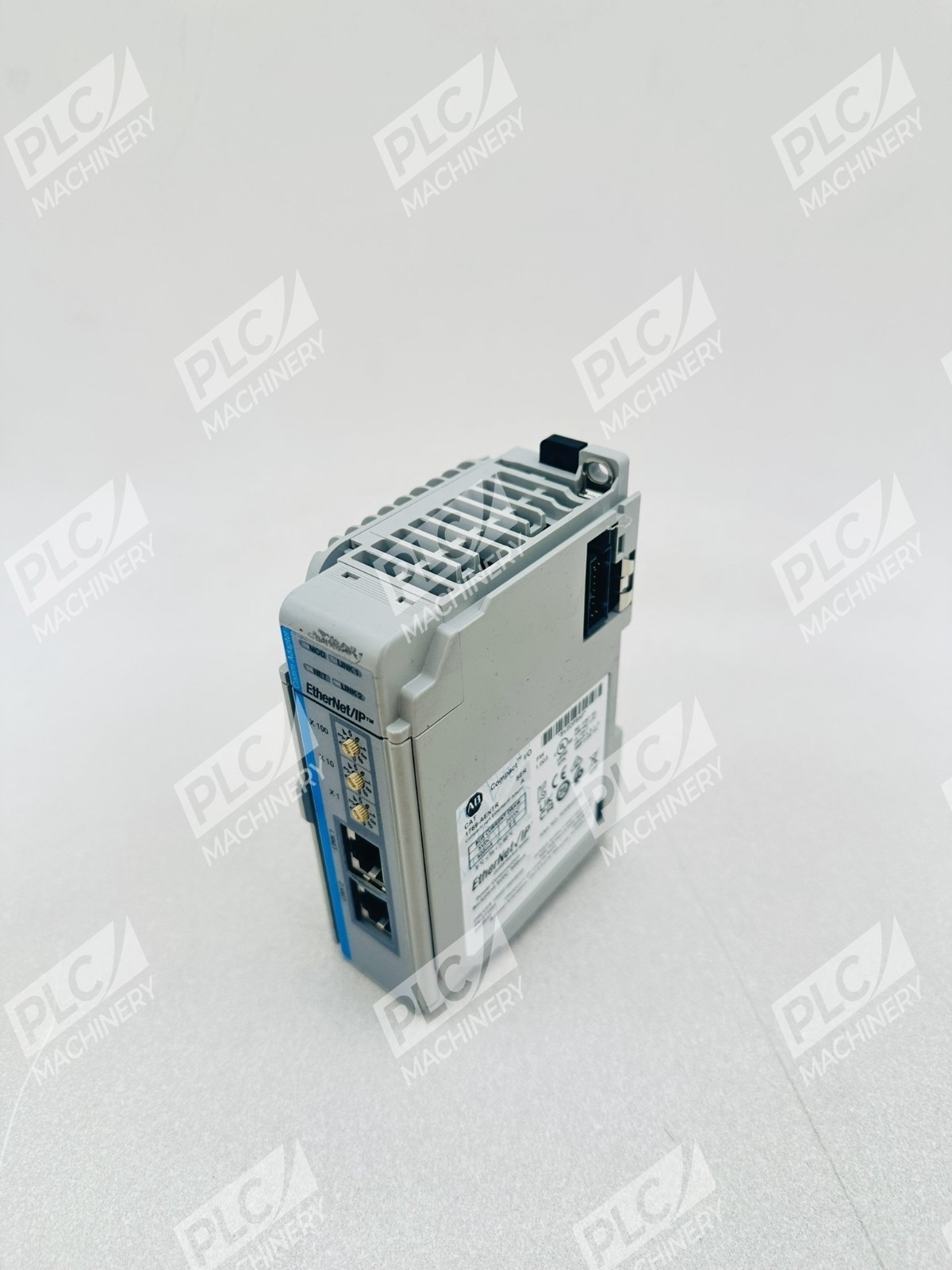

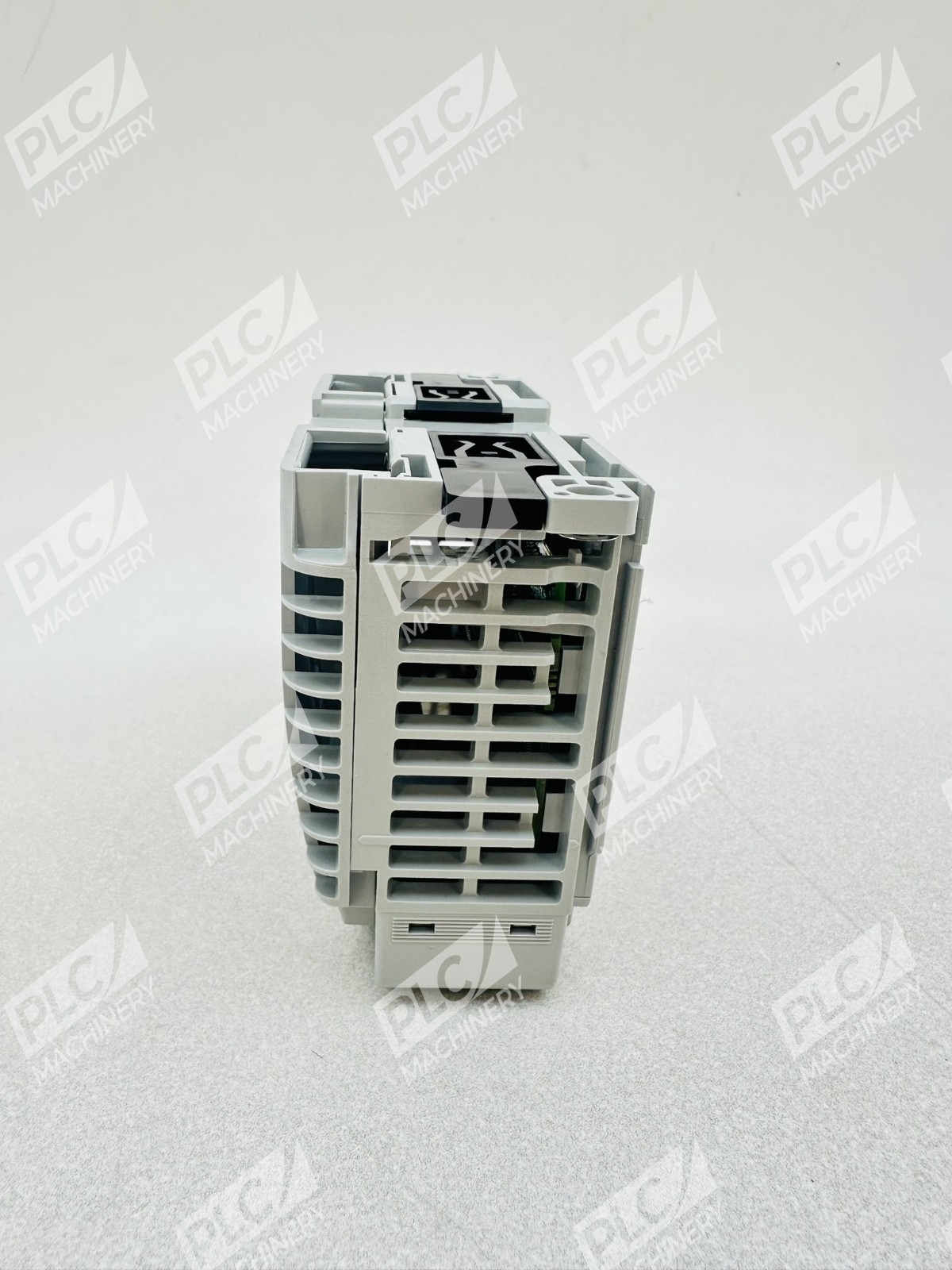

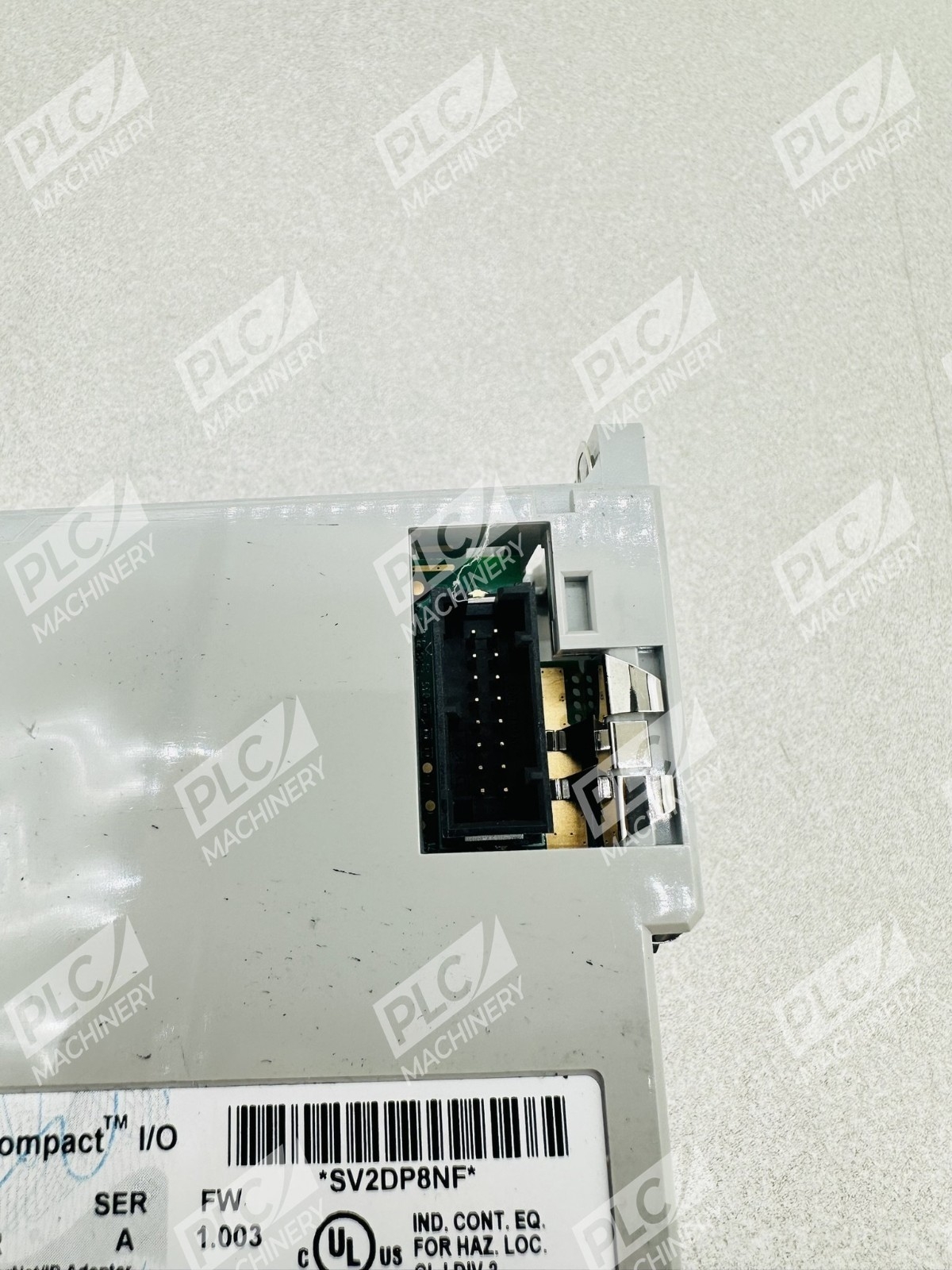

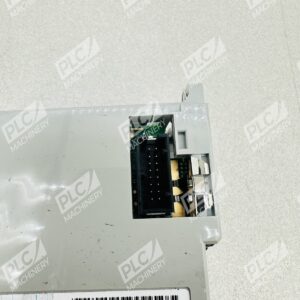

The Allen-Bradley 1769-AENTR is a network adapter module designed to integrate Ethernet/IP connectivity into CompactLogix automation systems. Part of Rockwell Automation’s Compact I/O family, this adapter allows users to deploy 1769 I/O modules over an EtherNet/IP network, eliminating the need for redundant spare parts inventory and enabling cost-effective platform upgrades. With its compact form factor and dual Ethernet interfaces, the 1769-AENTR simplifies control architecture and provides flexible network topology support.
Key Features
- Dual Ethernet ports supporting 10/100 Mbps communication with RJ45 connectors
- Network topology flexibility: Supports star, linear, and Device Level Ring (DLR) architectures
- 69 I/O points with 96 TCP/IP and 128 logical EtherNet/IP connections
- I/O preservation: Enables reuse of existing 1769 I/O modules when migrating to next-generation CompactLogix controllers

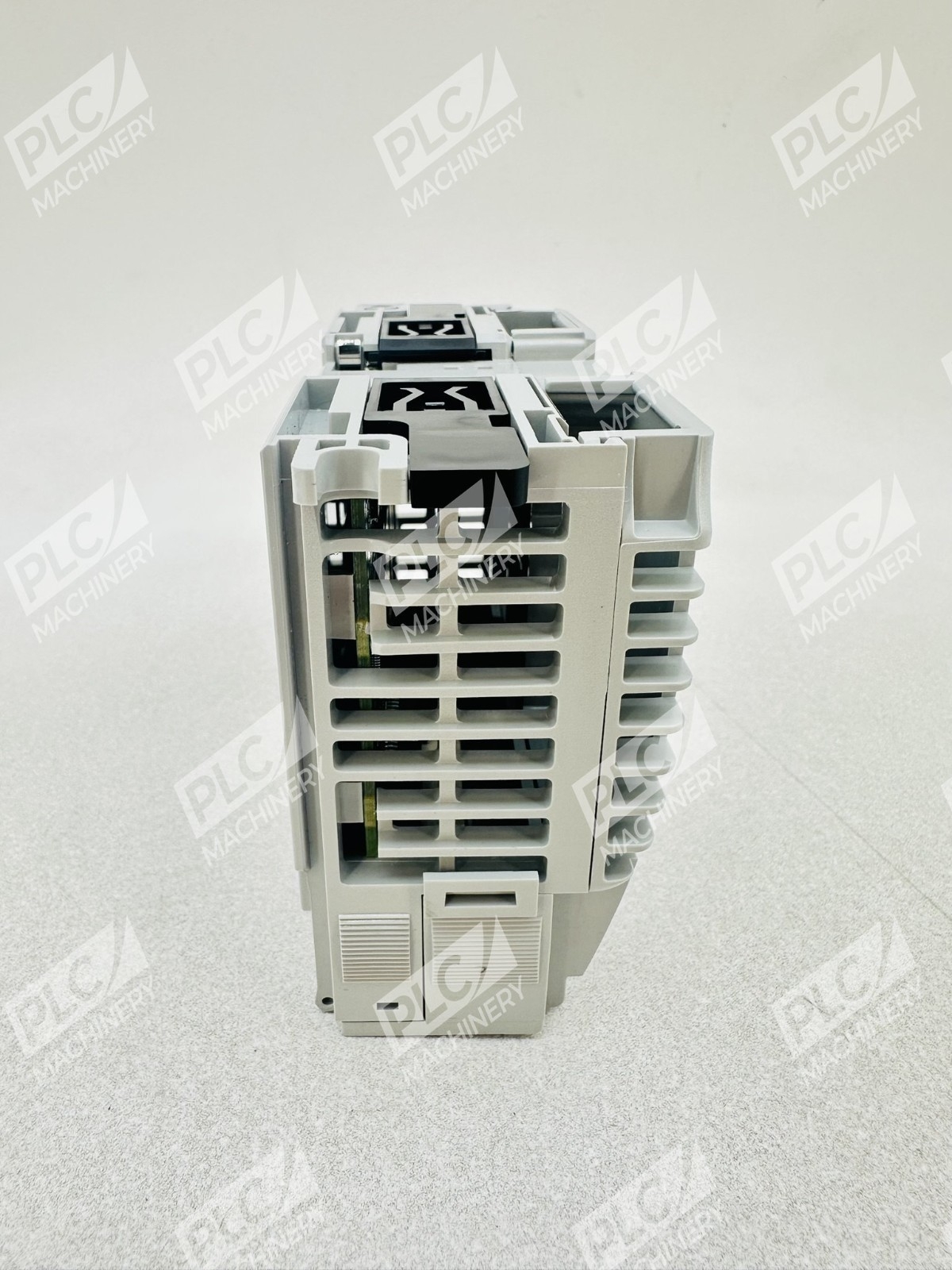

- Compact design: DIN rail and panel mount options for space-efficient cabinet integration
- IP security and motion control support for advanced automation applications

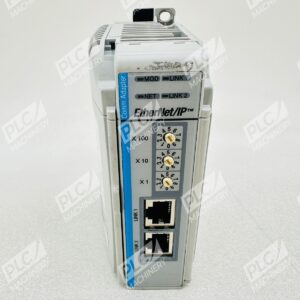

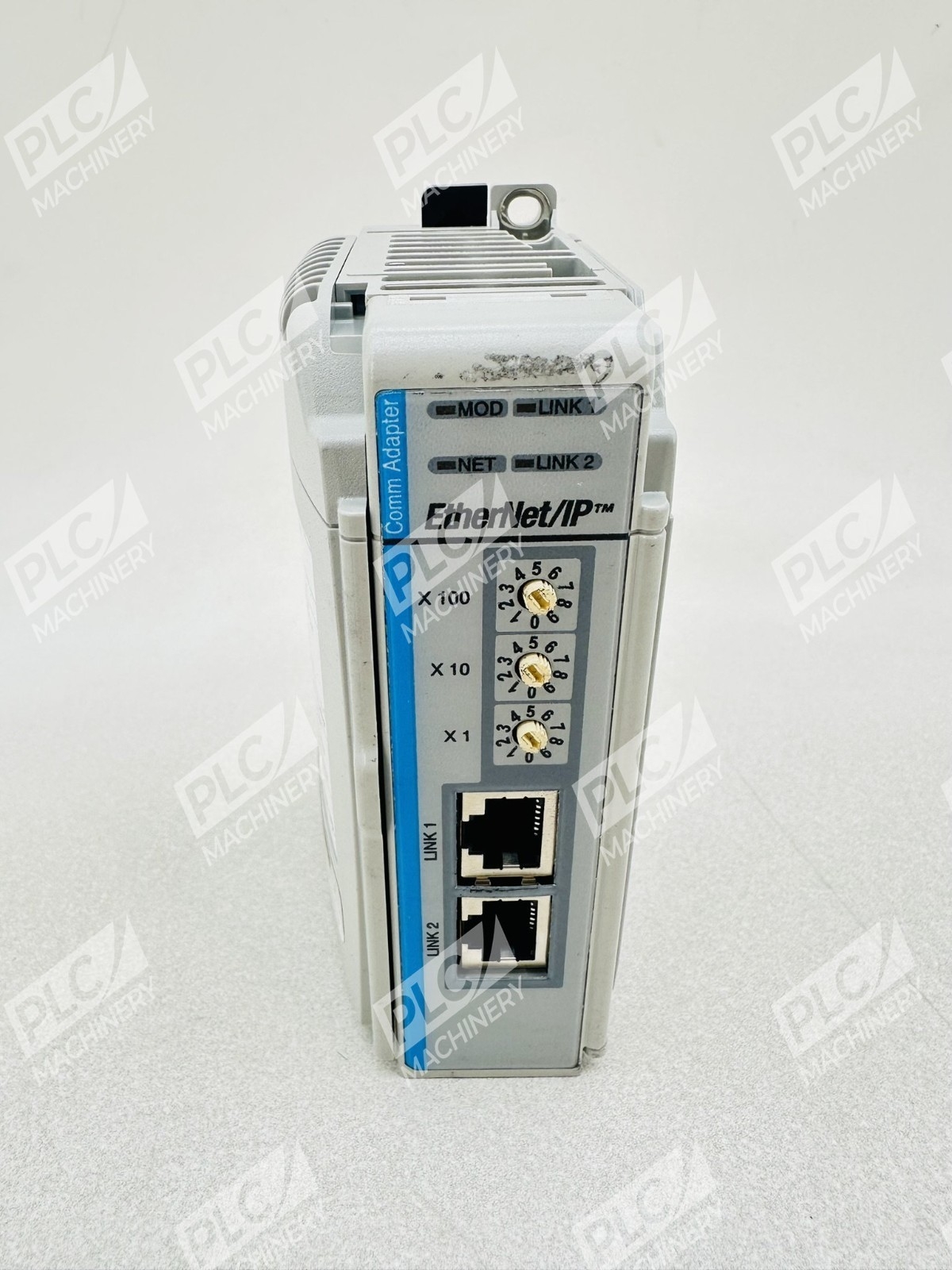

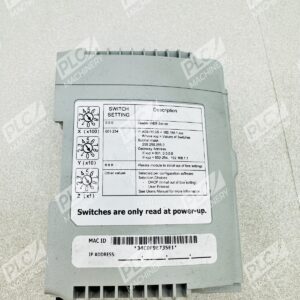

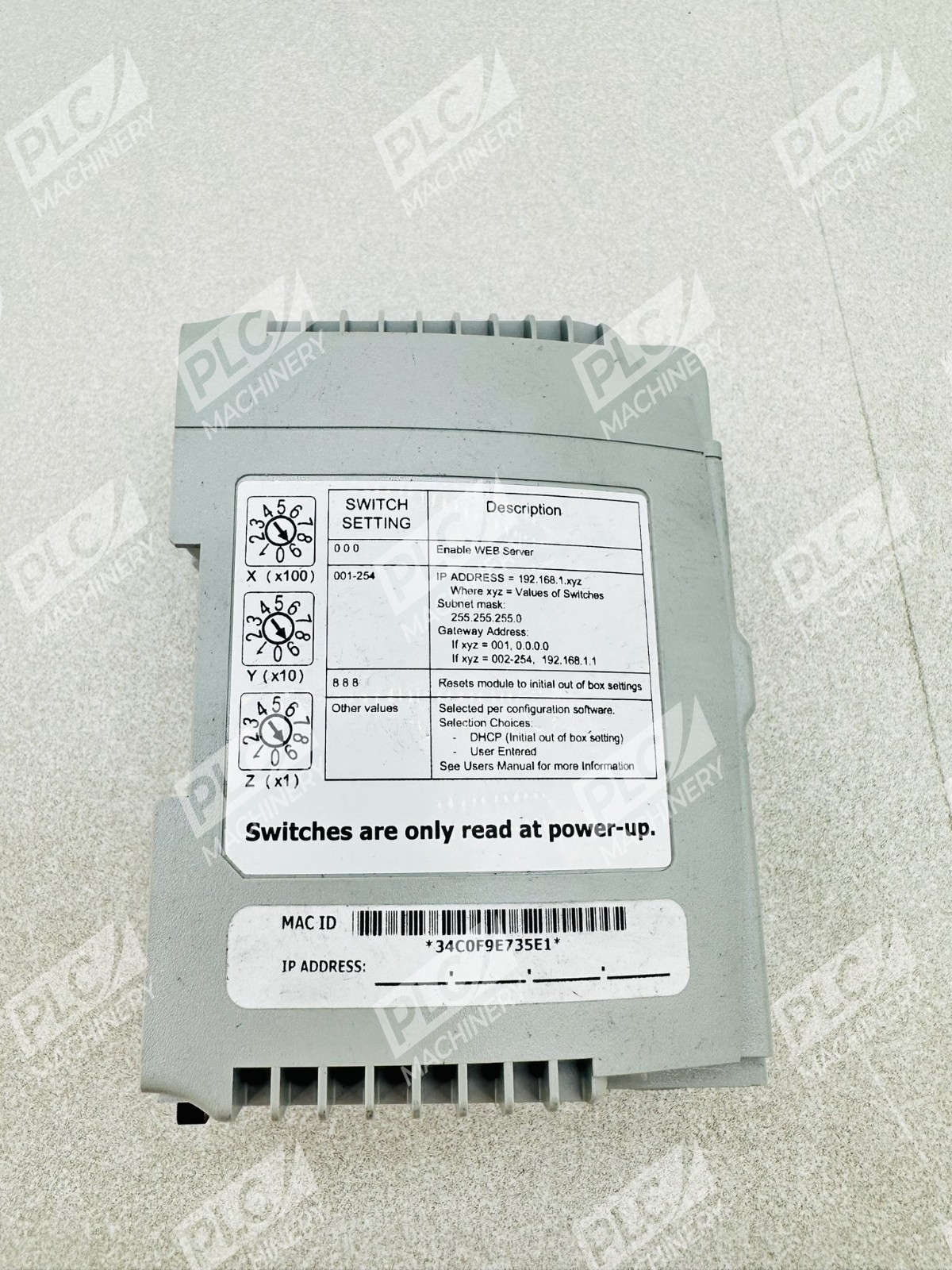

- Rotary switch IP address configuration for simplified setup and commissioning

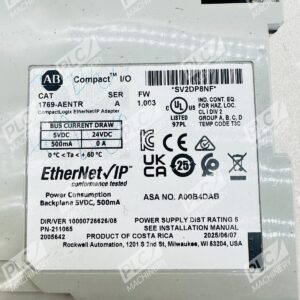

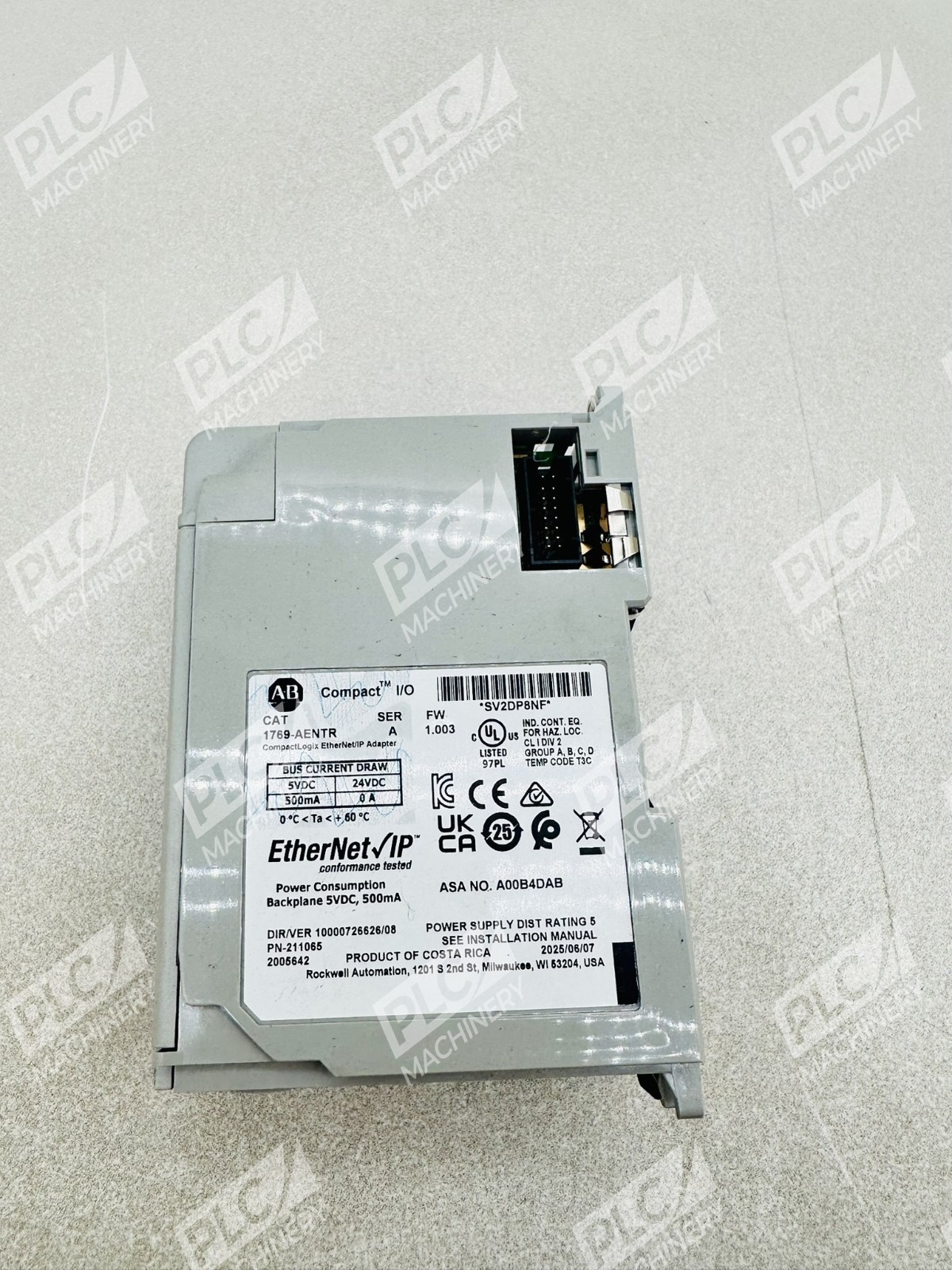

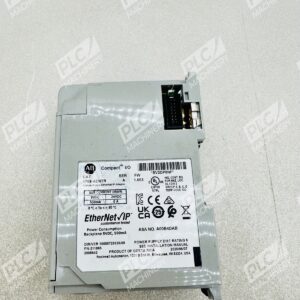

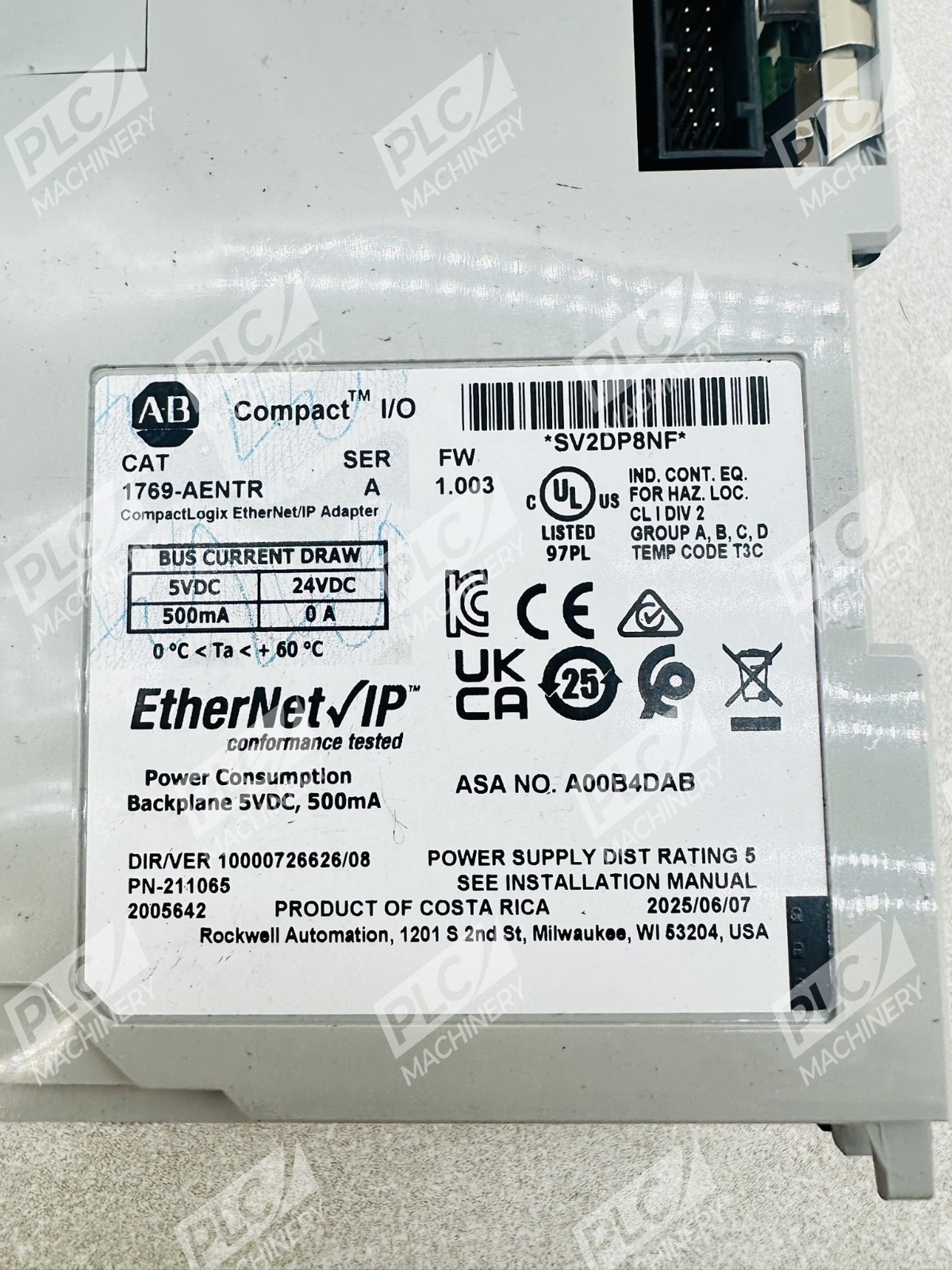

Technical Specifications
- Input Voltage: 24 VDC
- Current Draw: 500 mA
- Communication Rate: 10/100 Mbps
- Ethernet Ports: 2 (dual RJ45 connectors)
- I/O Points: 69
- Logical Connections: 128 EtherNet/IP connections
- TCP/IP Connections: 96

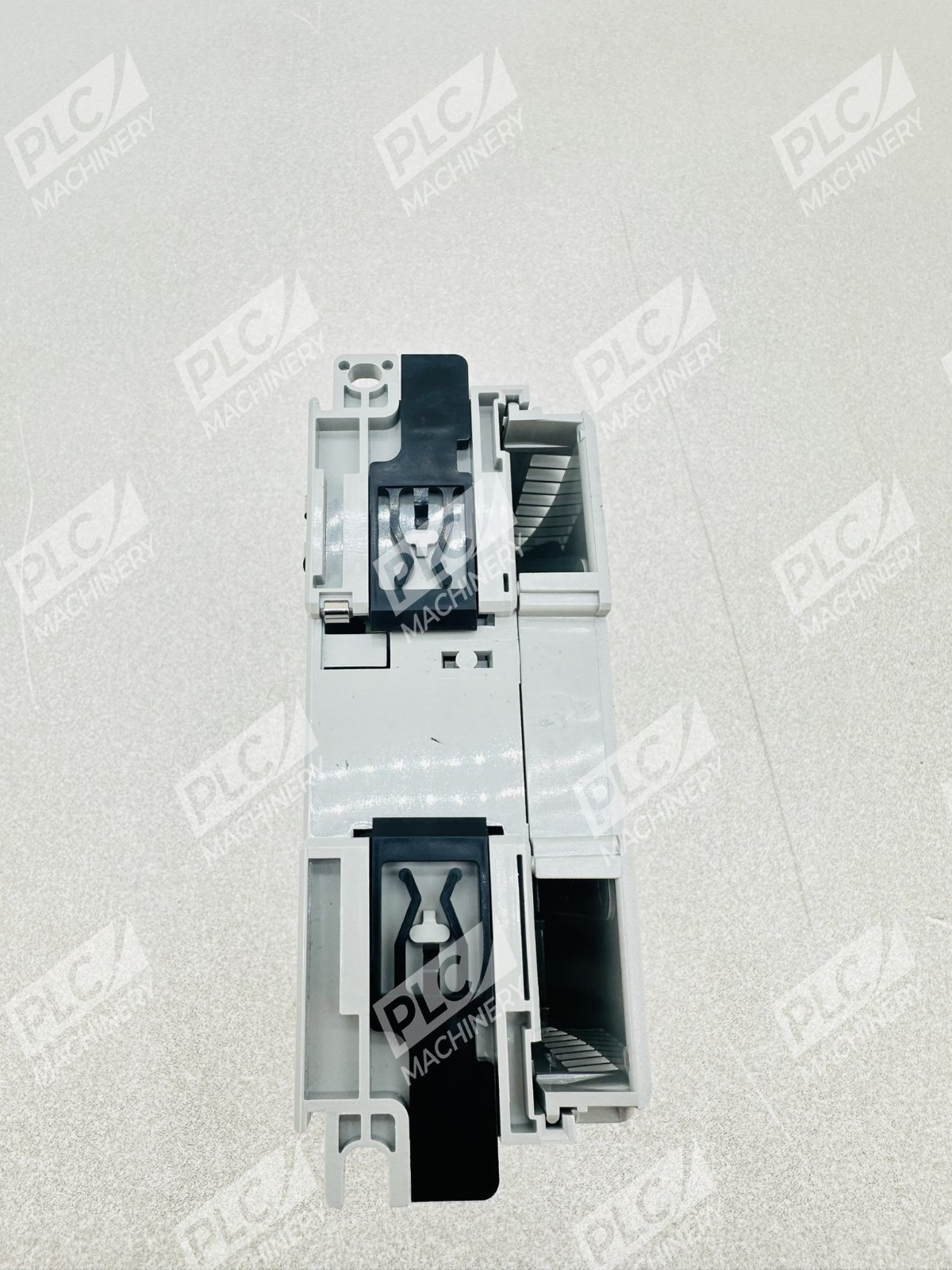

- Mounting: DIN Rail, Panel Mount
- Dimensions: 118 mm H × 87 mm D × 50 mm W (4.65 × 3.43 × 1.97 inches)
- Weight: 0.31–0.69 lbs (0.14–0.31 kg)
- Operating Temperature: 0–60°C (32–140°F)
- Certifications: UL, CE, CUL, CCC, C-TICK, KC
- Compatible Series: Bulletin 1769 Compact I/O
Typical Applications
The 1769-AENTR is well-suited for:
- Distributed I/O systems requiring network-based communication over EtherNet/IP
- CompactLogix controller upgrades that need to preserve existing 1769 I/O investments
- Motion control and servo applications requiring precise, synchronized I/O over Ethernet
- Robotic control systems with multiple input/output points across networked nodes
- Industrial automation plants standardizing on a single, scalable CompactLogix platform
- Integration with PowerFlex drives and other EtherNet/IP-enabled devices via Compact I/O bridge modules
Compatibility & Replacements
Compatible With
- CompactLogix L3x and L5x series controllers
- Bulletin 1769 Compact I/O modules and racks
- EtherNet/IP protocol networks (IEC 61158 compliant)
- Studio 5000 engineering software
- PowerFlex variable frequency drives via Compact I/O gateway modules
- Allen-Bradley PanelView Plus and PanelView 800 HMI terminals
- RSLogix 5000 and Studio 5000 Logix Designer
Replaces / Drop-In Replacement For
The 1769-AENTR Series A serves as the primary EtherNet/IP adapter for the 1769 distributed I/O platform. For historical or equivalent legacy configurations, consult Rockwell Automation documentation or contact your system integrator to verify compatibility before ordering.
Works With
- Studio 5000 Logix Designer engineering environment
- RSLogix 5000 legacy software
- EtherNet/IP protocol and messaging
- Device Level Ring (DLR) topology for redundancy
- Modbus TCP (via open socket capability on some configurations)
- Rockwell Automation CompactLogix Integrated Motion Control
- Compact I/O to PowerFlex DPI/SCANport gateway modules
