Overview

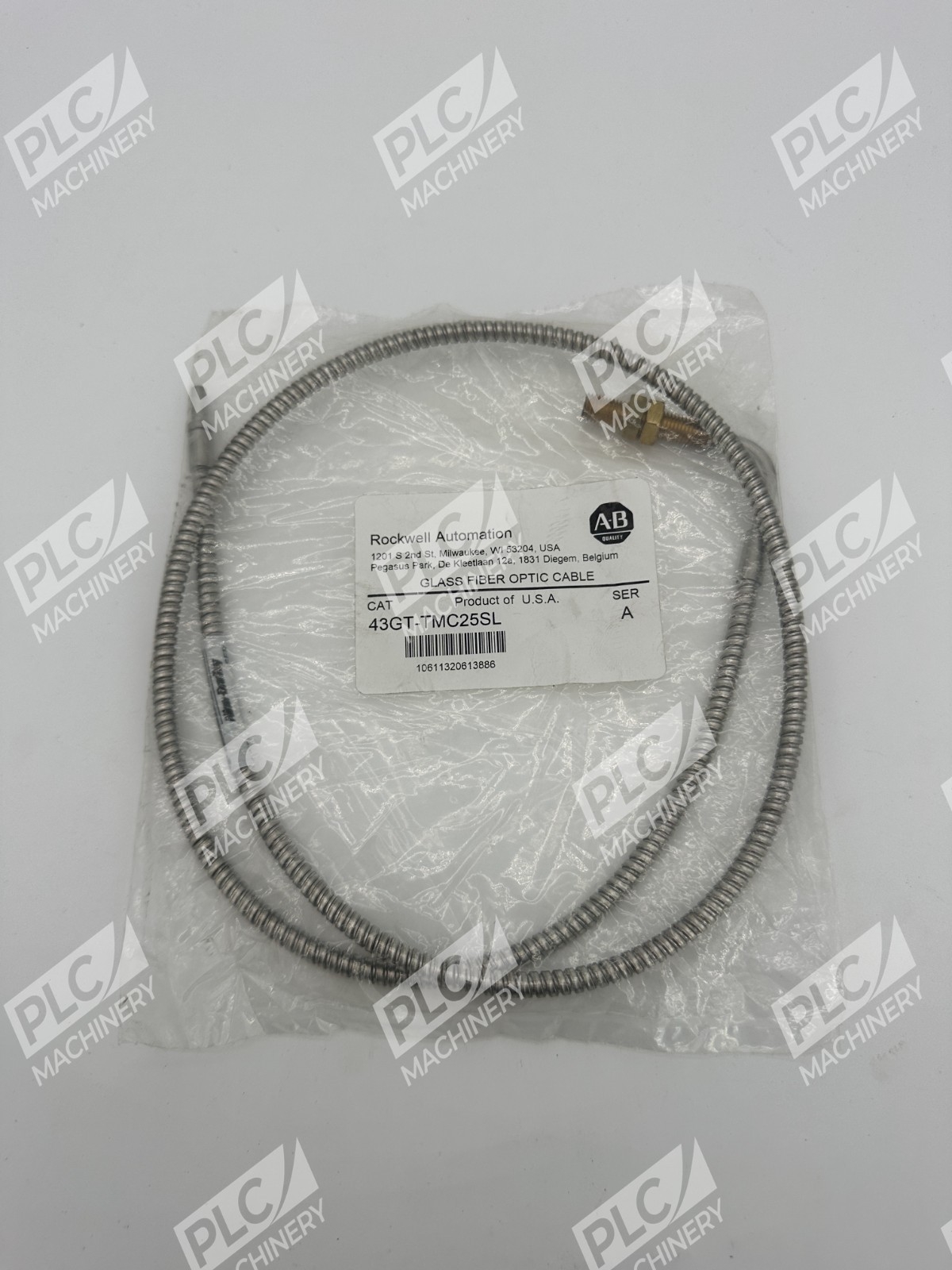

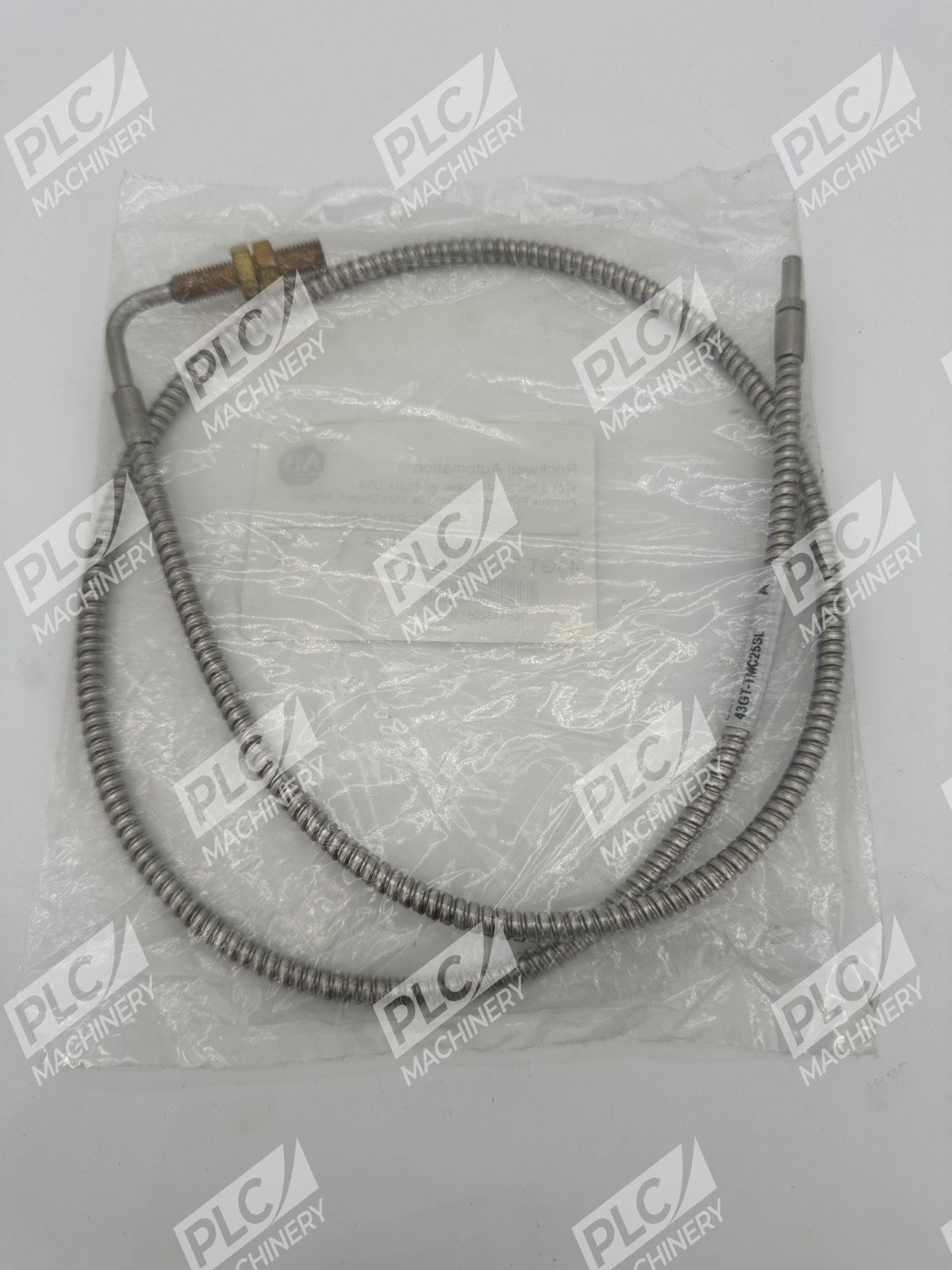

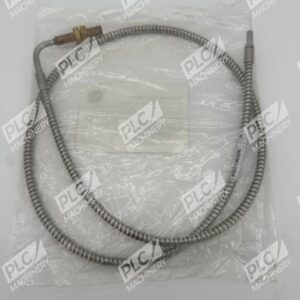

The Allen-Bradley 43GT-TMC25SL glass fiber optic cable is a transmitted beam fiber optic cable engineered for high-temperature industrial sensing applications. This cable features a glass fiber core with combination brass and stainless steel construction, making it ideal for environments requiring durability and thermal performance. Series A designation ensures compatibility with standard Allen-Bradley fiber optic sensor systems.
Key Features
- Transmitted Beam Technology: Optimized for transmitted beam sensing mode with large aperture compatibility
- Glass Fiber Core: 3.2 mm randomized bundle fiber for reliable optical transmission and sensing accuracy
- High-Temperature Rating: 500 degrees F temperature rating for furnace, oven, and hot-surface applications
- Stainless Steel Construction: Brass/stainless steel combination connector with TM right angle threaded 5/16 in. connection
- Flexible Conduit: Stainless steel flexible conduit jacket for mechanical protection and routing flexibility
- Standard Configuration: Standard length of 0.91 m (36 in.) from tip to tip with single sensing tip
Technical Specifications
| Cable Type | Transmitted Beam Glass Fiber Optic |
| Fiber Material | Glass |
| Fiber Bundle Diameter | 3.2 mm (0.125 in.) |
| Fiber Arrangement | Randomized Bundle |
| Standard Length | 0.91 m (36 in.) |
| Connector Type | TM Right Angle Threaded 5/16 in. |
| Connector Material | Combination Brass/Stainless Steel |
| Tip Configuration | One Sensing Tip, Right Angle, Angled |
| Jacket Material | Stainless Steel Flexible Conduit |
| Operating Temperature | 500°F (260°C) |
| Aperture Size | Large Aperture |
| Series | 43GT (Allen-Bradley Series A) |
| Standards/Certifications | CCC, KC |
| Manufacturer | Allen-Bradley / Rockwell Automation |
Typical Applications
- High-temperature furnace and oven sensing
- Metal processing and forging operations
- Industrial flame detection and monitoring
- Heat-resistant object detection and positioning
- Hazardous area object sensing (non-explosion proof)
- Automotive and manufacturing process control
Compatibility & Replacements
Compatible With
- Allen-Bradley large aperture fiber optic sensors
- Rockwell Automation fiber optic receiver modules
- 43GT-series fiber optic sensor systems
- CompactLogix, MicroLogix, and ControlLogix PLCs with fiber optic input modules
- Industrial automation systems requiring transmitted beam sensing
Replaces / Drop-In Replacement For
- Direct replacement for 43GT-TMC25SL (all length variants)
- Functionally equivalent to other 43GT transmitted beam cables with TM connectors
- Verify exact compatibility with your system integrator for specific large aperture applications before ordering
Works With
- Allen-Bradley fiber optic sensor receiver modules (e.g., 42GRU, 42GRP series)
- Studio 5000 Automation Engineering & Design Environment
- RSLogix 5000 and legacy fiber optic configuration tools
- EtherNet/IP and DeviceNet networks via compatible I/O modules
- Rockwell Automation industrial control systems
