Overview

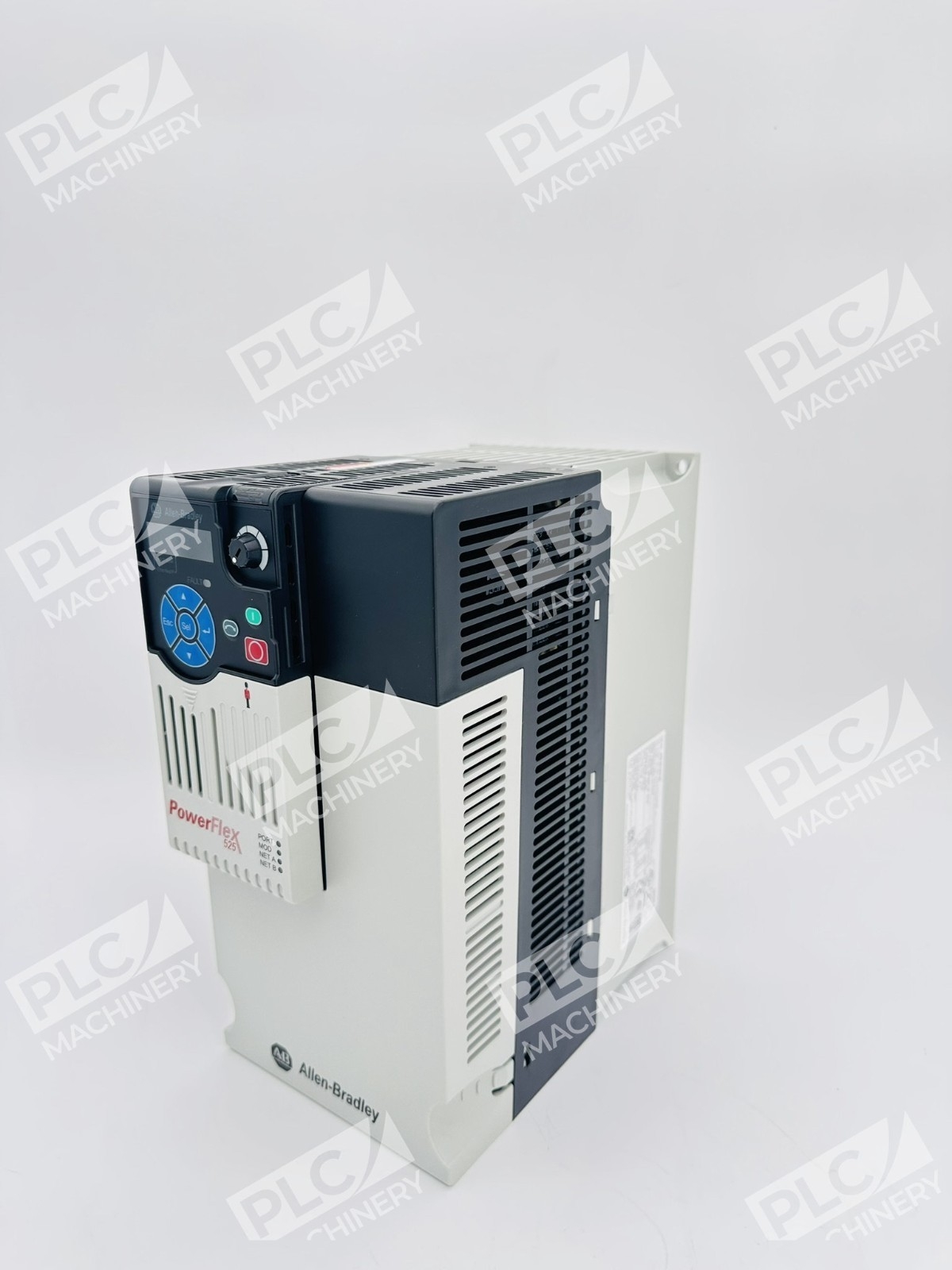

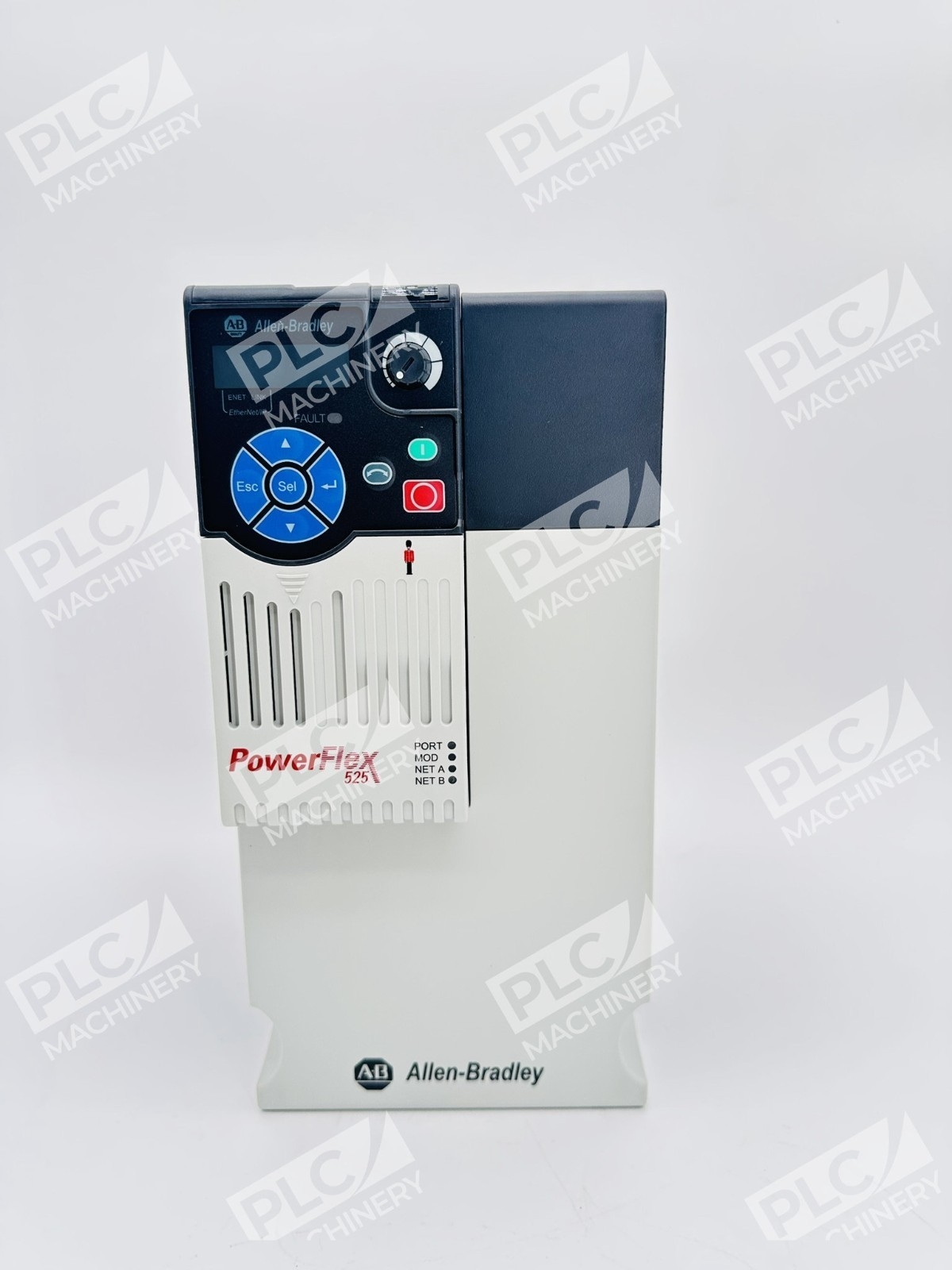

The Allen-Bradley 25B-B032N104 is a PowerFlex 525 AC drive delivering robust variable frequency drive (VFD) control for motors up to 10 HP (7.5 kW). Designed for 200–240 VAC three-phase input with 32.2 A output current, this Frame D drive combines flexible motor control with modern industrial communication protocols. Built-in EtherNet/IP and embedded safety features make it suitable for facility-wide automation networks and SIL 2 / PL d applications.
Key Features
- Embedded EtherNet/IP for direct Logix-based system integration
- Multiple control modes: Volts/Hertz, Sensorless Vector Control (SVC), Economizer SVC, Closed-Loop Vector Control, and Permanent Magnet motor support
- Safe Torque Off (STO) standard, rated SIL 2 / PL d
- Sinusoidal PWM control with 0–500 Hz programmable output frequency

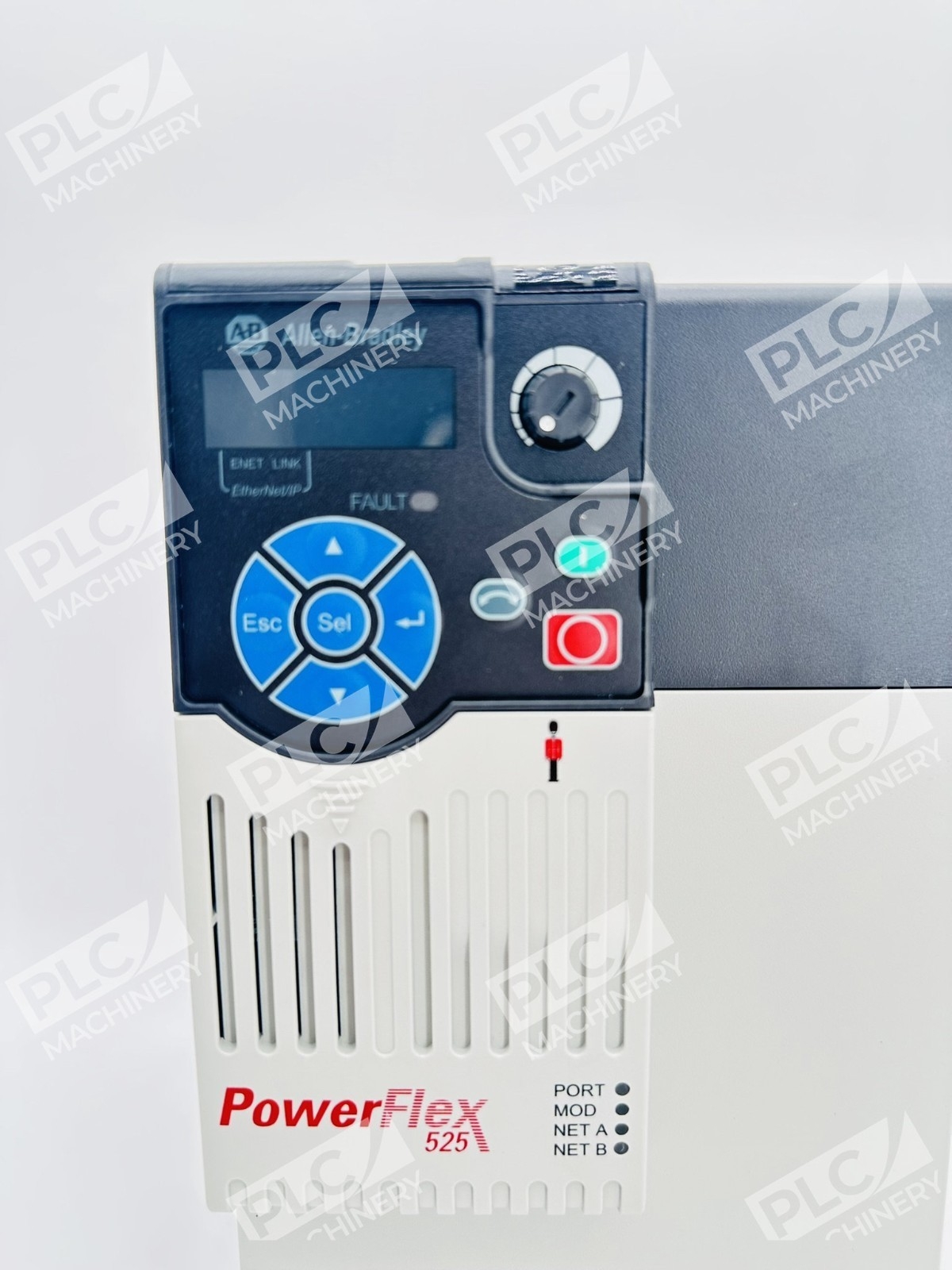

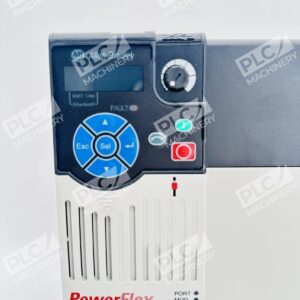

- Built-in Human Interface Module (HIM) with LCD display and keypad for local commissioning
- Seven discrete inputs, two analog inputs, one analog output, plus relay and digital outputs for flexible I/O configuration
- Optional dual EtherNet/IP, DeviceNet, and PROFIBUS DP communication ports
- Fixed terminal block connections; IP20 NEMA Type Open enclosure

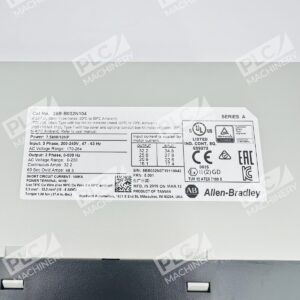

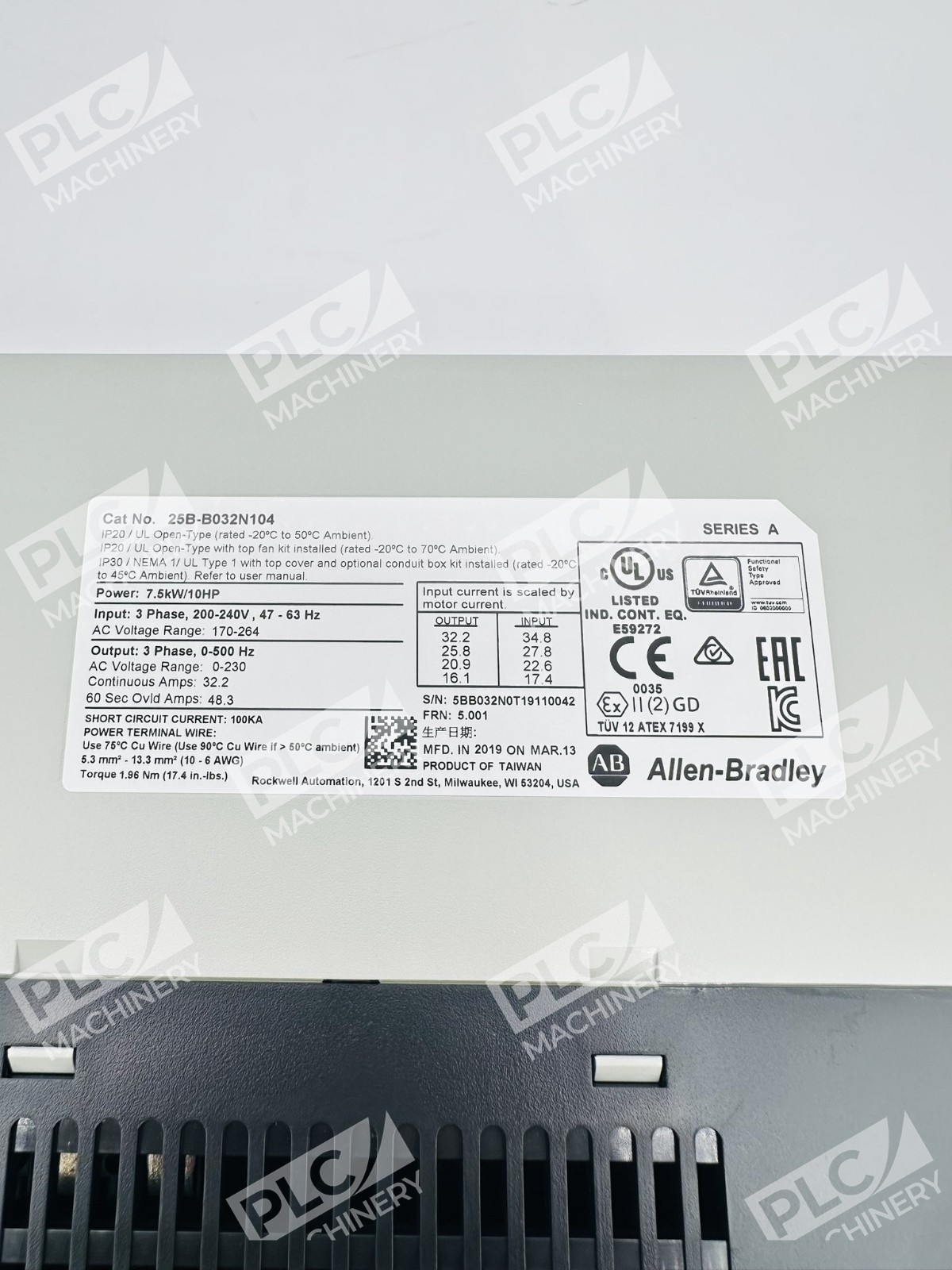

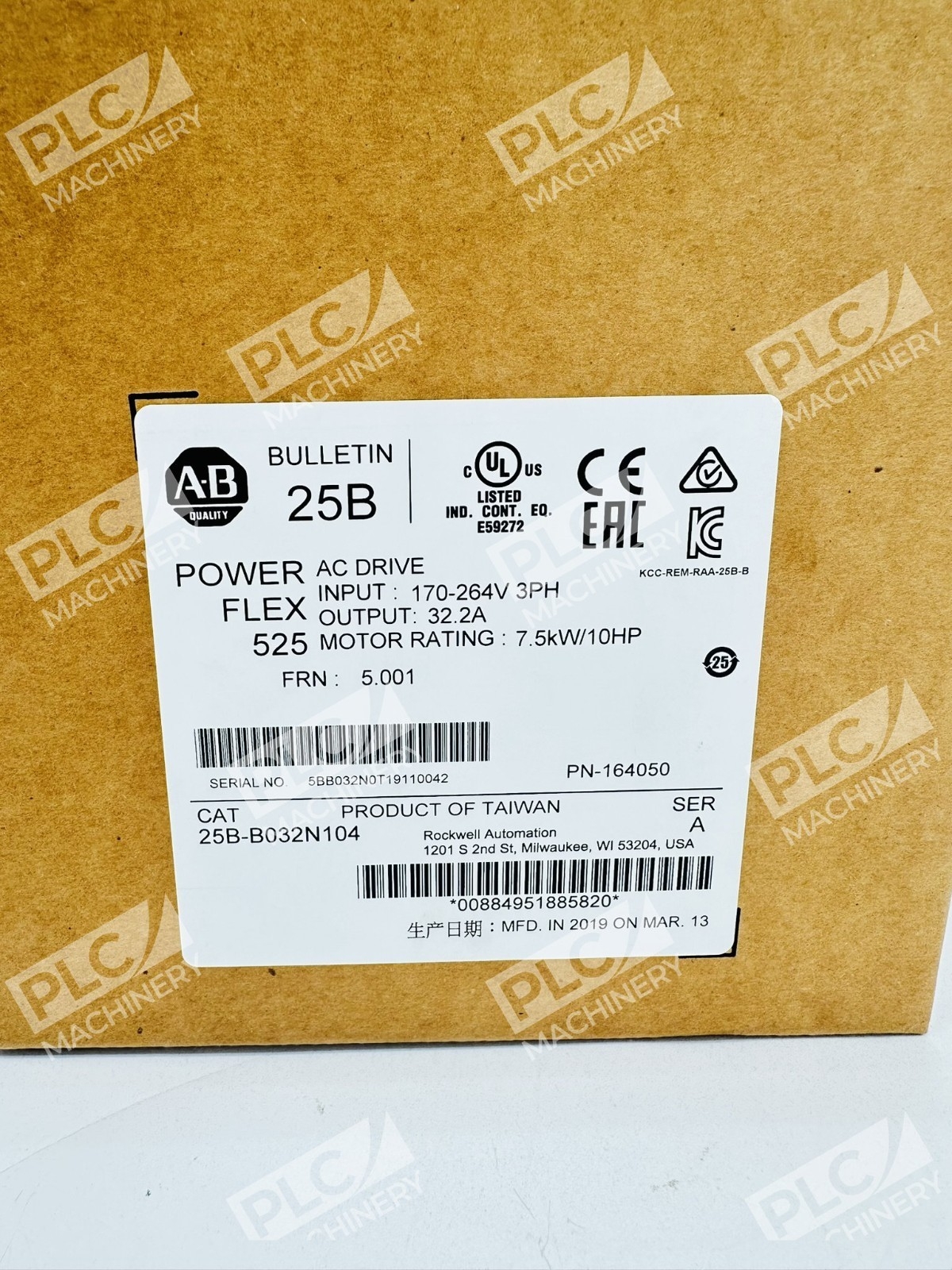

Technical Specifications
- Input Voltage: 200–240 VAC, three-phase
- Output Power Rating: 10 HP (7.5 kW) Normal Duty; 10 HP (7.5 kW) Heavy Duty
- Output Current: 32.2 A
- Output Frequency Range: 0–500 Hz (programmable)
- Control Methods: V/Hz, SVC, Economizer SVC, Closed-Loop VVC, PM motor control
- Primary Communication: Embedded EtherNet/IP; RS485/DSI serial port
- Optional Protocols: Dual EtherNet/IP, DeviceNet, PROFIBUS DP, MODBUS
- Discrete I/O: 7 inputs, 2 analog inputs, 1 analog output, multiple relay/digital outputs
- Enclosure Rating: IP20, UL-NEMA Type Open

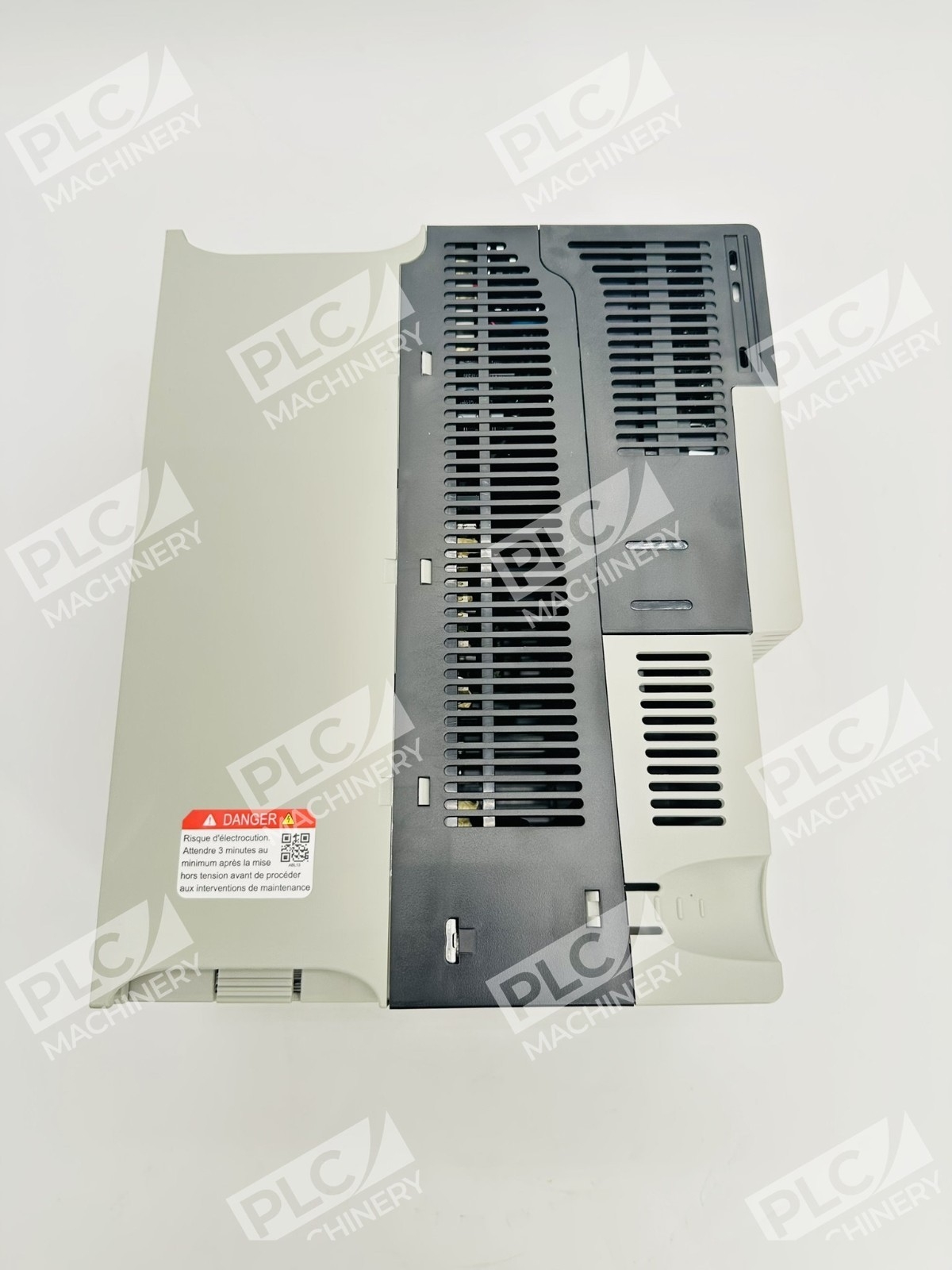

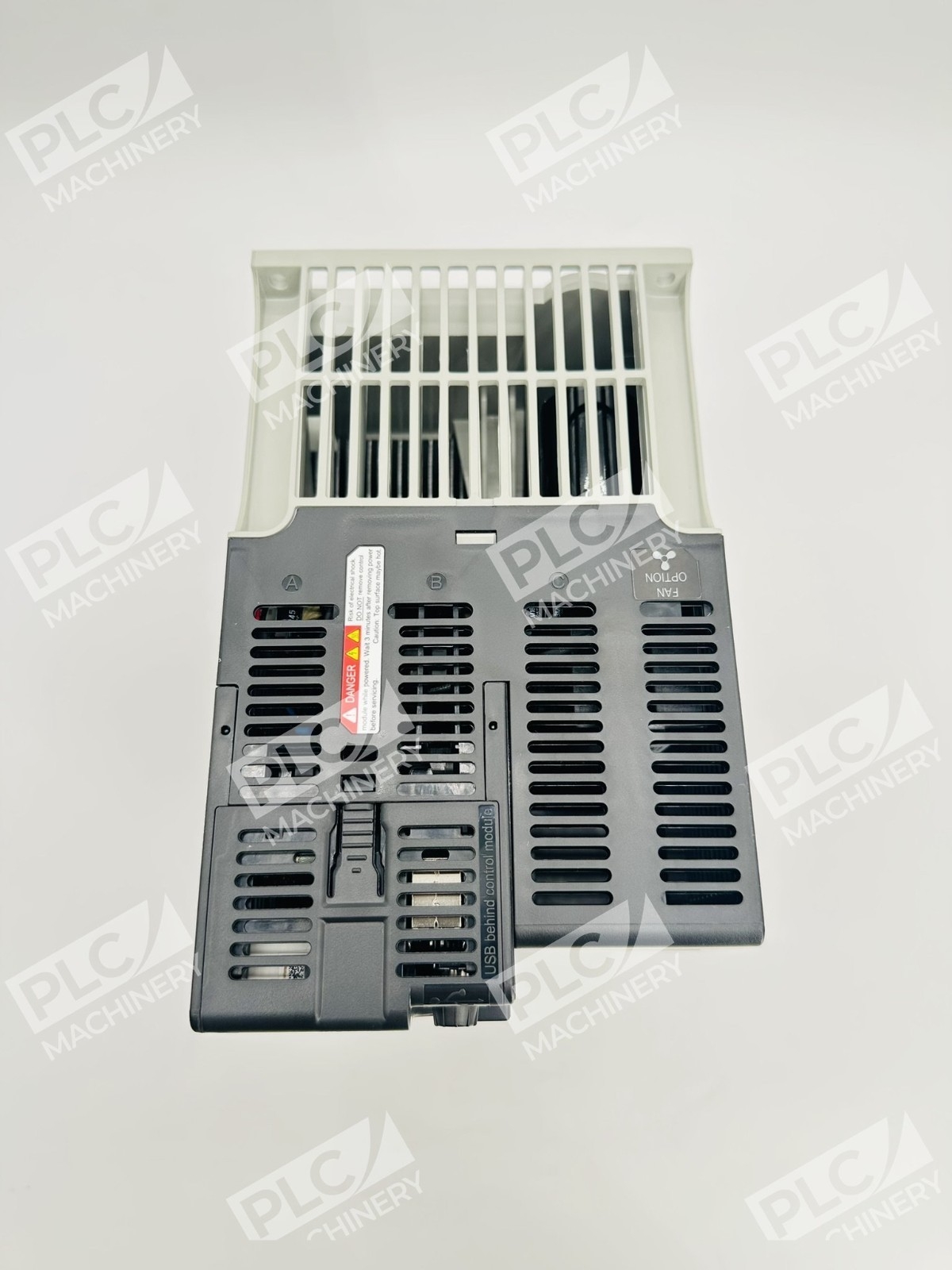

- Frame: Frame D

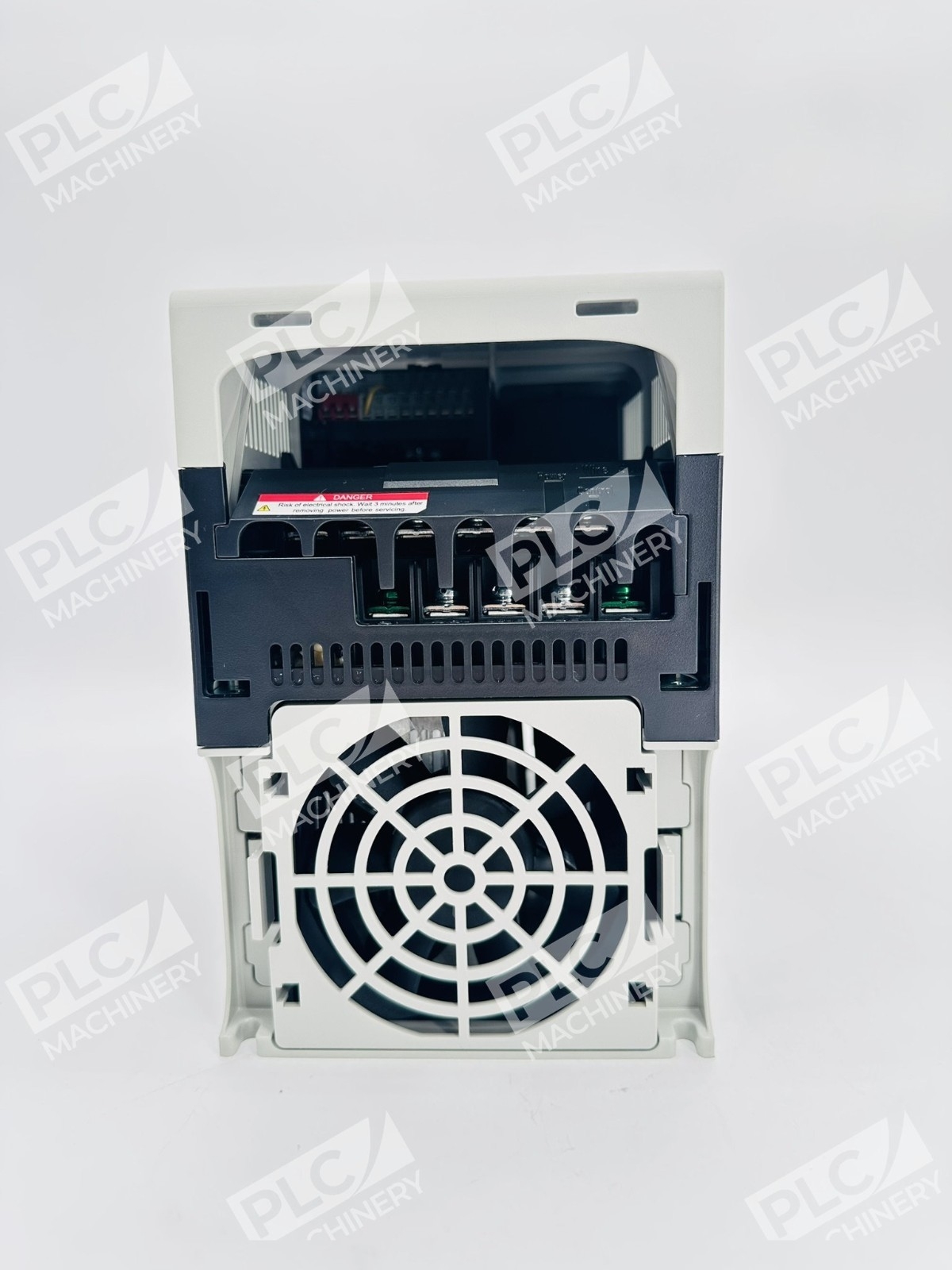

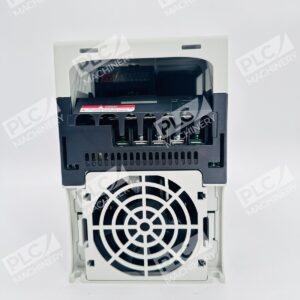

- Connection Type: Fixed terminal block
- Safety: Safe Torque Off (STO) standard, SIL 2 / PL d rated
Typical Applications
The 25B-B032N104 is widely deployed in industrial motion control systems including fan and pump speed modulation, conveyor belt acceleration control, compressor load management, and process machinery requiring variable torque. Its EtherNet/IP integration makes it ideal for facilities standardized on Logix control platforms, while the modular design supports easy expansion and fast commissioning in both retrofit and new automation projects.
Compatibility & Replacements
Compatible With
- CompactLogix, ControlLogix, and other Logix-based controllers via EtherNet/IP
- Studio 5000 (RSLogix 5000) automation software
- EtherNet/IP industrial networks and PROFINET systems
- DeviceNet and PROFIBUS DP master devices (with optional modules)
- Three-phase AC induction motors rated 10 HP (7.5 kW) and below
- Permanent magnet synchronous motors (with appropriate encoder configuration)
Replaces / Drop-In Replacement For
- Previous PowerFlex 525 models in the 10 HP class; verify frame and mounting compatibility before ordering
- Consult Rockwell Automation documentation or your system integrator to confirm specific model interchangeability
Works With
- Studio 5000 / RSLogix 5000 design and commissioning software
- EtherNet/IP communication protocol and network infrastructure
- Optional DeviceNet scanner and PROFIBUS DP gateway modules
- Safe Torque Off (STO) safety functions in SIL 2 / PL d architectures
- Rockwell Automation MES and data collection platforms via industrial networks
