Overview

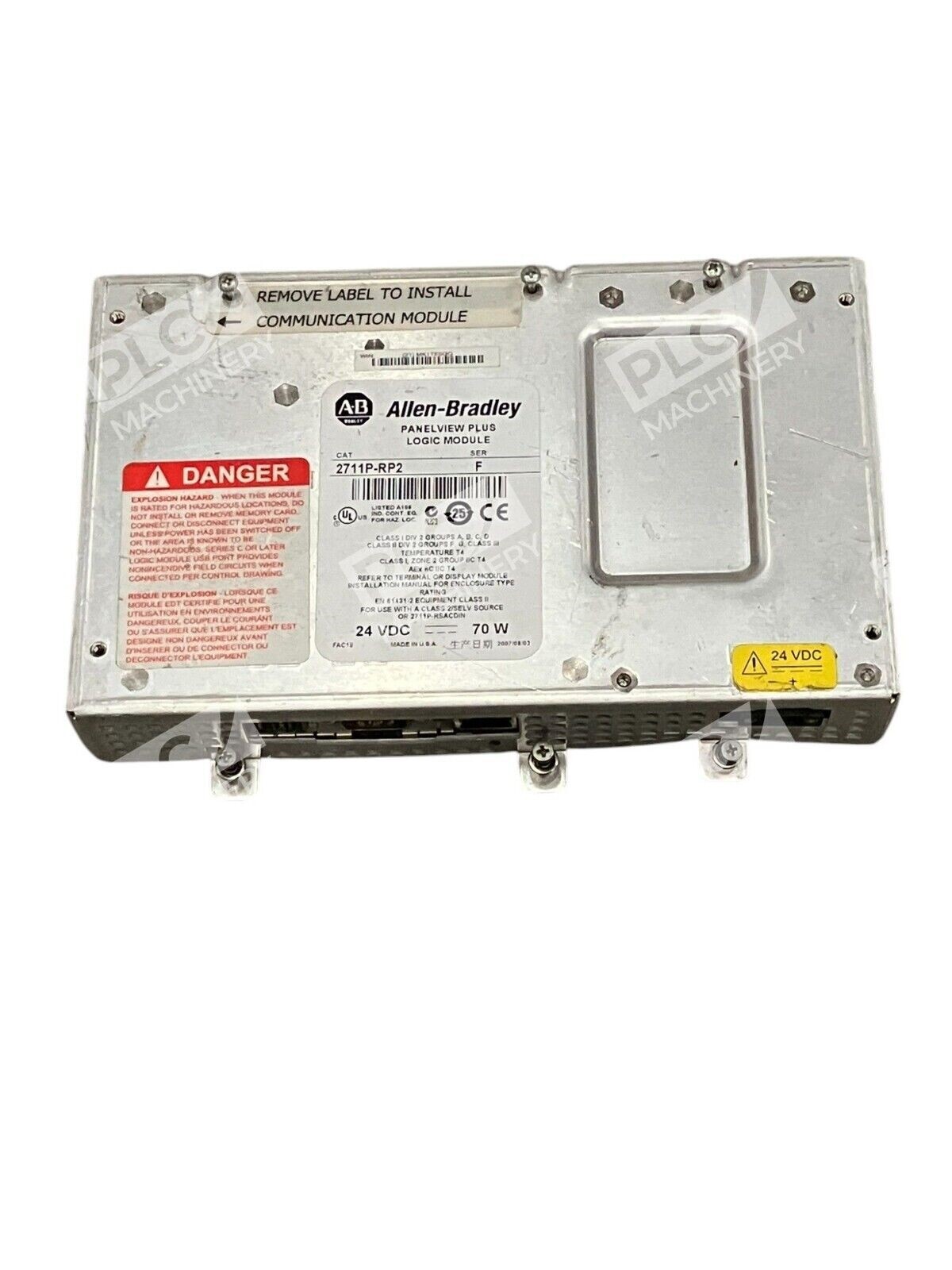

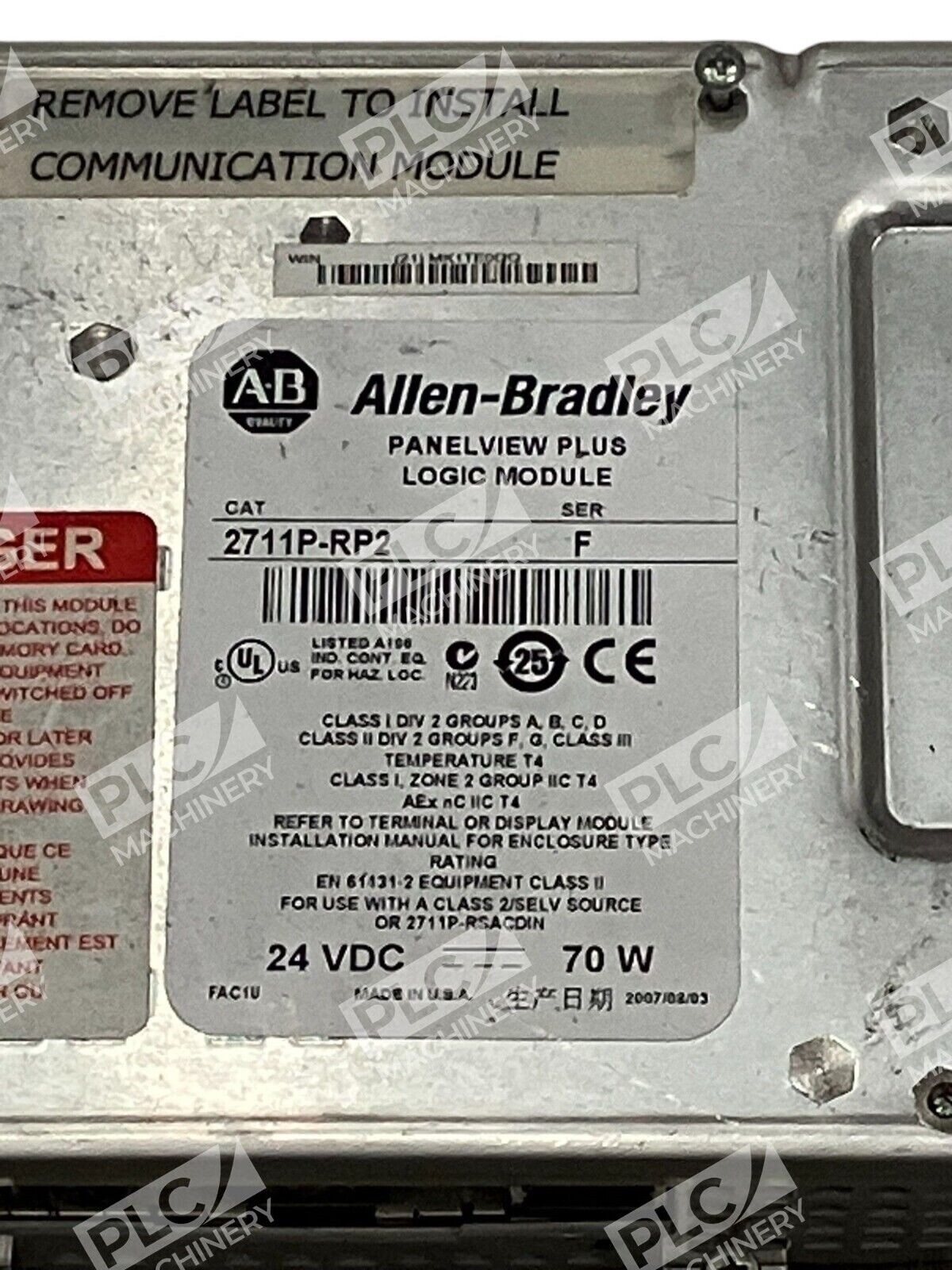

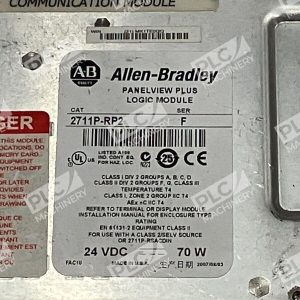

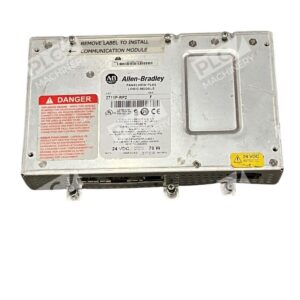

The Allen-Bradley 2711P-RP2 /F is a logic module designed to provide embedded processing, memory, and communications for PanelView Plus operator terminals. As a Series F variant, this module combines the PanelView Plus family’s field-proven architecture with enhanced processor capabilities and dual-channel memory (128 MB RAM + 128 MB flash) to support complex single-application HMI deployments in packaging, food processing, discrete manufacturing, and other industrial sectors.
Key Features
- 128 MB upgradable RAM and 128 MB flash memory for robust onboard application storage
- 24 VDC power input, 70 W maximum rating—efficient DC-powered design
- One Ethernet port, one RS-232 serial port, and two USB ports for multi-protocol connectivity
- CompactFlash card slot for extended storage and firmware updates
- Single-application optimized with ViewPoint compatibility for FactoryTalk View ME
- Series F design compatible with FactoryTalk View ME 4.0 software
Technical Specifications
| Part Number | 2711P-RP2 /F |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Type | Logic Module (HMI Processor) |
| Memory – RAM | 128 MB |
| Memory – Flash | 128 MB |
| Power Supply | 24 VDC external |
| Power Consumption | 70 W maximum |
| Communication Ports | 1 × Ethernet, 1 × RS-232 serial, 2 × USB 2.0 |
| Storage Expansion | CompactFlash card slot |
| Compatible Terminals | PanelView Plus CE 700, 1000, 1250, 1500 |
| Software Compatibility | FactoryTalk View ME 4.0, Windows Embedded CE 3.0–4.1 |
| Status Indicators | Red (FAULT) and Green (COMM) LED |
| Series | Series F (also available A–G) |
| Weight | 2.01 lbs (0.91 kg) |
Typical Applications
- Single-application HMI deployments in manufacturing lines requiring local data processing and visualization
- Packaging equipment with integrated logic and operator interface for recipe management and production monitoring
- Food processing systems using local FactoryTalk View ME applications with Ethernet gateway capabilities
- Discrete manufacturing and assembly equipment requiring reliable onboard processing without centralized PLC dependency
- Legacy system upgrades and drop-in replacements for existing PanelView Plus 700–1500 terminals
Compatibility & Replacements
The 2711P-RP2 /F is a direct-mount logic module for PanelView Plus operator terminals (Series F matches later Series A–E hardware and software; Series G is the current production generation). This module replaces the 2711P-RP1 (which has only 64 MB RAM/flash). The 2711P-RP2D is an alternative variant featuring an isolated DC power supply rated 18–32 VDC with integrated battery-backed clock—use it when external power source isolation is required.
Installation note: Logic and display modules must be connected before terminal operation. The module is sensitive to electrostatic discharge (ESD); wear an ESD wristband during installation. Do not confuse with PanelView Plus 6 series—this module is not compatible with PanelView Plus 6 terminals.
