Overview

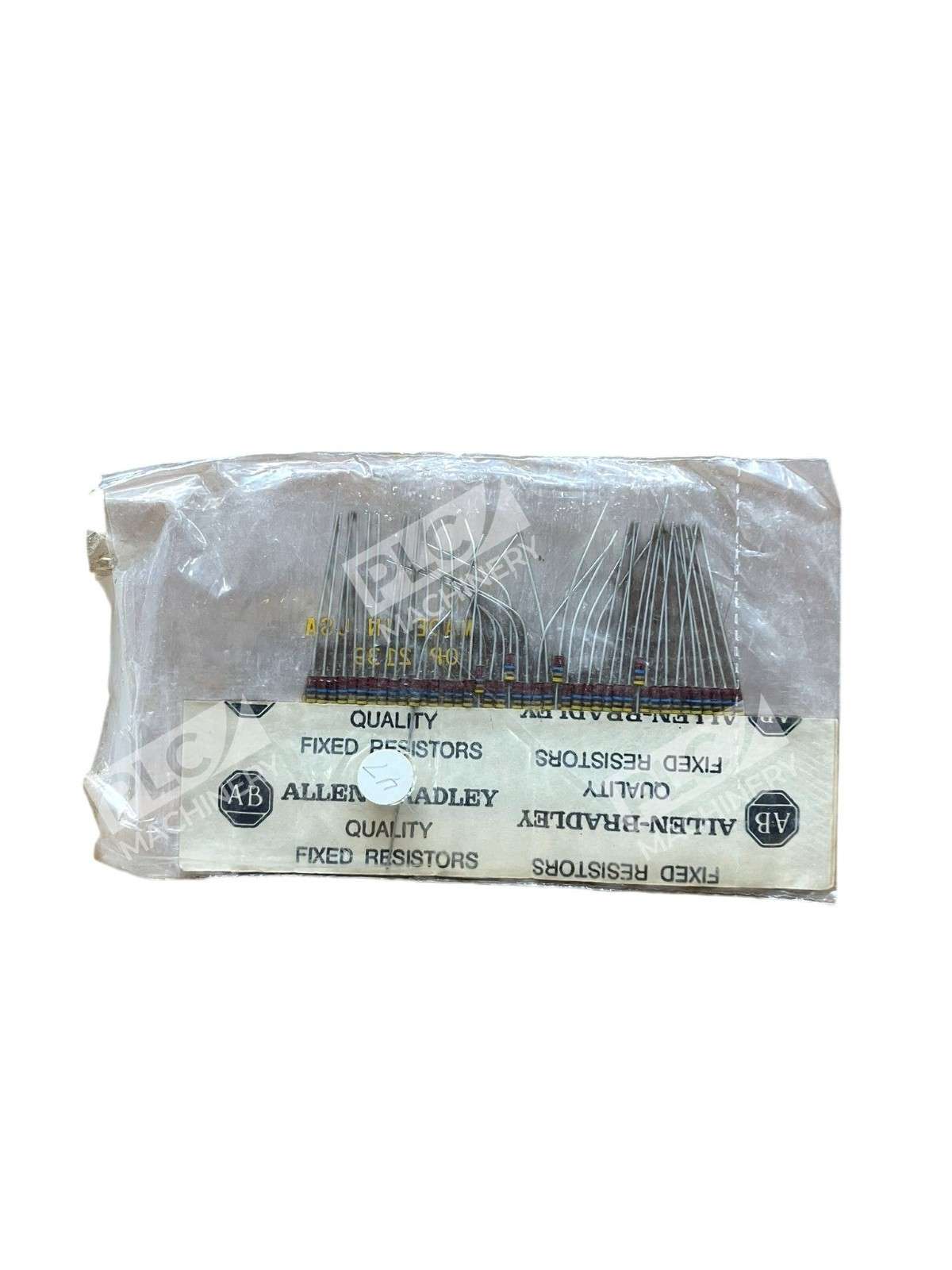

The Allen-Bradley RCR07G226JS is a high-reliability carbon composition resistor designed for demanding industrial and military applications. Each resistor delivers 22 MΩ of resistance at 0.25W power dissipation with ±5% tolerance. Offered as a lot of 40 units, these through-hole mount components provide dependable performance in legacy equipment maintenance, circuit board repair, and prototype development. The RCR designation indicates military-grade established reliability, making these resistors ideal for systems requiring consistent, proven performance.
Key Features
- Resistance Value: 22 MΩ (22,000,000 Ω)
- Power Rating: 0.25 W
- Tolerance: ±5%
- Construction: Hot-molded carbon composition with embedded copper leads
- Mount Type: Through-hole axial
- Quantity: 40 units per package
- Condition: New in box
Technical Specifications
The RCR07G226JS combines proven carbon composition technology with military-grade reliability standards. The hot-molded construction delivers excellent mechanical strength and temperature stability across a wide operating range. Oxygen-free copper leads ensure reliable solder connections. These resistors are non-magnetic and non-inductive, making them suitable for precision measurement circuits and high-frequency applications where parasitic effects must be minimized.
Typical Applications
- Legacy industrial control system maintenance and repair
- Military and aerospace equipment retrofit
- High-impedance signal conditioning circuits
- Bias network and voltage divider applications
- Measurement instrumentation circuits
- Prototype development and breadboarding
Compatibility & Replacements
The RCR07G226JS is manufactured to MIL-R-39008 specifications for established reliability. While direct interchangeability with modern film resistors exists, these carbon composition units preserve the exact electrical and mechanical characteristics of original designs. When upgrading legacy systems, film resistor equivalents such as Vishay Dale RWR or RLR series may be suitable alternatives, though differences in temperature coefficient and noise characteristics should be evaluated for your specific application. For exact replacements in critical systems, Allen-Bradley carbon composition resistors remain the preferred choice. Confirm availability and lead times before specifying replacements in new designs.
