Overview

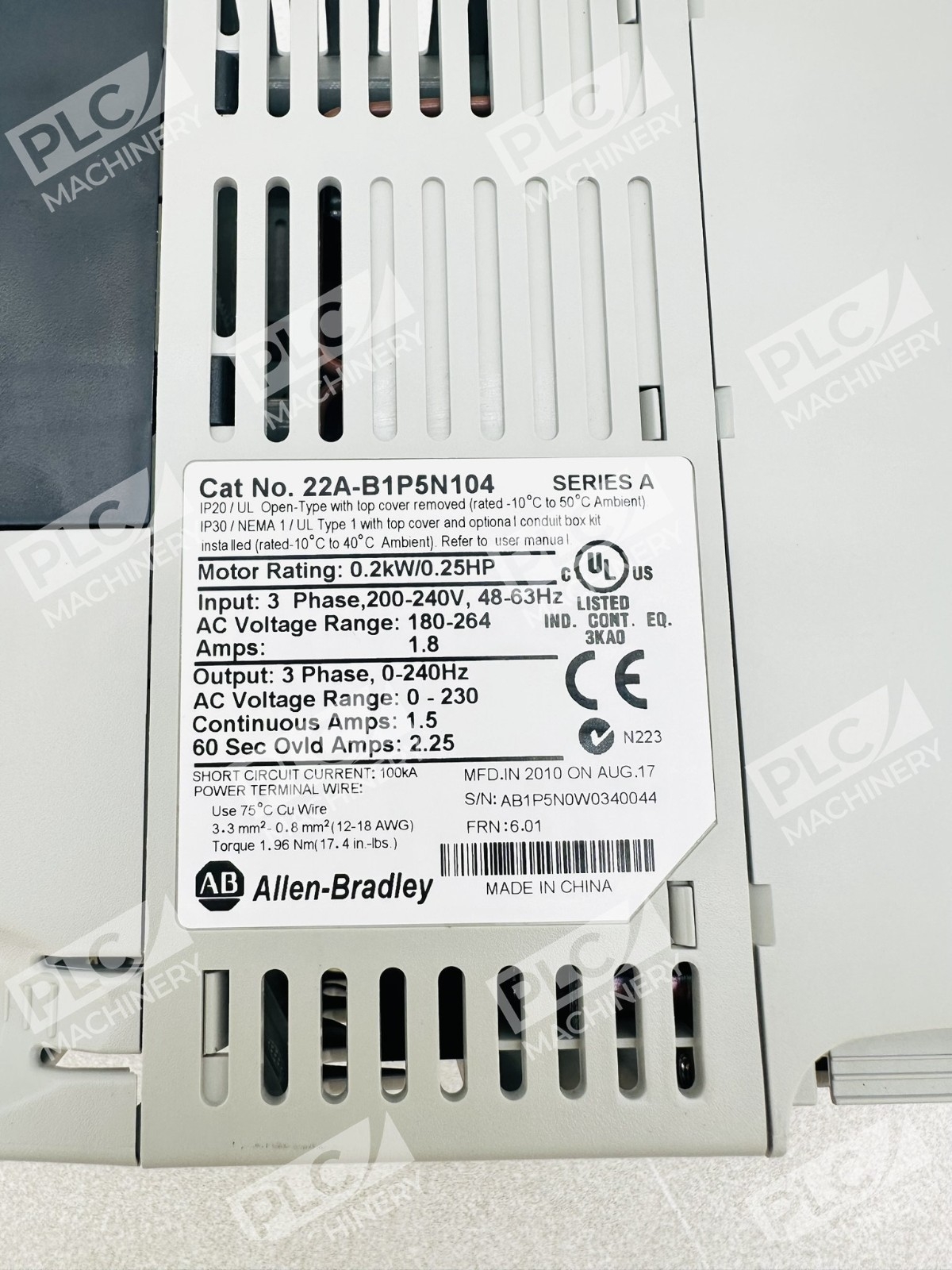

The Allen-Bradley 22A-B1P5N104 is a PowerFlex 4 series variable frequency AC drive engineered for reliable motor speed control in compact industrial applications. This three-phase drive operates on 200-240V AC power (50/60 Hz, no filter) and delivers 0.2 kW (0.25 HP) at 1.5 A output with IP20, NEMA/UL Type 1 open enclosure. The PowerFlex 4 is designed as a cost-effective alternative for speed control of applications such as machine tools, fans, pumps, conveyors, and material handling systems.
Key Features
- Compact Frame A form factor minimizes panel space requirements
- Sensorless vector control provides stable speed regulation even under variable load conditions
- Integral keypad with local potentiometer and control keys active right out of the box
- Ten LED indicators display drive status and operational information
- Integral filtering available; external filters provide compliance to Class A and B requirements
- RS-485 communication port for multi-drop network integration via DF1 protocol
Technical Specifications
Input: 200-240V AC, 3-phase, 50/60 Hz | Output: 0.2 kW (0.25 HP) at 1.5 A | Enclosure: IP20, NEMA/UL Type 1 Open | No integral filter. Operating ambient temperature range is -10 to 50°C with 0–95% non-condensing relative humidity.
Typical Applications
- Machine tool spindle drives requiring variable speed control
- Centrifugal pump and fan motor speed regulation
- Conveyor system variable frequency control
- Light material handling and automation systems
Compatibility & Replacements
Compatible With
- Three-phase AC motors rated 0.2–0.25 kW at 200–240V, 50/60 Hz
- 24 VDC control logic and external switching devices
- DF1 serial protocol for communication via RS-485 port
- DIY standalone operation via integral keypad and local potentiometer
Replaces / Drop-In Replacement For
- Earlier PowerFlex 4 Series A models in the same Frame A, 0.2 kW class
- Other compact 3-phase no-filter drives of equivalent voltage and output rating
Works With
- Allen-Bradley ControlLogix and CompactLogix controllers via DF1 gateway
- RS-485 serial networks in multi-drop configurations
- Standard PowerFlex 4 programming tools and firmware updates
- Rockwell Automation parameter backup/restoration utilities
