Overview

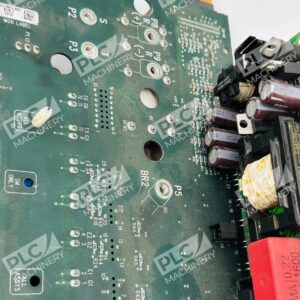

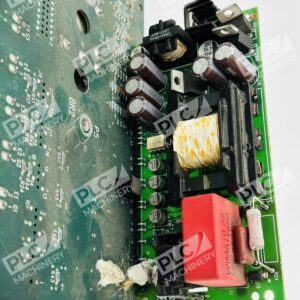

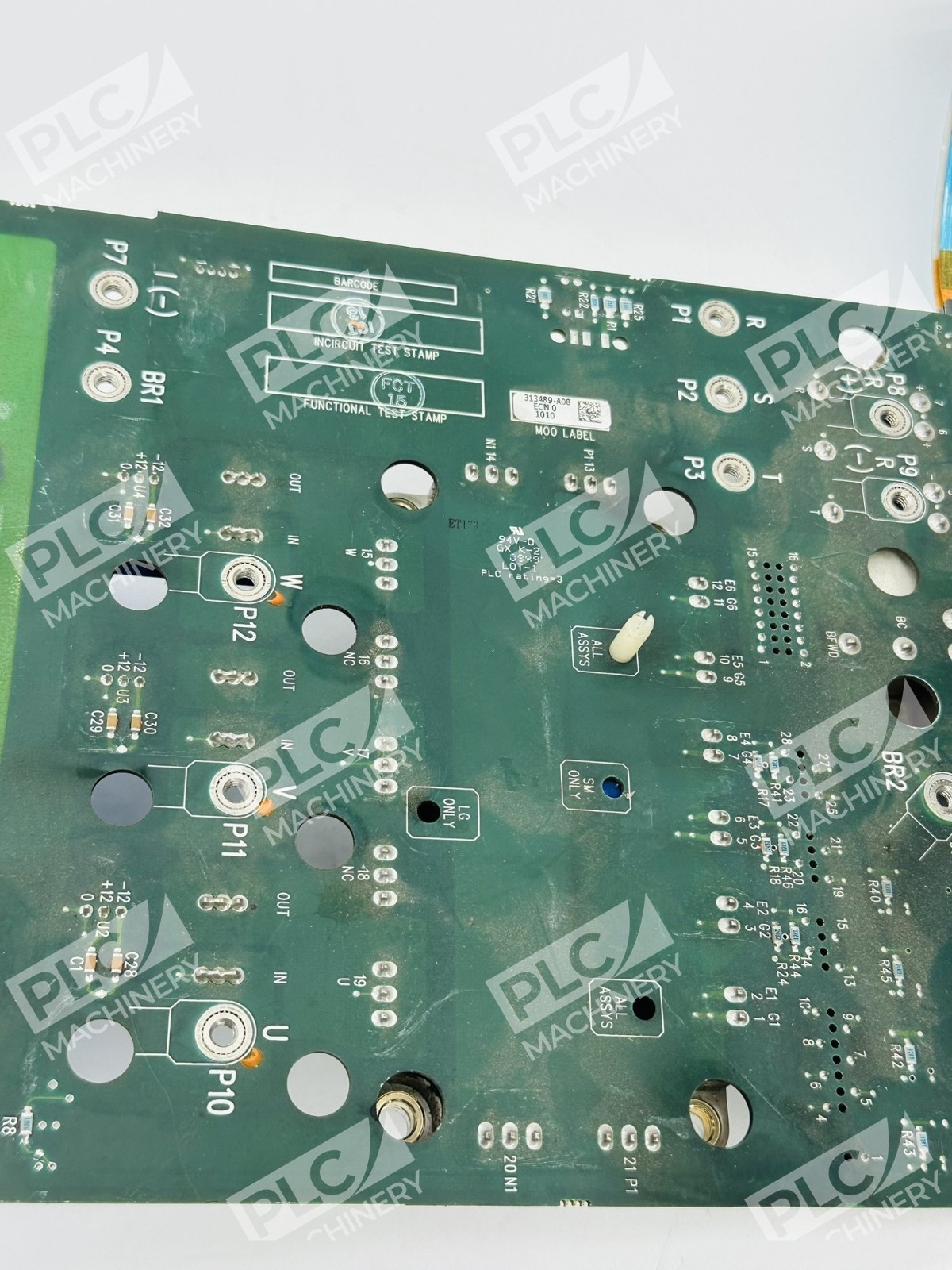

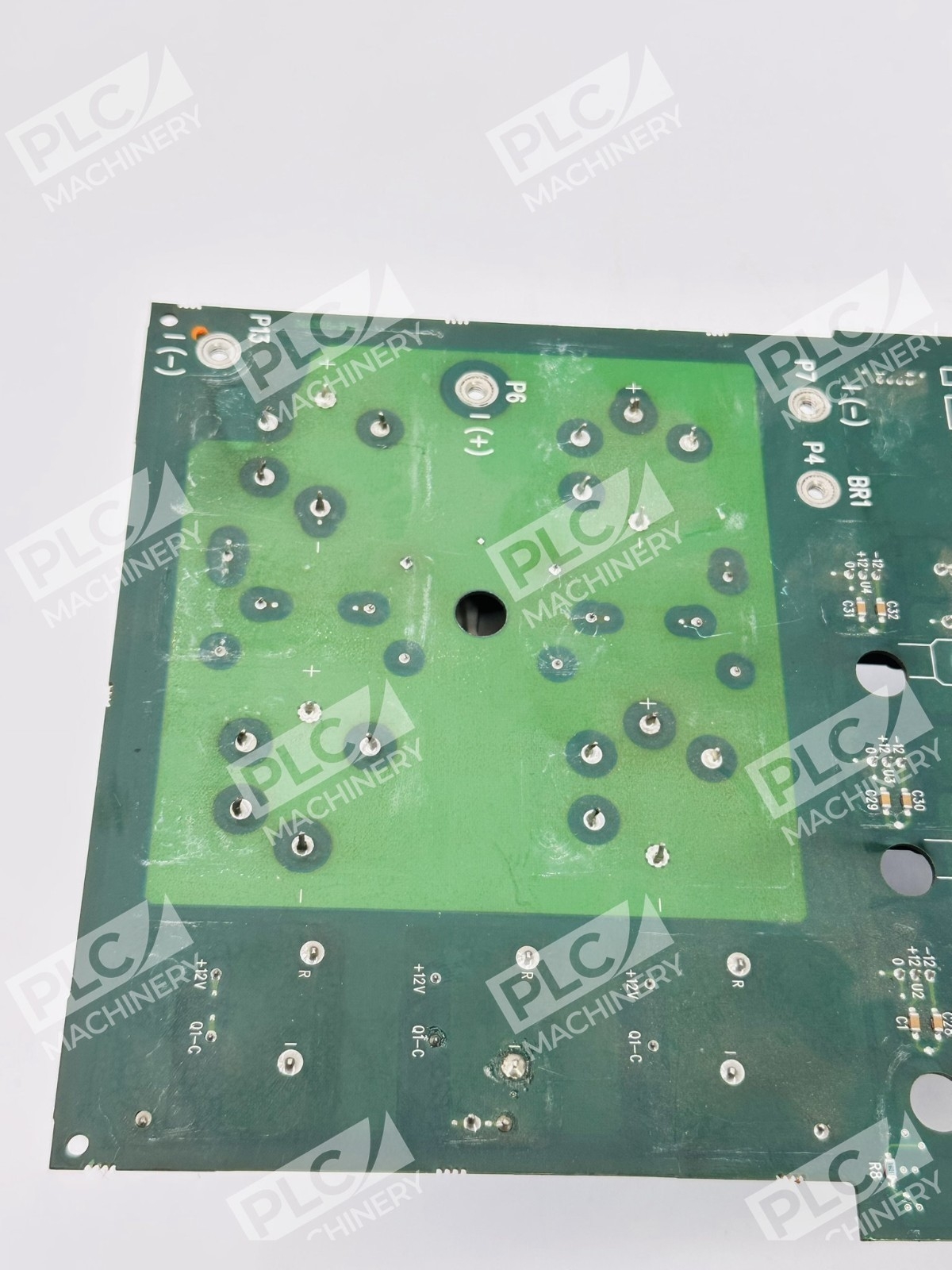

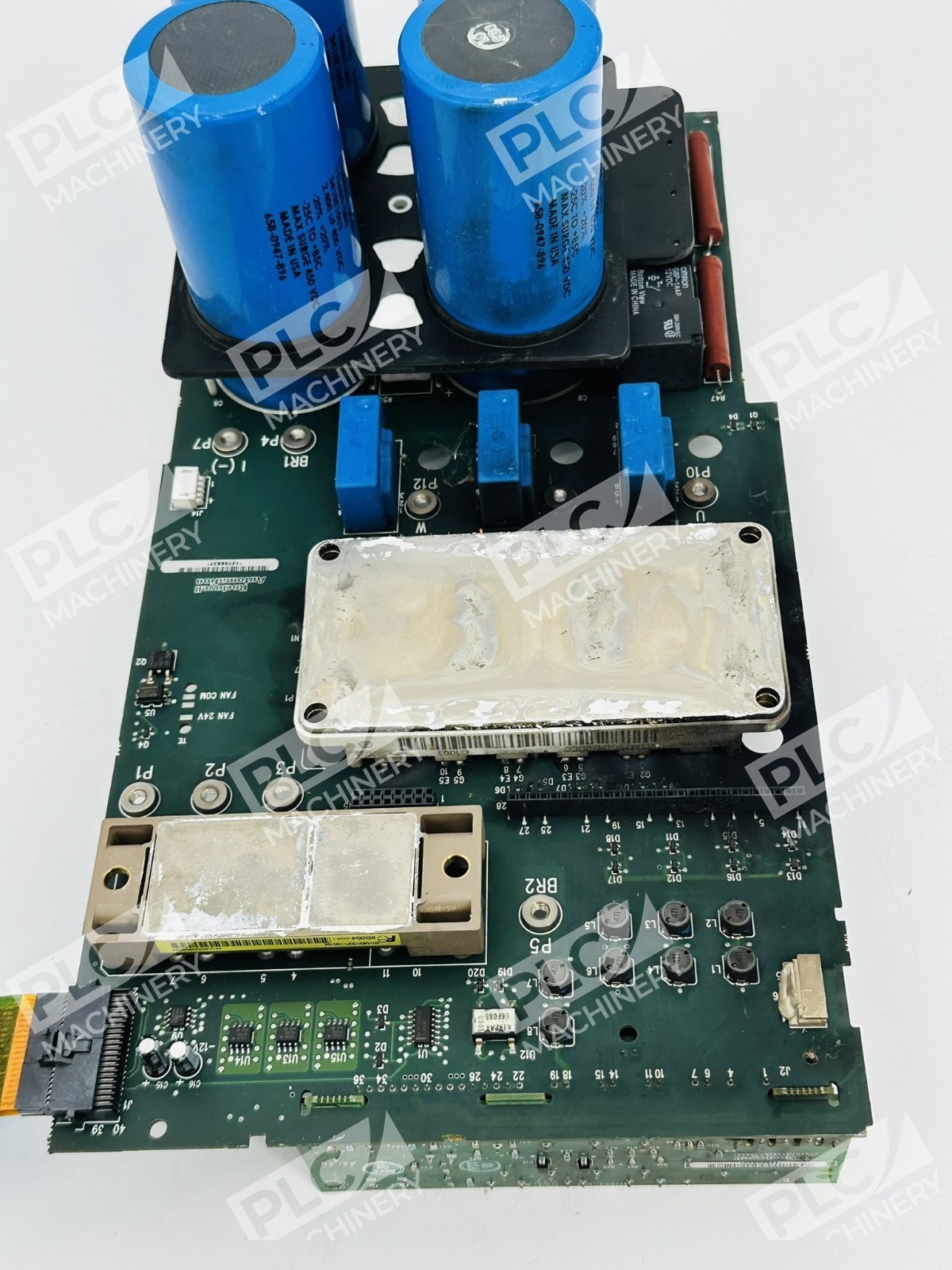

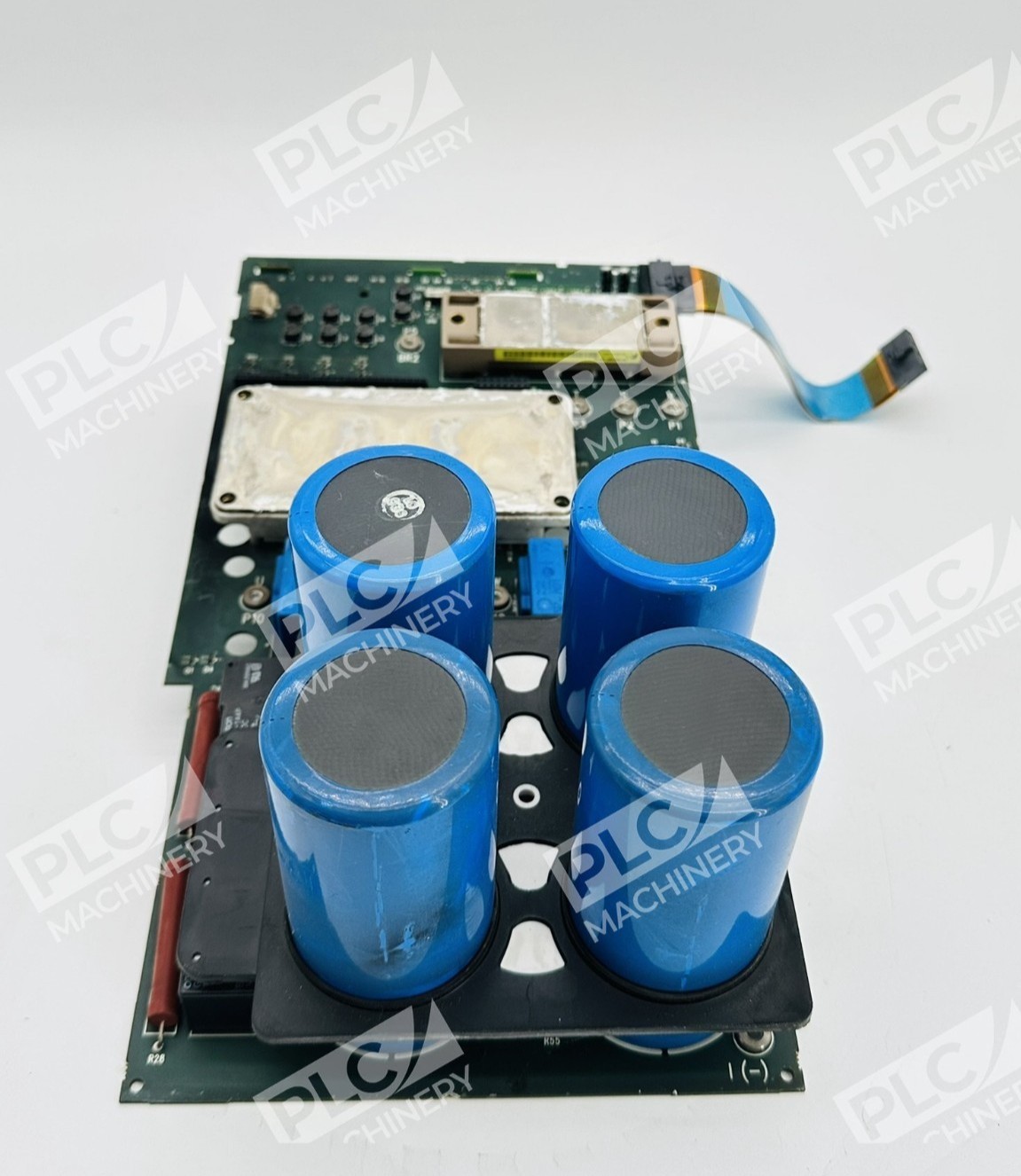

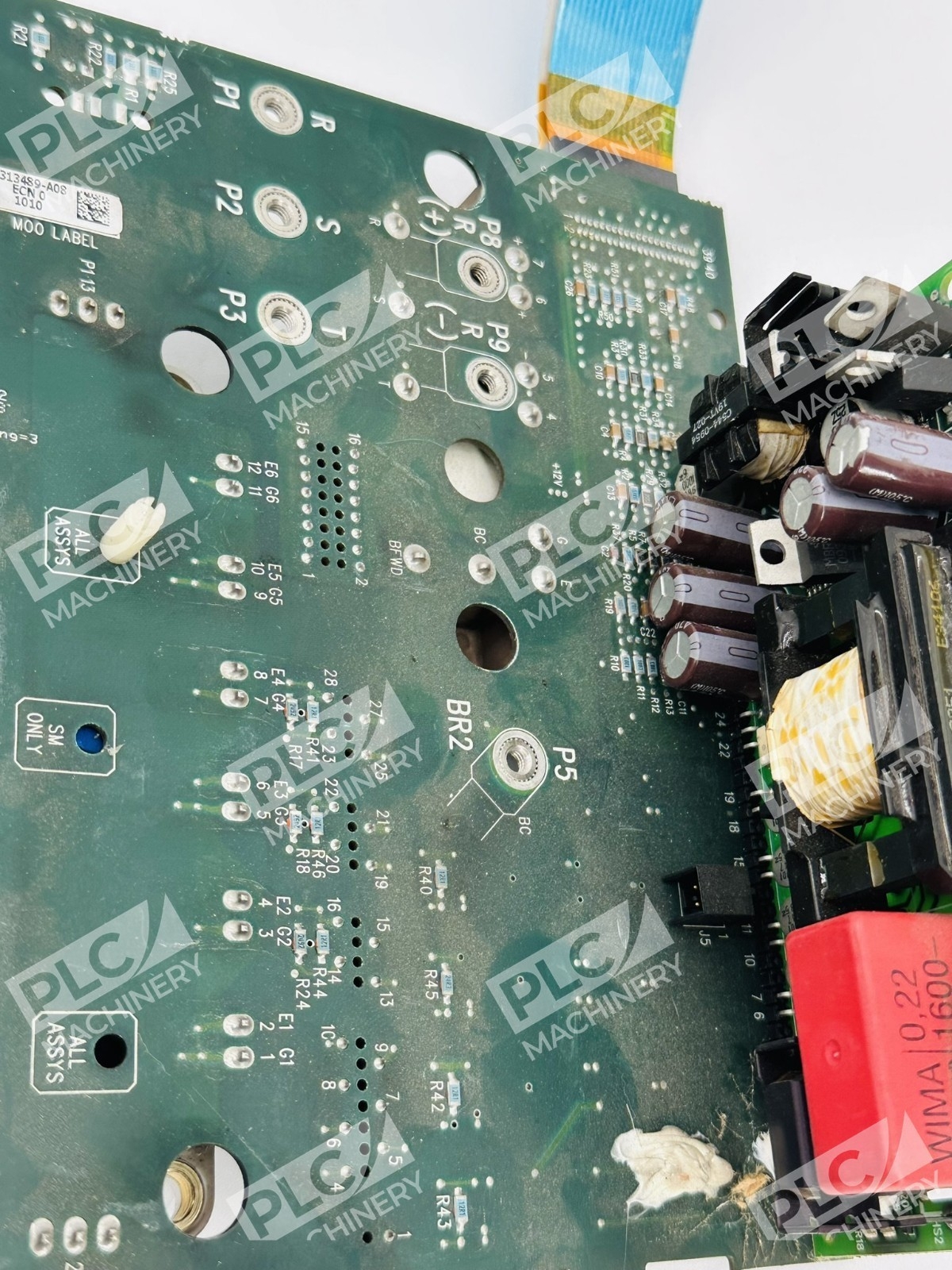

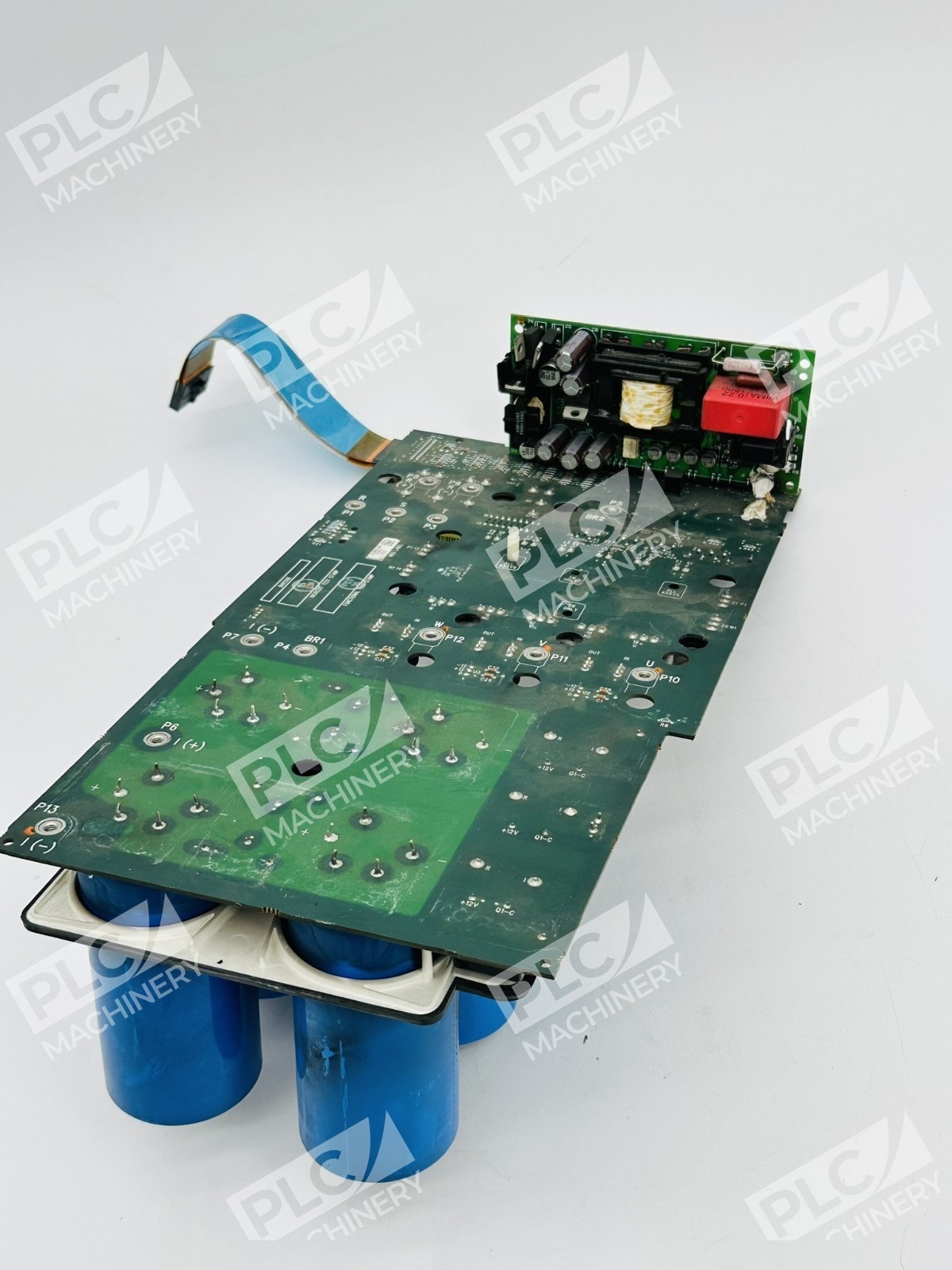

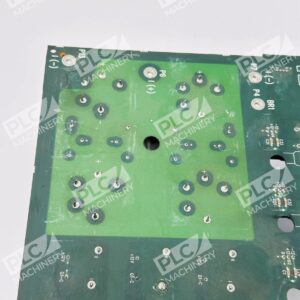

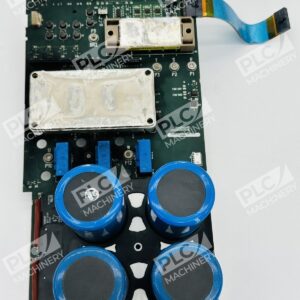

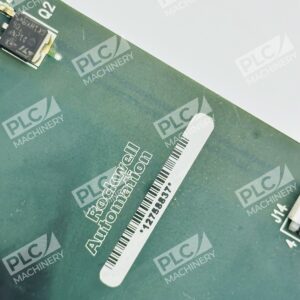

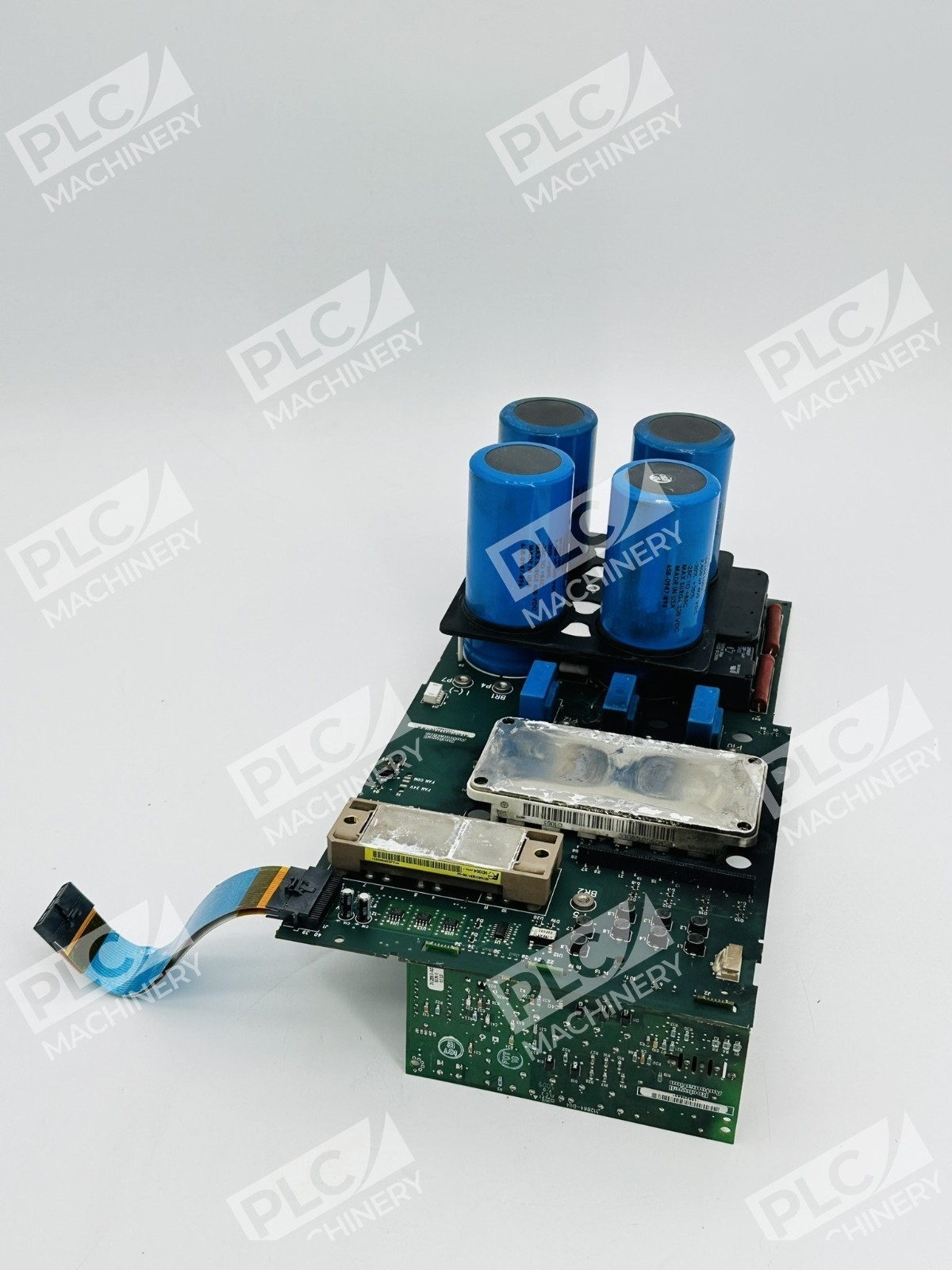

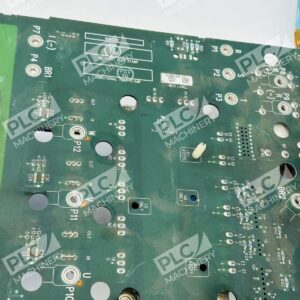

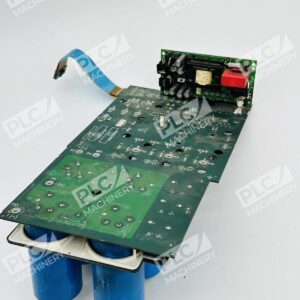

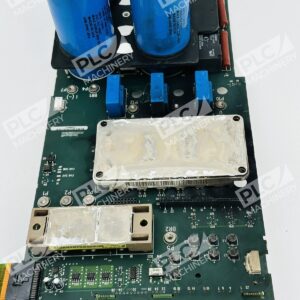

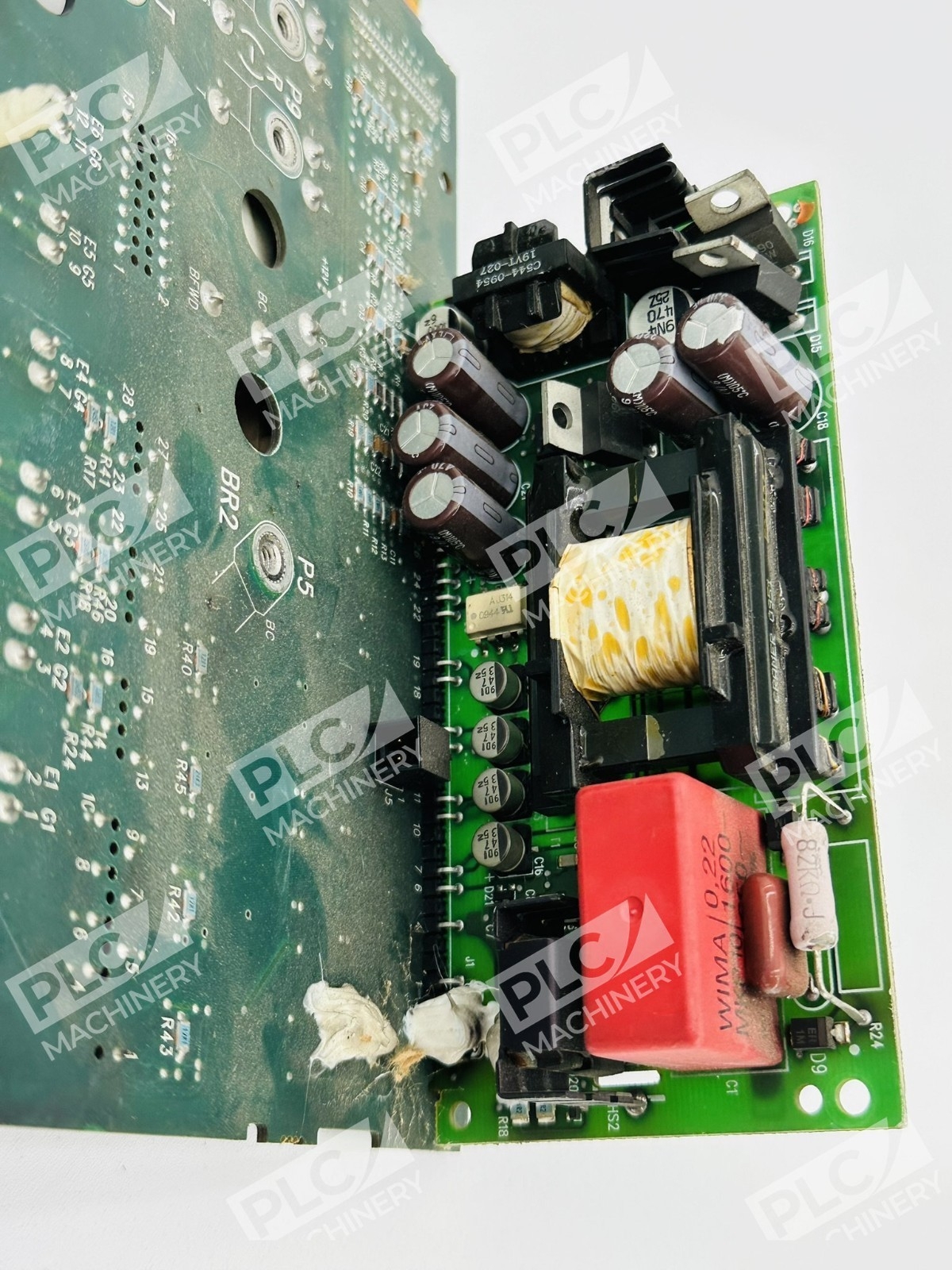

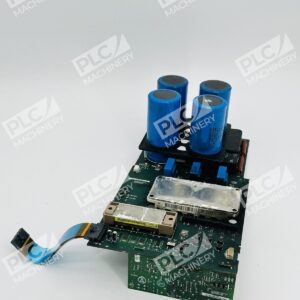

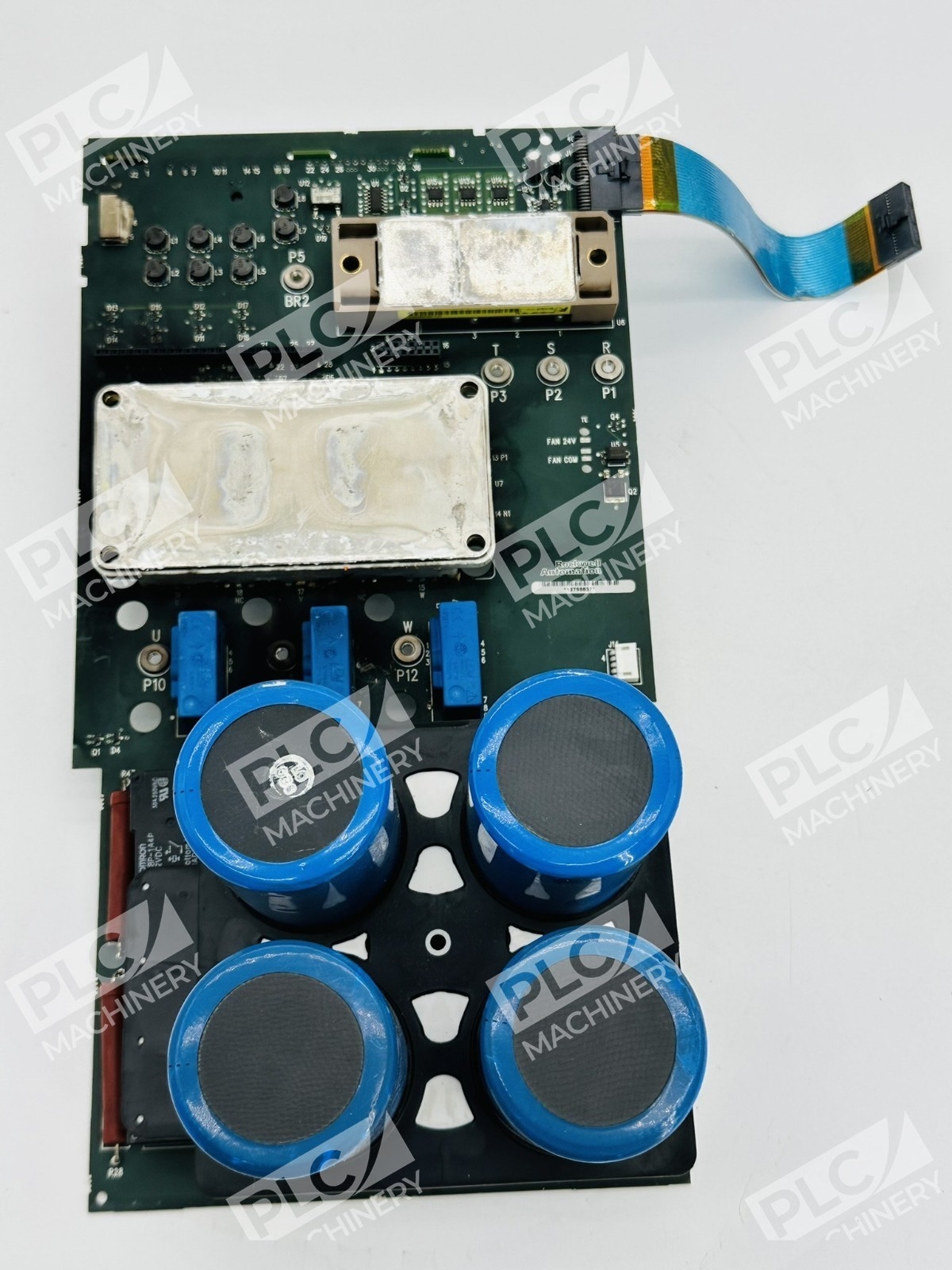

The Allen-Bradley 313489-A08 is a power inverter drive board engineered for use in PowerFlex variable frequency drives. As a critical circuit board assembly, this component handles inverter stage operations, converting DC bus power into three-phase AC output for motor control. The board is designed for reliable integration into PowerFlex drive platforms used across manufacturing, material handling, and process automation applications.
Key Features
- Dedicated inverter stage power board for PowerFlex drive systems
- Handles DC-to-AC conversion and power distribution
- Engineered for thermal stability and continuous duty operation
- Designed for straightforward installation and maintenance in drive enclosures
- Compatible with standard PowerFlex drive configurations
Technical Specifications
While detailed electrical ratings vary by drive configuration, the 313489-A08 functions as a power stage component within PowerFlex systems rated from 0.2 to 11 kW (0.25 to 15 HP) across voltage classes of 120, 240, 480, and 600 Volts AC. The board operates within standard industrial temperature ranges and mounting profiles for drive enclosure integration.
Typical Applications
- PowerFlex 4 and PowerFlex 40 AC drive systems
- Motor speed control in machine tools and production equipment
- Pump and fan drive systems requiring variable frequency operation
- Conveyor and material handling system automation
- OEM equipment requiring compact, integrated drive solutions
Compatibility & Replacements
Compatible With
- Allen-Bradley PowerFlex 4 and PowerFlex 40 drive series
- PowerFlex compact AC drive platforms
- Standard industrial 3-phase AC motor control systems
- 120, 240, 480, and 600 Volt AC drive configurations
Replaces / Drop-In Replacement For
The Allen-Bradley 313489-A08 is listed with alternate part number 312864-B04. Verify compatibility with your specific drive model and revision before ordering. Contact your system integrator or technical support to confirm direct replacement capability for your application.
Works With
- Rockwell Automation PowerFlex drive firmware and control platforms
- Allen-Bradley Industrial PC and control software
- Standard industrial automation networks and protocols supported by PowerFlex drives
