Overview

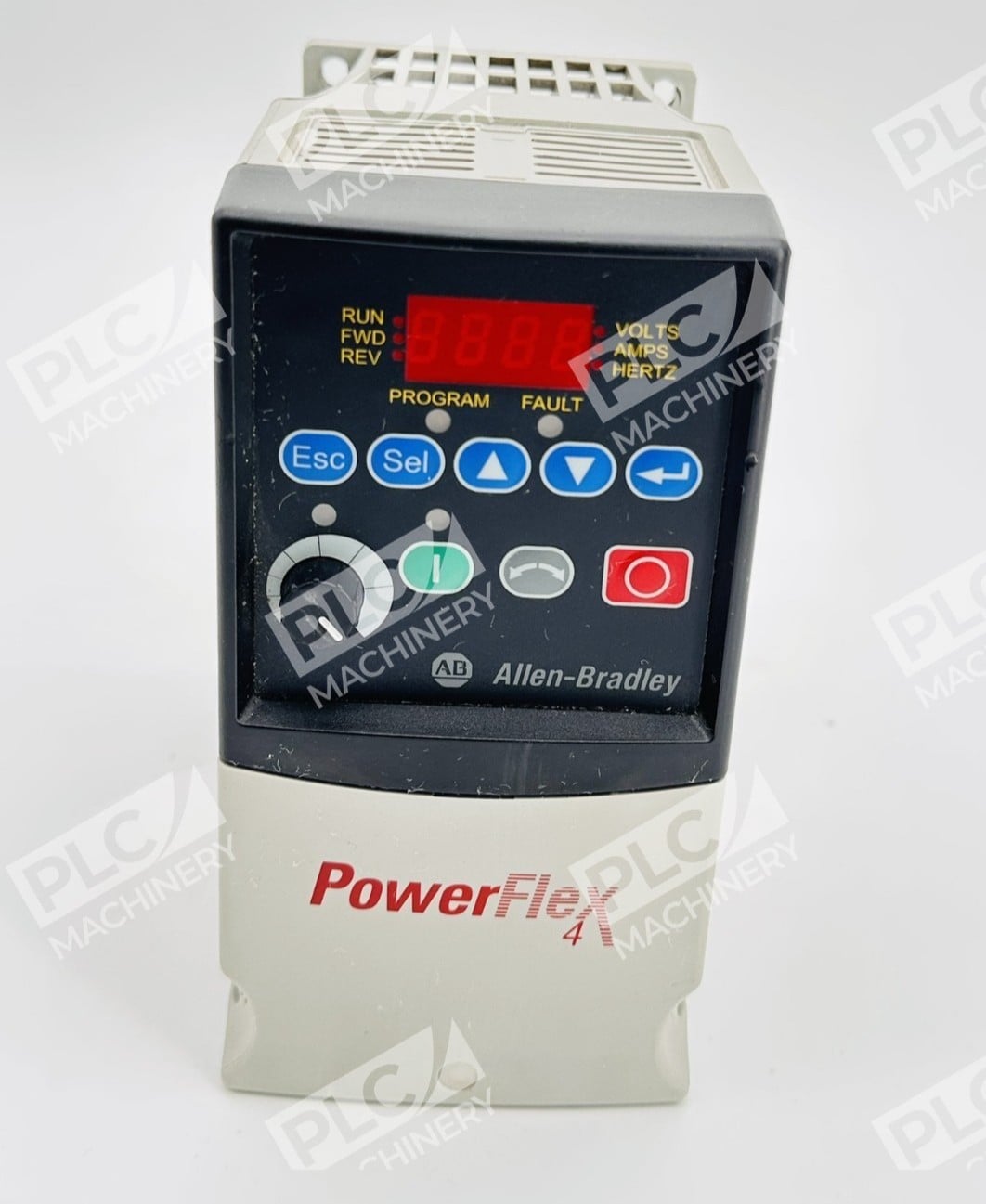

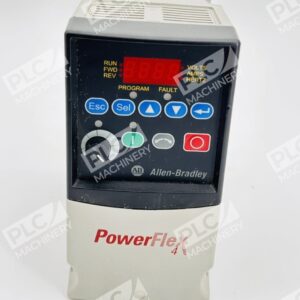

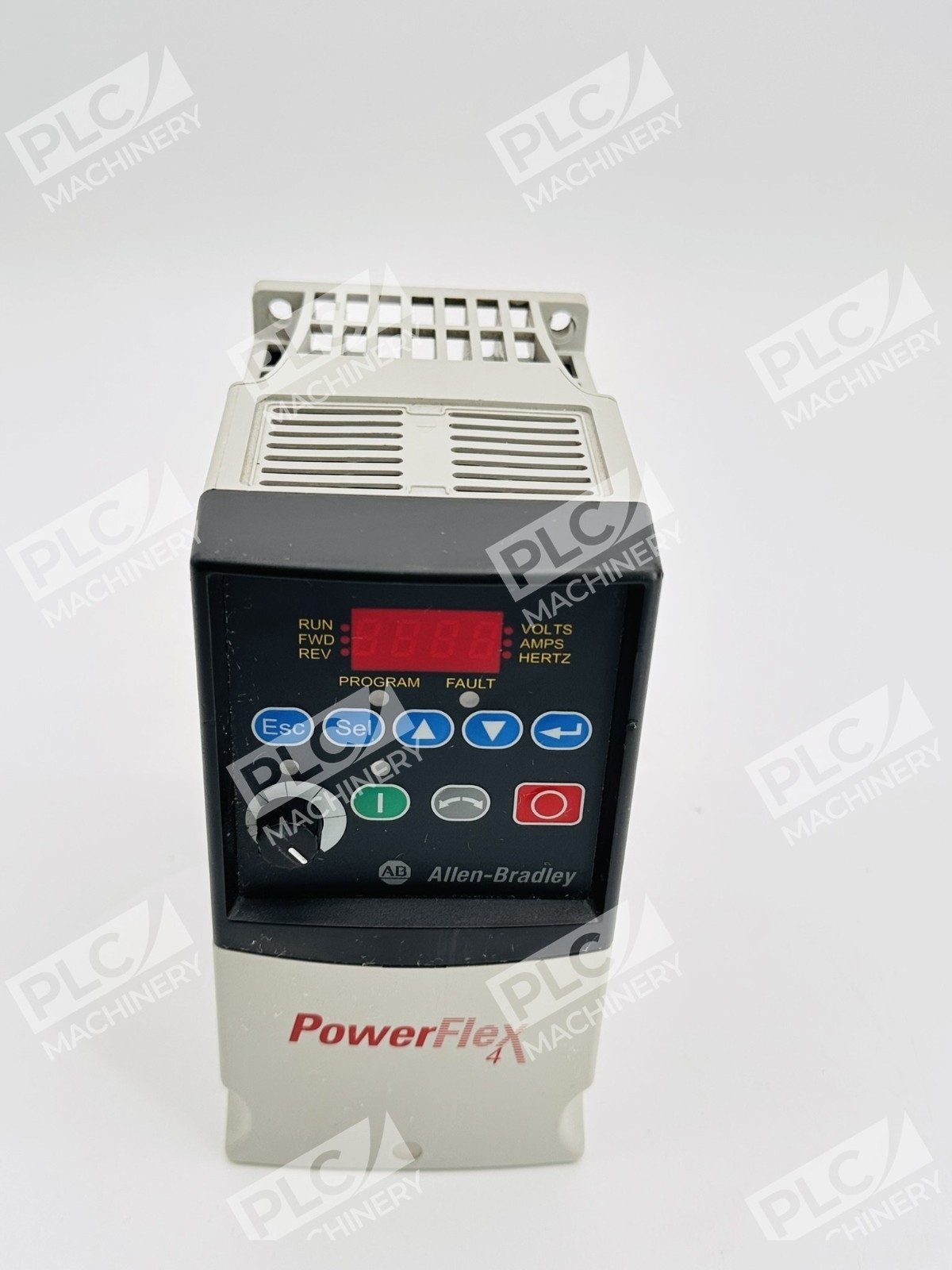

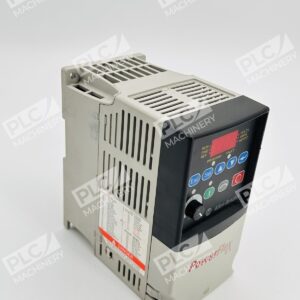

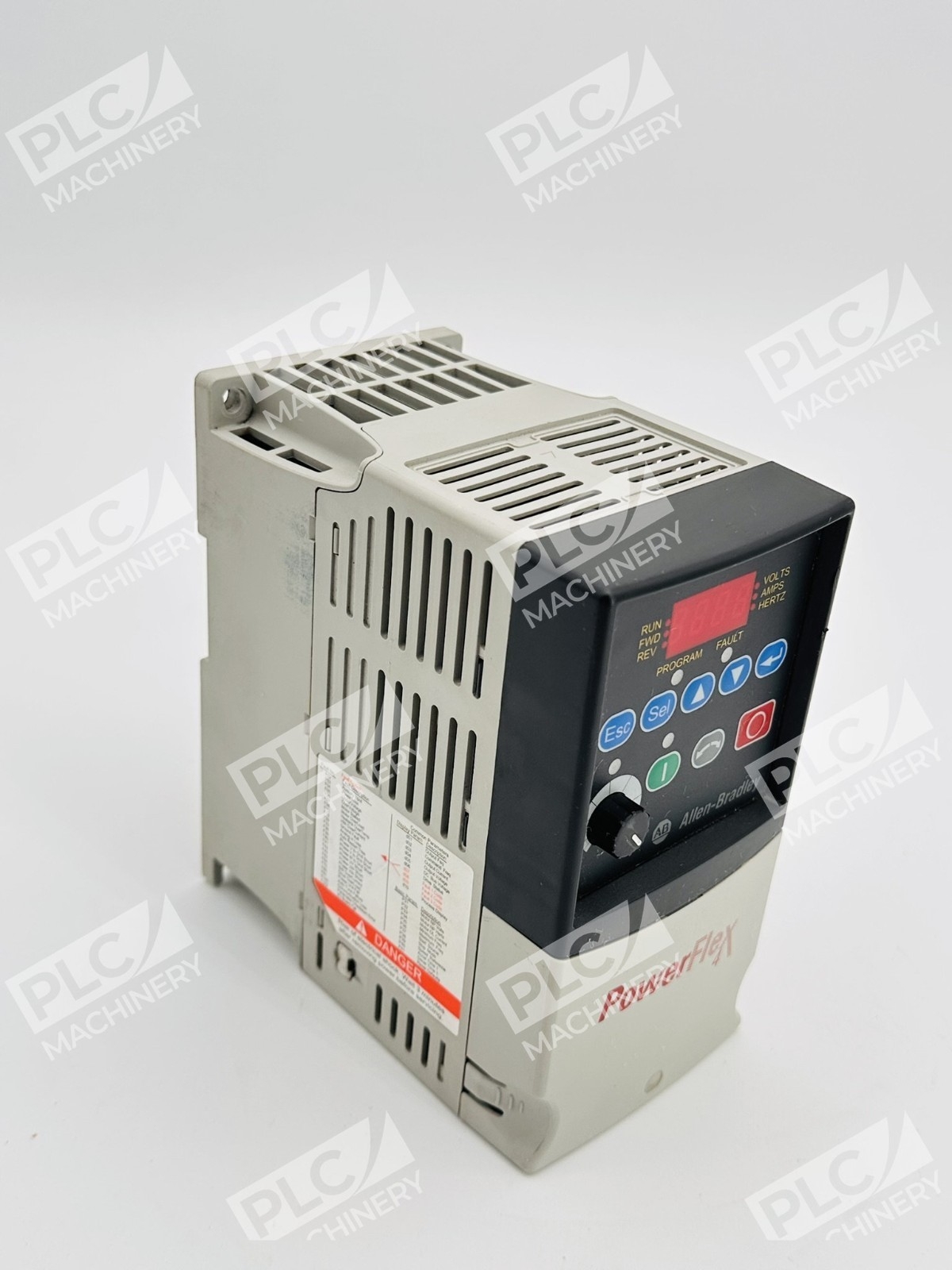

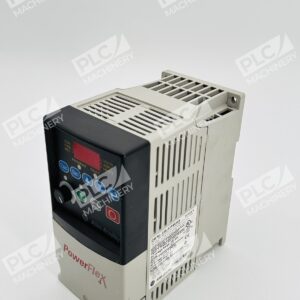

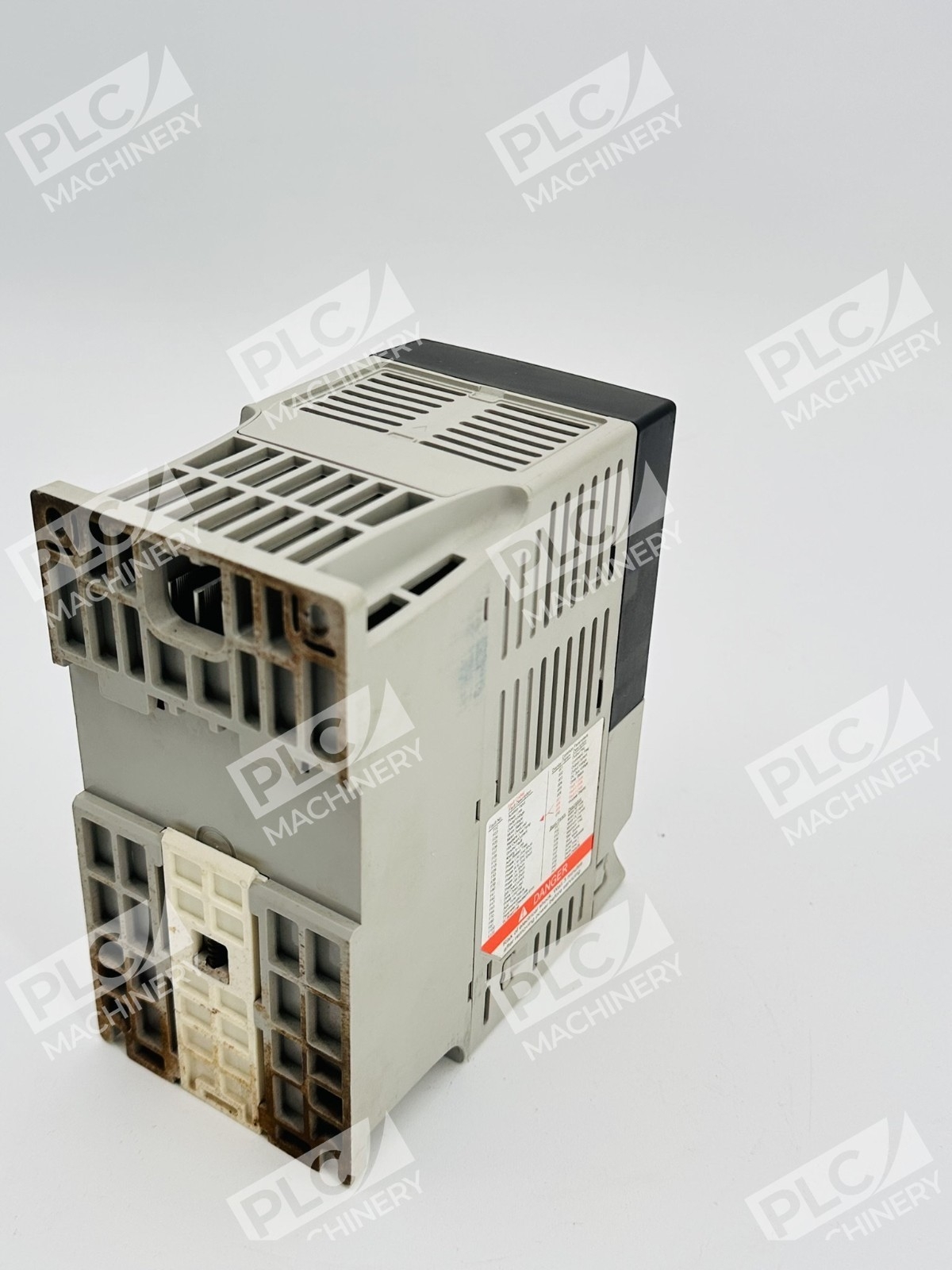

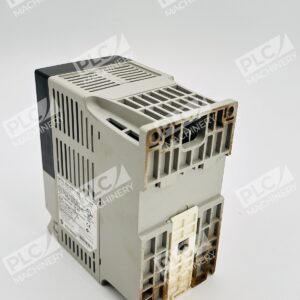

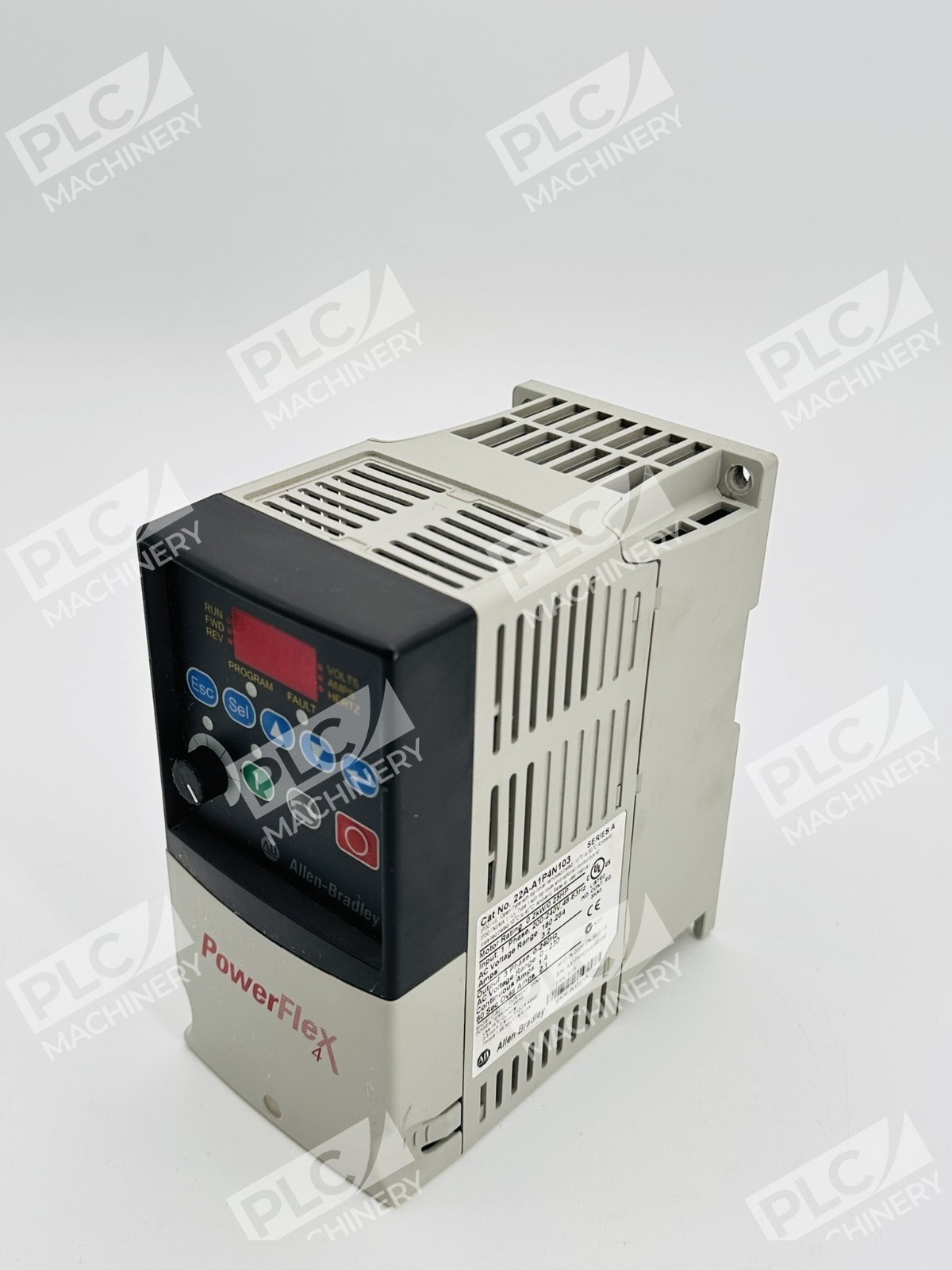

The Allen-Bradley 22A-A1P4N103 is a PowerFlex 4 adjustable frequency AC drive designed for compact, cost-effective motor speed control. This drive is a PowerFlex 4 series AC drive from Allen-Bradley/Rockwell Automation. The PowerFlex 4 drives are the smallest and most cost-effective members of the PowerFlex family, designed for speed control of applications such as machine tools, fans, pumps and conveyors, and material handling systems.
Key Features

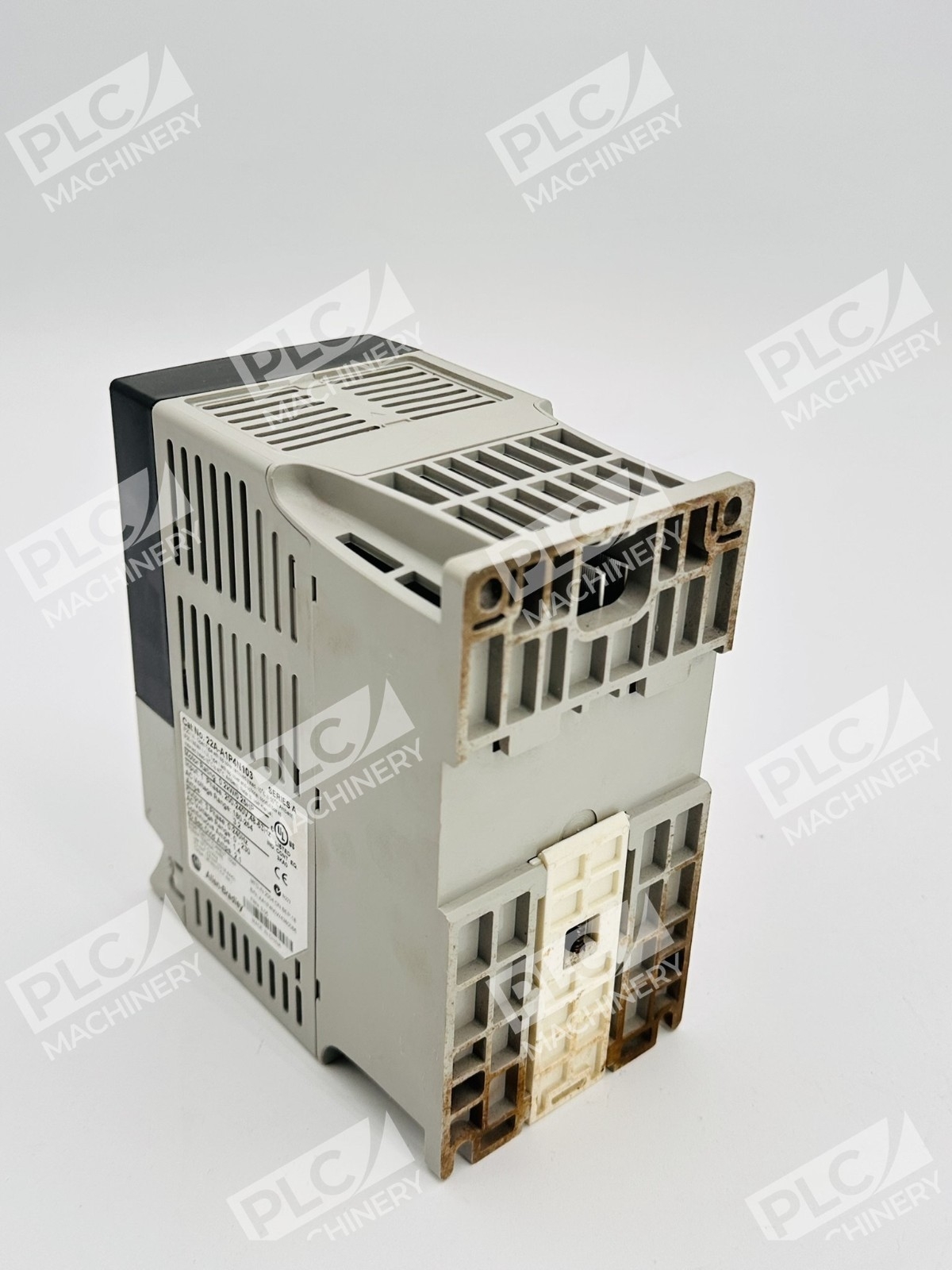

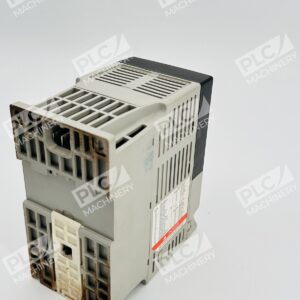

- Compact Frame A Enclosure: The 22A-A1P4N103 comes in a Size A frame. Panel mount design with operational temperature range between –10 and 50 degrees Celsius, at 5 to 95% non-condensing relative humidity.
- Dual Input Control Modes: Dual distinct input controls including digital control input configurable for either sink mode (0 to 6 Volts/18 to 24 Volts, ON/OFF) or source mode (18 to 24 Volts/0 to 6 Volts, ON/OFF) via DIP switch, and analog input control of 4-20 mA and 0 to 10 Volts DC.
- Integrated Protection: Overcurrent protection at 200% hardware limit for 60 seconds and 300% instantaneous fault for 3 seconds, plus over voltage and under voltage protection.
- No Brake/Filter Option: This drive is not equipped with a brake or filter like some other PowerFlex 4 series drives.
- Global Certifications: Meets C-TICK, CE, CUL, GOST, and UL standards.

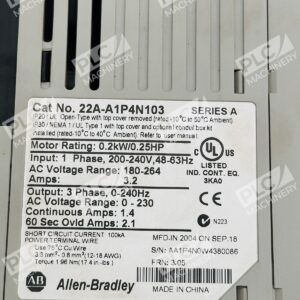

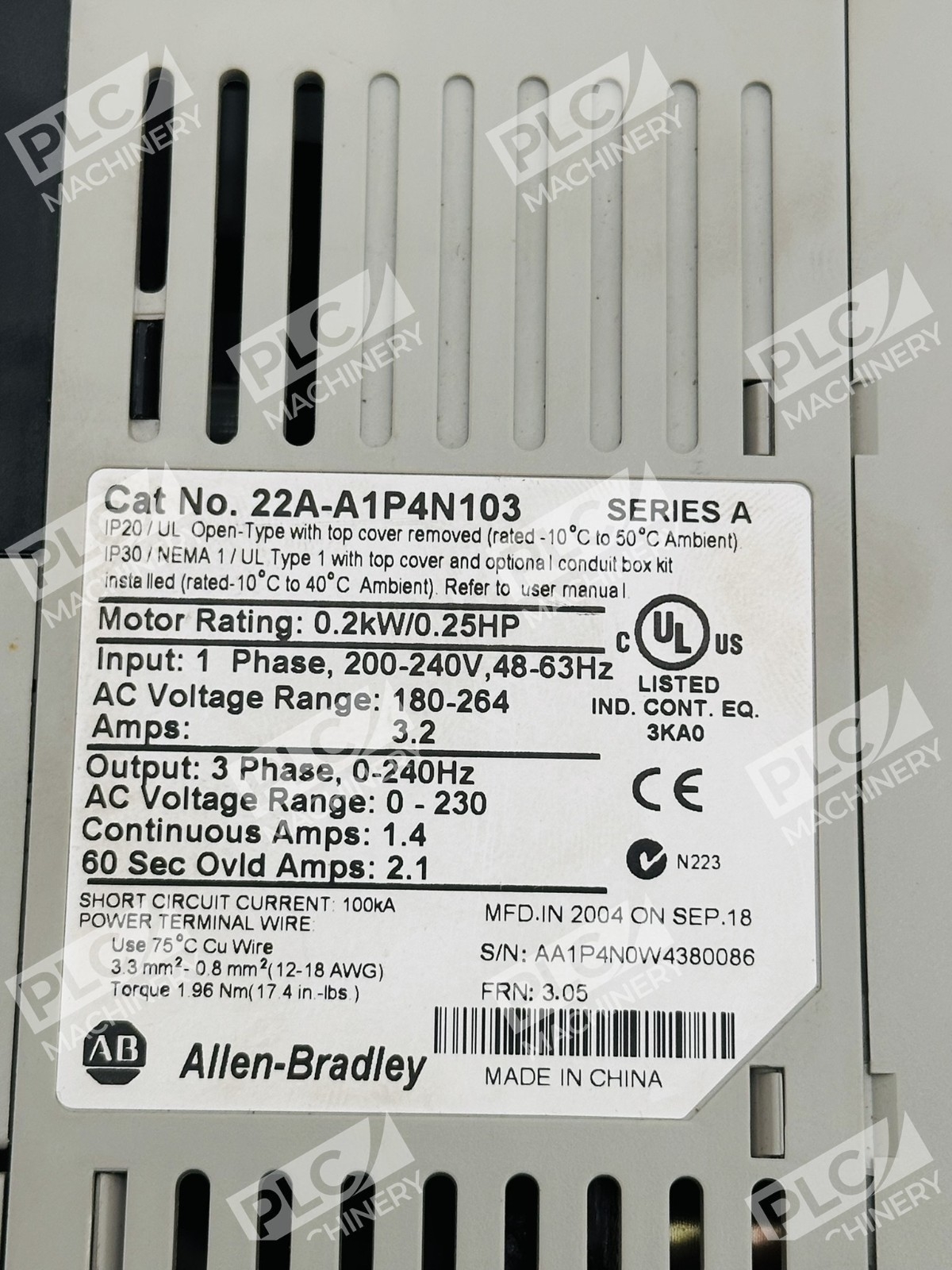

Technical Specifications
| Power Rating | 0.2 kW (0.25 HP) |
| Input Voltage | 180–265 VAC, Single-Phase, 50/60 Hz |
| Output Voltage | 0–230 VAC, 3-Phase |
| Output Current | 1.4 Amperes |
| Control Type | RS485, Digital/Analog Inputs |
| Enclosure Type | IP20, NEMA/UL Type Open |
| Mounting | Panel Mount / DIN Rail Compatible |
| Operating Temperature | –10 to 50°C (non-condensing) |
| Dimensions | 3.94 × 7.09 × 5.35 inches |
| Weight | 4.9 pounds |
| Certifications | UL, CE, CUL, GOST, C-TICK |
Typical Applications
- Small machine tool spindle drives
- HVAC fan and blower speed control
- Pump and conveyor drive systems
- Material handling and packaging equipment
- OEM equipment requiring compact motor control
Compatibility & Replacements
Compatible With
- Allen-Bradley branch circuit protection (140M-C2E-B40 and similar 4.0A C-Frame units)
- Standard AC motors rated 0.25 HP or smaller
- RS485 industrial communication networks
- Discrete 24 VDC control systems (sink/source selectable)
- Analog process control signals (4–20 mA, 0–10 VDC)
Replaces / Drop-In Replacement For
- Earlier PowerFlex 4 firmware revisions within the 22A series frame
- Verify model compatibility with your controls integrator before ordering
Works With
- Rockwell Automation Studio 5000 / RSLogix 5000 (via serial adapter)
- Allen-Bradley PowerFlex parameter configuration software
- Third-party drives compatible with RS485 MODBUS protocol
- Standard industrial 240V single-phase input power distribution
