Overview

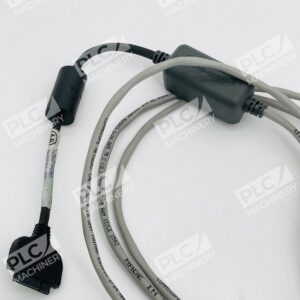

The Allen-Bradley 1784-PCM5 is a Data Highway Plus (DH+) communication cable assembly that connects a notebook or desktop computer equipped with a 1784-PCMK PCMCIA card to legacy PLC controllers. This cable is designed for connecting a computer to a PCMCIA card, facilitating communication with various PLC processors. The cable is 10 feet (3.16 meters) long and has an 8-pin connector, compatible with PCMCIA cards and used to connect them to computers using DH+ protocol.
Key Features
- Supports data transfer rates up to 230 kbps
- RJ45 connector for easy connectivity
- Includes wedges for strain relief, preventing accidental disconnections
- Remote I/O Scanner Capabilities enable integration with remote I/O systems
- Comes with the 1784-CP7 adapter and two wedges that must be attached with the cable to the computer
Technical Specifications
- Communication Protocol: Data Highway Plus (DH+)
- Communication Speed: 230 Kbps
- Cable Length: 10 feet (3.16 meters)
- Connector Type: 8-pin mini-DIN
- Region of Manufacture: United States
- Weight: 0.50 lbs (0.23 kg)
Typical Applications
The 1784-PCM5 cable is used for connecting the 1784-PCMK/B card to the PLC-2, the PLC-3, or the PLC-5 processors, and can also be used to connect the 1784-PCMK/B card to an enhanced PLC-5 processor. This cable enables technicians and engineers to upload, download, and troubleshoot PLC programs on older systems that rely on DH+ communication networks. The manufacturer recommends that the total cable length should not exceed 10 meters (32.81 feet).
Compatibility & Replacements
Compatible With
- 1784-PCMK/B PCMCIA Communication Card
- PLC-5 processors: PLC-5/11, PLC-5/20, PLC-5/20C, PLC-5/20E, PLC-5/30, PLC-5/40, PLC-5/40C, PLC-5/40E, PLC-5/40L, PLC-5/60, PLC-5/60C, PLC-5/60L, PLC-5/80, PLC-5/80C
- PLC-2 and PLC-3 processors
- SLC 5/04 Processors and PLC-5 Enhanced Processors (when used with 1784-CP7 adapter)
Replaces / Drop-In Replacement For
The 1784-PCM5 is the standard cable for connecting the 1784-PCMK/B card. Verify compatibility with your system integrator before ordering.
Works With
- Data Highway Plus (DH+) network protocol
- Allen-Bradley programming software for PLC-5 and SLC 5/04 systems
- ControlLogix 1756-DHRIO module (when used with 1784-CP7 adapter)
- Remote I/O scanner applications
