Overview

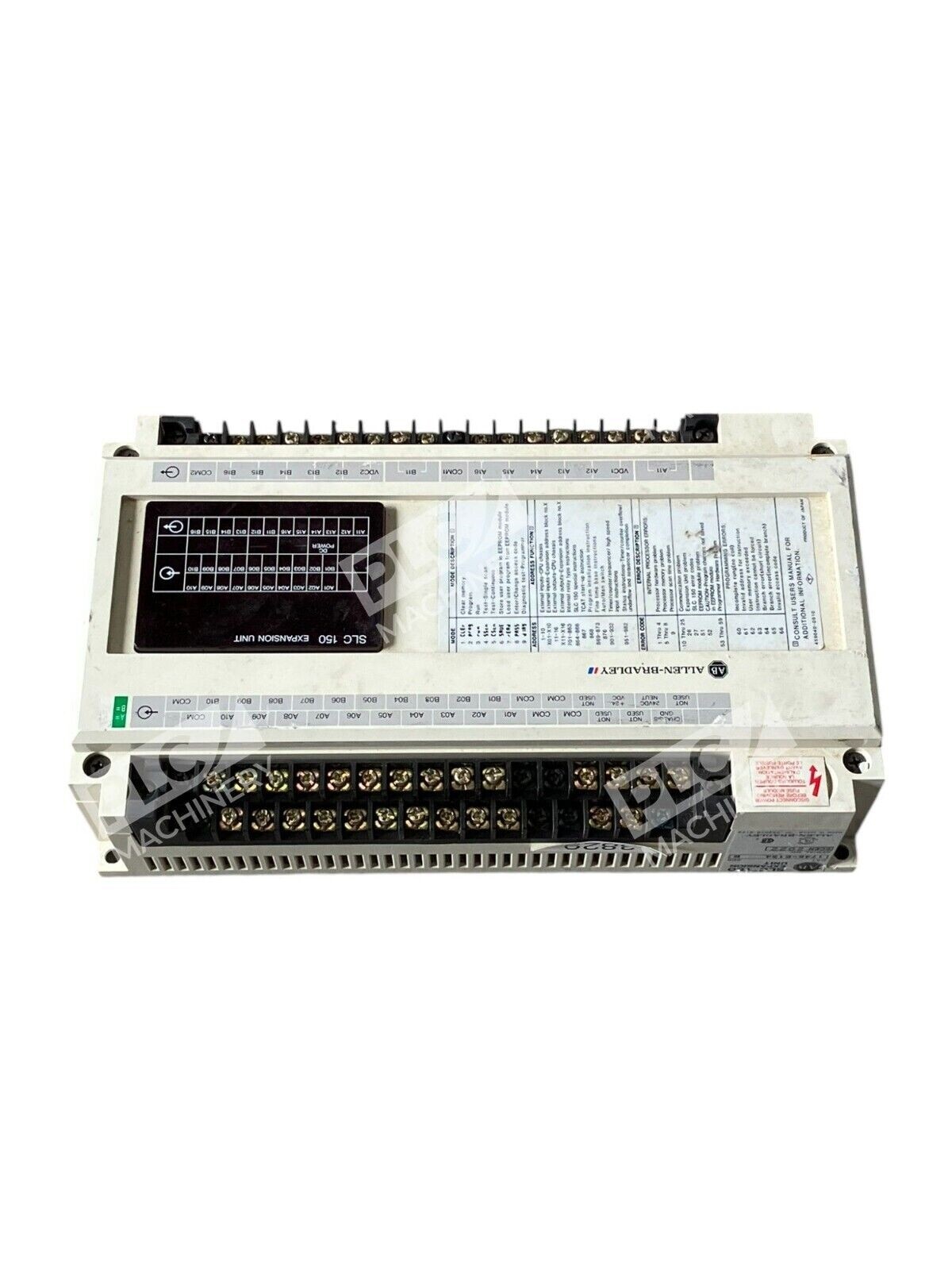

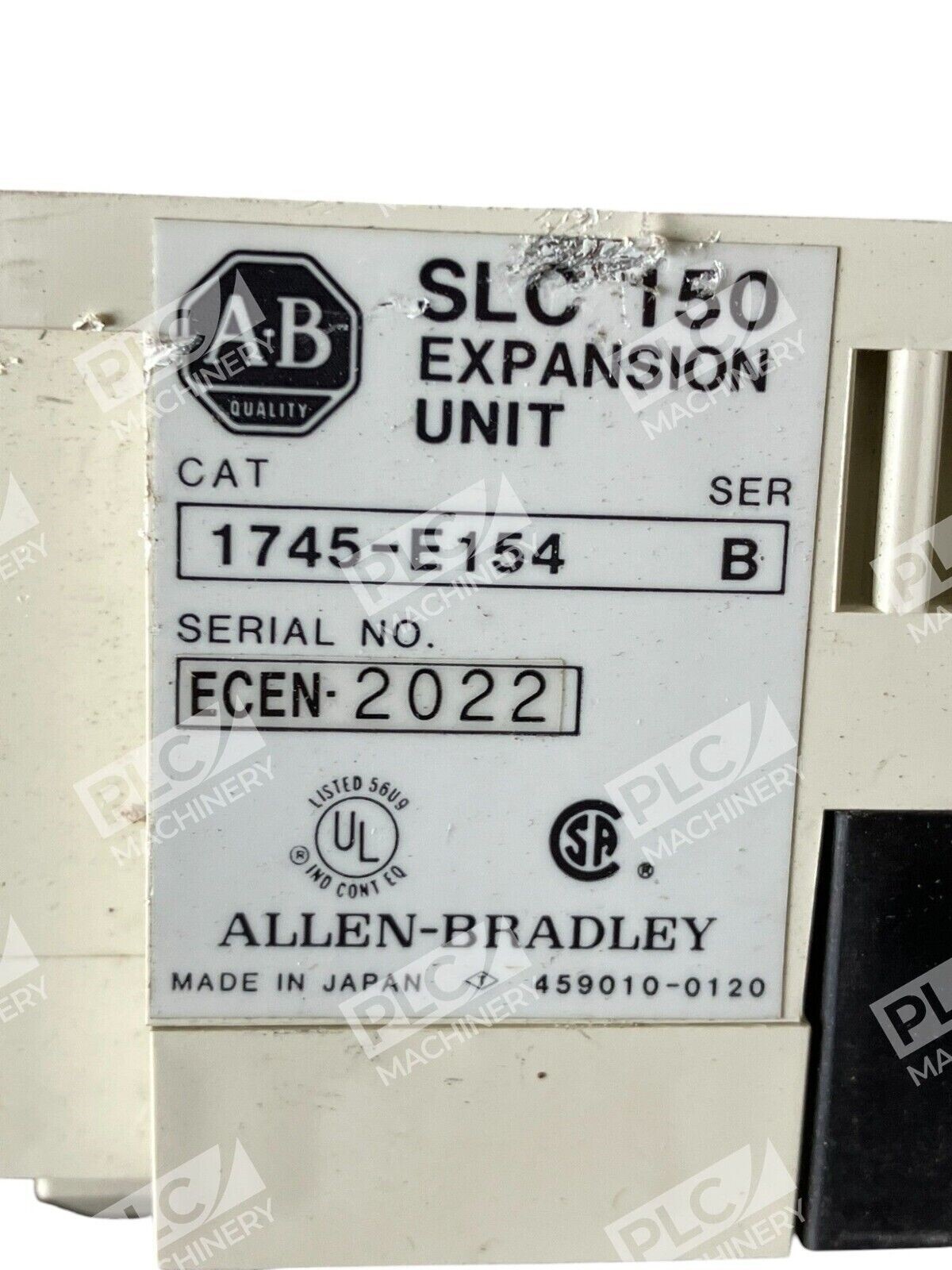

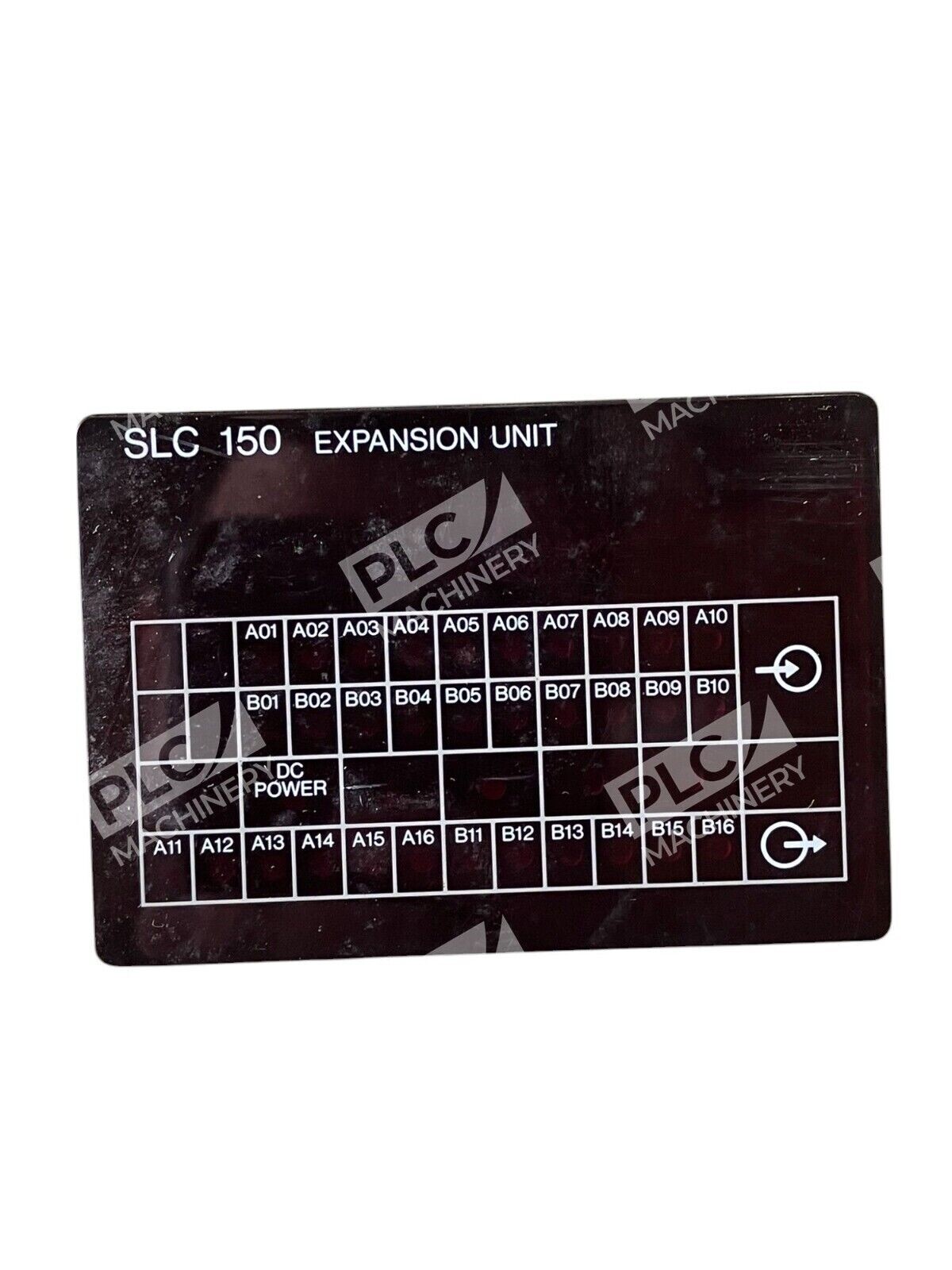

The Allen-Bradley 1745-E154 is an I/O expansion module designed for the SLC 150 programmable controller platform. This expansion unit increases the I/O capacity of SLC 150 systems and is essential when additional input and output circuits are required beyond the base processor configuration.
Key Features
- 20 sinking inputs (85-132V AC rated) with configurable voltage levels via DIP switches
- 12 mixed outputs including transistor, triac, and hard contact types
- High-speed input (HSI) capability up to 5 kHz with dedicated high-speed input modules
- CMOS RAM memory with optional EEPROM module support
- Expands total system I/O to maximum of 112 circuits in multi-module configurations
- 4 ms scan time with integrated capacitor backup (optional battery backup available)
Technical Specifications
- Input voltage: 85-132V AC (standard) or 170-265V AC (dependent on model variant)
- Input configuration: 20 sinking inputs, 85-132V AC rated
- Output configuration: 12 outputs (triac 85-265V AC, transistor/hard contact)
- Frequency: 50-60 Hz
- Memory type: CMOS RAM with EEPROM option
- Scan time: 4 ms
- Operating temperature: 32–140 °F (0–60 °C)
- Storage temperature: -40–185 °F (-40–85 °C)
- Humidity: 5–95% non-condensing (operation and storage)
- High-speed input modules: Up to 4 HSI devices supported at 5 kHz
- Environmental: Rated for 0.015-inch peak-to-peak displacement and 2.5g peak acceleration
Typical Applications
The 1745-E154 is commonly deployed in:
- Discrete manufacturing automation requiring expanded I/O control
- Material handling systems with mixed input/output requirements
- Legacy SLC 500 control upgrades and system integrations
- Batch processing and sequential logic applications needing high-speed counting
- Industrial packaging and assembly line systems using SLC 150 platforms
Compatibility & Replacements
The 1745-E154 is part of the SLC 150 expansion unit series (catalog numbers 1745-E151 through 1745-E157). Related models in the SLC 150 family include the 1745-LP154 (24V DC variant) and other voltage-specific configurations. For migration from SLC 500 to modern CompactLogix or ControlLogix systems, Rockwell Automation provides gateway modules and migration documentation. Always verify power supply voltage and I/O count requirements before ordering. The module connects to the SLC 150 processor unit via the 1745-C2 interconnect cable.
