Overview

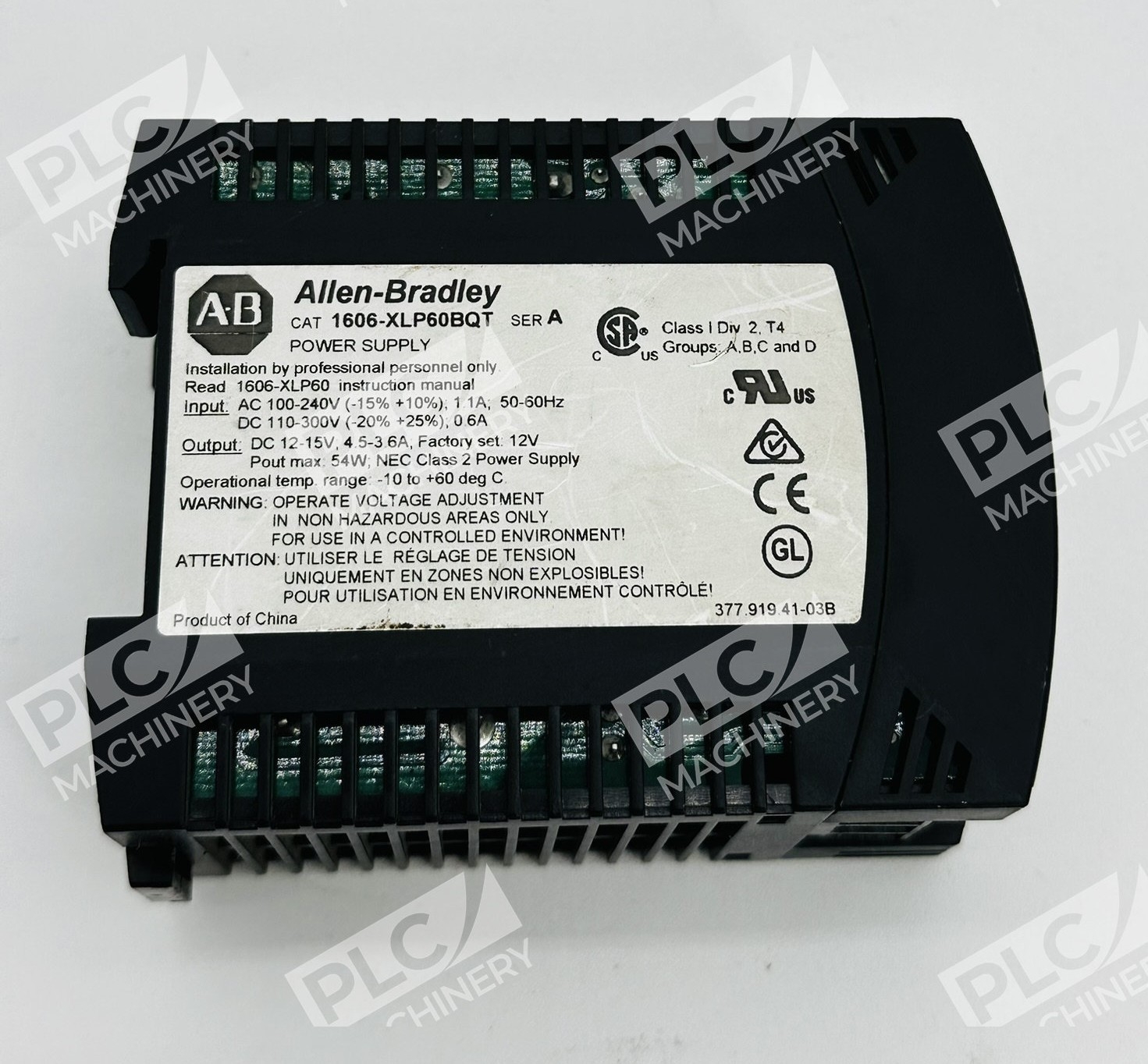

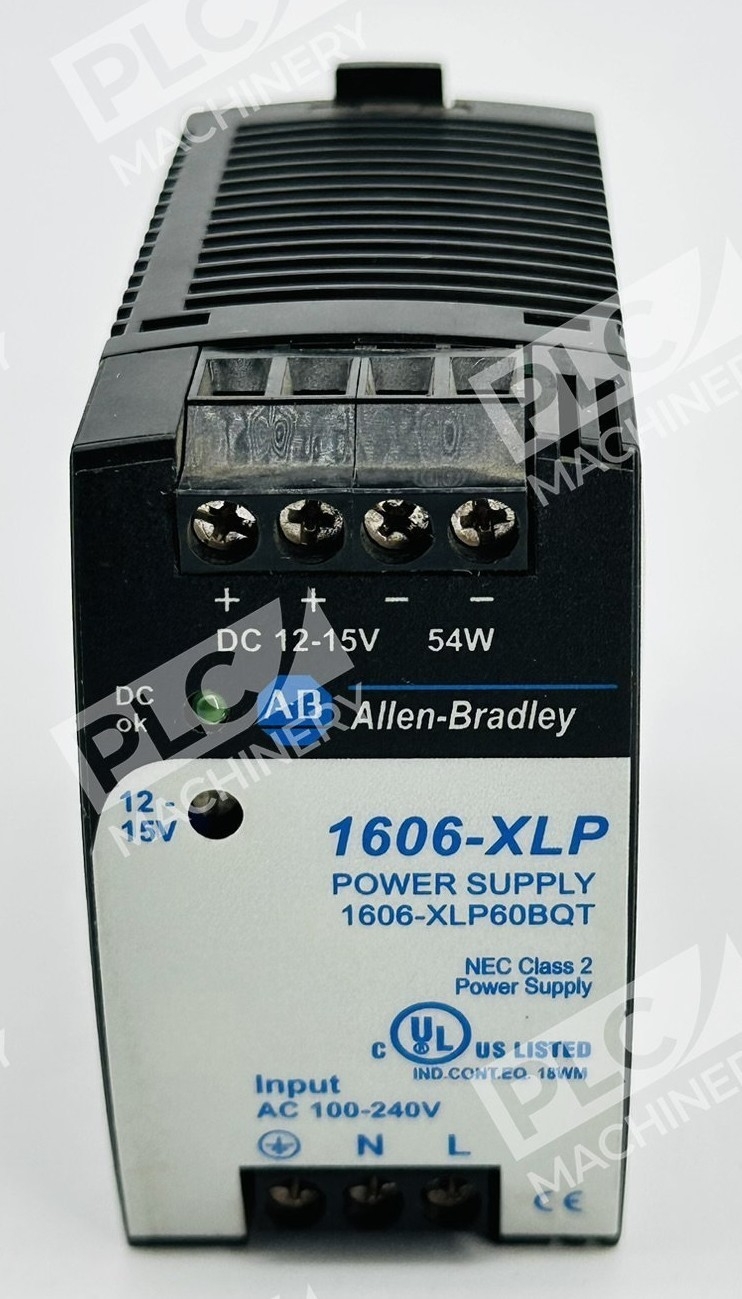

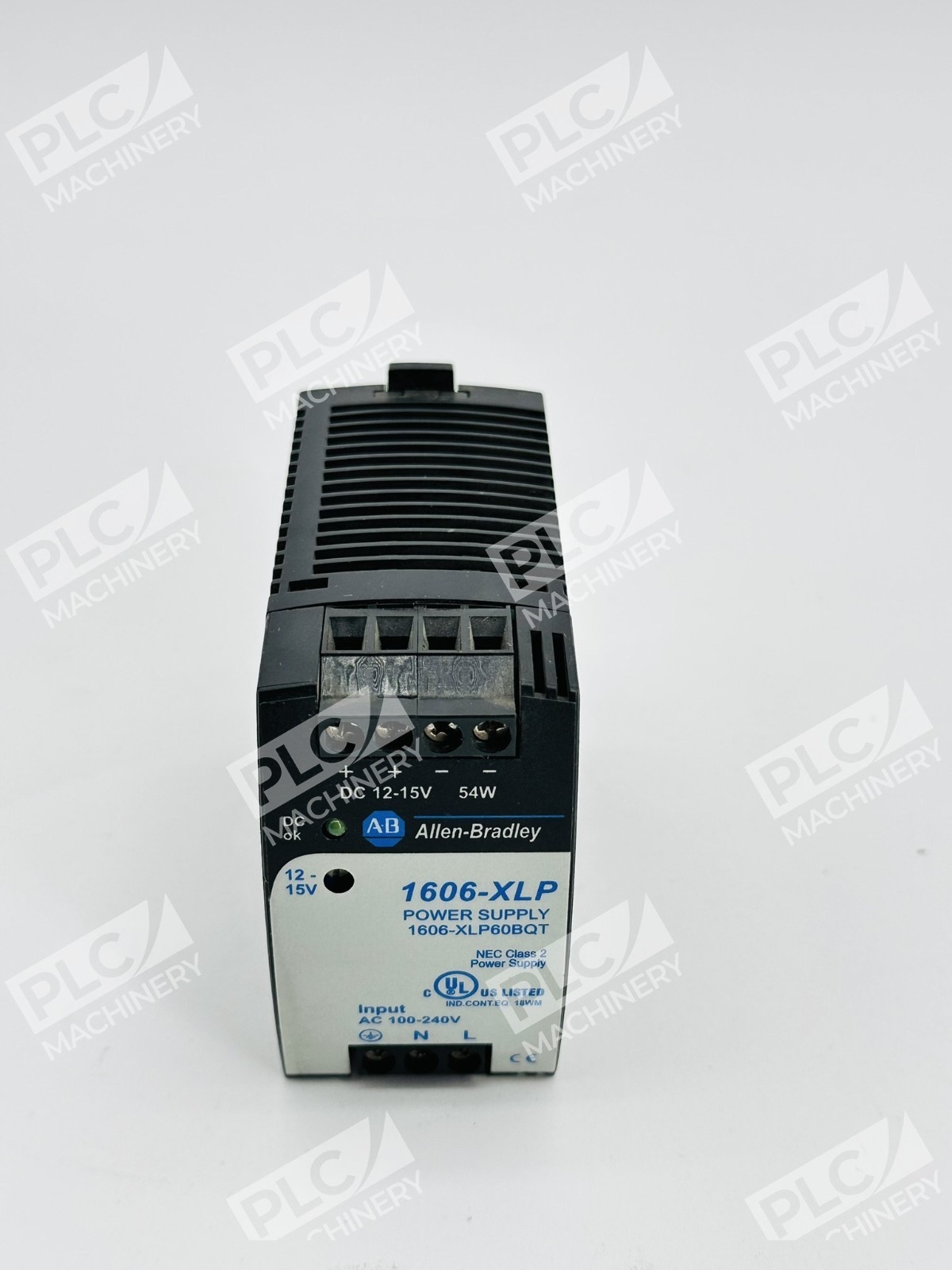

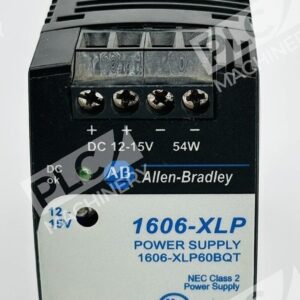

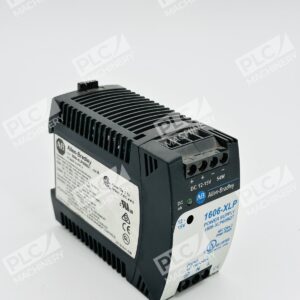

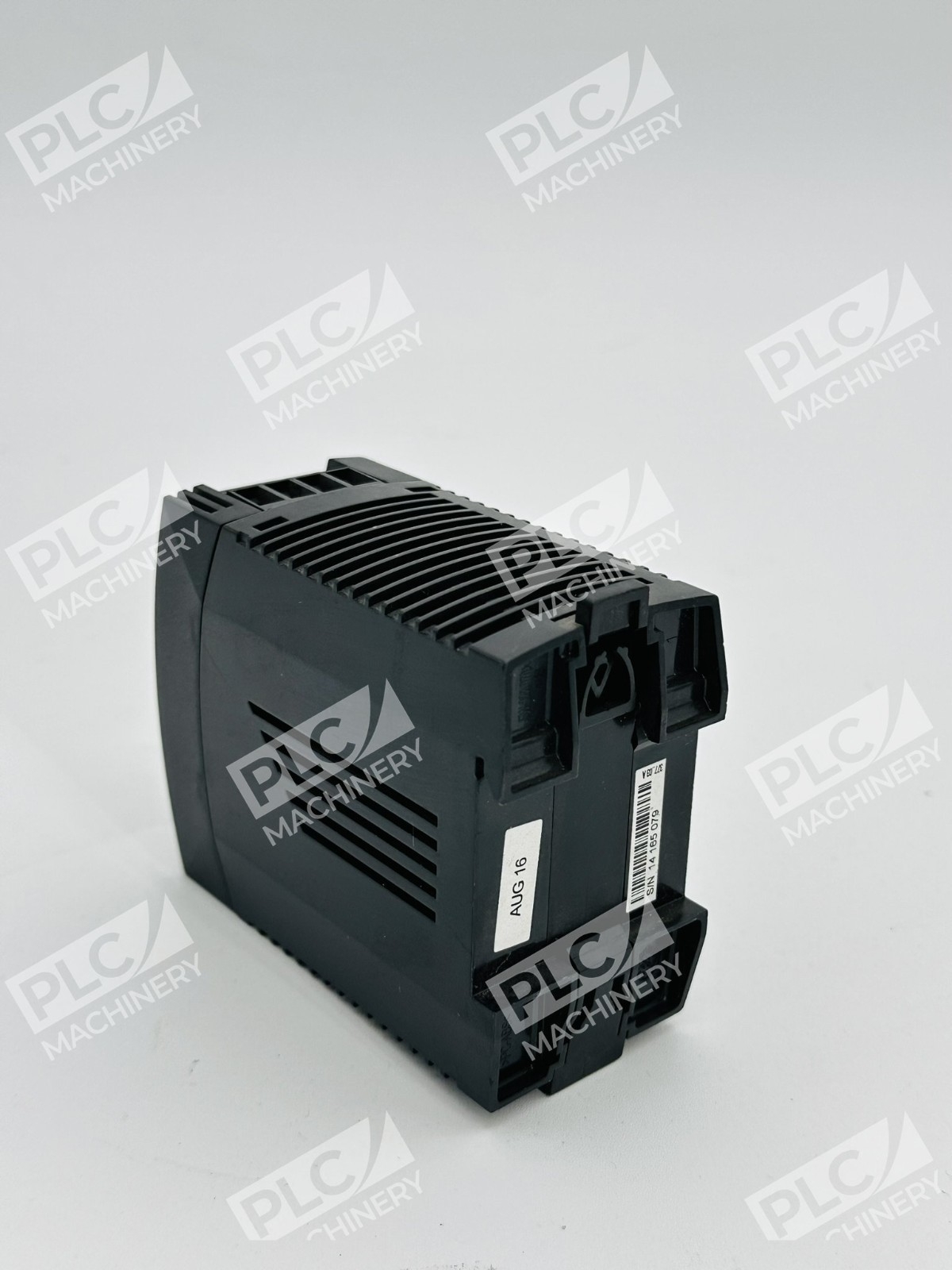

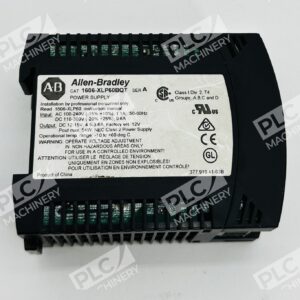

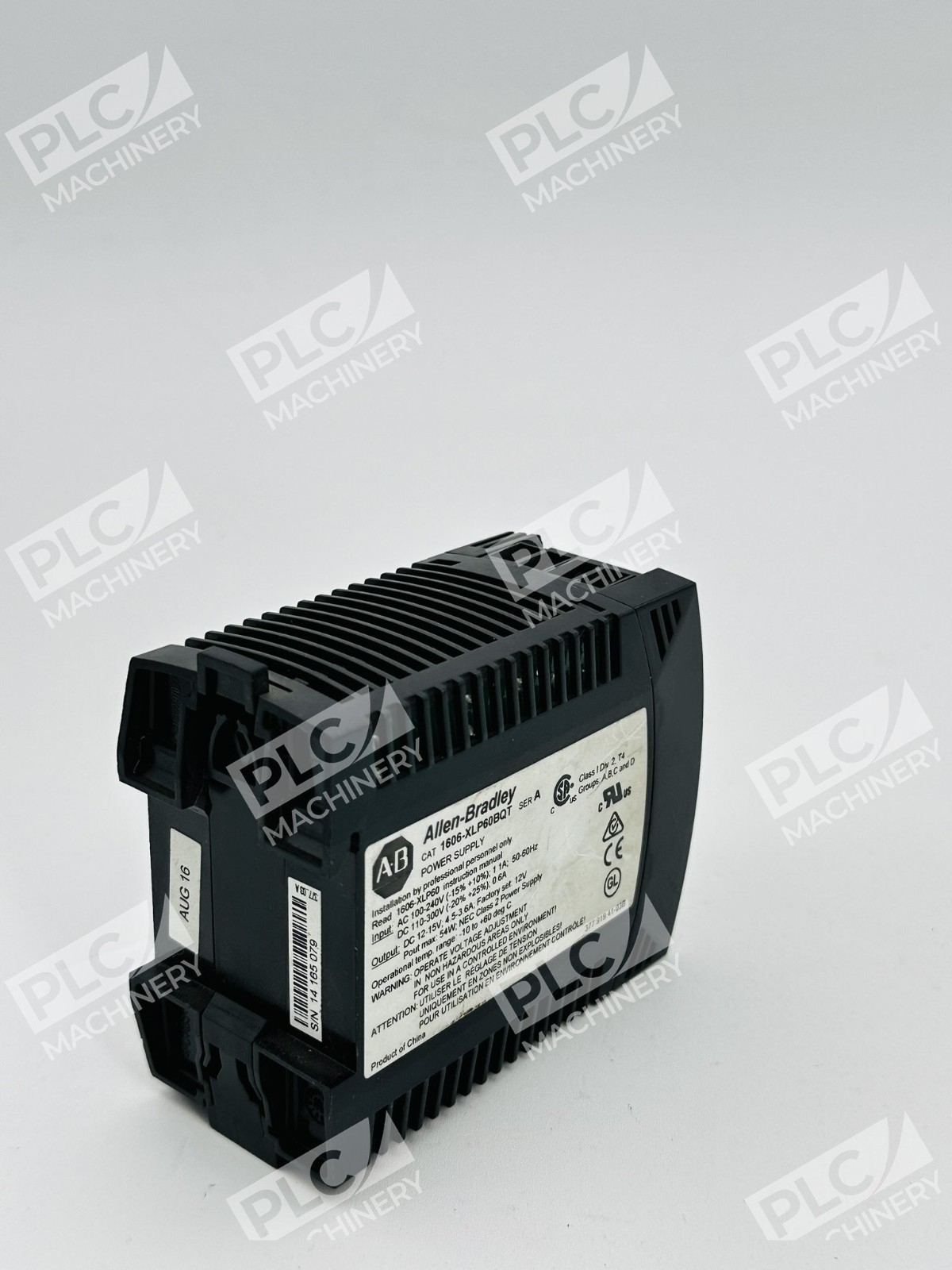

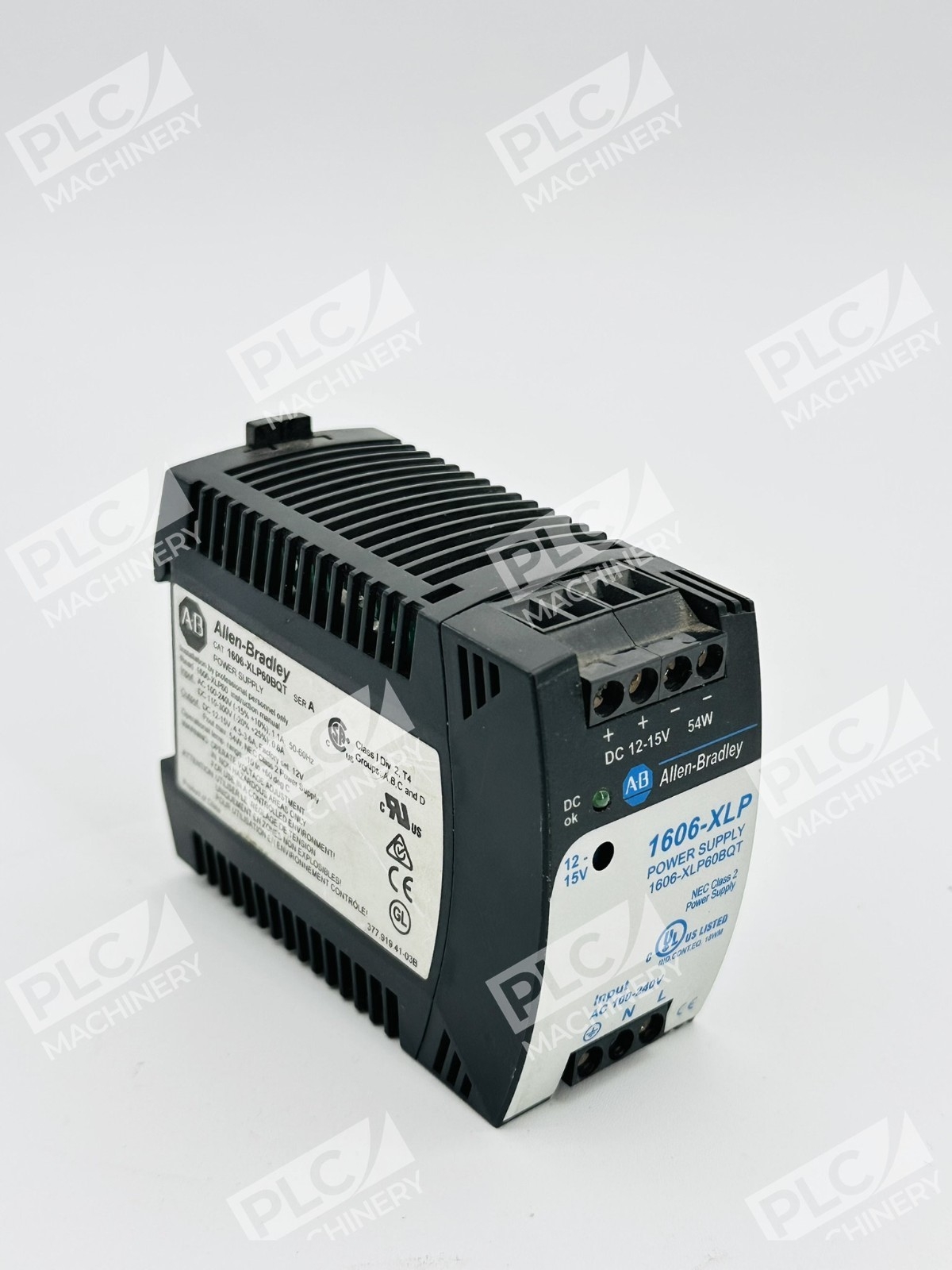

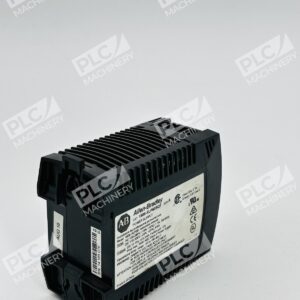

The Allen-Bradley 1606-XLP60BQT is a compact, single-phase industrial switching-mode power supply designed for demanding automation and control applications. Part of the proven 1606-XLP series, this unit combines flexible dual-input capability with consistent 12-15VDC regulated output, making it a trusted choice for engineers building resilient automation systems. The low-temperature design extends operational reliability in compact control panels and industrial enclosures.
Key Features
- Accepts universal AC input (100-240VAC) or DC input (110-300VDC) – single power supply, no input selector needed
- 54W rated output at 4.5A, with 0.87 efficiency for stable, thermally efficient operation
- Compact form factor fits tight DIN-rail and panel-mount spaces without sacrificing performance
- Low-temperature design rated to -40°C for cold-environment industrial control installations
- Supports redundancy modules for dual power supply backup configurations
- Certified to CE, CUL, UL, C-TICK, GOST, KC, and MARINE standards for global deployment
Technical Specifications
- Input Voltage: 100-240VAC, 110-300VDC
- Output Voltage: 12-15VDC
- Output Current: 4.5A
- Power Rating: 54W
- Efficiency: 0.87
- Number of Phases: 1-Phase
- Operating Temperature: -40°C to +70°C
- Certifications: CE, CUL, UL, C-TICK, GOST, KC, MARINE
- Weight: 0.7 lbs
- UPC: 885630159621
Typical Applications
The 1606-XLP60BQT serves diverse industrial control requirements including:
- Control system power backup and redundancy (with optional redundancy modules)
- Sensor and I/O module supply in compact PLC panels
- Emergency lighting and safety circuit power
- Low-voltage logic and field device supply in harsh manufacturing environments
- Cold-storage and outdoor control cabinet installations requiring extended temperature range
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix and ControlLogix systems
- Siemens S7-1200 and S7-1500 control networks
- Mitsubishi FX and Q-series PLC platforms
- Omron CP and CJ-series controllers
- Industrial automation systems requiring 12VDC logic supply
- 1606-XLP redundancy modules (for dual power configurations)
Replaces / Drop-In Replacement For
The 1606-XLP60BQT is the 12VDC/54W variant of the 1606-XLP compact power supply family. Verify compatibility with your system integrator before ordering, as output voltage selection is critical—related models in the series include the 1606-XLP60EQT (24-48VDC output) and 1606-XLP60BQ (60W rating), which operate on different voltage profiles.
Works With
- Studio 5000 Logix Designer (for commissioning integrated automation systems)
- TIA Portal (for cross-platform system integration)
- Ethernet/IP and PROFINET industrial networks
- EtherCAT and other real-time control protocols requiring synchronized 12VDC rail power
- Dual-supply (N+1) redundancy configurations using 1606 accessory modules
