Overview

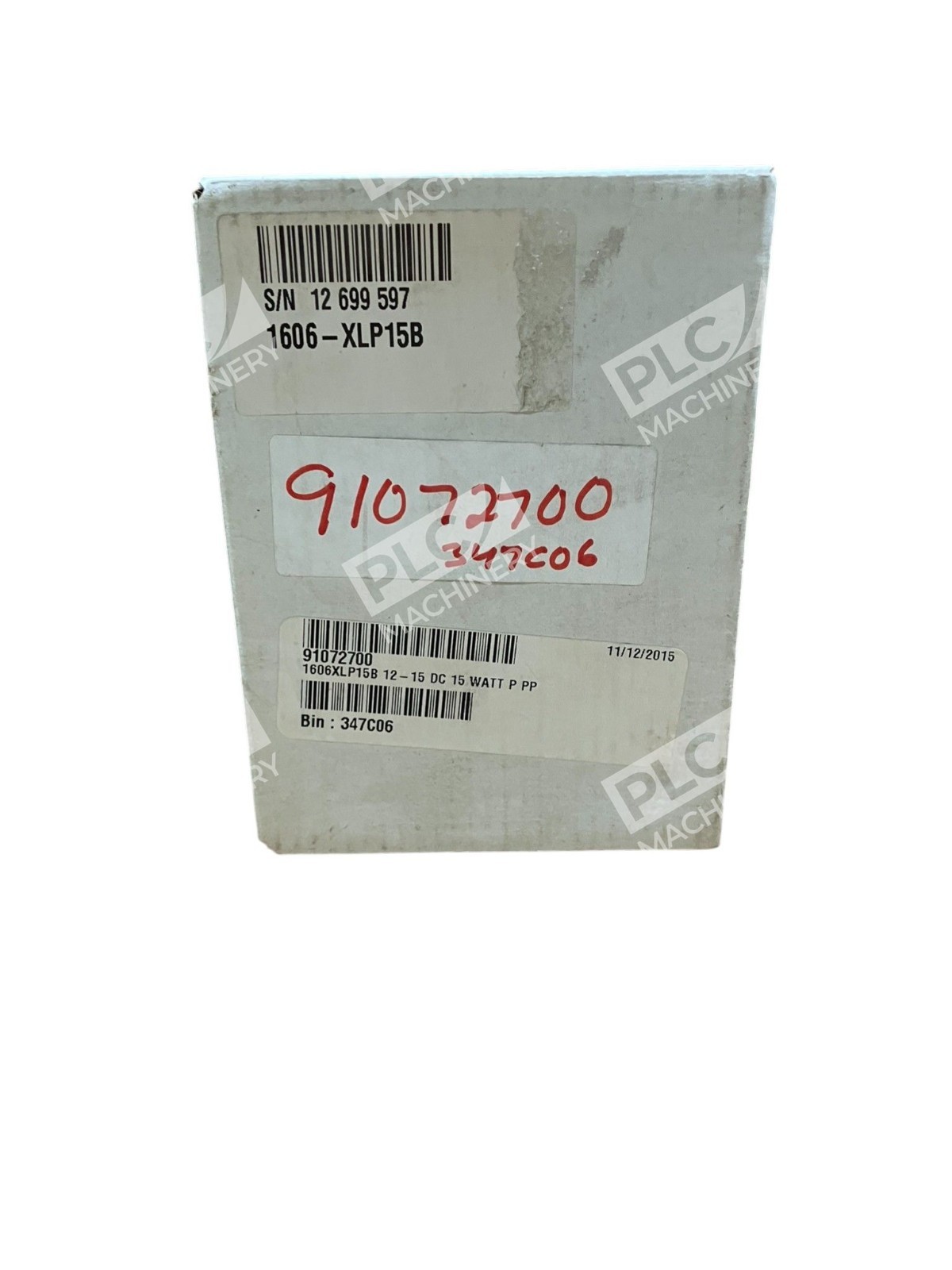

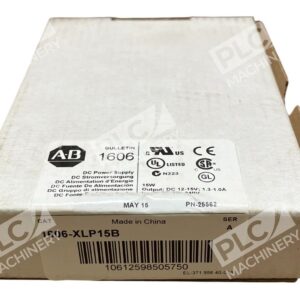

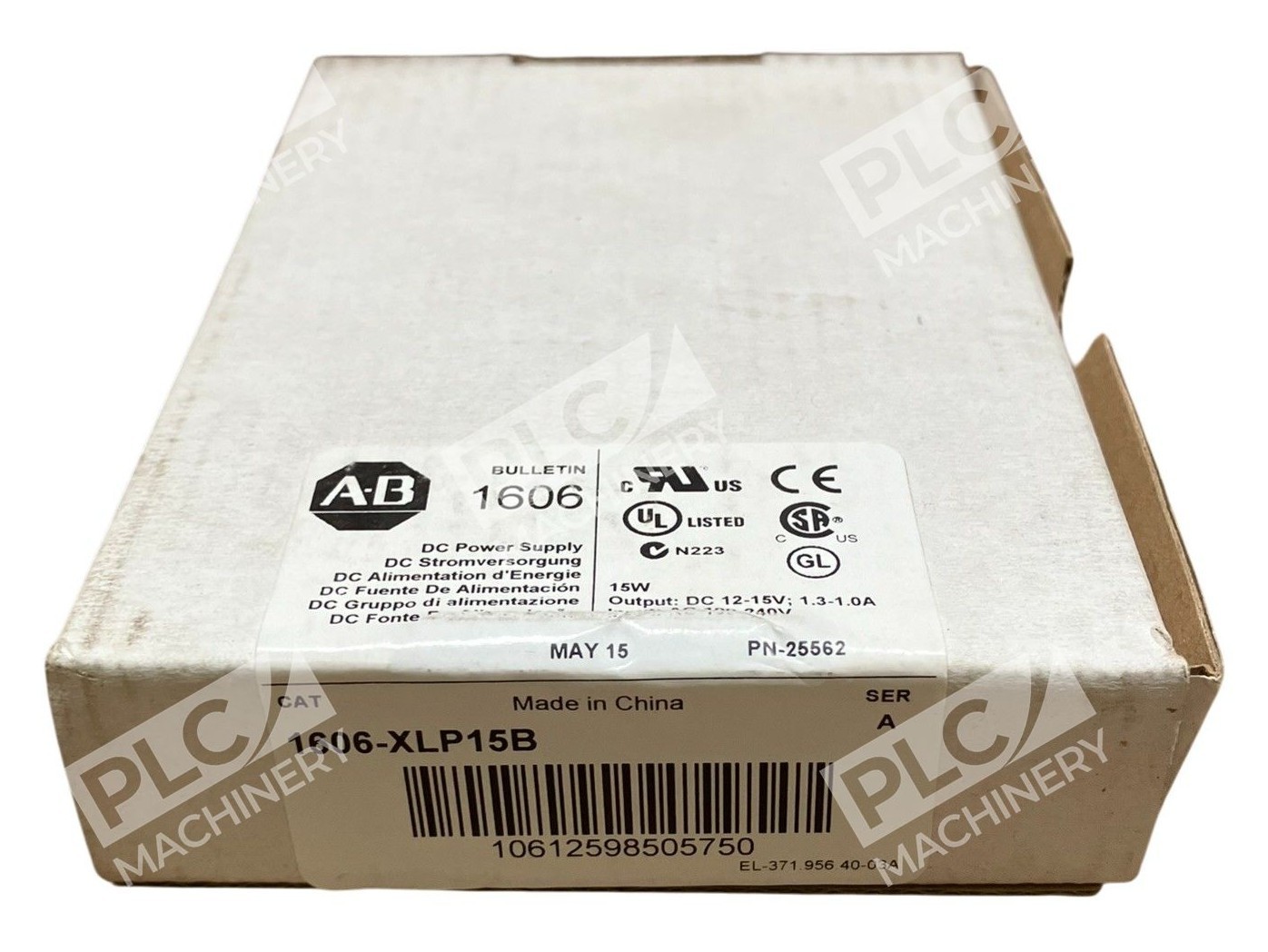

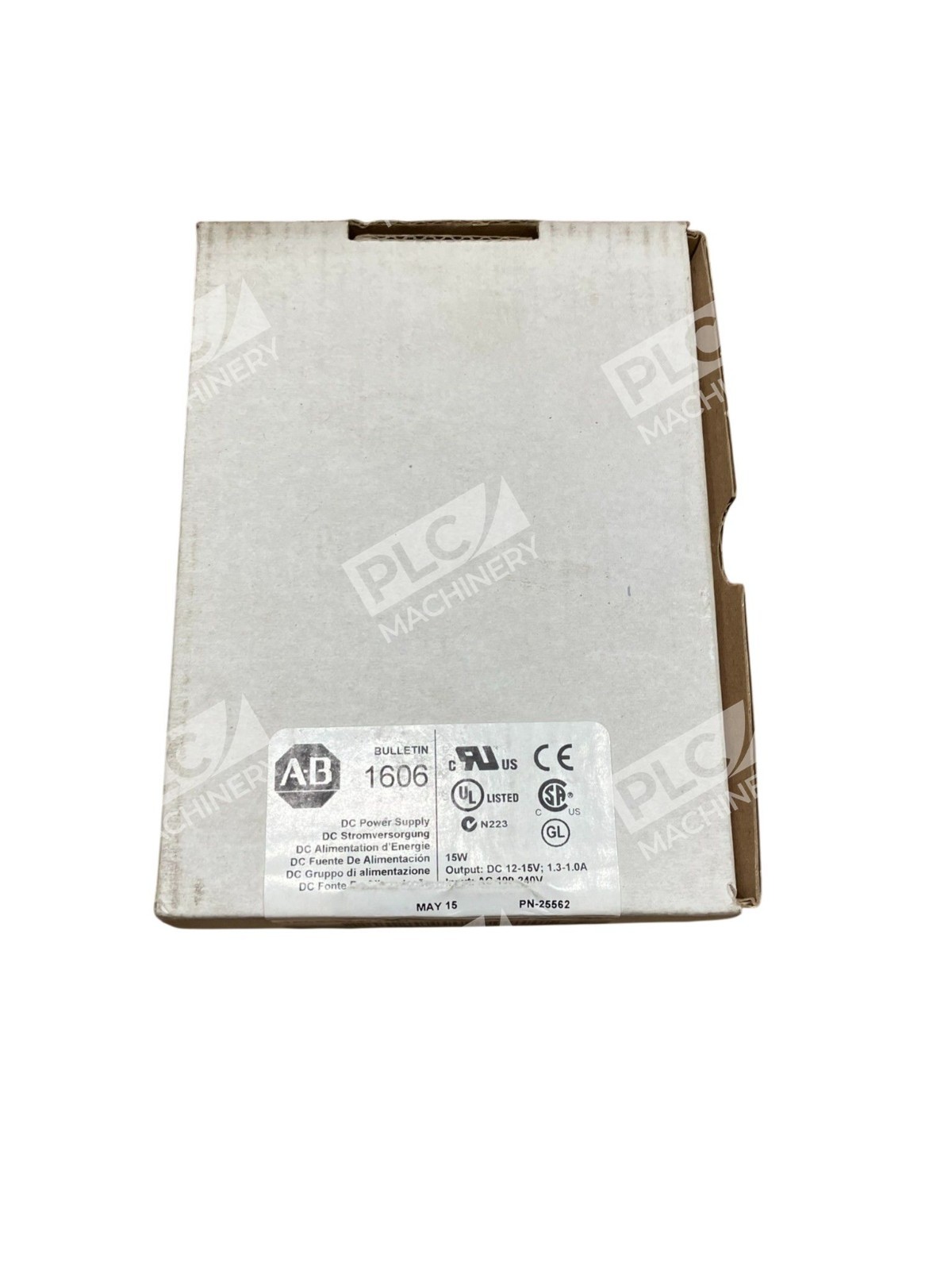

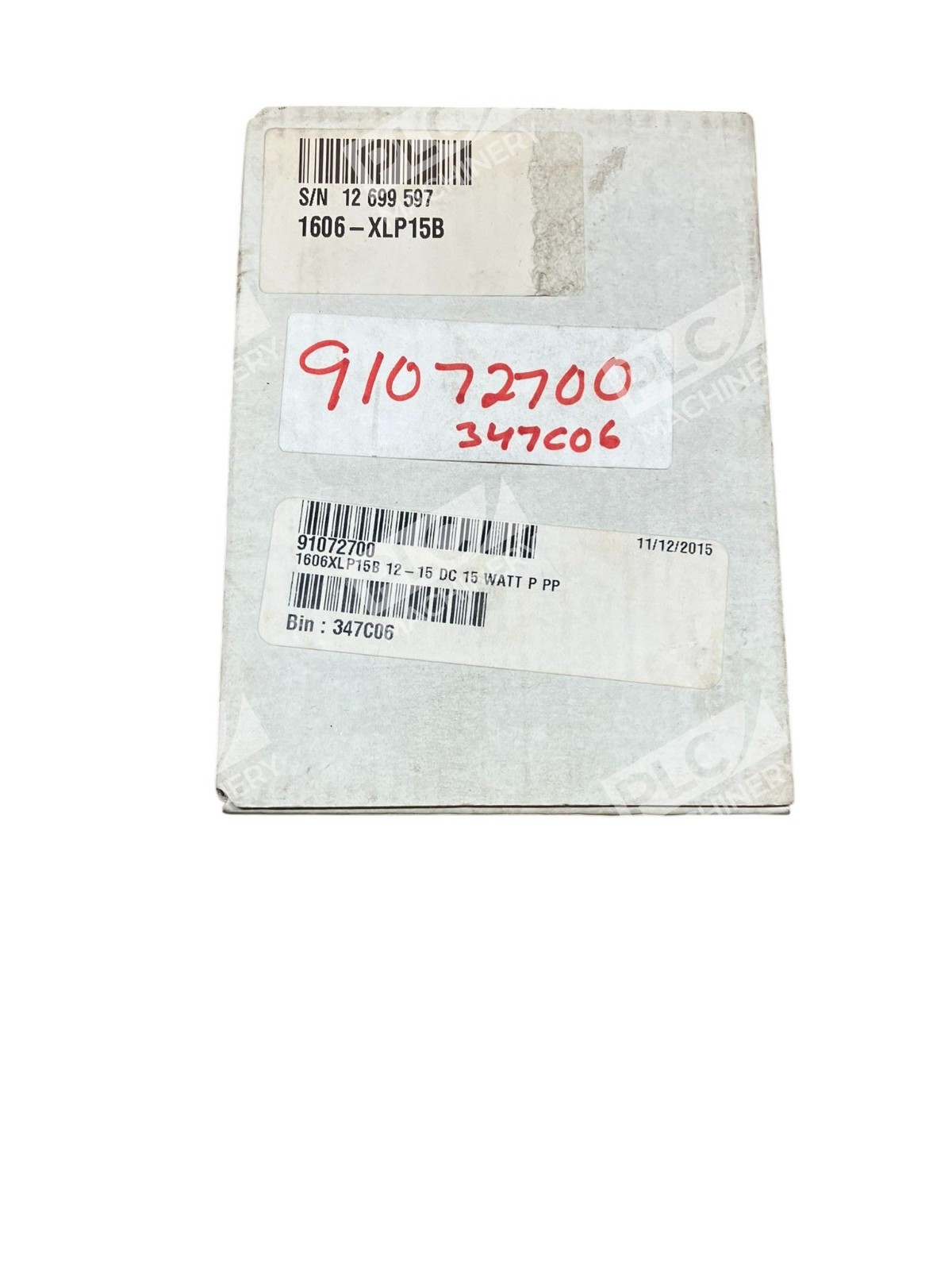

The Allen-Bradley 1606-XLP15B is a compact switched-mode power supply designed for industrial control and automation systems. This unit delivers nominal 12V output (adjustable 12–15V) at up to 1.3A continuous current, making it suitable for small to medium-load PLC modules, safety relays, and auxiliary control circuits. The 1606-XLP15B accepts both AC (100–240V) and DC (85–375V) input, allowing flexible installation in diverse cabinet environments without the need for separate input conditioning.
Key Features
- Compact DIN rail-mounted enclosure for space-constrained panels
- Wide input voltage range: AC 100–240V and DC 85–375V simultaneous capability
- Regulated 12–15V DC output with onboard potentiometer adjustment
- 15W rated power, 1.3A nominal output current
- Short-circuit proof topology with internal fuse protection
- Multiple certifications: UL 508, UL 60950-1, CSA 22.2 No.107.1, CE, GOST, C-TICK, Marine RINA
- Low ripple and noise (50 mVPP typical)
- Switchable operation from AC or DC input without external switching
Technical Specifications
- Output Voltage (Nominal): 12V DC; adjustable range 12–15V
- Output Current: 1.3A nominal
- Output Power: 15W (39.1 VA)
- AC Input Voltage: 100–240V, 50/60 Hz (1-phase)
- DC Input Voltage: 85–375V
- Ripple and Noise: 50 mVPP maximum
- Mounting: DIN rail (35 mm), direct screw terminals
- Terminal Type: Screw/spring clamp
- Operating Temperature: 0–60°C (32–140°F) at full load; derating from 60–70°C
- Weight: 0.35 lbs (160 g)
- Certifications: UL 508, UL 60950-1, CSA 22.2 No.107.1, CE Mark, GOST R, C-TICK, Marine RINA, Class I Div 2 (HazLoc)
- Series: 1606-XLP
- Protection: Short-circuit proof; internal fuse protection
Typical Applications
- PLC discrete input/output modules and safety controllers requiring 12V auxiliary power
- Industrial control enclosures and motor control centers
- Communication and instrumentation equipment
- Safety function applications in non-hazardous environments
- Backup power for field devices in distributed control systems
- OEM panel assemblies requiring compact, multi-input power conditioning
Compatibility & Replacements
The 1606-XLP15B is part of Rockwell Automation’s industry-standard 1606 Bulletin compact power supply family. It is backward-compatible with legacy Allen-Bradley control systems requiring 12V auxiliary power. The unit integrates seamlessly with CompactLogix, MicroLogix, and SLC-500 architectures when properly fused and current-limited per installation guidelines. For applications requiring higher current capacity, consider the 1606-XLP30B (4.2A, 50W) or 1606-XLP50B (4.5A, 54W) variants. Always verify output current and power requirements before substitution. Installation must follow Rockwell Automation publication 1606-IN021 and site-specific electrical codes.
