Overview

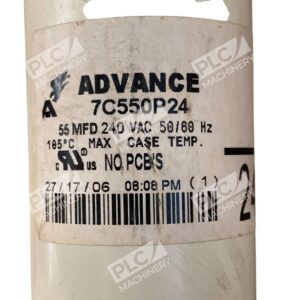

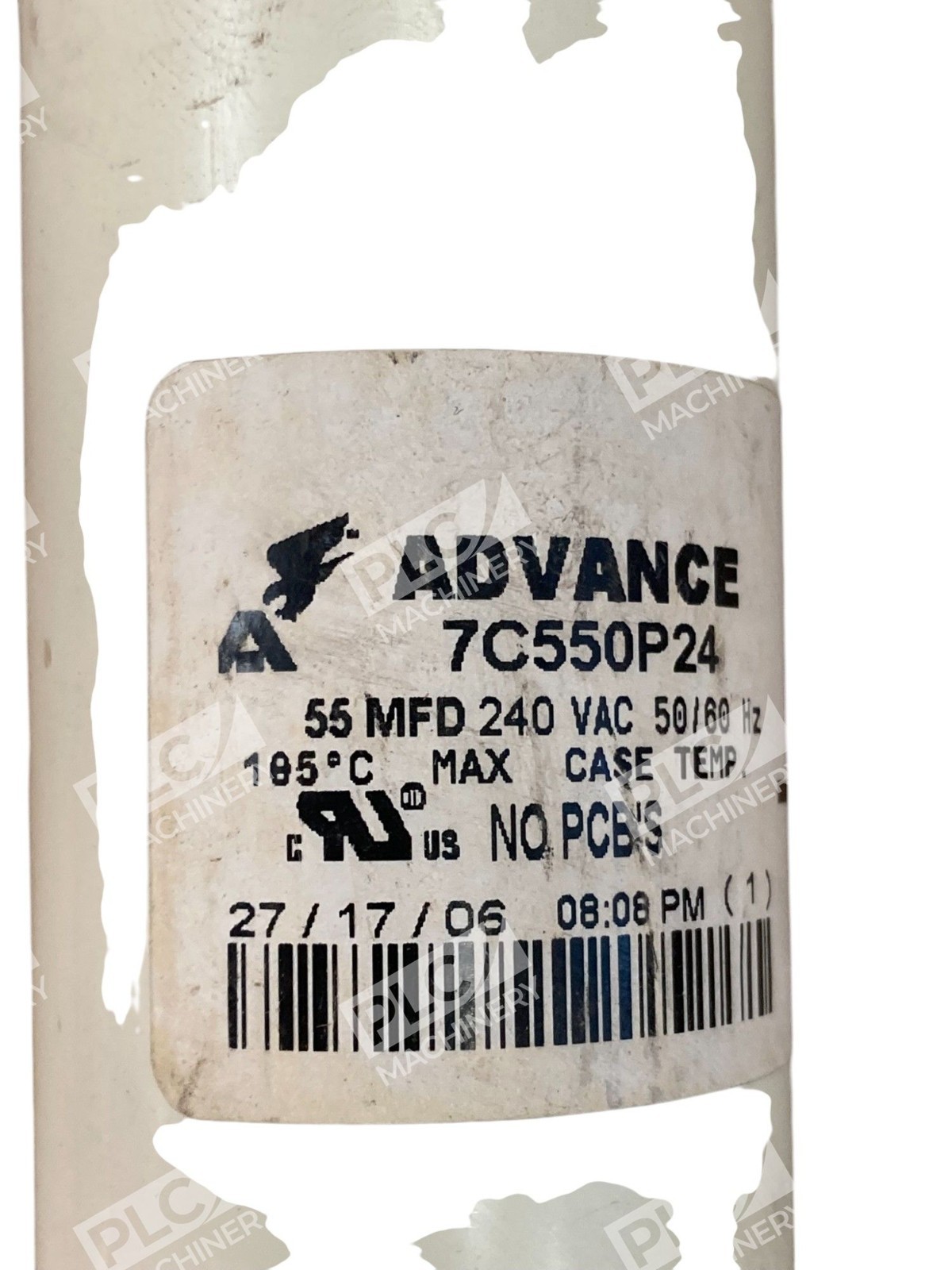

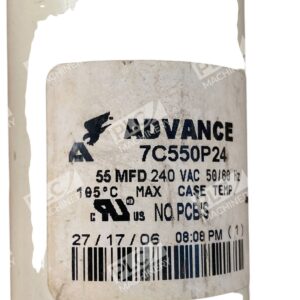

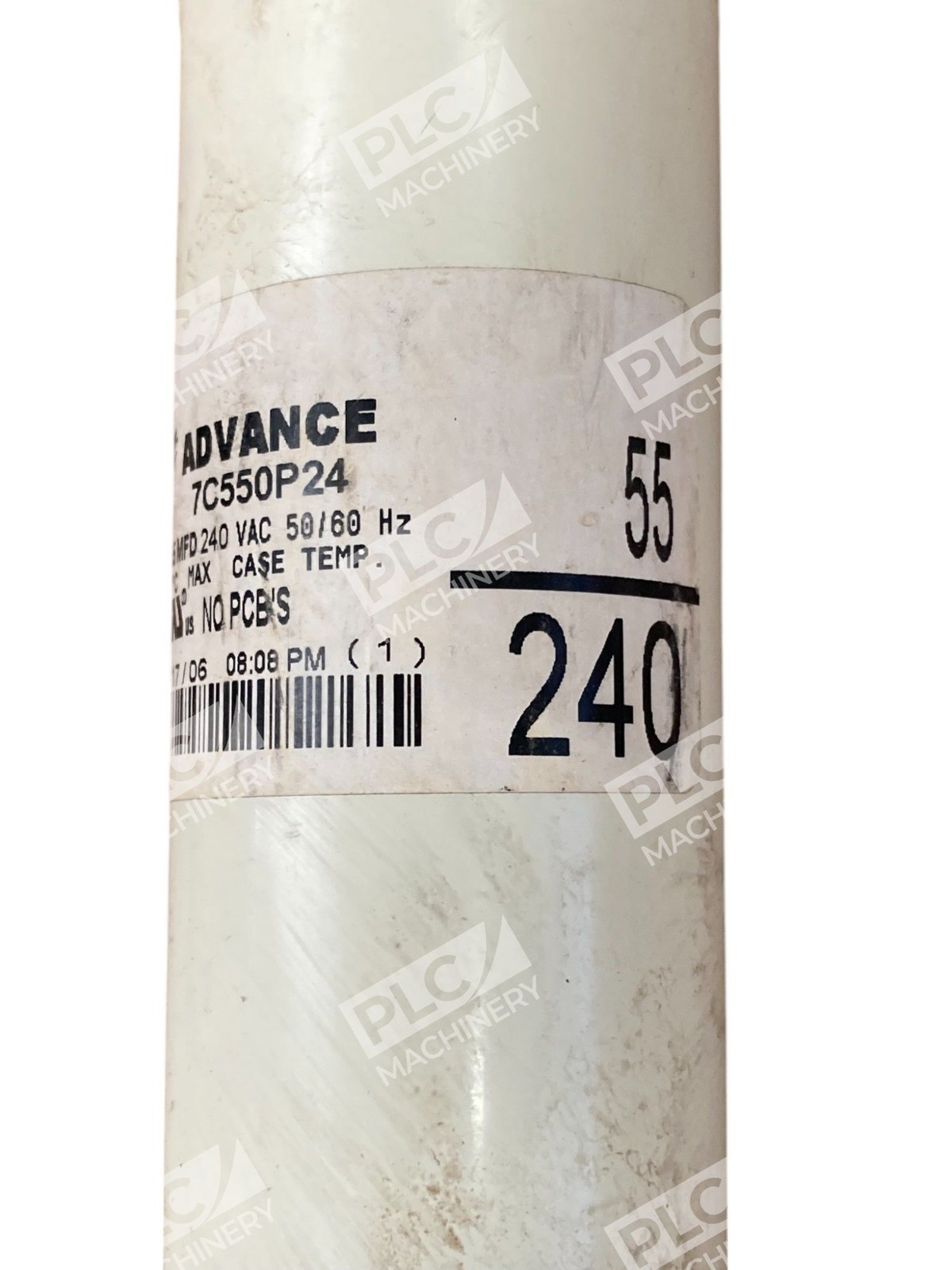

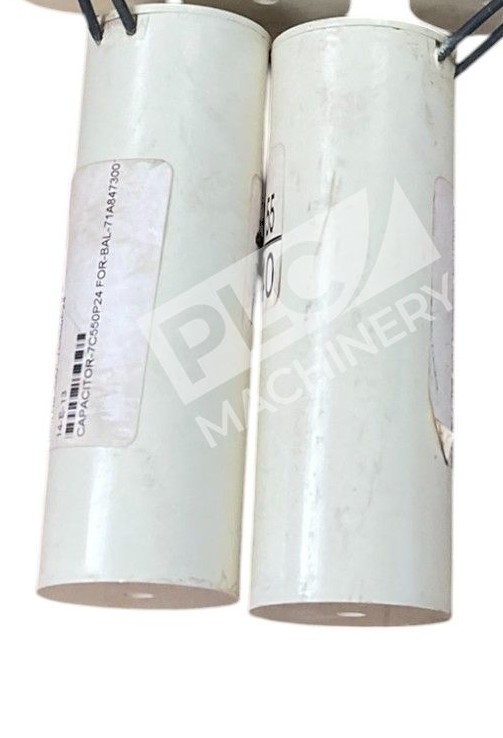

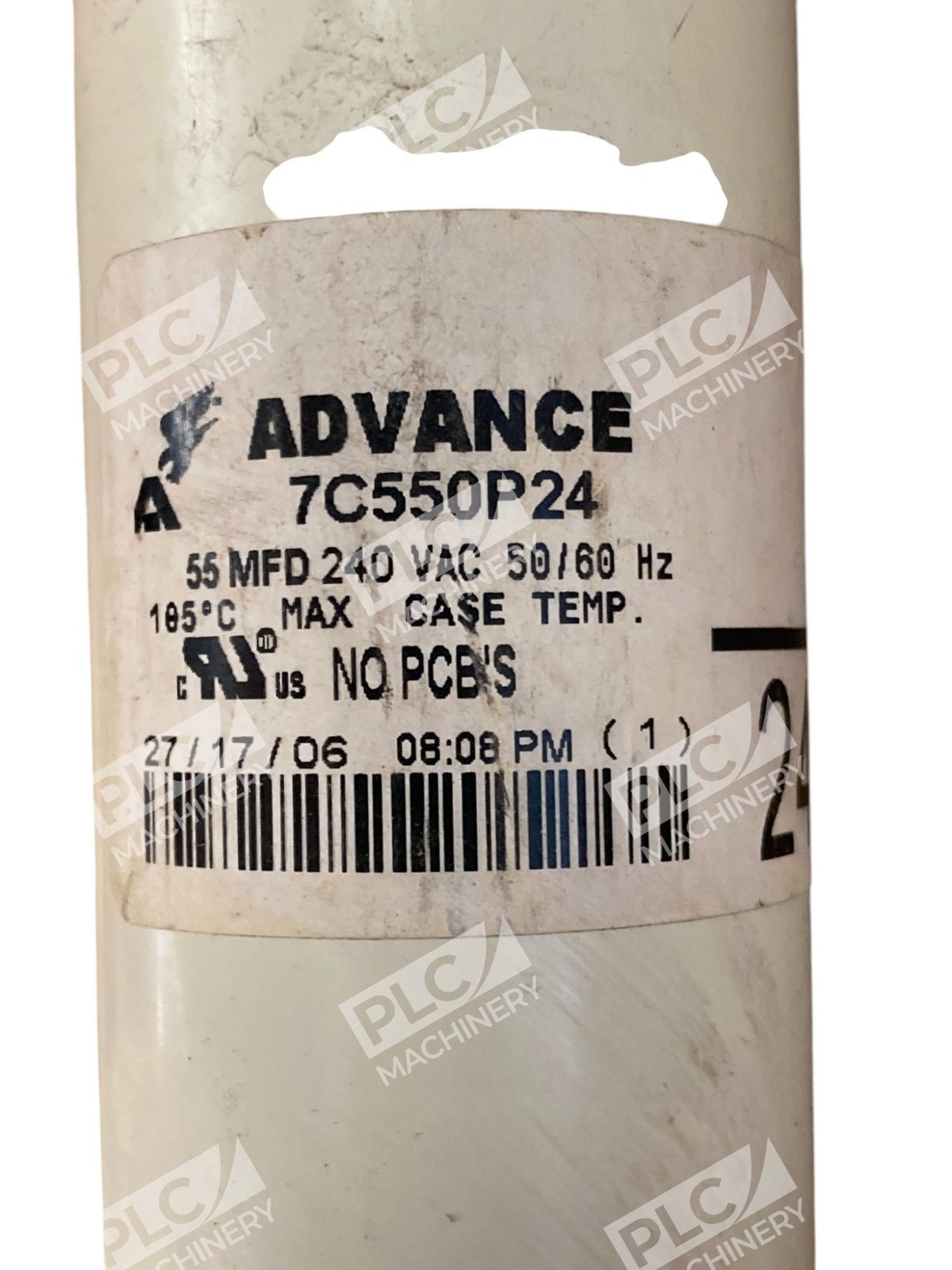

The Advance 7C550P24 is a dry-film ballast capacitor engineered for use in HID (high-intensity discharge) lighting systems. This capacitor features 55MFD capacitance and 240VAC voltage rating, designed for high-pressure sodium lamps rated 150W with ANSI codes S55 and S56. The unit operates at 50/60Hz with a maximum case temperature of 105°C. This lot provides two capacitors in new, open-box condition—ideal for replacement or spare stock in lighting ballast applications.
Key Features

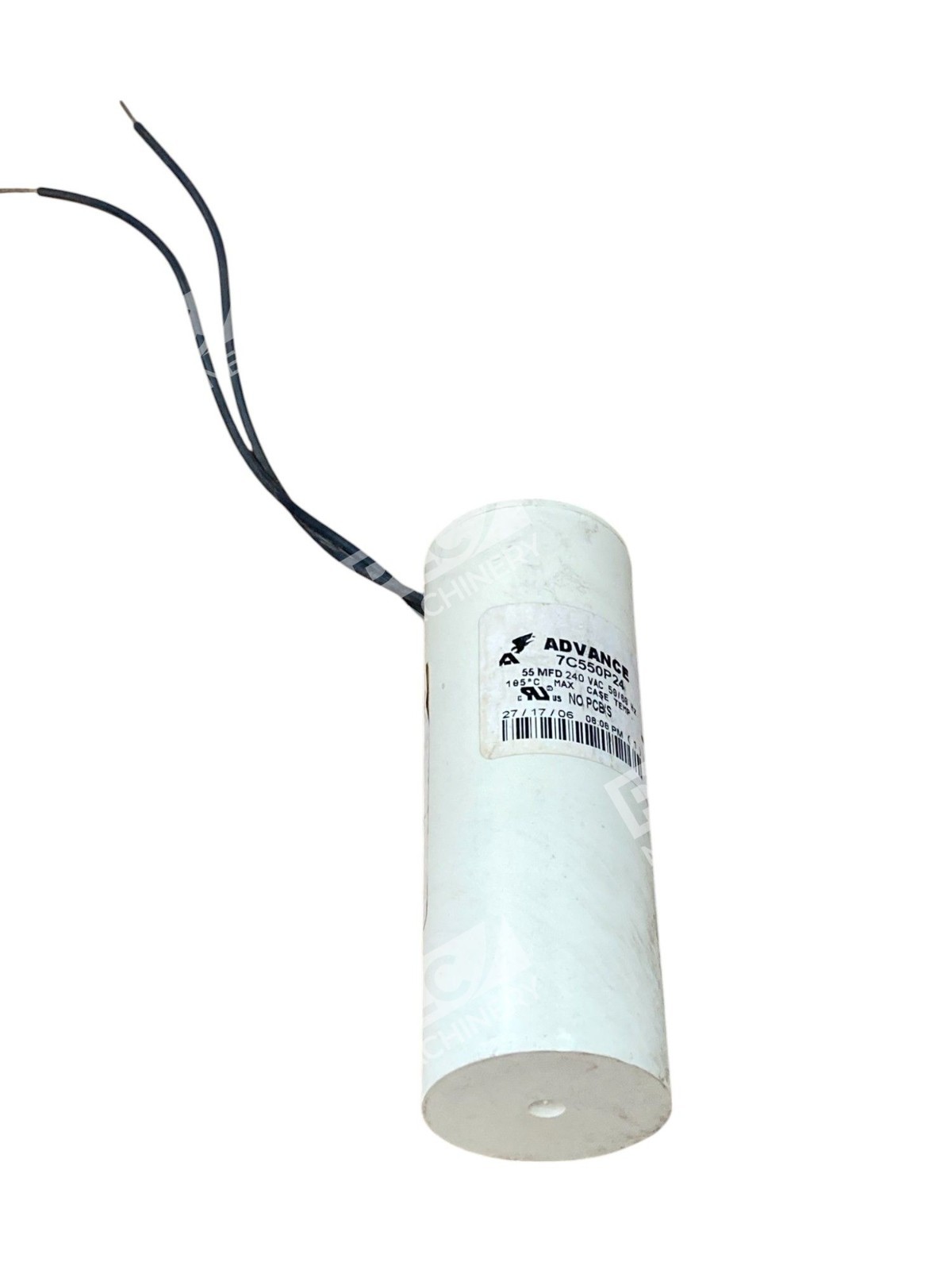

- Dry-film construction with round cylinder case measuring 1.75″ diameter × 5.15″ height
- 50/60Hz compatible for universal installation

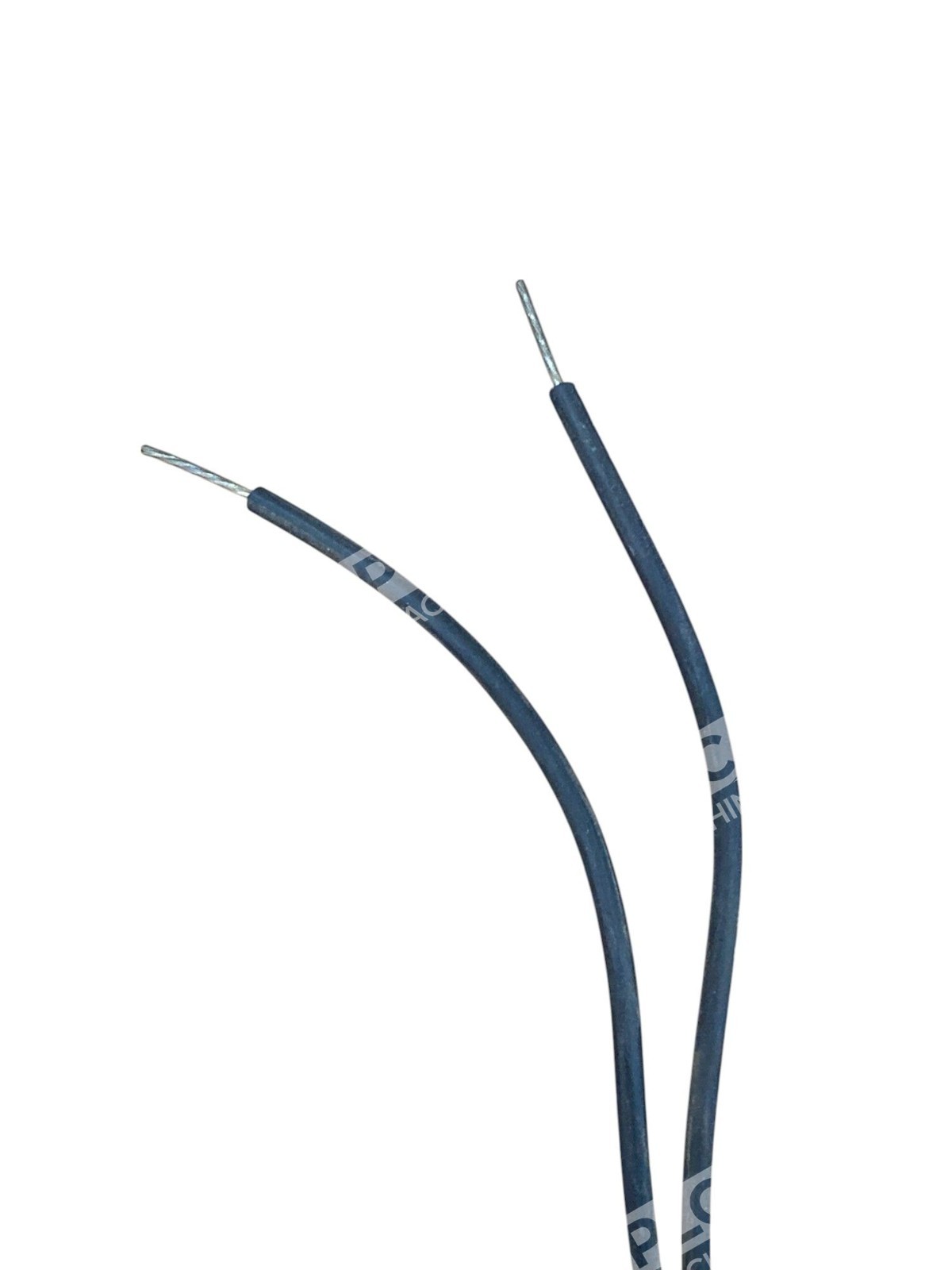

- Supplied with 7-inch wire leads for standard ballast wiring
- Designed for rapid energy release in HID ignition circuits
- Part of proven Advance Transformer family, widely used in commercial and industrial lighting
Technical Specifications
Electrical: 55 MFD capacitance, 240VAC, 50/60Hz operation
Thermal: 105°C maximum case temperature, 210 gram weight
Mechanical: Dry-film metalized construction, round cylinder case 1.75″ diameter × 5.15″ height
Connections: Wire leads (standard 8″ or 7″ variants)
Typical Applications
- High-pressure sodium (HPS) lamp ballast circuits, 150W lamps
- Metal halide HID ballast systems requiring 55MFD capacitance
- Lighting control and power factor correction in commercial fixtures
- Replacement capacitors for existing lighting installations
- Industrial and architectural lighting systems
Compatibility & Replacements
Compatible With
- ADVANCE TRANSFORMER ballast family 71A81 (HPS 150W)
- Standard 240VAC 50/60Hz HID ballast circuits
- High-pressure sodium and metal halide lamp systems
- OEM and aftermarket HID lighting fixtures
Replaces / Drop-In Replacement For
- 7C550P24RA (Advance variant with internal bleed resistor)
- Original equipment manufacturer (OEM) 55MFD 240VAC ballast capacitors
- ECG equivalent dry-film capacitors rated 55 µF @ 240VAC
Works With
- All 240VAC single-phase ballast systems
- Mercury, metal halide, and high-pressure sodium ballast designs
- Standard 8-inch and 7-inch lead wiring configurations
- 50/60Hz utility power in North American and international installations
